Dake Hydraulic Presses

Dake H-frame hydraulic presses give you steady, controlled force for pressing, bending, and straightening. Choose from 10 to 160 tons of capacity.

We also carry Dake Arbor Presses for lighter bench pressing, broaching, and assembly work.

  • Dake Dake M-20 20-Ton Manual H-Frame Hydraulic Press
    $ 3,135.00

    Dake M-20 20-Ton Manual H-Frame Press Pressing bearings, bushings, and pins takes steady force, and not every shop wants to run power to a press....

    View full details

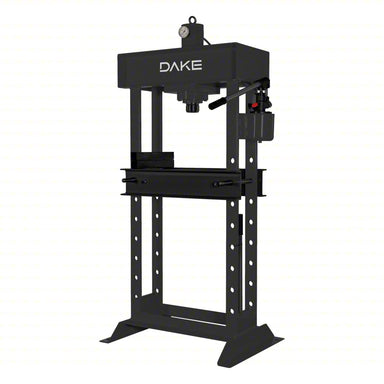

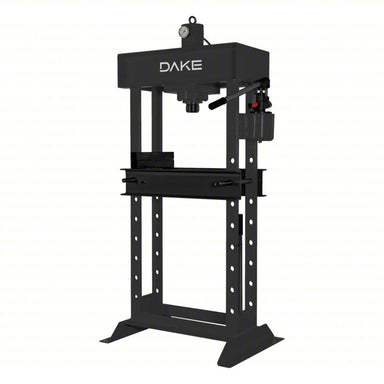

  • Dake Dake M-30 30-Ton Manual H-Frame Hydraulic Press
    $ 3,405.00

    Dake M-30 30-Ton Manual H-Frame Press Pressing bearings, straightening shafts, and bending stock all call for steady force you can control. The D...

    View full details

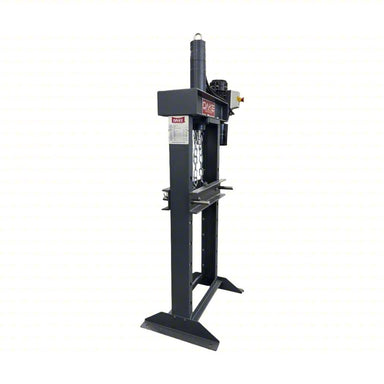

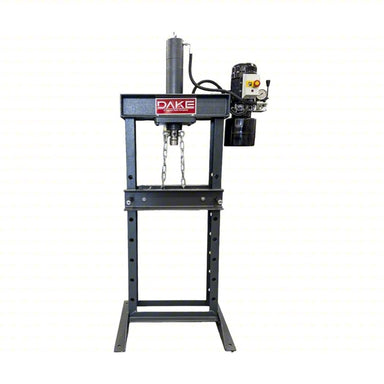

  • Dake Dake E-10 10-Ton Electric H-Frame Hydraulic Press
    $ 4,944.50

    Dake E-10 10-Ton Electric H-Frame Press Hand pumping a press through a long run of bearing or bushing work wears you down and slows the job. The D...

    View full details
  • Dake Dake EM-20 20-Ton Electric & Manual H-Frame Hydraulic Press
    $ 6,265.00

    Dake EM-20 20-Ton Electric & Manual H-Frame Press Pressing bearings and straightening bent parts by hand is slow work on a long run of jobs. T...

    View full details

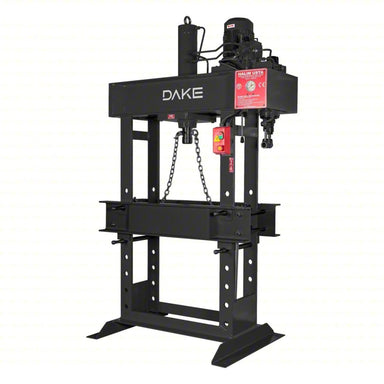

  • Dake Dake EM-30 30-Ton Electric & Manual H-Frame Hydraulic Press
    $ 7,115.00

    Dake EM-30 30-Ton Electric & Manual H-Frame Press Pressing bearings and straightening bent parts by hand is slow work that wears you down over...

    View full details

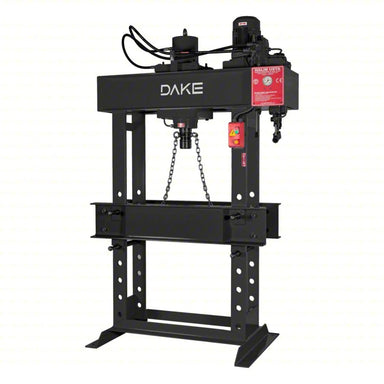

  • Dake Dake EM-60 60-Ton Electric & Manual H-Frame Hydraulic Press
    $ 12,095.00

    Dake EM-60 60-Ton Electric & Manual H-Frame Press Pressing heavy parts with a hand pump alone is slow, tiring work. The Dake EM-60 60-Ton Elec...

    View full details

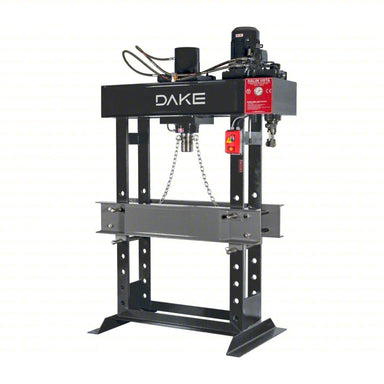

  • Dake Dake EM-80 80-Ton Electric & Manual H-Frame Hydraulic Press
    $ 13,525.00

    Dake EM-80 80-Ton Electric & Manual H-Frame Press Heavy pressing and straightening work needs steady force and a frame built to take the load....

    View full details

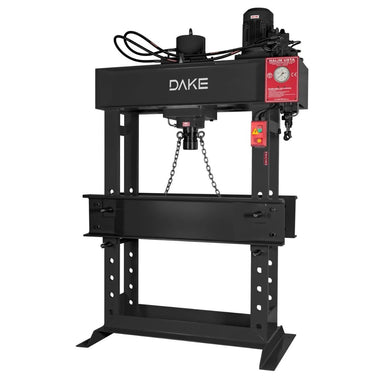

  • Dake Dake EM-100 100-Ton Electric & Manual H-Frame Hydraulic Press
    $ 15,945.00

    Dake EM-100 100-Ton Electric & Manual H-Frame Press Heavy pressing work slows down when one press cannot handle both fast strokes and careful ...

    View full details

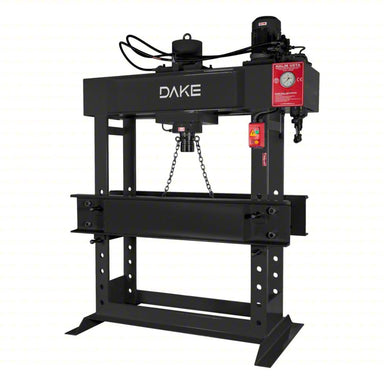

  • Dake Dake EM-120 120-Ton Electric & Manual H-Frame Hydraulic Press
    $ 18,475.00

    Dake EM-120 120-Ton Electric & Manual H-Frame Press Pressing out bearings, straightening shafts, and forming heavy parts takes steady force th...

    View full details

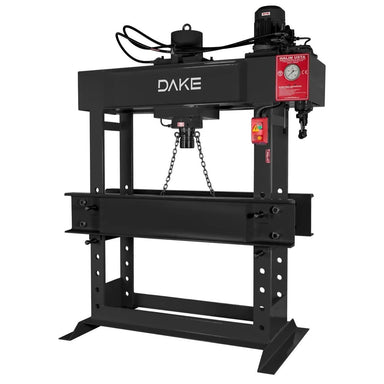

  • Dake Dake EM-160 160-Ton Electric & Manual H-Frame Hydraulic Press
    $ 25,595.00

    Dake EM-160 160-Ton Electric & Manual H-Frame Press Heavy shop pressing takes steady force and a table you can set at the right height. The Da...

    View full details

Choosing the Right Dake Hydraulic Press

The right Dake hydraulic press comes down to tonnage, power type, and how much room you need between the ram and table. Use the guide below to match each model to your work.

Compact Dake Hydraulic Presses

These presses handle up to 30 tons for bearing work, straightening, and general shop pressing. Choose manual for hand control with no power needed, or electric for faster strokes on 110V.

Dake M-20 Manual Press

  • Capacity: 20 ton
  • Operation: Manual
  • Ram travel: 6"
  • Max ram to table: 27-1/2"

A simple hand-pumped press for small shops that need 20 tons without running power to the machine.

Dake M-30 Manual Press

  • Capacity: 30 ton
  • Operation: Manual
  • Ram travel: 6"
  • Max ram to table: 27.5"

Adds 10 more tons and a wider frame for shops that want manual control on heavier pressing jobs.

Dake E-10 Electric Press

  • Capacity: 10 ton
  • Operation: Electric, 1HP 110V
  • Ram travel: 10"
  • Max ram to table: 40"

The only 110V electric press in the lineup, with the tallest opening for long shafts and tall parts.


Mid-Range Dake Electric & Manual Hydraulic Presses

These presses run on motor power with hand operation built in, from 20 to 60 tons. Each has a traversing head so you can move the ram across the frame without shifting the work.

Dake EM-20 Press

  • Capacity: 20 ton
  • Motor: 3HP, 220V 3-phase
  • Width between uprights: 27.5"
  • Max ram to table: 35"

Motor power with hand control for shops ready to move past manual pumping at 20 tons.

Dake EM-30 Press

  • Capacity: 30 ton
  • Motor: 3HP, 220V 3-phase
  • Width between uprights: 28"
  • Max ram to table: 35"

Steps up to 30 tons on the same 3HP motor for daily pressing in busy repair shops.

Dake EM-60 Press

  • Capacity: 60 ton
  • Motor: 4HP, 220V 3-phase
  • Width between uprights: 32"
  • Max ram to table: 35"

A 60 ton press with a 32 inch frame for bigger fabrication parts and heavier straightening work.


Heavy-Duty Dake Electric & Manual Hydraulic Presses

These presses cover 80 to 160 tons for fabrication shops and heavy repair work. All run on 220V three-phase power, so plan for the electrical service and floor space before delivery.

Dake EM-80 Press

  • Capacity: 80 ton
  • Motor: 5-1/2HP, 220V 3-phase
  • Cylinder stroke: 400 mm
  • Ram to table: 0 to 900 mm

Moves into heavy-duty work with 80 tons and a double-acting cylinder for controlled pressing and return.

Dake EM-100 Press

  • Capacity: 100 ton
  • Motor: 5.5HP, 220V 3-phase
  • Ram travel: 15.75"
  • Max ram to table: 35"

Delivers 100 tons with a 40 inch frame for wide weldments and heavy bearing work.

Dake EM-120 Press

  • Capacity: 120 ton
  • Motor: 7-1/2HP, 220V 3-phase
  • Cylinder stroke: 400 mm
  • Ram to table: 0 to 900 mm

Adds capacity and a 1,200 mm press bed for shops pressing large parts on a regular basis.

Dake EM-160 Press

  • Capacity: 160 ton
  • Motor: 7.5HP, 220V 3-phase
  • Ram travel: 15.75"
  • Max ram to table: 35.5"

The largest press in the lineup, built for heavy fabrication with 160 tons and a 61 inch frame.


Dake Hydraulic Presses FAQs

What is the difference between a manual and an electric hydraulic press?

A manual press like the Dake M-20 uses a hand pump and needs no power. It suits occasional pressing work. An electric press like the Dake E-10 uses a motor for faster, steadier strokes. The Dake EM series is both motor and hand operated, so you get both options on one machine.

What size hydraulic press do I need?

Size the press to your heaviest regular job and leave some headroom. Presses from 10 to 30 tons cover bearing work, straightening, and general repair. Presses from 60 to 160 tons suit fabrication shops pressing larger parts. Also check the distance between the ram and table to be sure your parts fit.

What power does a Dake hydraulic press need?

The M-20 and M-30 are manual and need no power. The E-10 runs on 110V single-phase power. The EM series presses run on 220V three-phase power. Dake notes the EM-160 should be wired to main service by a qualified electrician.

What does a traversing head do on a hydraulic press?

A traversing head lets you slide the cylinder side to side along the frame. You can line the ram up over the work without moving a heavy part. The EM-20, EM-30, EM-60, and EM-100 all list a traversing head.
