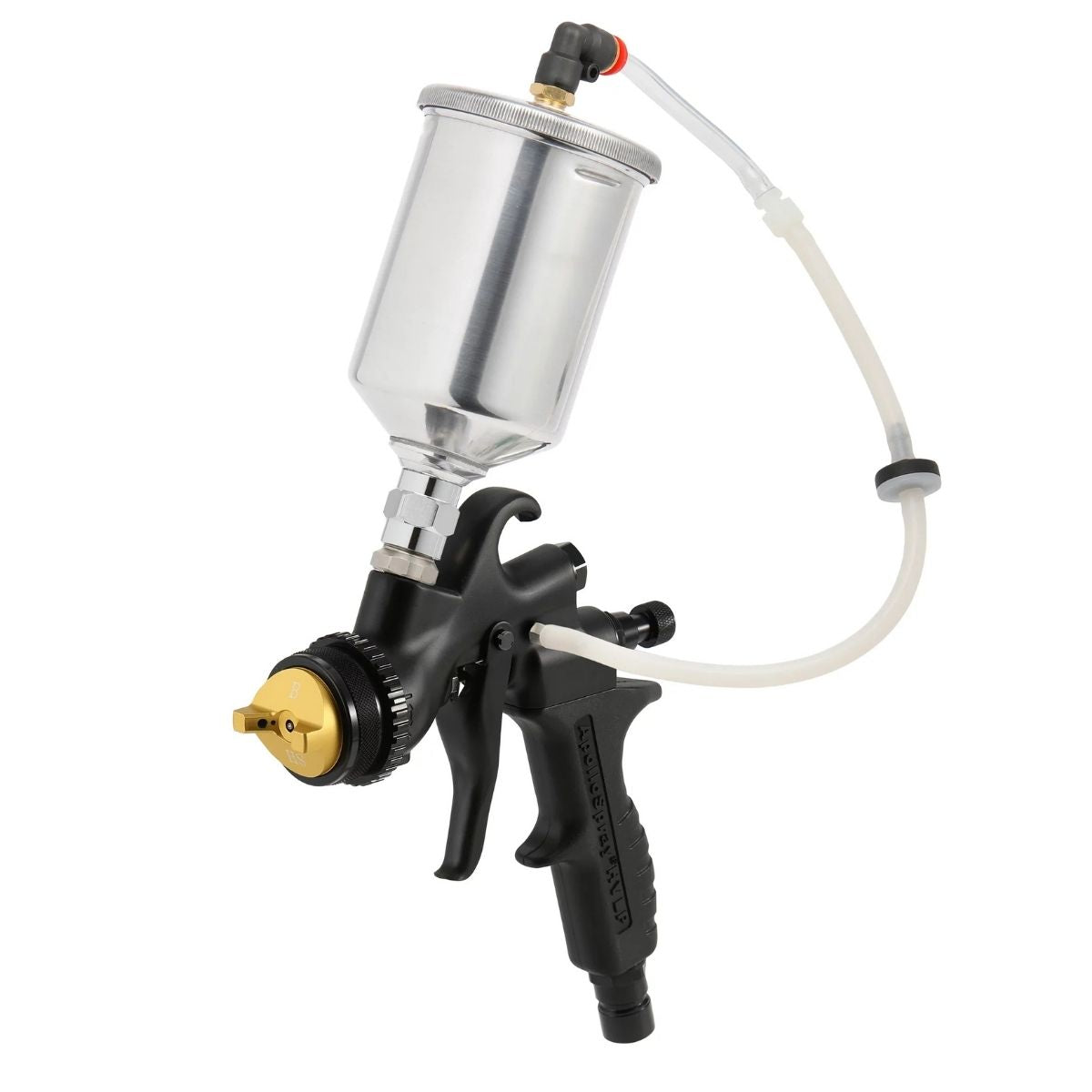

Apollo 7700GT-250 HVLP Turbine Spray Gun with 250cc Non-Teflon Gravity Cup Assembly
The Apollo 7700GT-250 pairs the 7700T Atomizer with an 8 oz gravity cup, giving you more capacity for solvent-based paints and automotive finishes before stopping to refill.
-
8 oz Gravity Cup Holds More Paint Per Fill - Spray longer between refills, built for solvent-based paints and automotive finishes.
-
Turbo Spray Gun Delivers 80+% Transfer Efficiency - Large air passageways cut coating waste compared to compressed air systems.
-
Precision Overspray Control Reduces Wasted Material - Puts more coating on the surface with less wasted paint in the air around it.
-
Fluid Adjustment Marks Lock In Repeatable Settings - Mark your dialed-in fluid output once and return to it exactly on the next job.

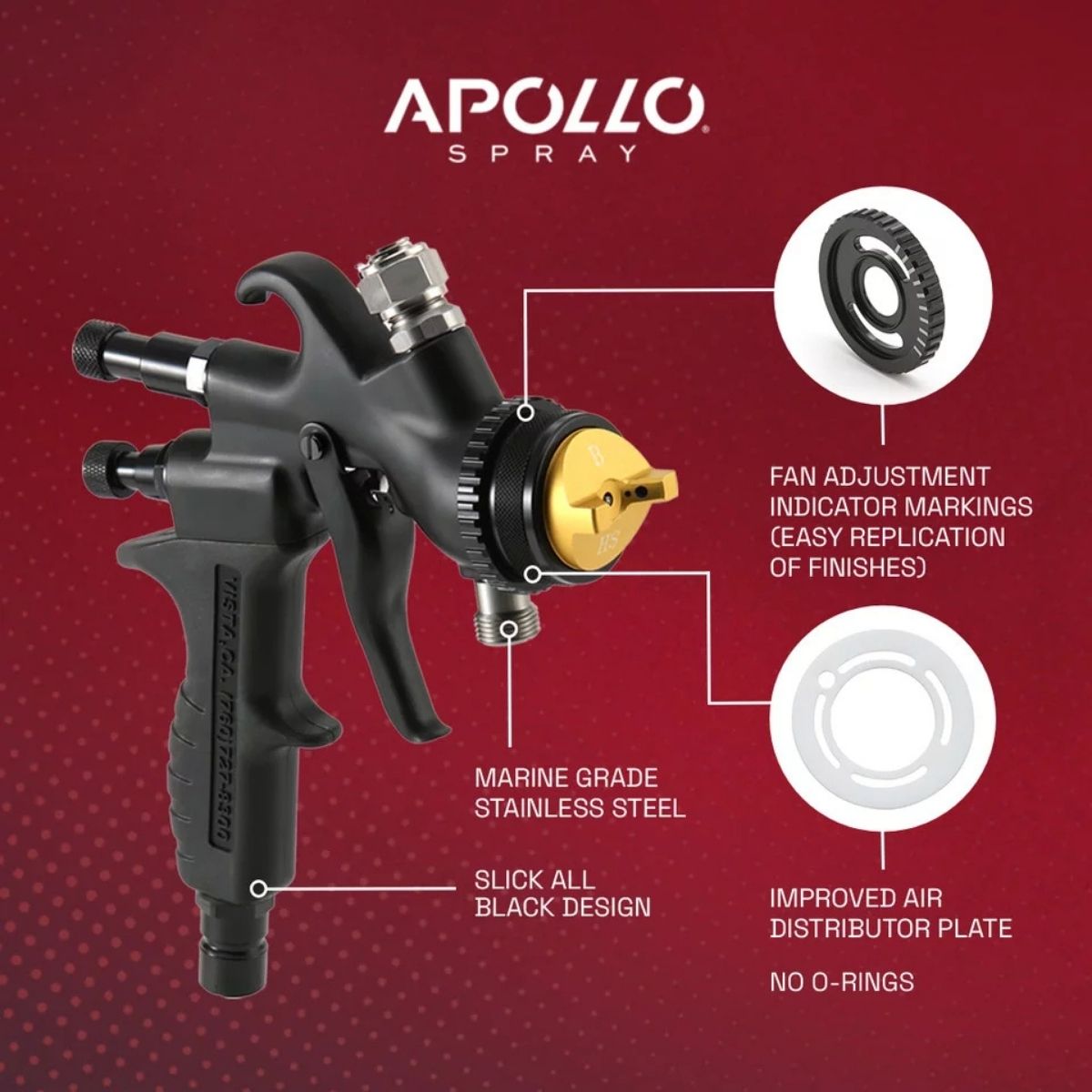

More Reasons to Love the A7700T Atomizer
-
Xpansive™ Fan Control Ring Adds Repeatable Pattern Markings - Dial in a spray pattern and return to that exact setting on the next job.
-
Dual Air and Material Inputs Support Any Setup - Run bleeder or non-bleeder style, with top or bottom cup mounting to match your workflow.
-
MicroTech™ Atomization and New Air Distributor - Work together for finer control over how material breaks down at the tip.
-
Material Adjustment Knob With +/- Control - Fine-tune fluid output without stopping to swap parts.
-
Comfort Cool-Grip Handle - Stays comfortable to hold through long spraying sessions.
-
All Stainless Steel Fluid Parts, No O-Rings - Nothing to dry out or wear out from repeated solvent exposure.
-
Compatible With Pressure Pots - Connects to an optional pressure pot and fluid hose for larger jobs.
Add a Spray Kit for Full Coating Range
The gun ships standard with the B air cap and 1.0mm needle and nozzle. Choose an optional Spray Kit at checkout to add the sizes and caps for whatever you spray next.

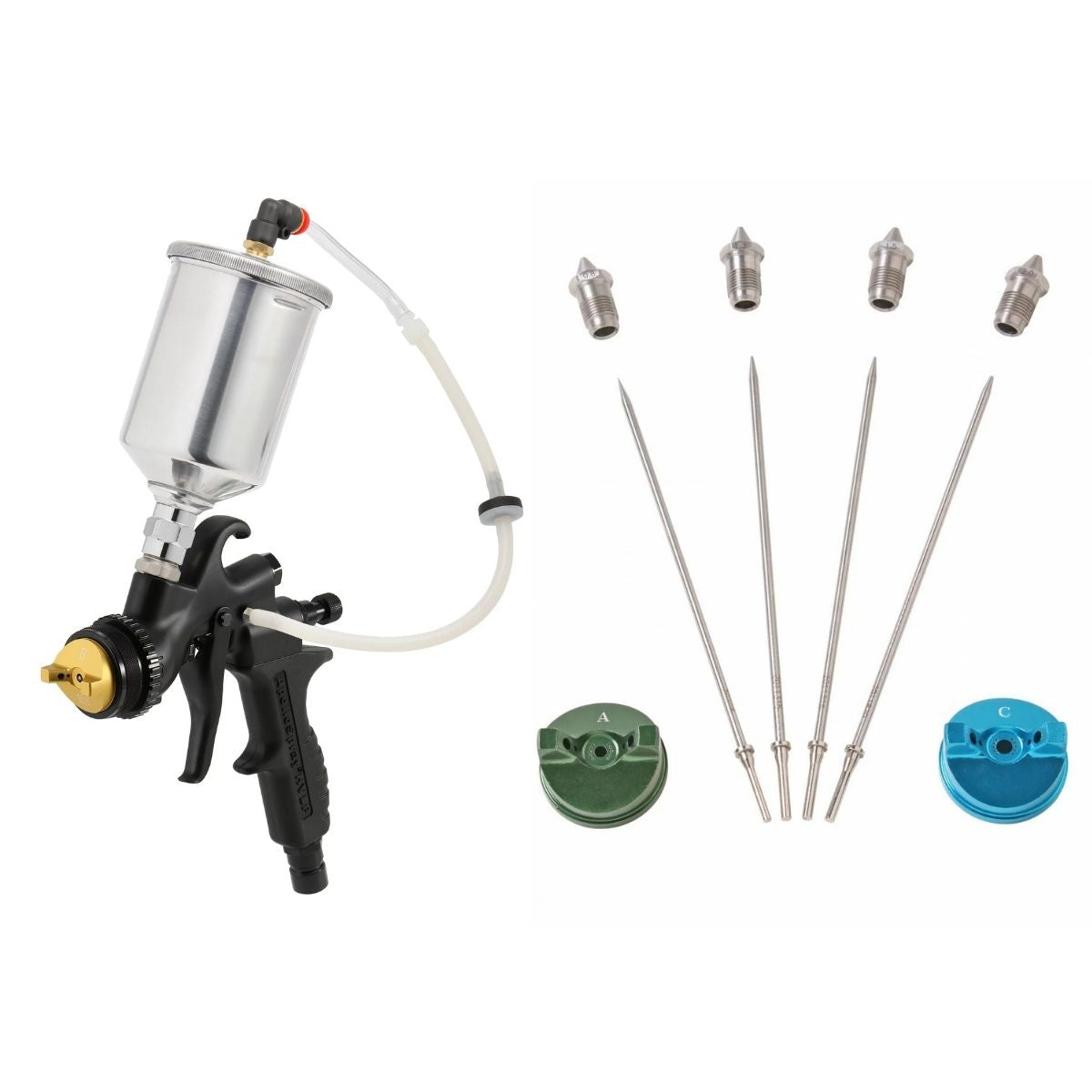

Standard Kit
- 0.8mm, 1.3mm, 1.5mm, 2.0mm sizes
- A and C air caps
- 4 sizes, 2 caps
Built for stains, thin finishes, and thinned latex or heavy primers with the C cap.

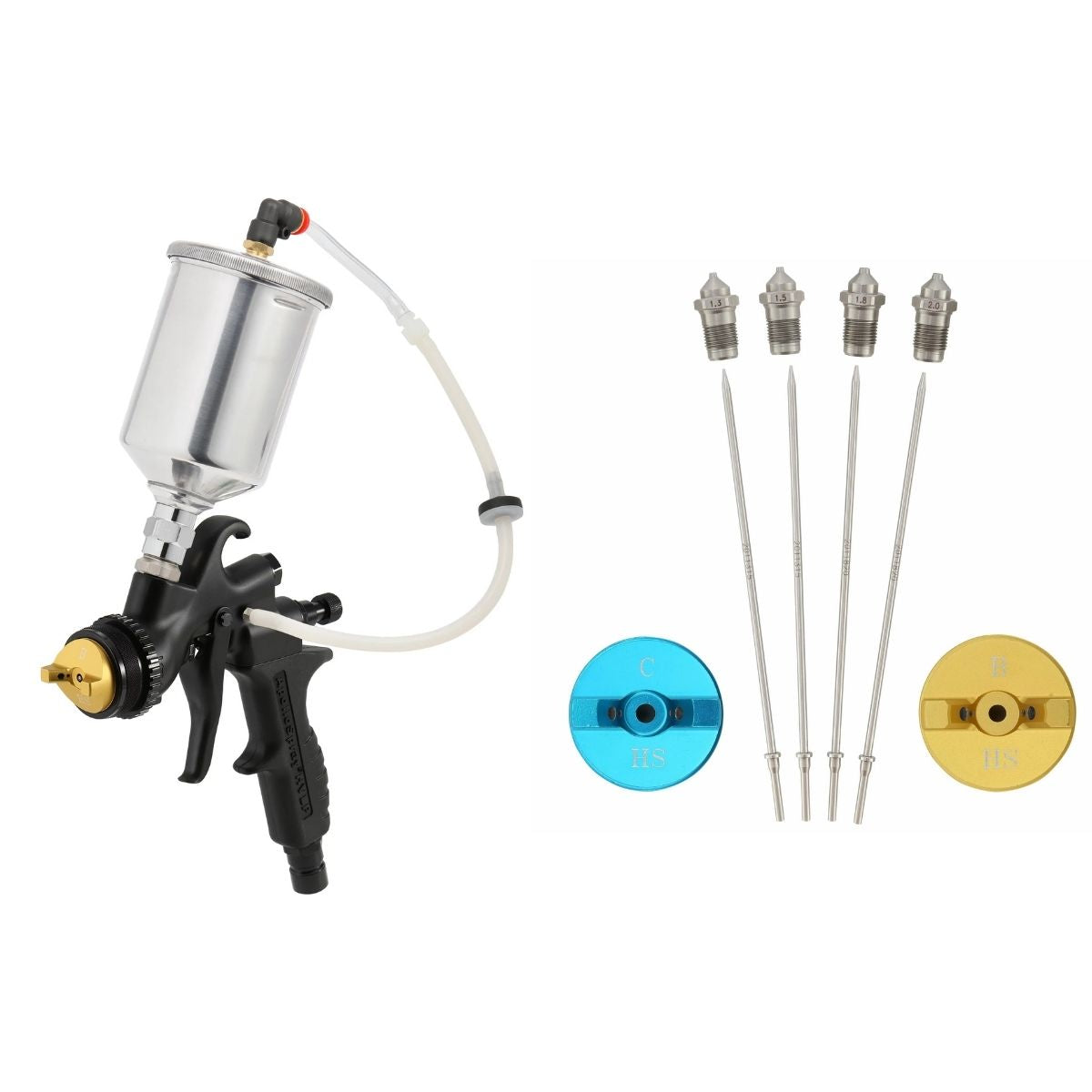

High-Solids Kit
- 1.3mm, 1.5mm, 1.8mm, 2.0mm sizes
- B-HS and C-HS air caps
- 4 sizes, 2 caps
Built for high-solids wood coatings and latex paint on walls, doors, and cabinets.

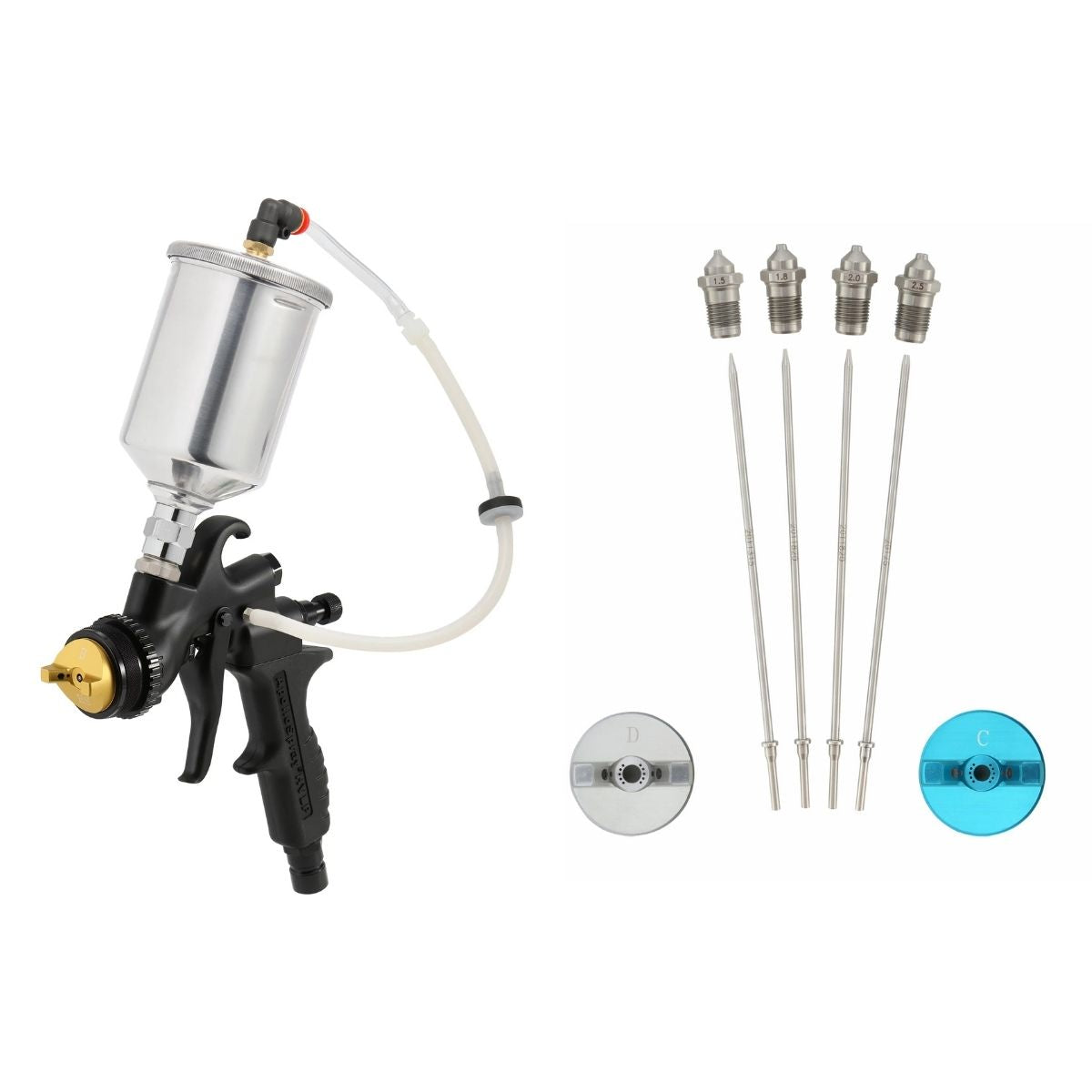

Industrial Kit
- 1.5mm, 1.8mm, 2.0mm, 2.5mm sizes
- C and D air caps
- 4 sizes, 2 caps
Built for heavy primers, industrial coatings, and thinned latex paint.

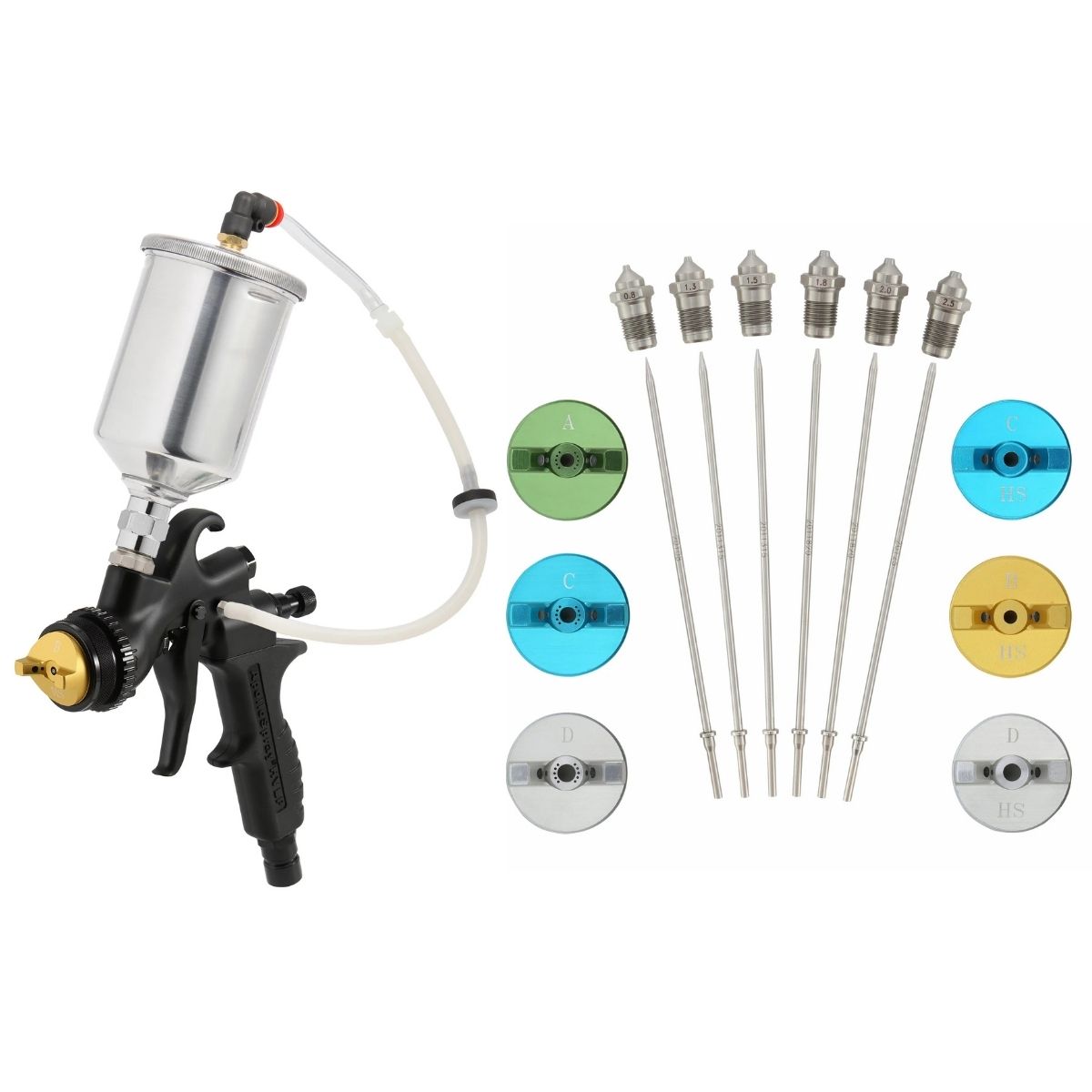

Complete Kit
- 0.8mm to 2.5mm, all 6 sizes
- A, B-HS, C, C-HS, D, D-HS air caps
- 6 sizes, 6 caps
Built for shops that spray a wide range of coatings and want full coverage in one kit.
We'll Help You Keep Your 7700 Running For Years to Come
Advanced Machinery is one of the few Apollo dealers carrying the full range of 7700 Spray Gun parts.
Complete Your 7700 Setup
What's Included
What's Included with the Apollo 7700GT-250 HVLP Turbine Spray Gun with 250cc Non-Teflon Gravity Cup Assembly
-
7700T Atomizer Gun — Ships ready to spray with the B air cap and 1.0mm nozzle and needle installed.
-

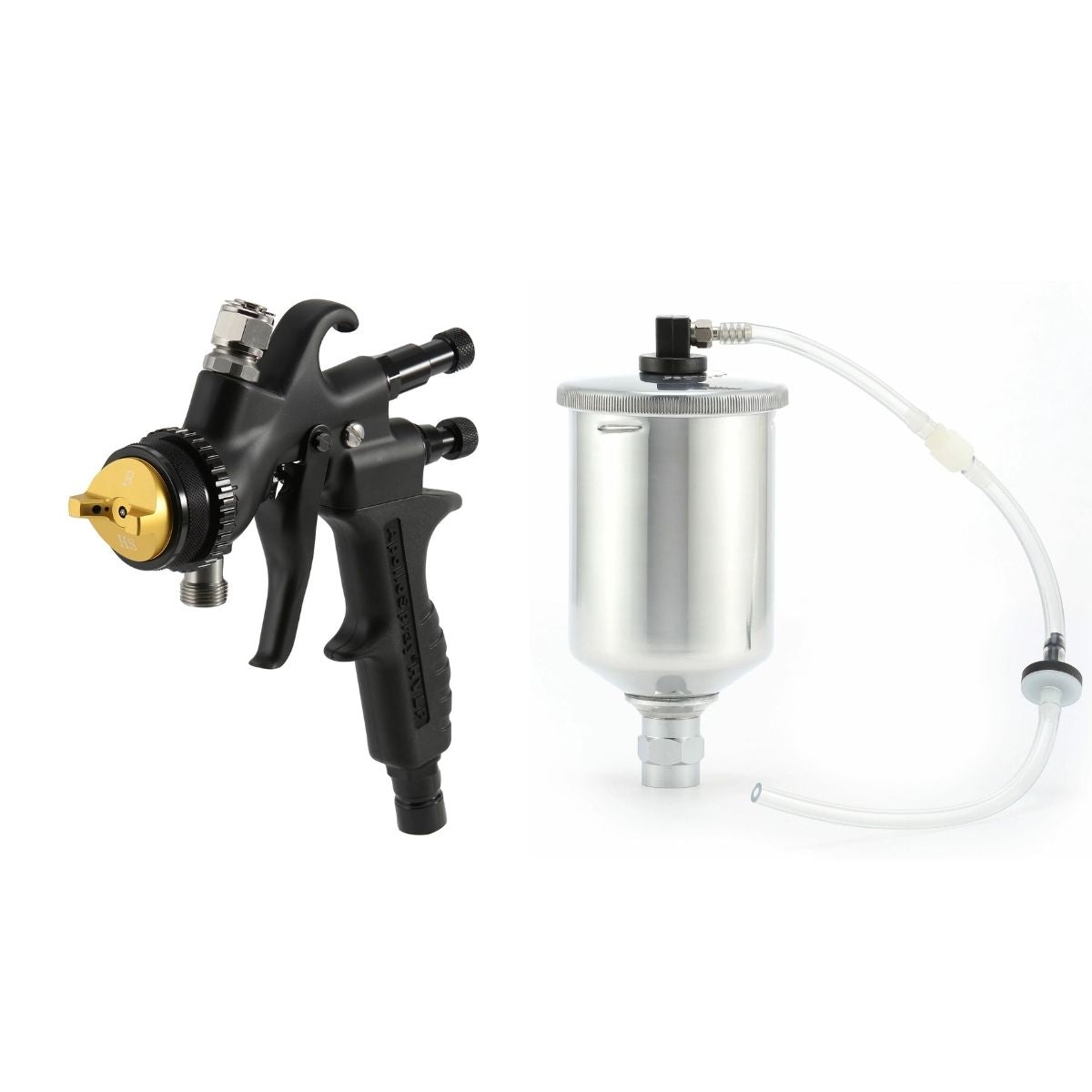

250cc Non-Teflon Gravity Cup Assembly — Includes air hose tubing and non-return valve, built for solvent-based paints.
-

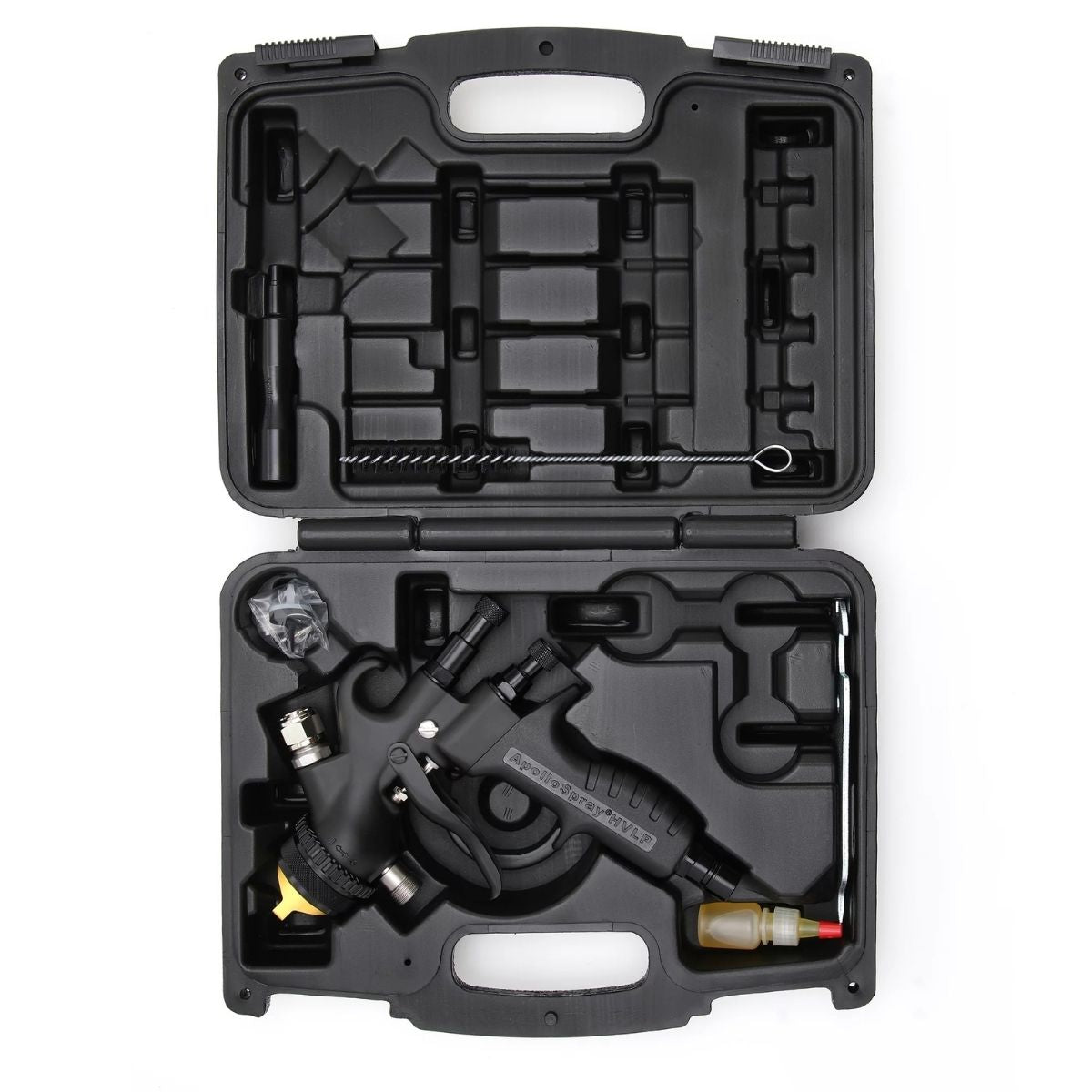

HD Plastic Carrying Case — Protects the gun and keeps accessories organized between jobs.
-
Stainless Steel Material Filter — Keeps debris out of the fluid path for a cleaner spray.
-
Spare Parts Kit — Covers common wear items so small repairs don't stall a job.
-
Cleaning Brush, Bushing Insert Tool, Wrench (Spanner) — Everything needed for routine cleaning and maintenance.
-
Apollo Spray Gun Lube — Keeps moving parts running smoothly between uses.
Specs
Apollo 7700GT-250 HVLP Turbine Spray Gun with 250cc Non-Teflon Gravity Cup Assembly Specifications
- Gun Type: Turbine or Compressed Air
- Fluid Parts: All Stainless Steel, No O-Rings
- Cup Type: 250cc (8 oz), Non-Teflon, Gravity Feed
- Cup Compatibility: Solvent-Based Paints, Including Automotive Finishes
-
Nozzle/Needle Options: 8 Sizes, 1.0mm Included Standard (0.5mm to 2.5mm)
-
Color-Coded Air Cap Options: 8 Sizes, B Air Cap Included Standard
- Gun Operation: Bleeder or Non-Bleeder
- Warranty: 2-Year Written Warranty
- Includes: Carry Case, Spare Parts Kit, Cleaning Brush, Bushing Insert Tool, Wrench (Spanner), Stainless Steel Material Filter, Apollo Spray Gun Lube
Coating compatibility note: This non-Teflon lining is built for solvent-based paints. For water-based finishes, a Teflon-lined cup is recommended instead.
Compatibility note: If you are using this gun with an older turbine system, you must also purchase the A7538A External Air Relief Valve. Without it, the turbine motor can be damaged.
