Apollo 7700 Air Caps

Apollo 7700 Air Caps

Choosing the right air cap determines how cleanly your finish lays down and how your material atomizes. Here's the simplest way to get to the right choice fast, without guessing.

Not Sure Which Air Cap to Choose?

• Clears & thin finishes → A or B
• General shop work → B
• Heavy waterbornes & pigmented coatings → B-HS
• Primers & latex → C or C-HS
• Gelcoat or extremely thick materials → D or D-HS

Air Cap Breakdown

• "A" Standard Air Cap
  • Pairs with 0.8mm Needle and Nozzle
  • Ideal for stains, sealers, toners, and thin clear finishes.
  • Excellent control for fine/detail spraying.

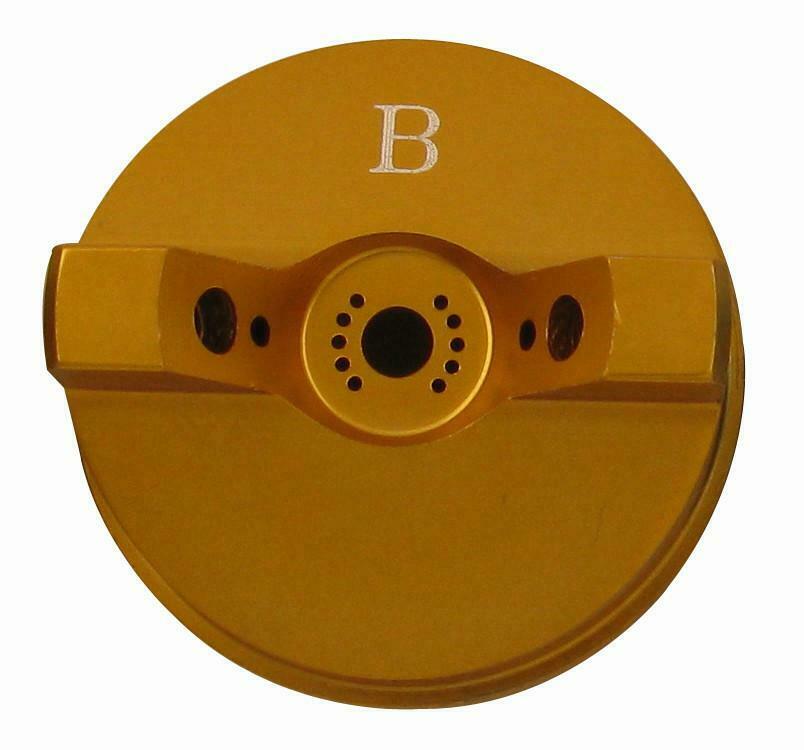

• "B" Standard Air Cap
  • Pairs with 1.0mm, 1.3mm, 1.5mm Needle and Nozzle
  • The "everyday" choice for most clear finishes and enamels.
  • Delivers smooth, cabinet-grade atomization.

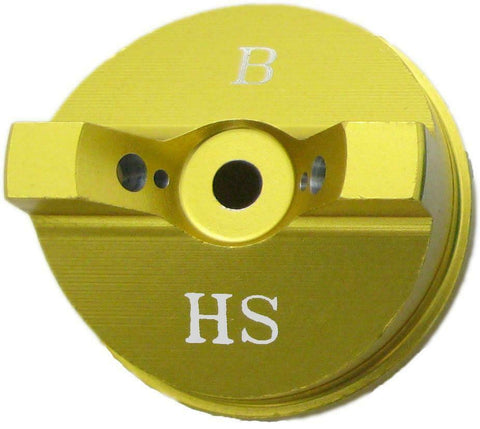

• "B" HS (High Solids) Air Cap
  • Pairs with 1.0mm, 1.3mm, 1.5mm Needle and Nozzle
  • Designed for high-solids clear coats and pigmented coatings.
  • Great for Italian waterbornes and thicker cabinet finishes.

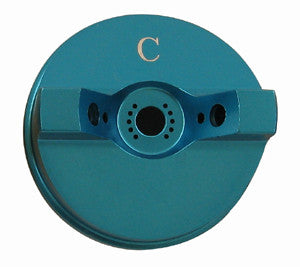

• "C" Standard Air Cap
  • Pairs with 1.8mm and 2.0mm Needle and Nozzle
  • For heavier coatings like primers and thinned latex.
  • Provides a larger fan and increased material flow.

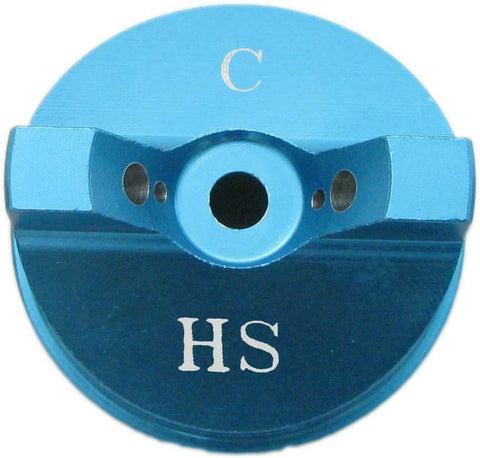

• "C" HS (High Solids) Air Cap
  • Pairs with 1.8mm and 2.0mm Needle and Nozzle
  • Extra push for thick primers and pigmented waterbornes.
  • Perfect for latex on doors, trim, and built-ins.
• "D" Standard Air Cap
  • Pairs with 2.5mm Needle and Nozzle
  • Made for very heavy coatings: gelcoat, texture coatings, adhesives.
  • Max material output for the thickest products.

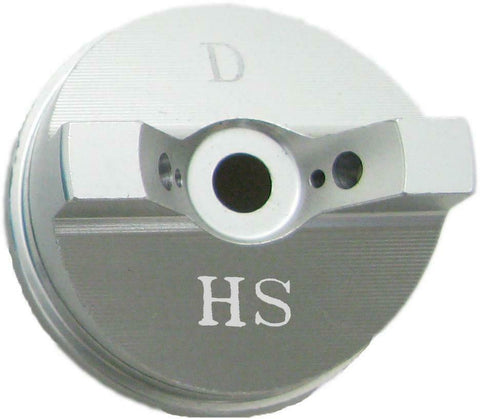

• "D" HS (High Solids) Air Cap
  • Pairs with 2.5mm Needle and Nozzle
  • HS version for extremely high-viscosity industrial coatings.
  • Ideal for gelcoat, epoxy, multi-spec, and similar materials.
