Laguna edgebanders glue, trim, and finish panel edges in one pass. Each model cuts down on hand trimming before assembly.

Choose your Laguna Edgebander

  • Bandit 3/2 — Single-phase edgebander for trimmed, buffed cabinet parts.
  • Bandit 4 — Adds scraping stations and 3 mm banding capacity.
  • SmartEdge Compact — Touchscreen setup sized for small to mid-size shops.
  • Bandit 5 — Pre-milling and corner rounding for production cabinet work.
  • SmartEdge Elite — Pre-mill and corner rounding with touchscreen control.

We also carry Laguna Panel Saws to size sheet goods before they reach the edgebander.

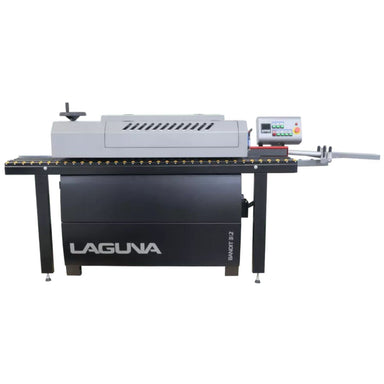

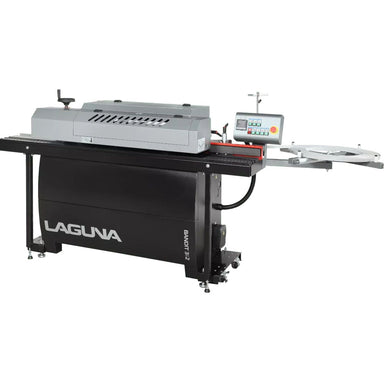

  • Laguna Tools Laguna Bandit 3/2 Edgebander
    $ 14,299.00

    Laguna Bandit 3/2 Edgebander Hand-applied edge tape often leaves uneven glue lines, loose ends, and hours of trimming work. The Laguna Bandit 3/2 ...

    View full details

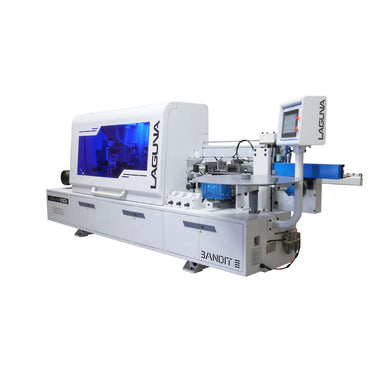

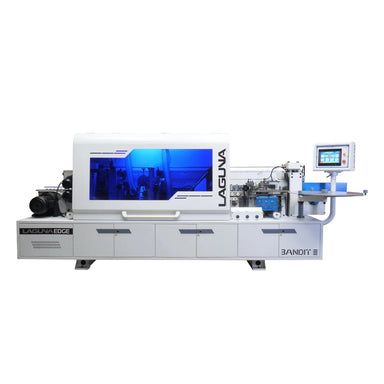

  • Laguna Tools Laguna Bandit 4 Edgebander
    $ 27,999.00

    Laguna Bandit 4 Edgebander Hand trimming and sanding edge banding slows down small shop cabinet work and leaves uneven results. The Laguna Bandit ...

    View full details

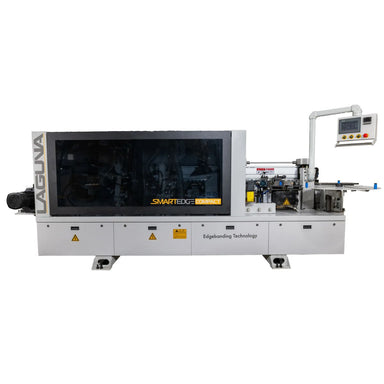

  • Laguna Tools Laguna SmartEdge Compact Edgebander
    $ 29,999.00

    Laguna SmartEdge Compact Edgebander Hand-applied edge banding eats up shop time and leaves uneven seams that need extra cleanup. The Laguna SmartE...

    View full details

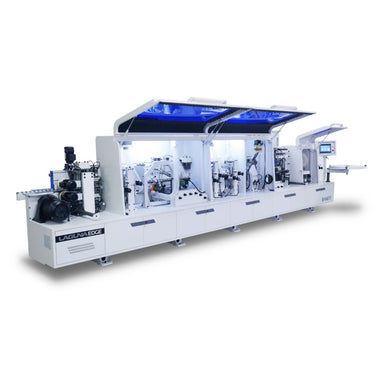

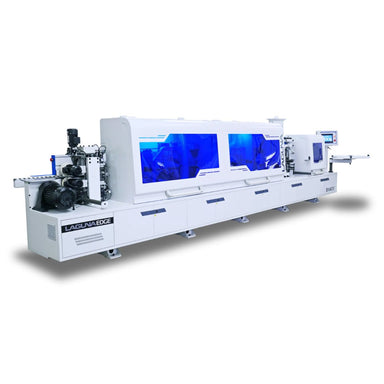

  • Laguna Tools Laguna Bandit 5 Edgebander
    $ 64,999.00

    Laguna Bandit 5 Edgebander Trimming and cleaning up banded edges by hand takes time, and the results can vary from panel to panel. The Laguna Band...

    View full details
  • Laguna Tools Laguna SmartEdge Elite Edgebander
    $ 64,999.00

    Laguna SmartEdge Elite Edgebander Edges that need sanding, scraping, or hand rounding after banding slow down every cabinet job. The Laguna SmartE...

    View full details

Choosing a Laguna Edgebander for Your Shop

The right Laguna edgebander depends on banding thickness, the finishing stations you need, and whether you want pre-milling. Compare the Bandit and SmartEdge lines below.

Laguna Bandit Edgebanders

Laguna Bandit edgebanders run from a single-phase entry machine to a three-phase production model with pre-milling. Each step up adds stations that save hand work.

Laguna Bandit 3/2 Edgebander

  • Banding thickness: 0.4 to 2 mm
  • Stations: End trim, edge trim, buffing

A single-phase starting point for shops that want banded, trimmed, and buffed cabinet parts without hand trimming.

Laguna Bandit 4 Edgebander

  • Banding thickness: 0.4 to 3 mm
  • Stations: End trim, edge trim, scraping, buffing

A step up for shops running thicker banding that want scraped edges and less sanding before assembly.

Laguna Bandit 5 Edgebander

  • Banding thickness: 1/64" to 1/8"
  • Stations: Pre-mill, end trim, edge trim, corner rounding, scraping, buffing

Built for production cabinet shops that want pre-milled, rounded, and finished edges straight off the machine.


Laguna SmartEdge Edgebanders

Both Laguna SmartEdge edgebanders add touchscreen controls and a 52 to 78 ft/min feed speed. Step up when you need pre-milling and corner rounding in the same pass.

Laguna SmartEdge Compact Edgebander

  • Banding thickness: 0.5 to 3 mm
  • Stations: End trim, edge trim, scraping, buffing

Suited to small and mid-size shops that want touchscreen setup and a finished edge in one pass.

Laguna SmartEdge Elite Edgebander

  • Banding thickness: 0.5 to 3 mm
  • Stations: Pre-mill, end trim, edge trim, corner rounding, scraping, buffing

For shops that want touchscreen control plus pre-milling and corner rounding for cleaner joints and corners.


Laguna Edgebanders FAQs

Which Laguna edgebander is best for a small shop?

The Laguna Bandit 3/2 Edgebander is a practical start. It runs on single-phase 220V power and trims and buffs edges in one pass. If you want touchscreen setup and scraping, the Laguna SmartEdge Compact Edgebander is sized for small to mid-size shops.

What is pre-milling on an edgebander?

Pre-milling takes a light cut off the panel edge right before the banding goes on. This removes chips and saw marks so the tape bonds to a clean, square edge. The Laguna Bandit 5 Edgebander and Laguna SmartEdge Elite Edgebander both include a pre-mill station.

What thickness of edge banding can a Laguna edgebander run?

The Bandit 3/2 runs banding from 0.4 to 2 mm. The Bandit 4 handles 0.4 to 3 mm, and the Bandit 5 runs 1/64" to 1/8". The SmartEdge Compact and SmartEdge Elite both handle 0.5 to 3 mm.

What air and dust collection does an edgebander need?

Plan for both. The Bandit 3/2 needs 87 PSI clean, dry air. The SmartEdge Compact needs 10 CFM at 90 PSI and 1000 CFM of dust collection. The SmartEdge Elite needs 12 CFM at 90 PSI and 1500 CFM. The Bandit 5 calls for 2000 CFM.
