Tormek SVP-80 Moulding Knife Jig

Tormek SVP-80 Moulding Knife Jig

✓ Lowest Price Guaranteed + No Sales Tax
✓ Currently shipping out in 7 to 10 business days
✓ Questions? Give Us A Call: 1-800-727-6553

$ 224.00

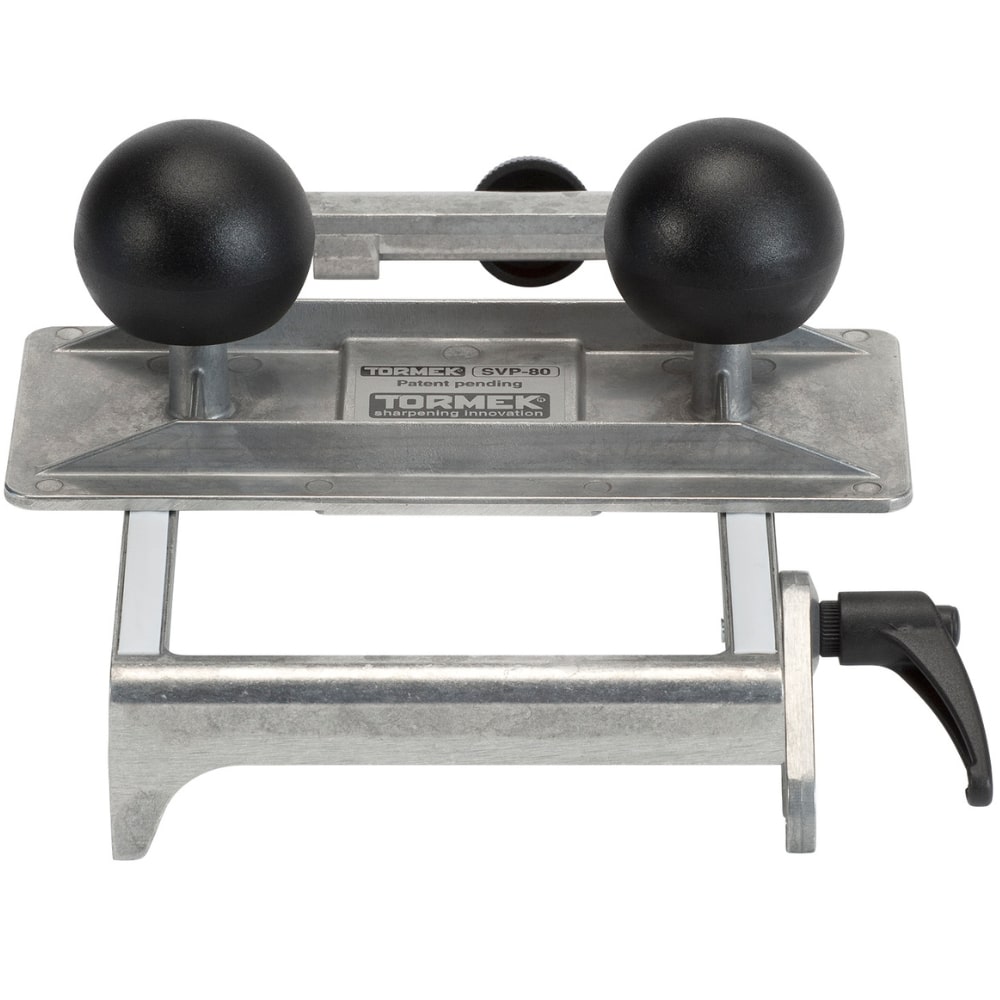

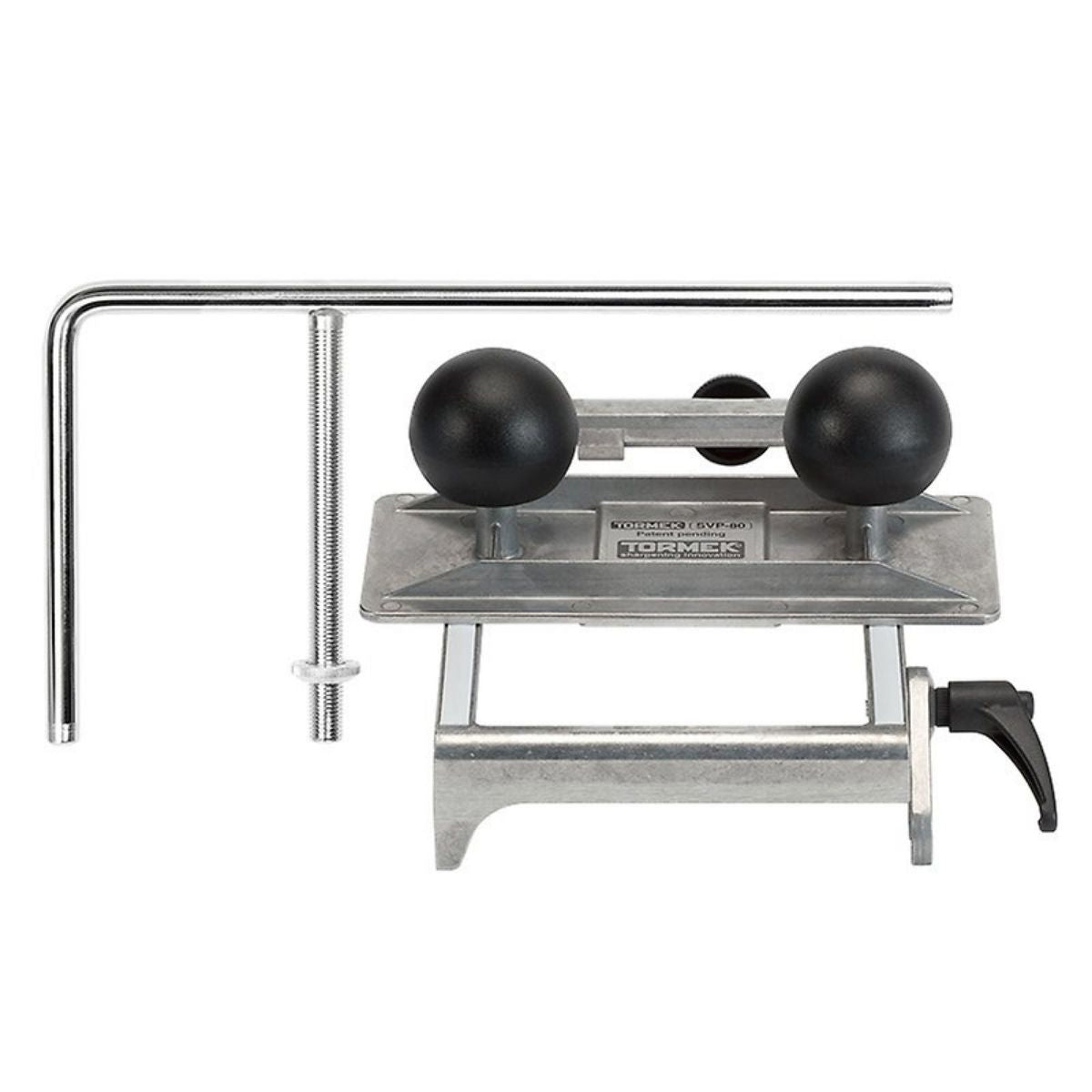

The attachment comprises a base (1), a knife holder (2), an extra Universal Support (3) with micro adjust (4) and two pairs of hollow pins (5 and 6) for the knife holder.

The base is mounted on this extra Universal Support and on the existing Universal Support of the machine. The base is locked with the screw (7). An arm (8), which is locked with an adjustable hand lever (9), stabilizes the construction.

The knife is placed on the pair of hollow pins on the knife holder. A magnet (13) keeps the knife in place. The holder has holes to fit various knife standards. Two pair of pins (Ø4 and Ø5 mm) come with the jig.

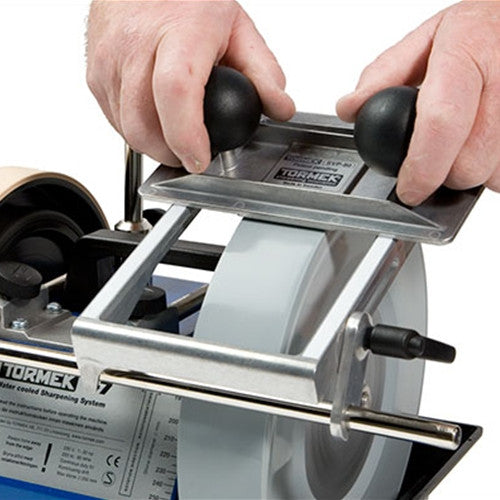

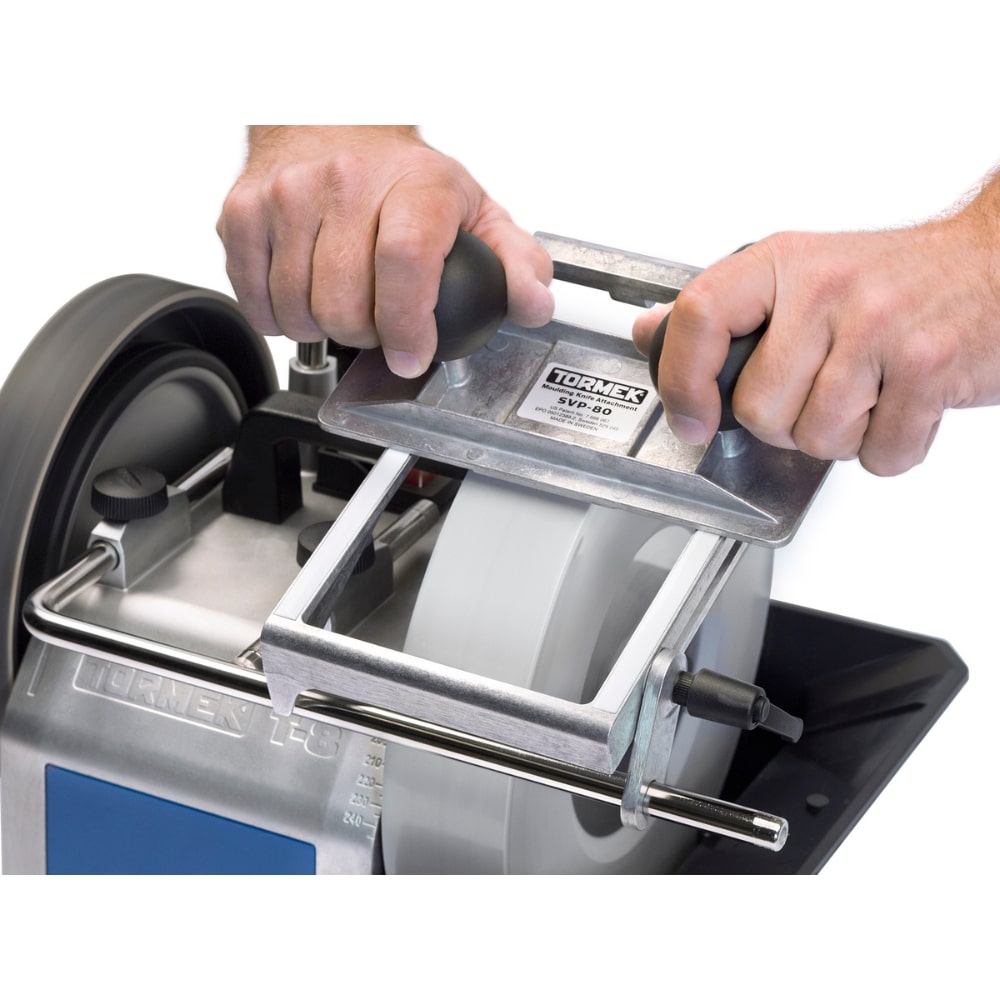

The knife holder (2) glides on the base (1), which has PTFE surfaces to minimize the friction. The knives are ground on the face. Adjusting the nut on the horizontal Universal Support sets the grinding depth.

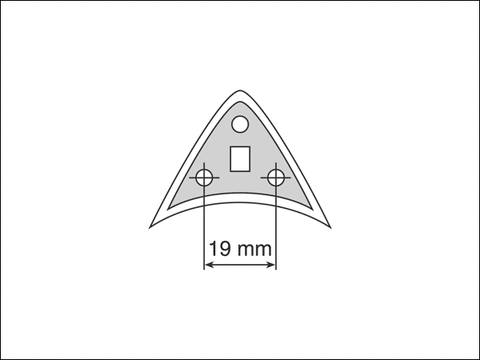

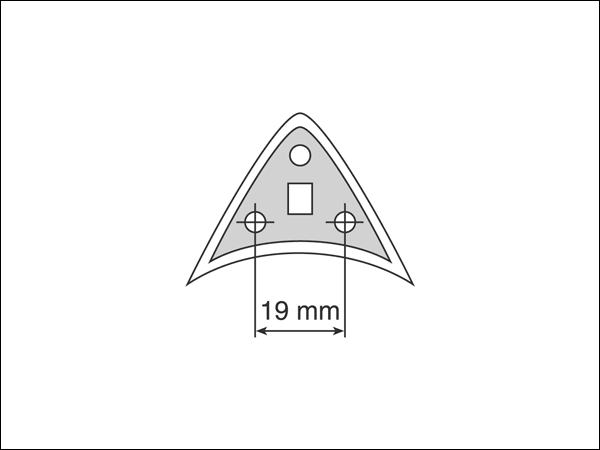

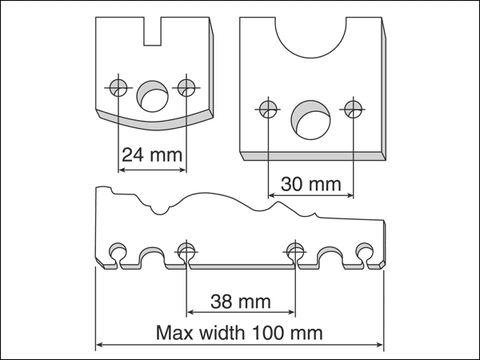

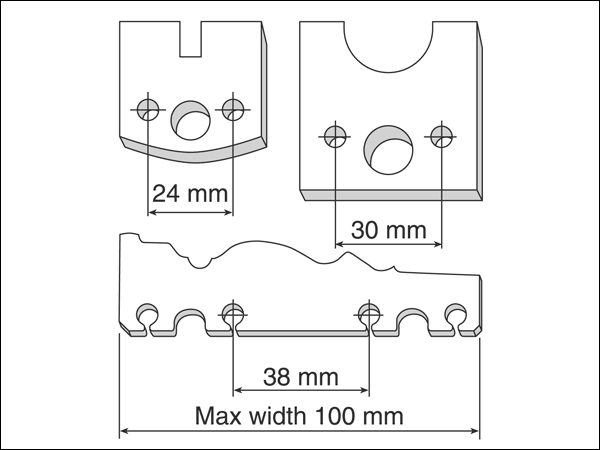

Sharpens all makes and shapes of moulding knifes with 24, 30 or 38 mm distance between guide hole centres, maximum width 100 mm (4") and also for profiled paint removal blades as shown above.

This is a great accessory if you own a Logosol 4-sided molder or a European interchangeable shaper head.

This is a Special Order Item.
