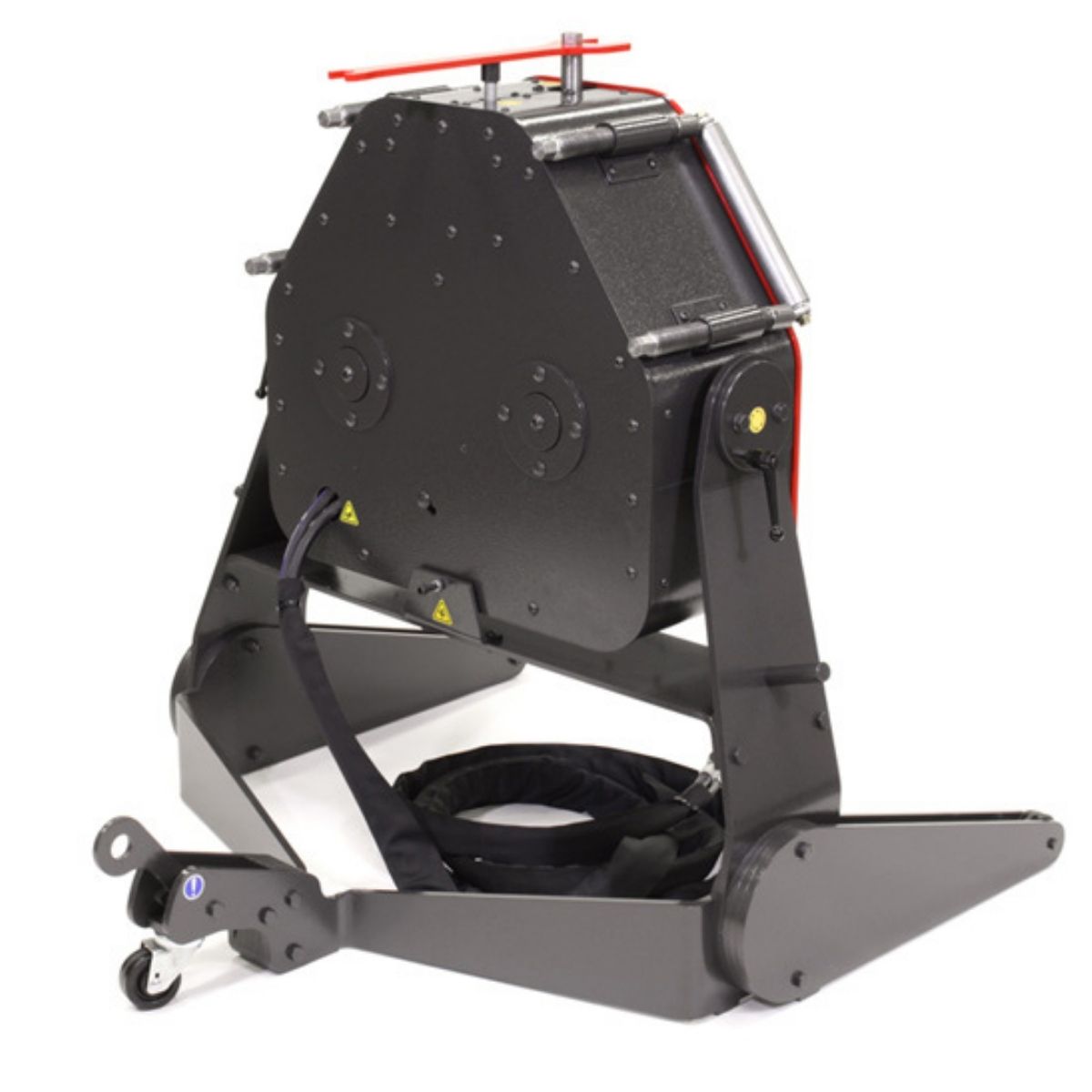

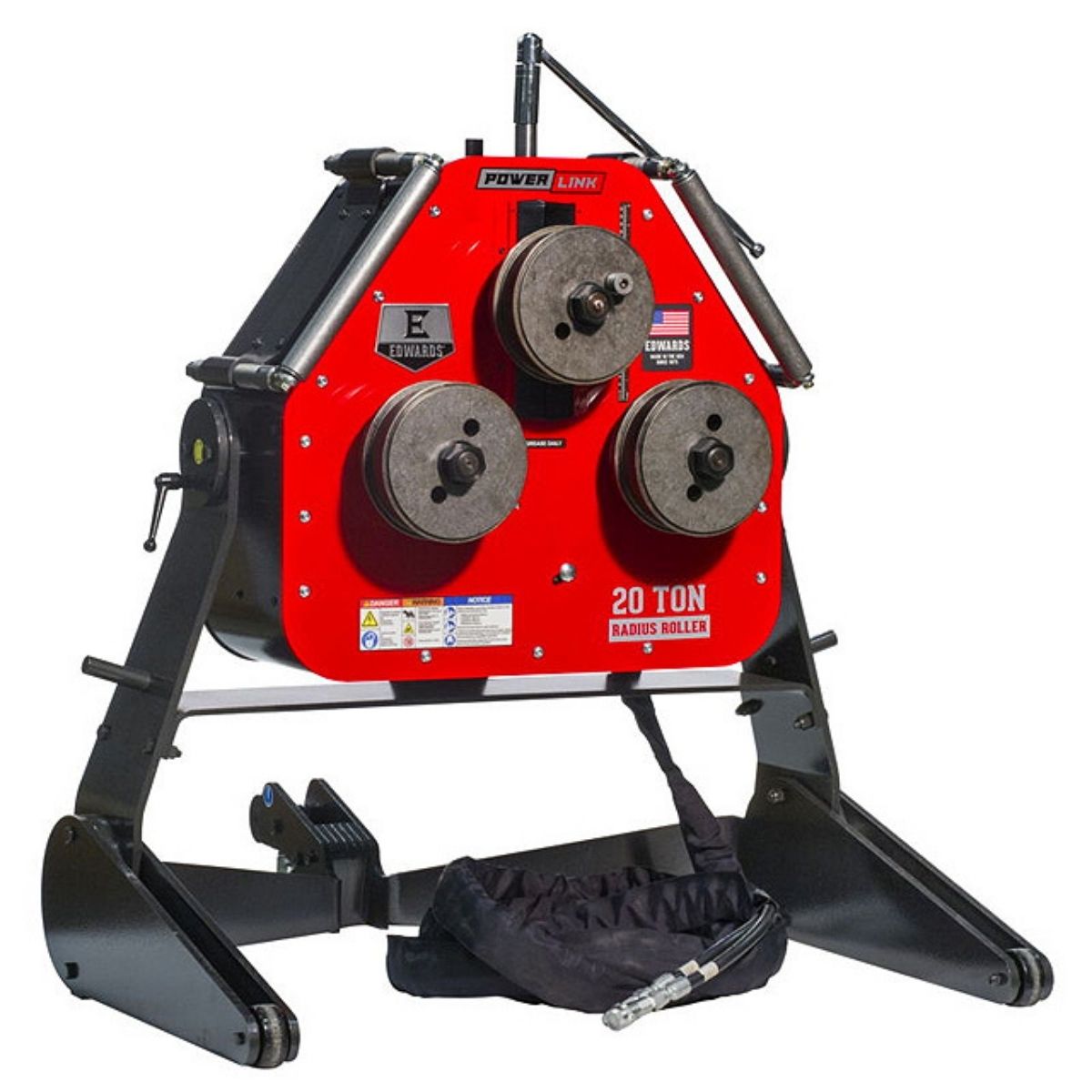

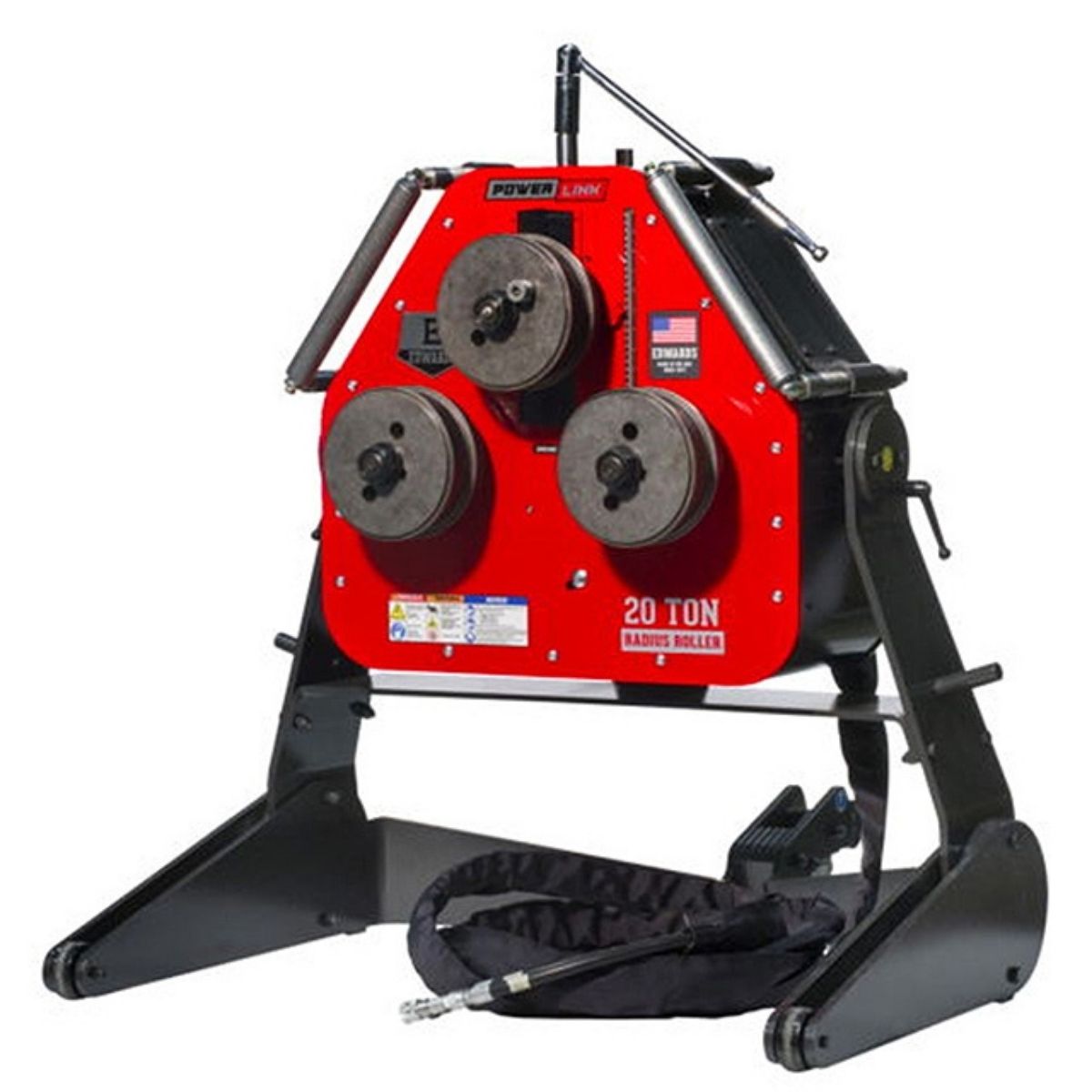

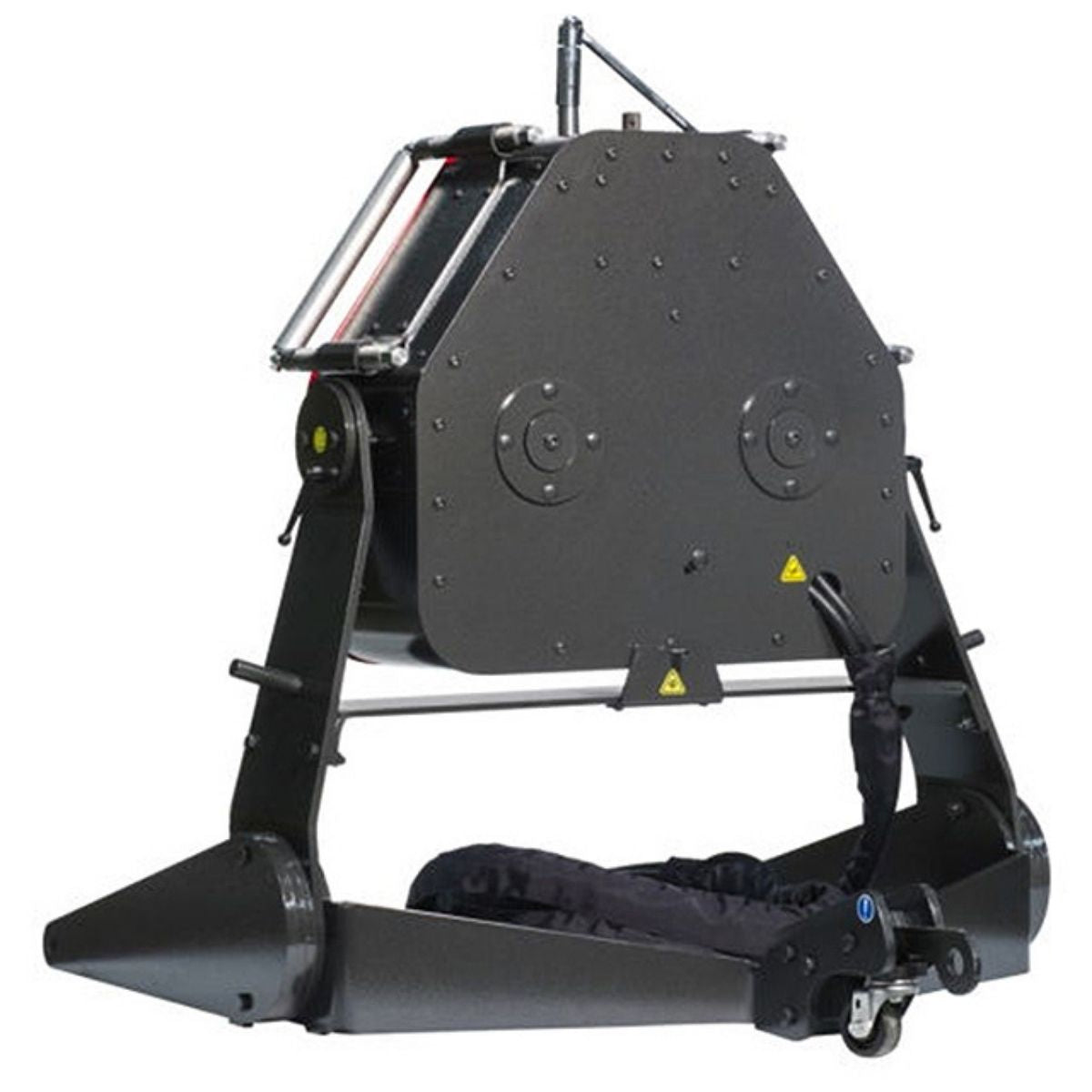

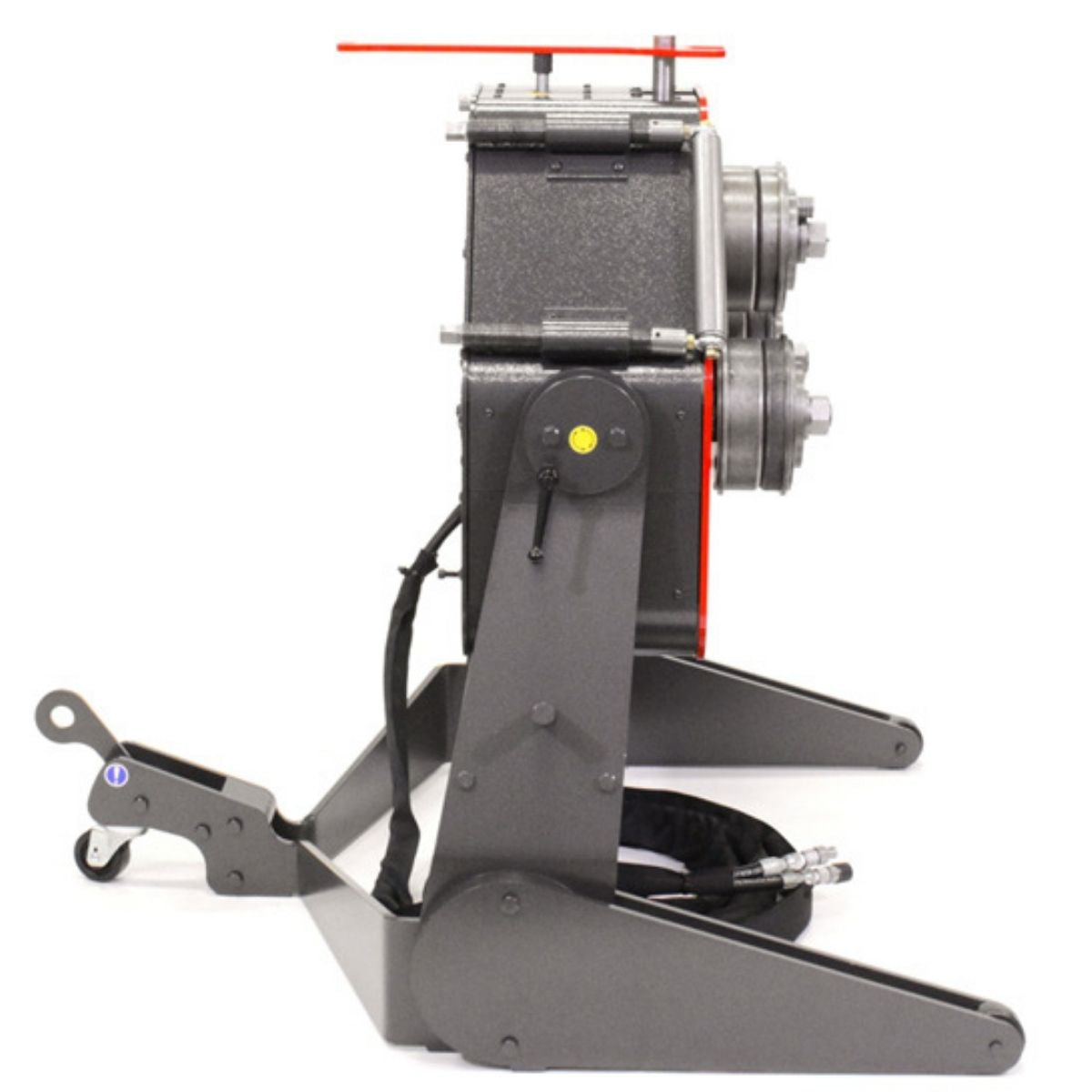

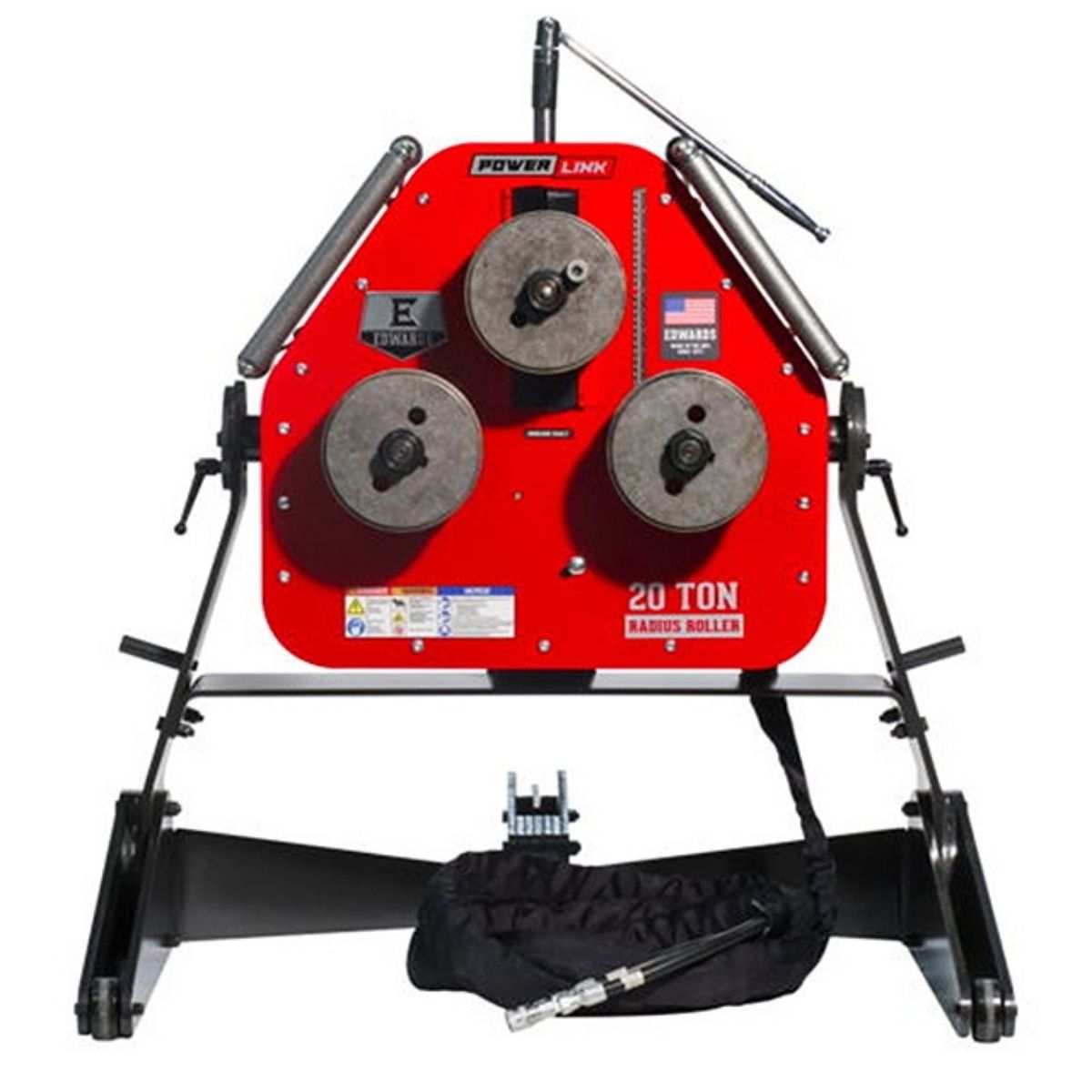

Edwards Radius Roller with PowerLink Hydraulic Tool
Are you rolling pipe, tube, or flat bar by hand and struggling to get smooth, consistent bends?
What if your shop had a hydraulic roller that delivers long-diameter curves through a wide range of material without repositioning or guesswork?
Meet the Edwards Radius Roller with PowerLink Hydraulic Tool, a 20-ton hydraulic radius roller built for medium to heavy bending work.
With variable speed hydraulic drive, hand and jog controls, and a six-piece universal die set, the roller handles flat bar, angle iron, square tube, channel, pipe, and tube from one setup.
When the roller runs at the right speed for your material, you get smooth, long-diameter curves with the control your shop work requires.
Edwards Radius Roller with PowerLink for Hydraulic Bending Work
Variable Speed Hydraulic Drive Matches Speed to Material
The hydraulic drive lets you dial in the right speed for each material type, from thin-wall tube to heavy flat bar. Consistent speed through the bend helps produce smooth, even curves without overdriving the material.
Hand and Jog Controls Keep Bending Precise
The hand and jog controls give you direct command over feed and positioning during the bend. An integrated E-Stop is built into the control panel for quick shutoff when you need it.
Six-Piece Universal Die Set Covers Common Stock Profiles
The included die set accepts square tube, flat bar, angle iron, and channel right out of the box. Built-in die storage on the frame keeps the full set close at hand between jobs.
Horizontal and Vertical Operation Adapts to Your Project
The roller runs in either horizontal or vertical orientation depending on the job. A heavy-duty rolling base lets you move the machine out of the work area when it is not in use.
What's Included
What's Included? Edwards Radius Roller with PowerLink Hydraulic Tool
-
Edwards Radius Roller with PowerLink Hydraulic Tool — Provides a 20-ton hydraulic radius roller platform for bending pipe, tube, flat bar, angle iron, square tube, and channel.
-
6-Piece Universal Die Set — Allows you to begin rolling square tube, flat bar, angle iron, and channel without purchasing additional dies.
-
20' Quick-Connect Hoses — Connects the roller to an Edwards ironworker with PowerLink or a portable power unit for simple plug-and-play operation.
Specs
Edwards Radius Roller with PowerLink Hydraulic Tool Specifications
- Rating: 20 Ton
- Flat Bar Capacity (Easy Way): 3" (0.375 wall)
- Flat Bar Capacity (Hard Way): 2.25"
- Angle Iron Capacity: 2" (0.250 wall)
- Square Tube Capacity: 2" (0.120 wall)
- Round Tube Capacity: 2-1/2"
- Round Pipe Capacity (Sch. 40): 2"
- Solid Round Capacity: 1-3/8"
- Overall Dimensions (L x W x H): 45" x 51" x 52"
- Power Requirement: Edwards ironworker with PowerLink system or portable power unit (sold separately)
- Hose Length: 20'
