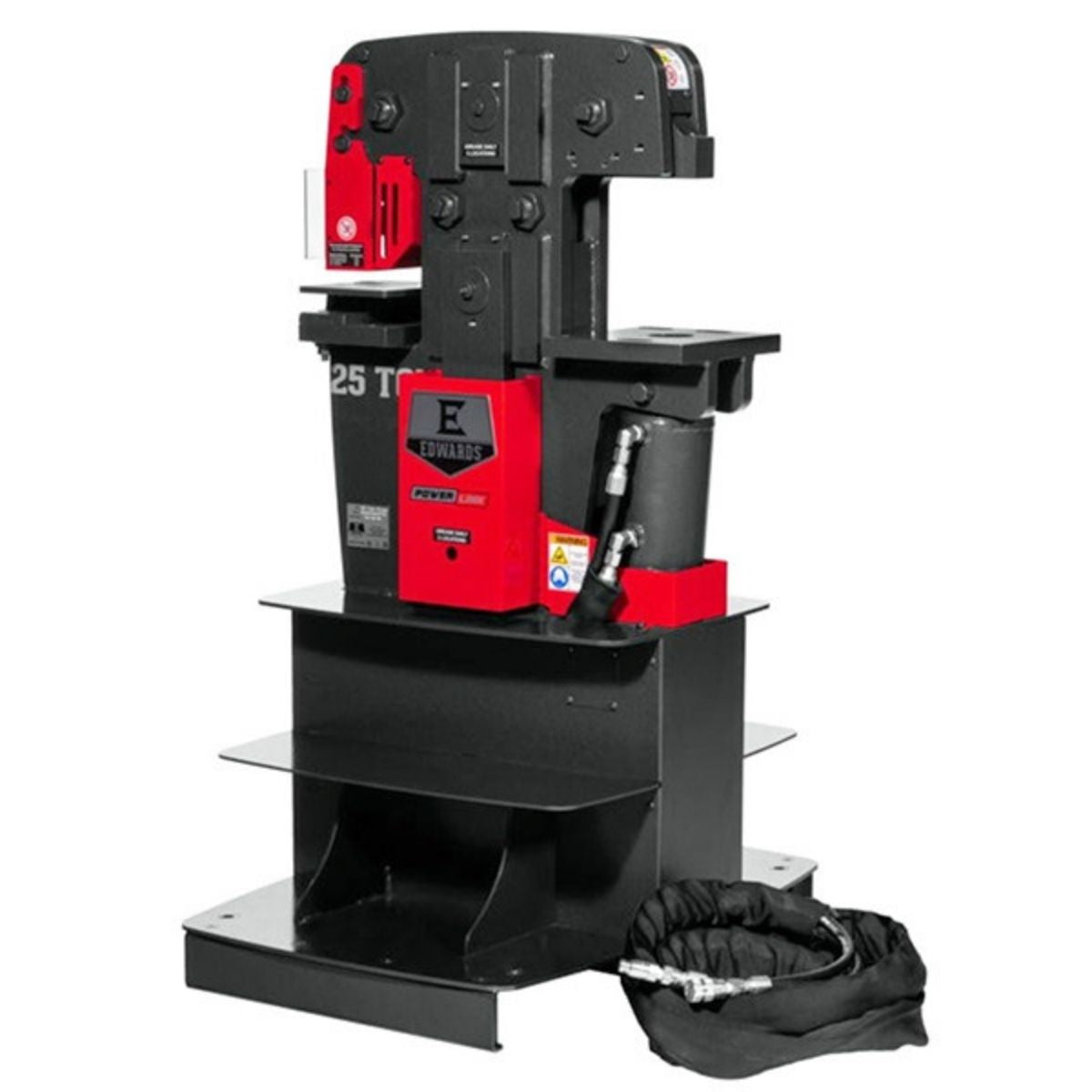

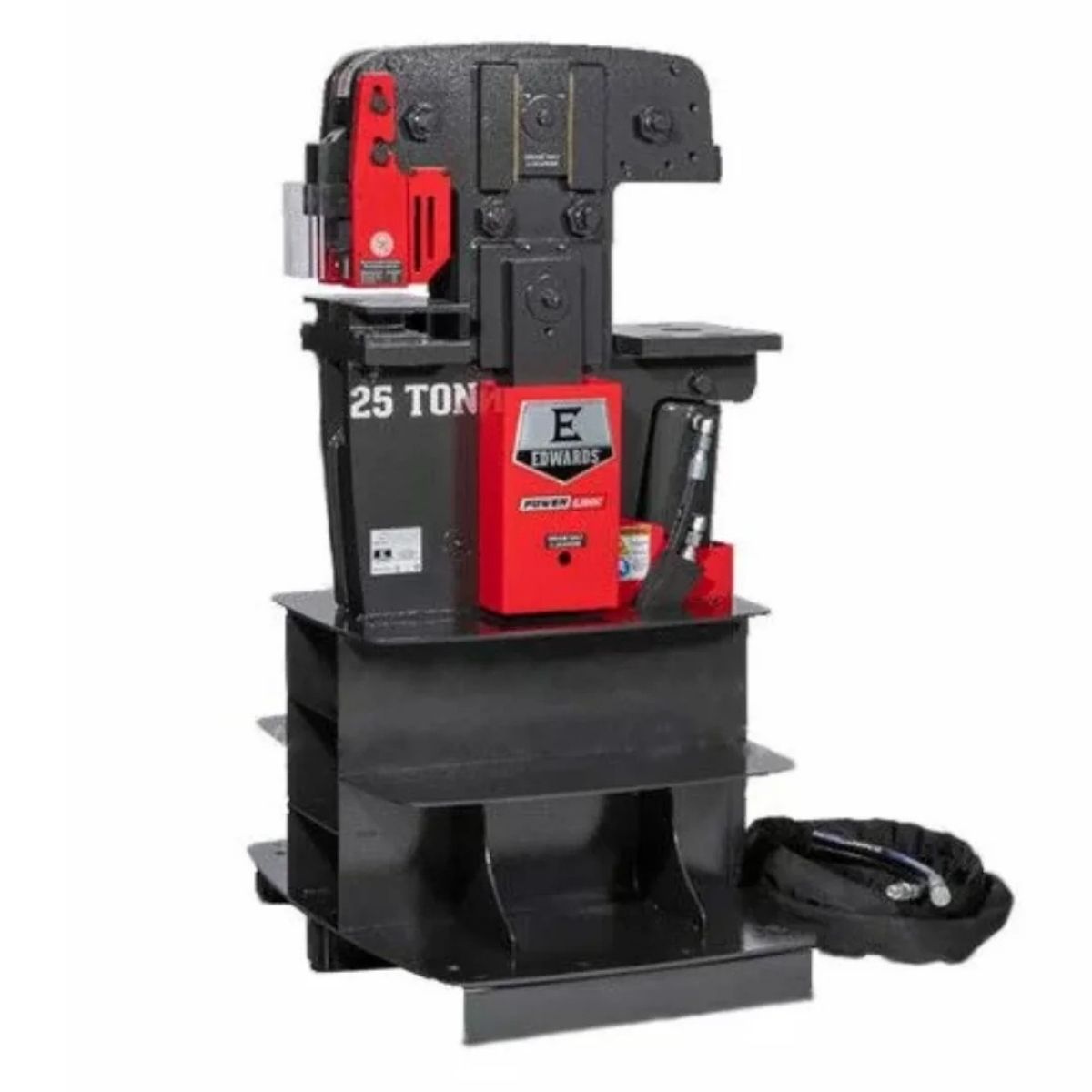

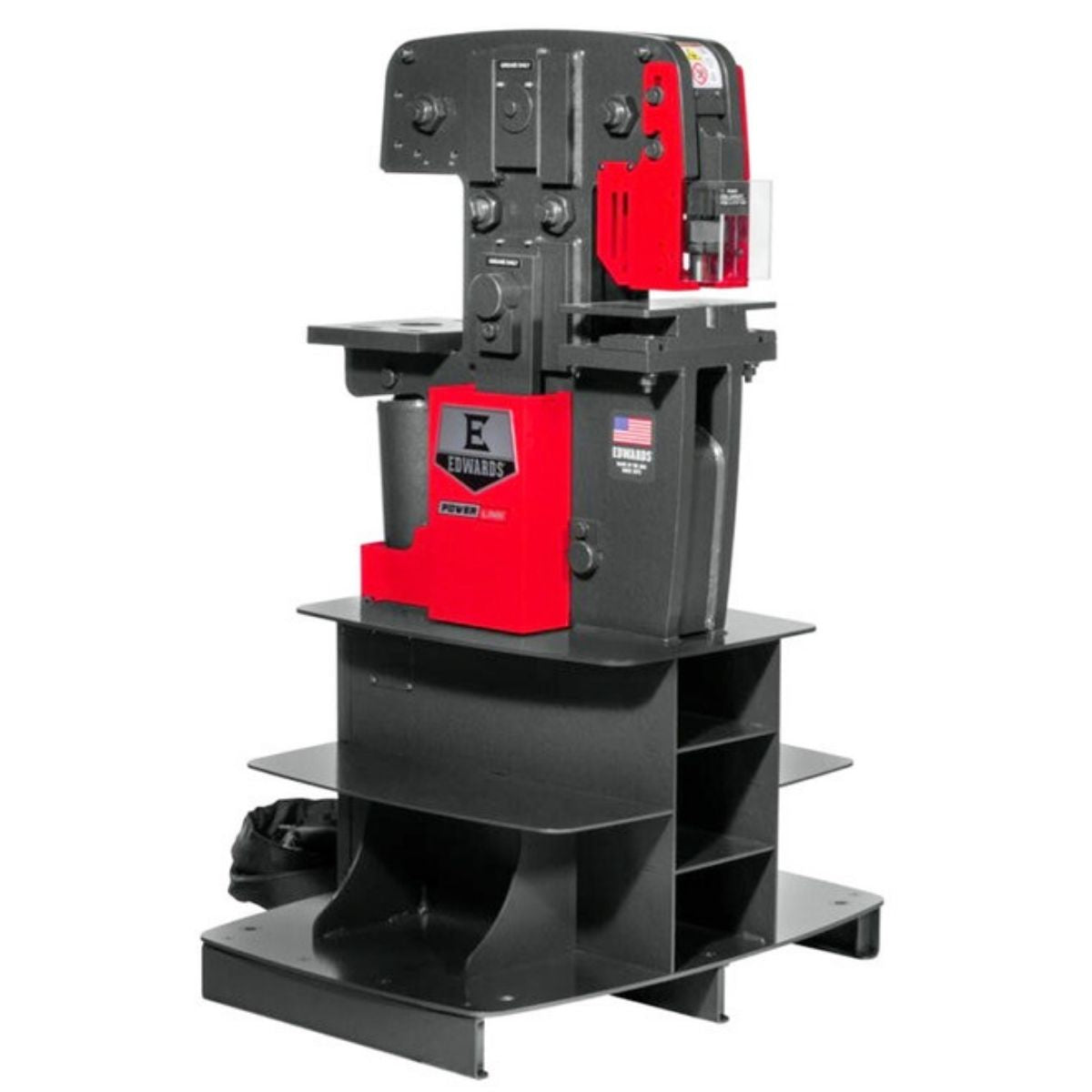

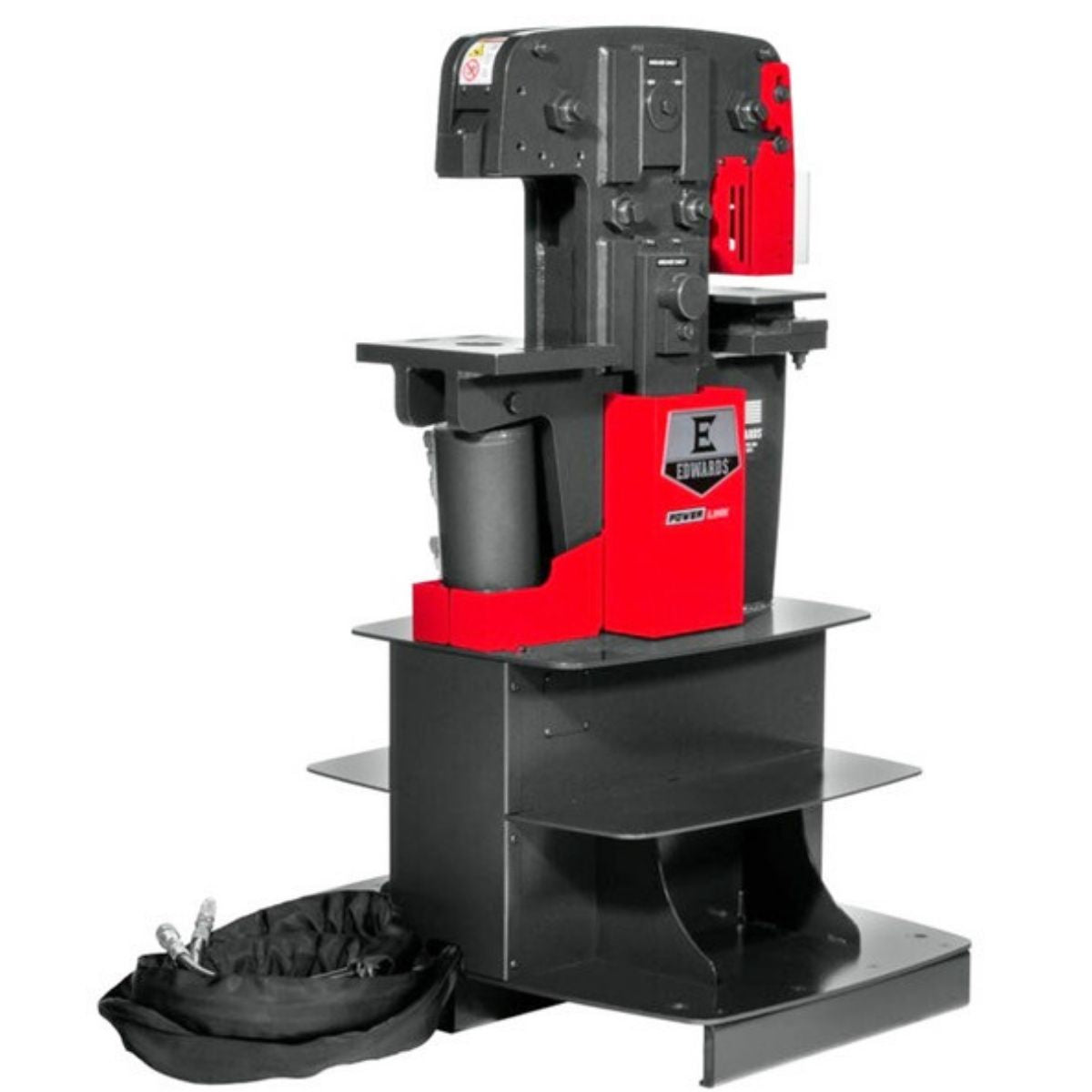

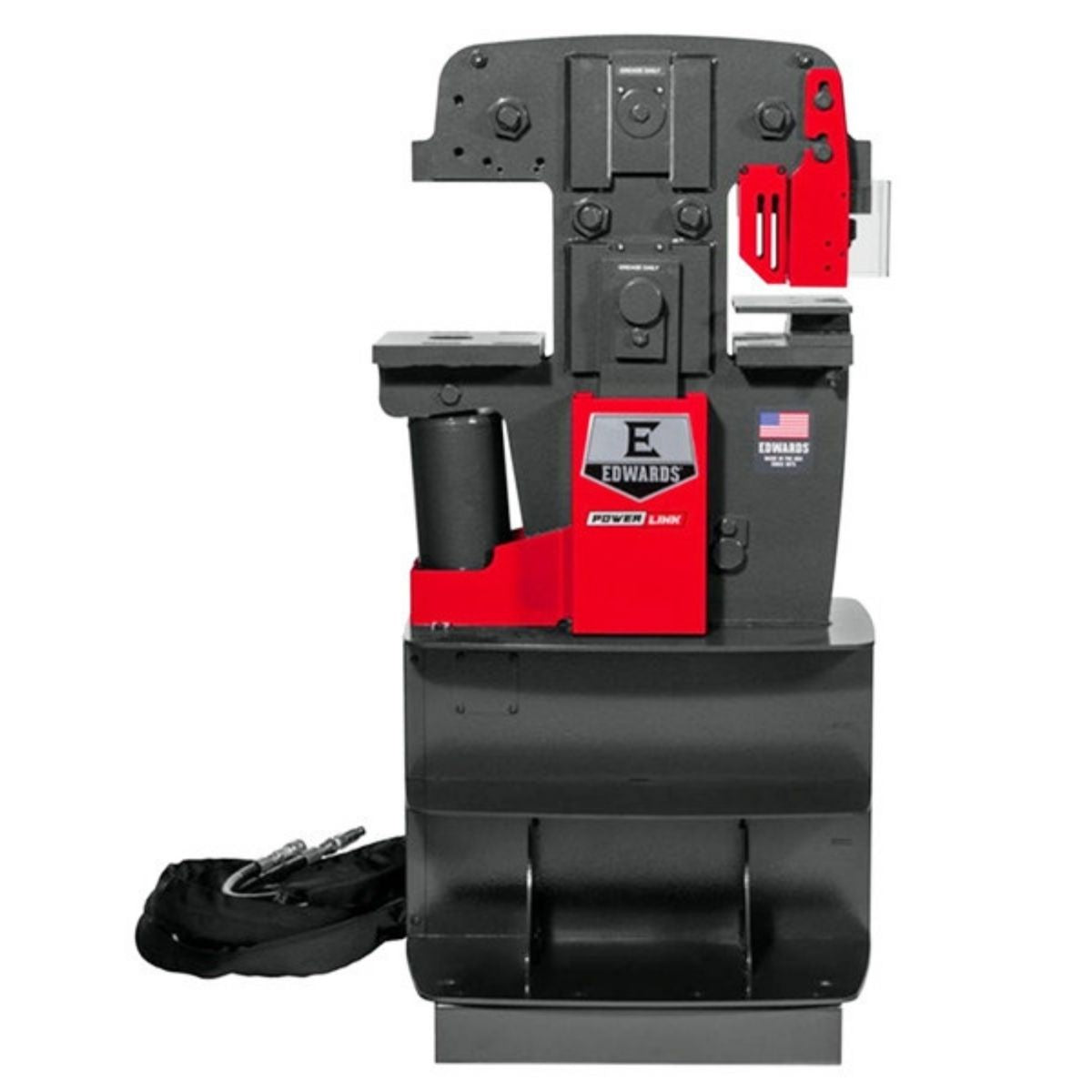

Edwards 25-Ton Dual Station with Portable Power Unit

Edwards 25-Ton Dual Station with Portable Power Unit

Edwards 25-Ton Dual Station for Secondary Ironworking Capacity

Quick-Connect Hose Simplifies Integration

A 20-foot quick-connect hose links the dual station to the Edwards PowerLink system with a plug-and-play connection. Setup is straightforward and does not require dedicated hydraulic plumbing at the second station.

Vertical Movement Delivers Even Punching and Shearing Pressure

The station uses vertical movement to apply consistent pressure through the full stroke. This reduces distortion on punched and sheared parts and helps extend tooling life over time.

Electric Foot Pedal Keeps Both Hands on the Work

An electric foot pedal with integrated jog control activates the station without removing hands from the material. The jog function allows precise positioning before committing to the full stroke.

ANSI-Compliant Guarding Supports Safe Daily Use

The station ships with ANSI B11.5-1988(02) compliant guarding across both workstations. Optimized workstation heights support a comfortable working position through a full shift.

What's Included

What's Included? Edwards 25-Ton Dual Station with Portable Power Unit

• Edwards 25-Ton Dual Station with Portable Power Unit — Provides two additional ironworking workstations connected to the Edwards PowerLink system.
• 20' Quick-Connect Hose — Connects the dual station to the PowerLink power unit for plug-and-play operation.
• Electric Foot Pedal with Jog Control — Activates the station and allows precise stroke positioning during use.

Specs

Edwards 25-Ton Dual Station with Portable Power Unit Specifications

• Rating: 25 Ton
• Open Station Throat Depth: 5-1/2"
• Open Station Work Height: 34-3/4"
• Net Weight: 1,240 lb
• Guarding: ANSI B11.5-1988(02) Compliant
• Warranty: 1 Year

Specs by Configuration

• 230V, 1 Phase — Stock Number: ED9-HAT2510
• 230V, 3 Phase — Stock Number: ED9-HAT2520
• 460V, 3 Phase — Stock Number: ED9-HAT2530
