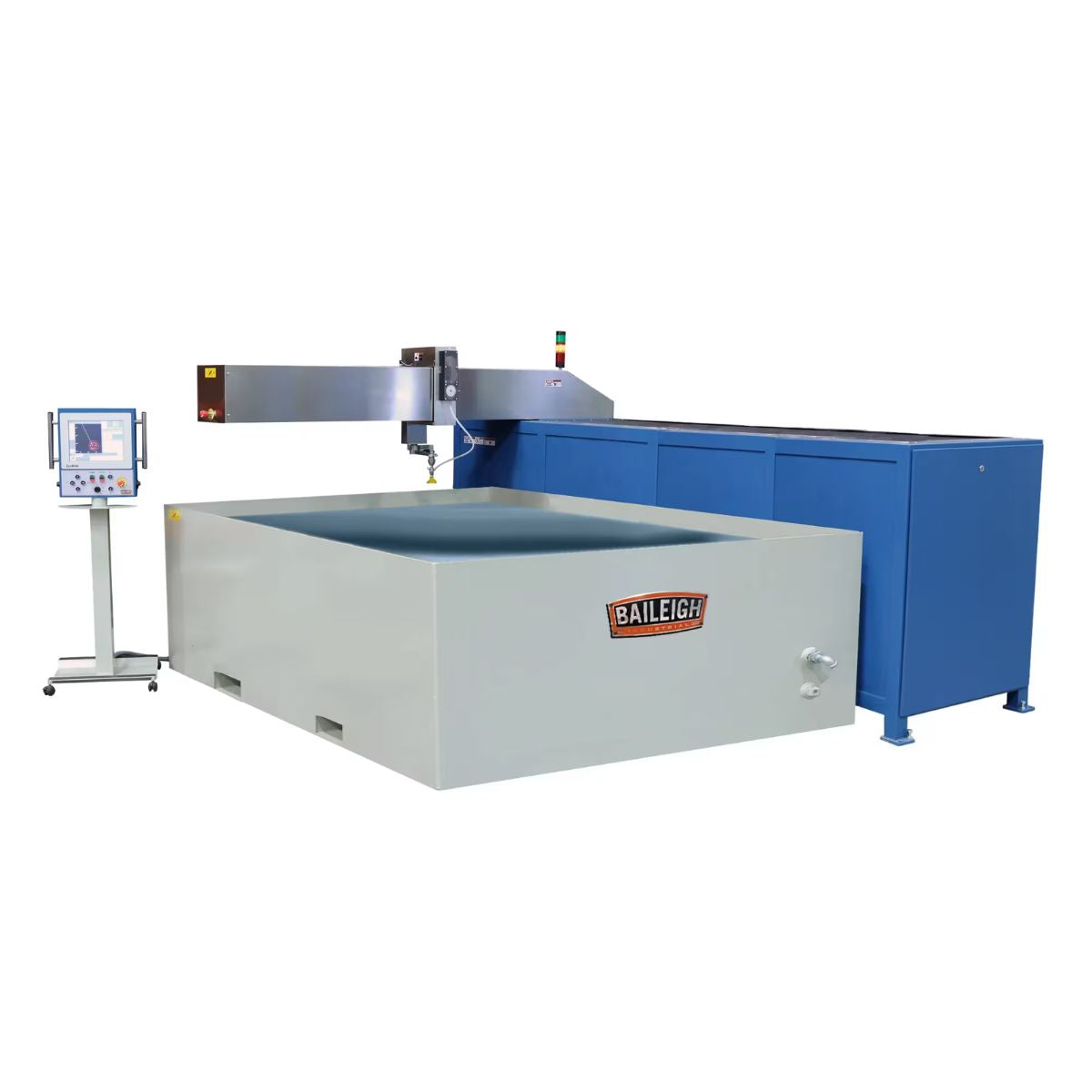

Baileigh WJ-85CNC 60" × 96" CNC Water Jet Cutter
Are you cutting complex parts from metal, stone, or ceramic and losing precision to heat-affected edges?
What if your shop had a CNC water jet that held tight tolerances across a wide range of materials without distorting the cut?
Meet the Baileigh WJ-85CNC 60" × 96" CNC Water Jet Cutter, a 42 HP industrial water jet built for serious fabrication work.
With a 55,000 PSI direct-drive pump, a Windows-based CNC control, and a 60" × 96" working area, the WJ-85CNC handles production cutting across metals, plastics, composites, stone, ceramics, and glass.
When the machine holds ±0.001" accuracy job after job, you can trust the parts coming off it to fit the first time.
Baileigh WJ-85CNC for Industrial CNC Water Jet Cutting
Welded Steel Frame Supports Precise, Repeatable Cuts
The WJ-85CNC is built on a laser-cut, interlocked, and welded steel frame designed for rigidity under continuous production use. A stable frame reduces flex during cutting passes and helps the machine hold its accuracy over time.

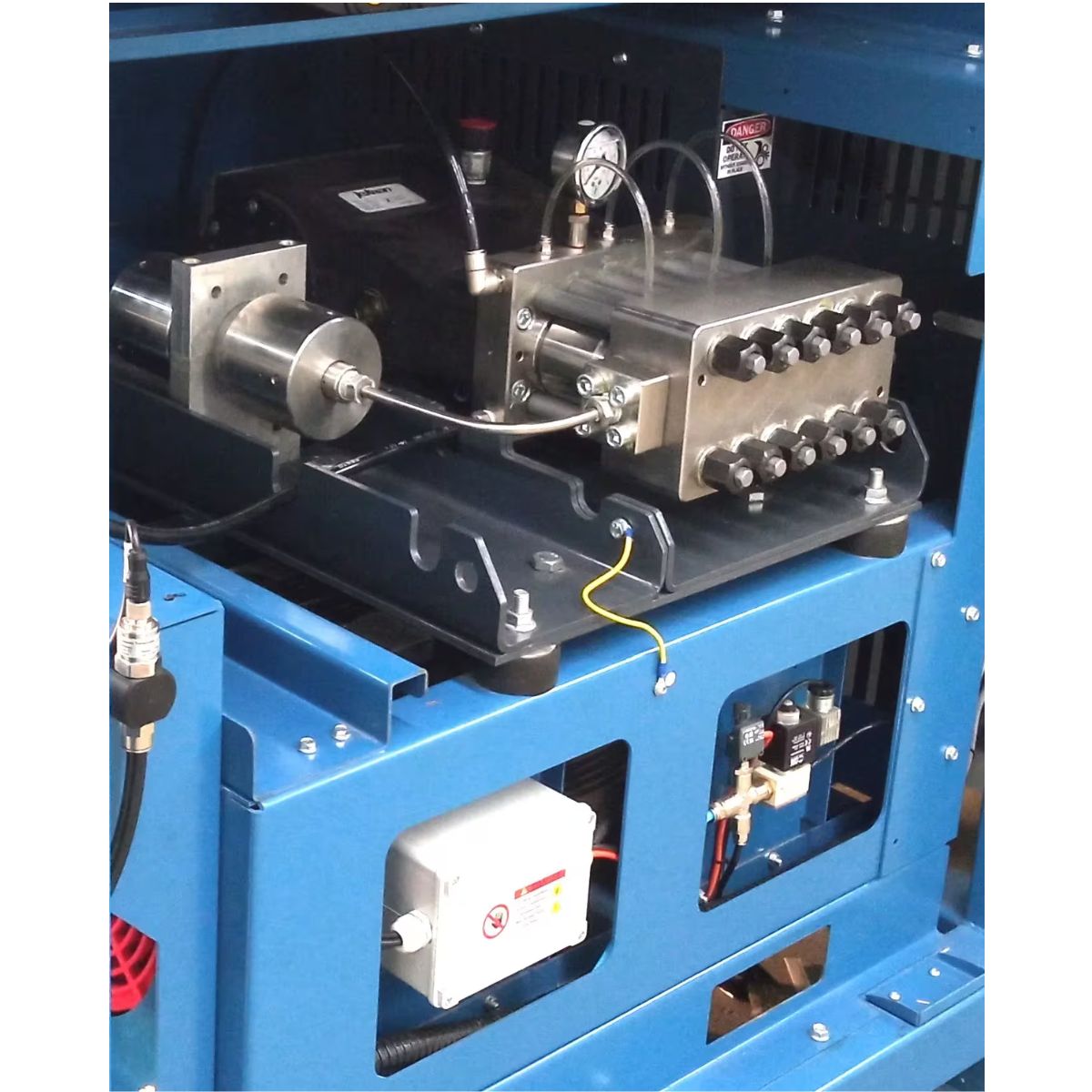

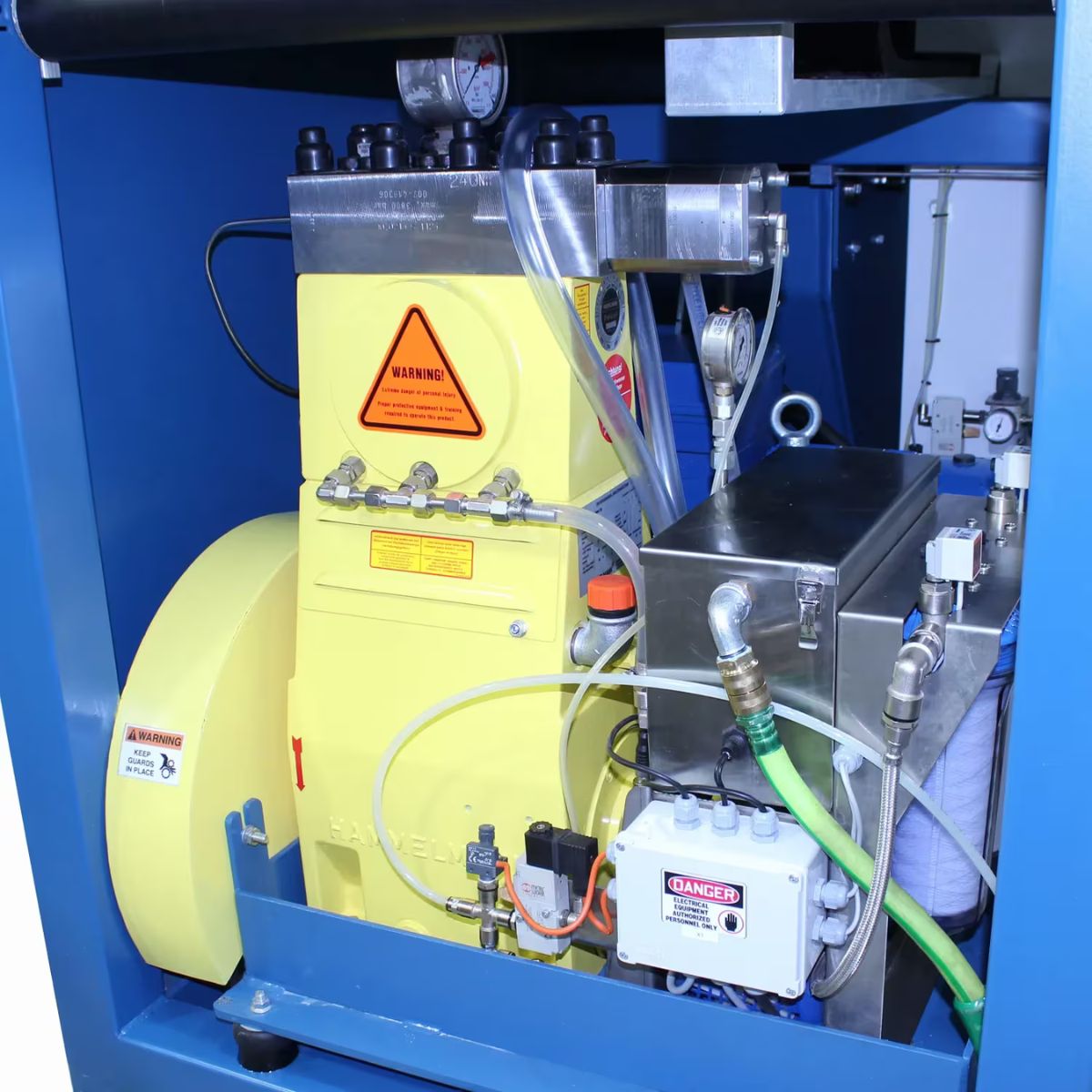

55,000 PSI Direct-Drive Pump Delivers Clean Cuts Without Heat
The Jekran direct-drive pump operates at 55,000 PSI and drives the abrasive water jet through a full range of materials including metals, stone, ceramics, plastics, and composites. Because the process uses water and abrasive rather than heat, cut edges come out clean without warping or heat distortion.

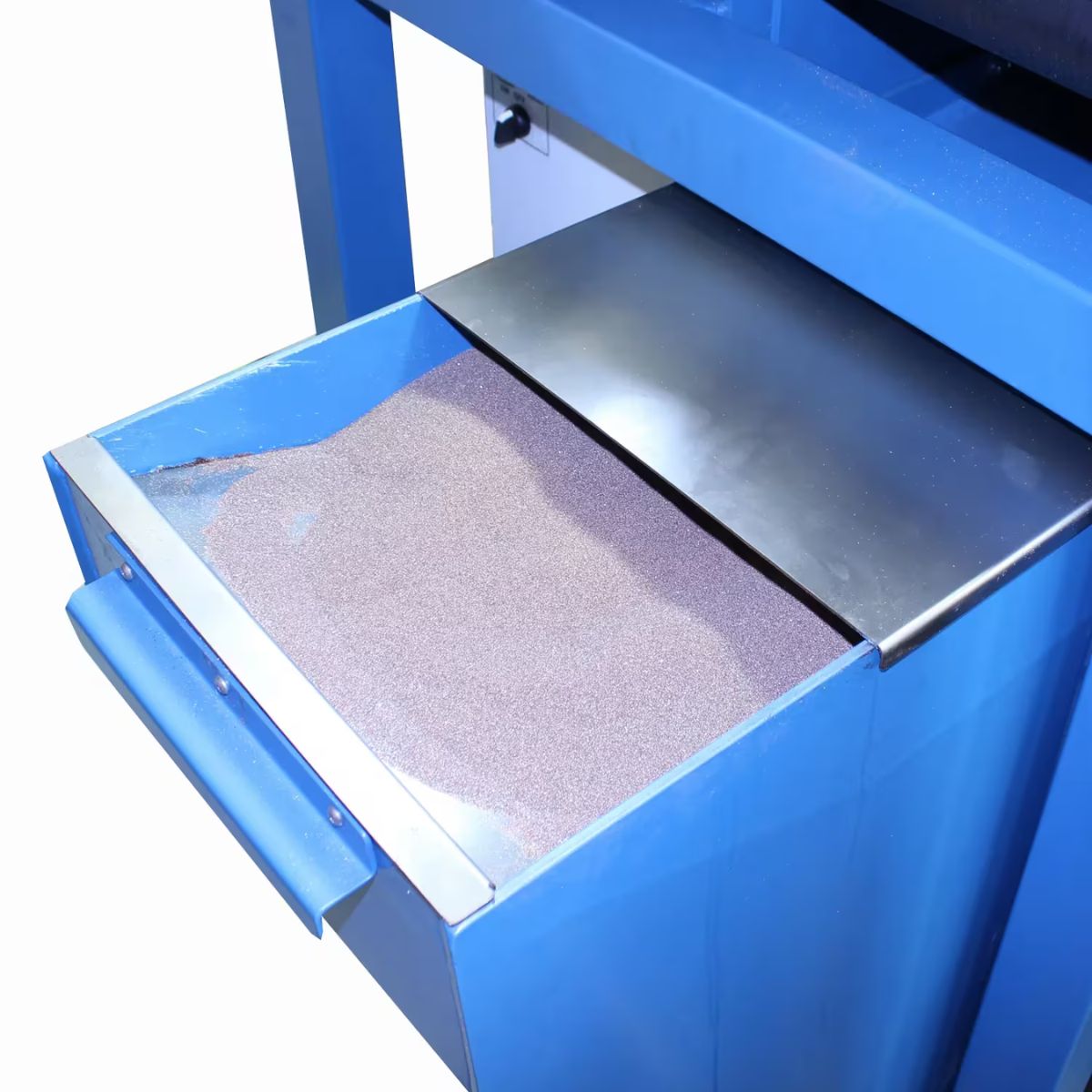

Abrasive Auto-Feed System Keeps Cuts Consistent
The proprietary abrasive auto-feed system manages abrasive delivery to the cutting head throughout the job. Consistent abrasive flow helps maintain cut quality across long production runs without manual adjustment.

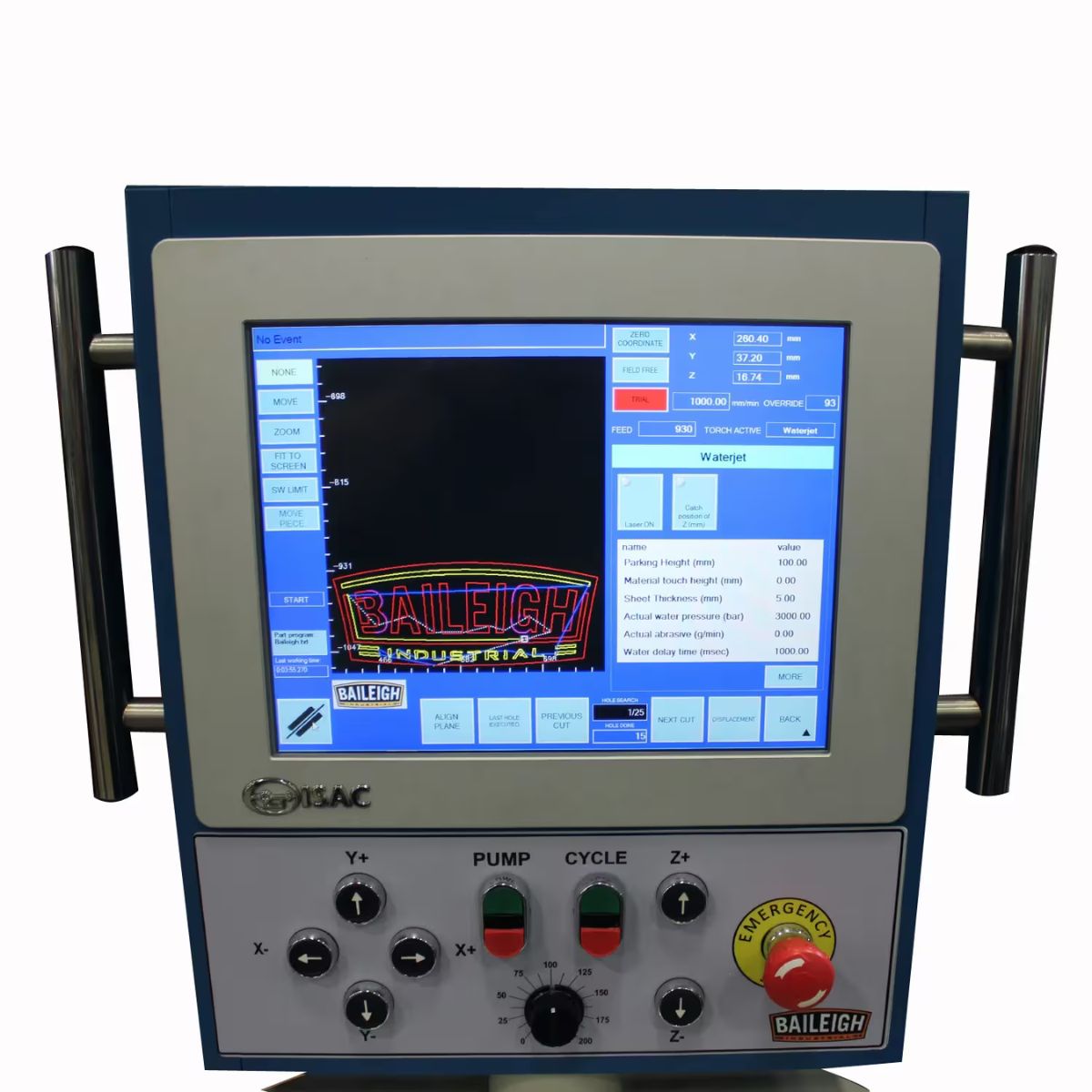

Windows-Based CNC Control Simplifies Programming
The touchscreen CNC operator console runs on Windows and accepts DXF files directly, with USB file loading for quick program transfer. BobCAD-CAM Express design software is included so you can program parts without a separate CAD investment.
What's Included
What's Included? Baileigh WJ-85CNC 60" × 96" CNC Water Jet Cutter
-
Baileigh WJ-85CNC Water Jet Cutter — Provides the complete industrial cutting system ready for installation and production use.
-
BobCAD-CAM Express Software — Allows you to design and program parts without purchasing separate CAD software.
-
WJ-85CNC Operator Manual (2 volumes) — Full machine documentation to support setup, operation, and maintenance. Volume 1 and Volume 2 are available for download.
Specs
Baileigh WJ-85CNC 60" × 96" CNC Water Jet Cutter Specifications
- SKU: BA9-1019138
- Model: WJ-85CNC
- Working Area: 60" × 96"
- Production Pressure: 55,000 PSI
- Pump: Jekran Direct Drive
- Motor: 42 HP
- Voltage: 460V, 3-Phase
- Amp Draw: 60A
- Air Pressure Required: 30 PSI
- Cutting Accuracy: ±0.001"
- Z-Axis Stroke: 6.5"
- Max Orifice Size: 0.014"
- Hopper Capacity: 250 lbs

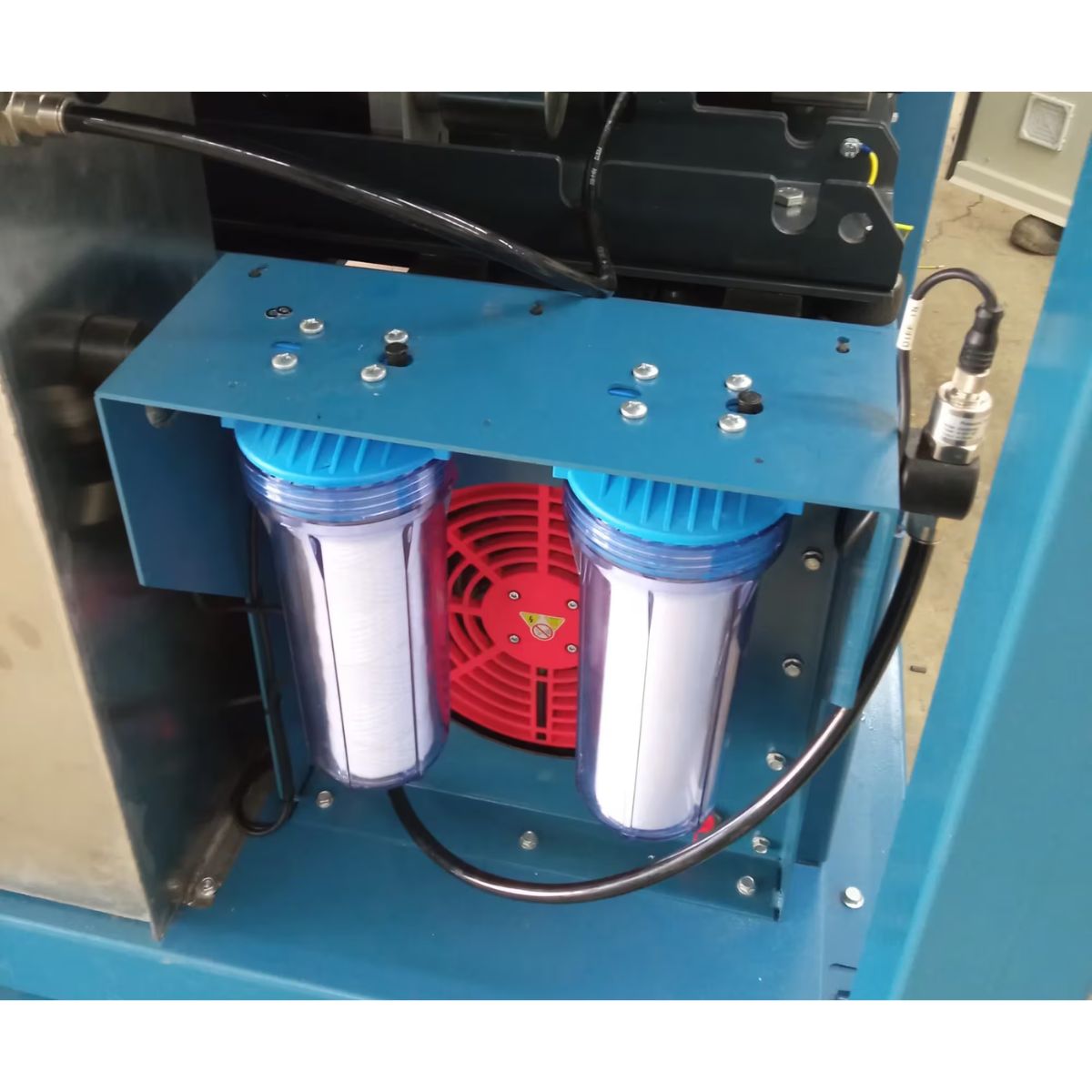

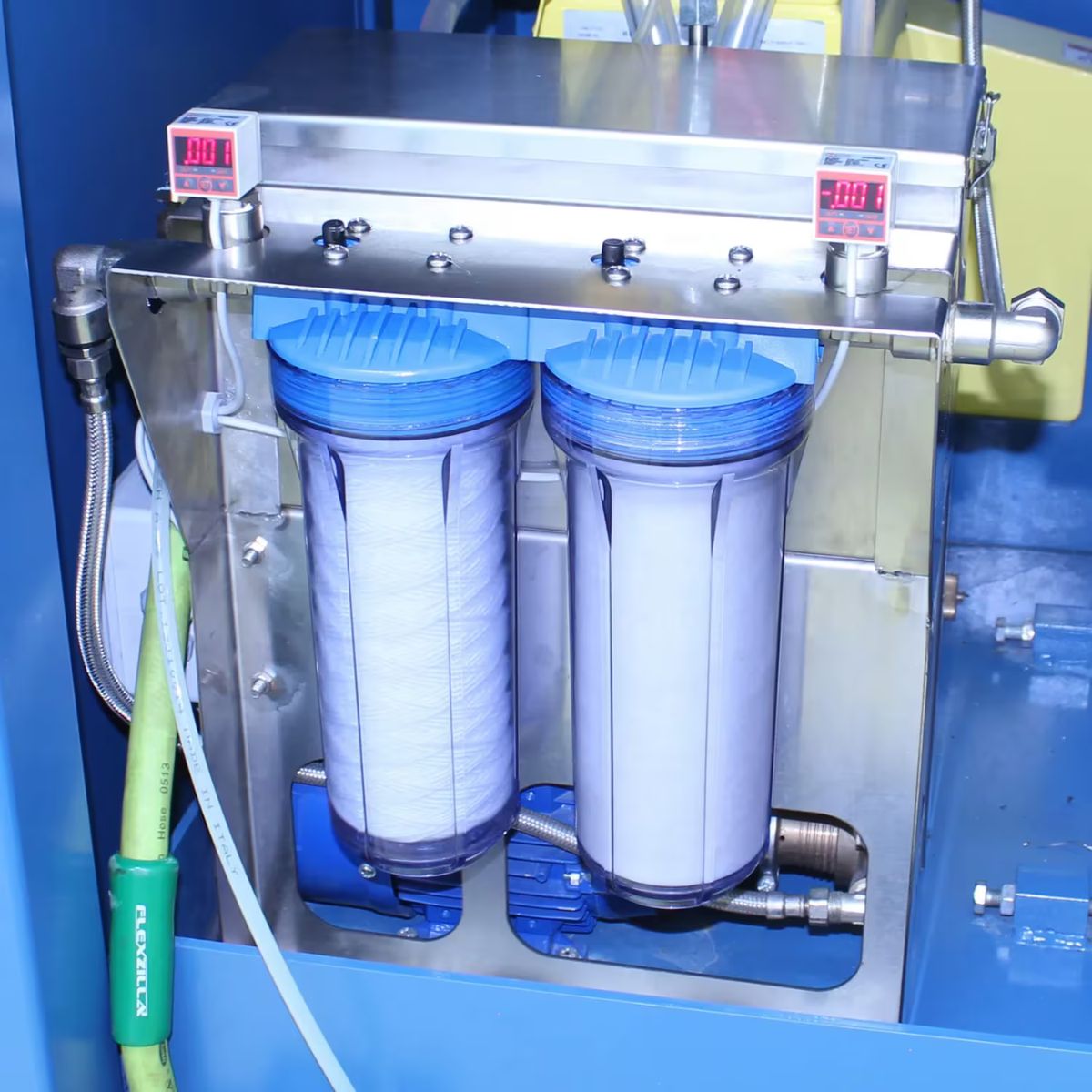

- Filter Type: 2-Stage / 2-Filter — 10 Micron and 1 Micron
- Supported File Formats: DXF
- CNC System: Windows-Based Touchscreen
- Net Weight: 5,600 lb
- Product Manual: WJ-85CNC Manual — Volume 1 and WJ-85CNC Manual — Volume 2
