Baileigh WJ-512CNC 60" × 144" CNC Water Jet Cutter
Are you cutting thick metal, ceramic, or composite parts and losing edge quality to heat distortion?
What if your shop had a large-format CNC cutter that works across materials without ever introducing heat to the cut?

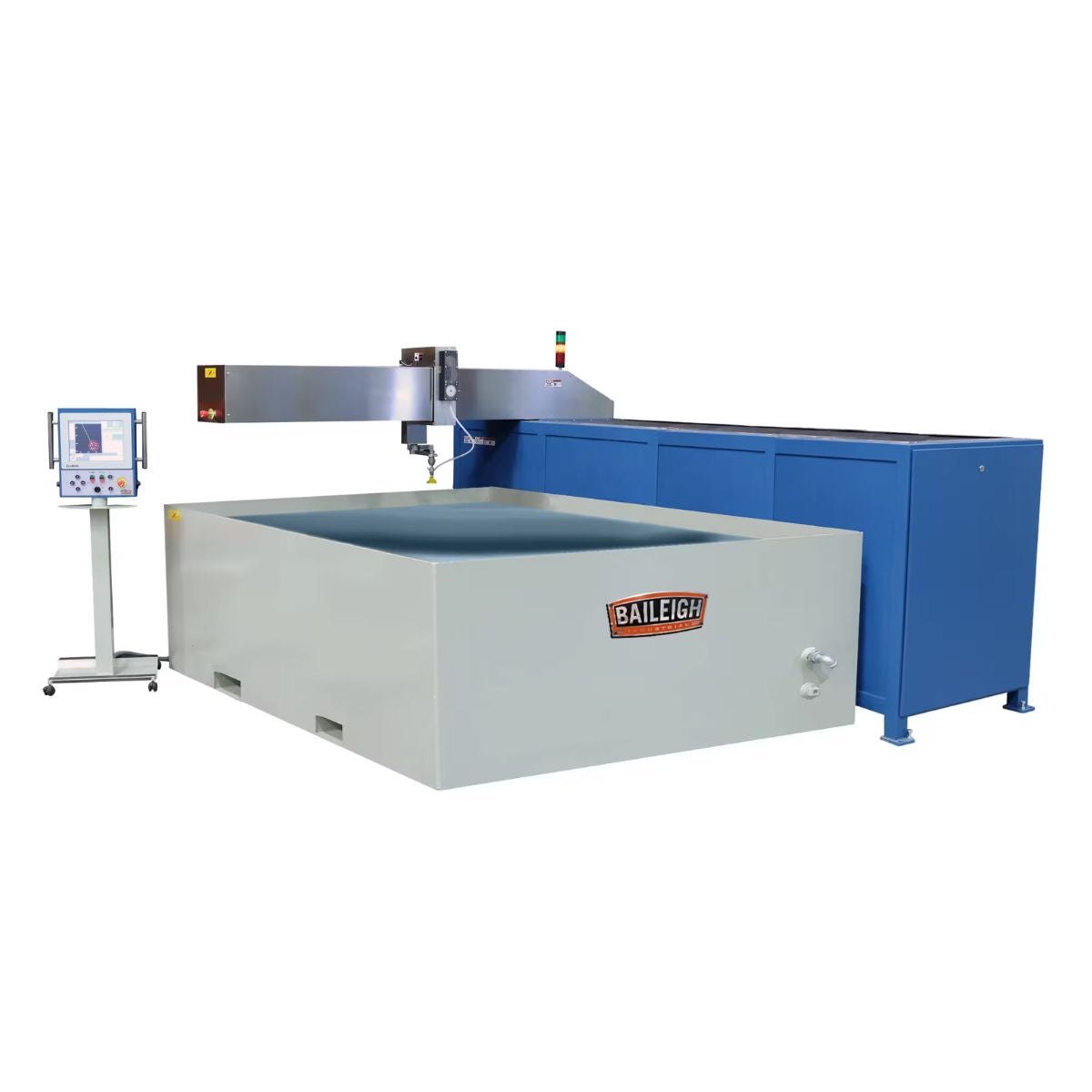

Meet the Baileigh WJ-512CNC 60" × 144" CNC Water Jet Cutter, a high-pressure industrial cutter built for fabrication shops that need precision across a wide range of materials.
With a 42 HP direct-drive pump at 55,000 PSI, a 60" × 144" working table, and a Windows-based touchscreen CNC system, the WJ-512CNC handles large parts with tight tolerances and consistent results.
When the machine holds ±0.001" accuracy across metals, ceramics, plastics, stone, and composites, you can run complex jobs with confidence.
Baileigh WJ-512CNC for Large-Format Precision Water Jet Cutting
Welded Steel Frame Delivers Cutting Rigidity
The WJ-512CNC is built on a laser-cut, interlocked, welded steel frame with a cantilever table design. The rigid frame keeps the cutting head stable through the full working area for consistent accuracy across large parts.
42 HP Direct-Drive Pump Maintains Consistent Pressure

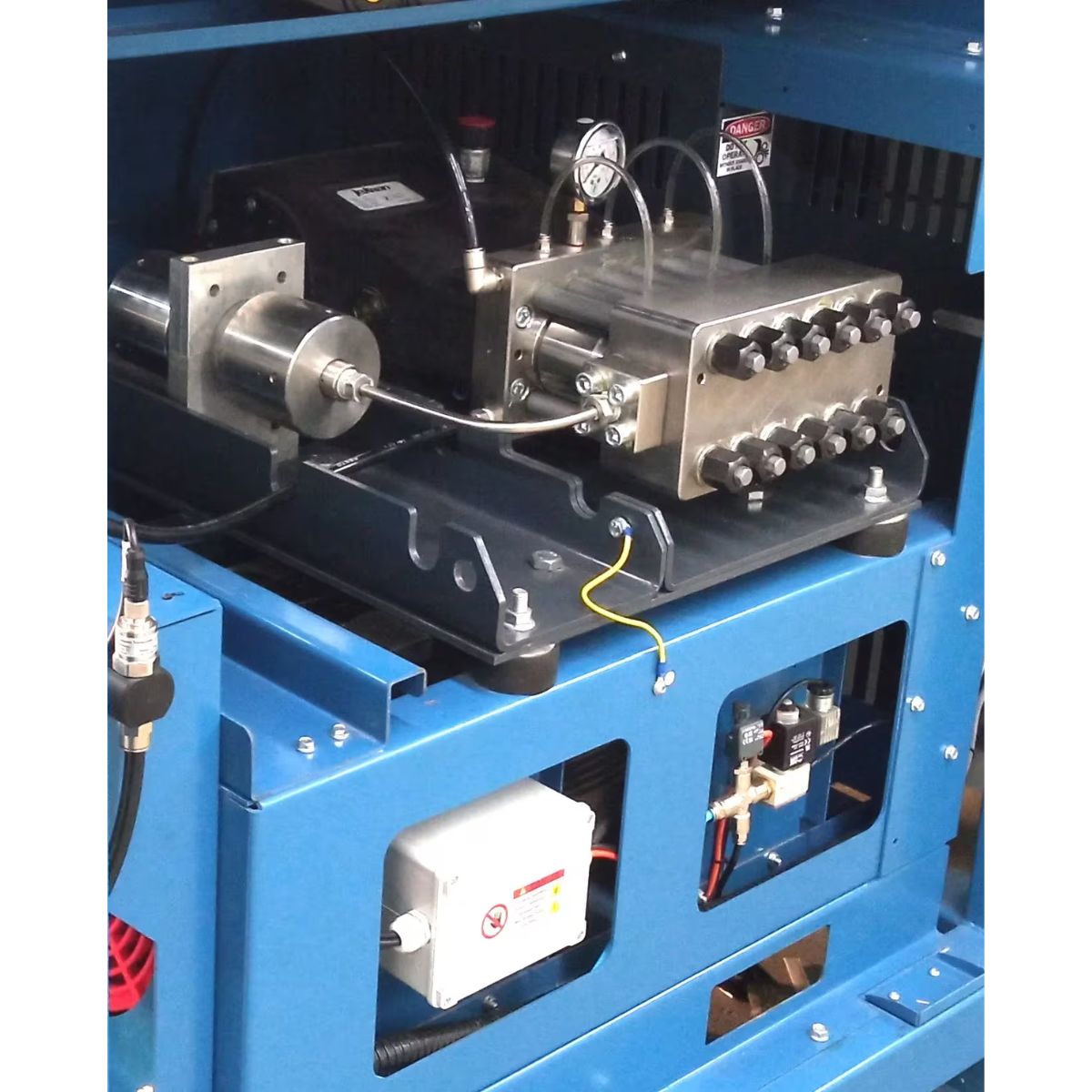

A 42 HP motor drives the direct-drive pump to 55,000 PSI for steady, heat-free cutting on metals, ceramics, plastics, stone, and composites. Cutting without heat means no warped edges, no hardened zones, and no secondary finishing on most materials.
Abrasive Auto-Feed System Reduces Maintenance Stops

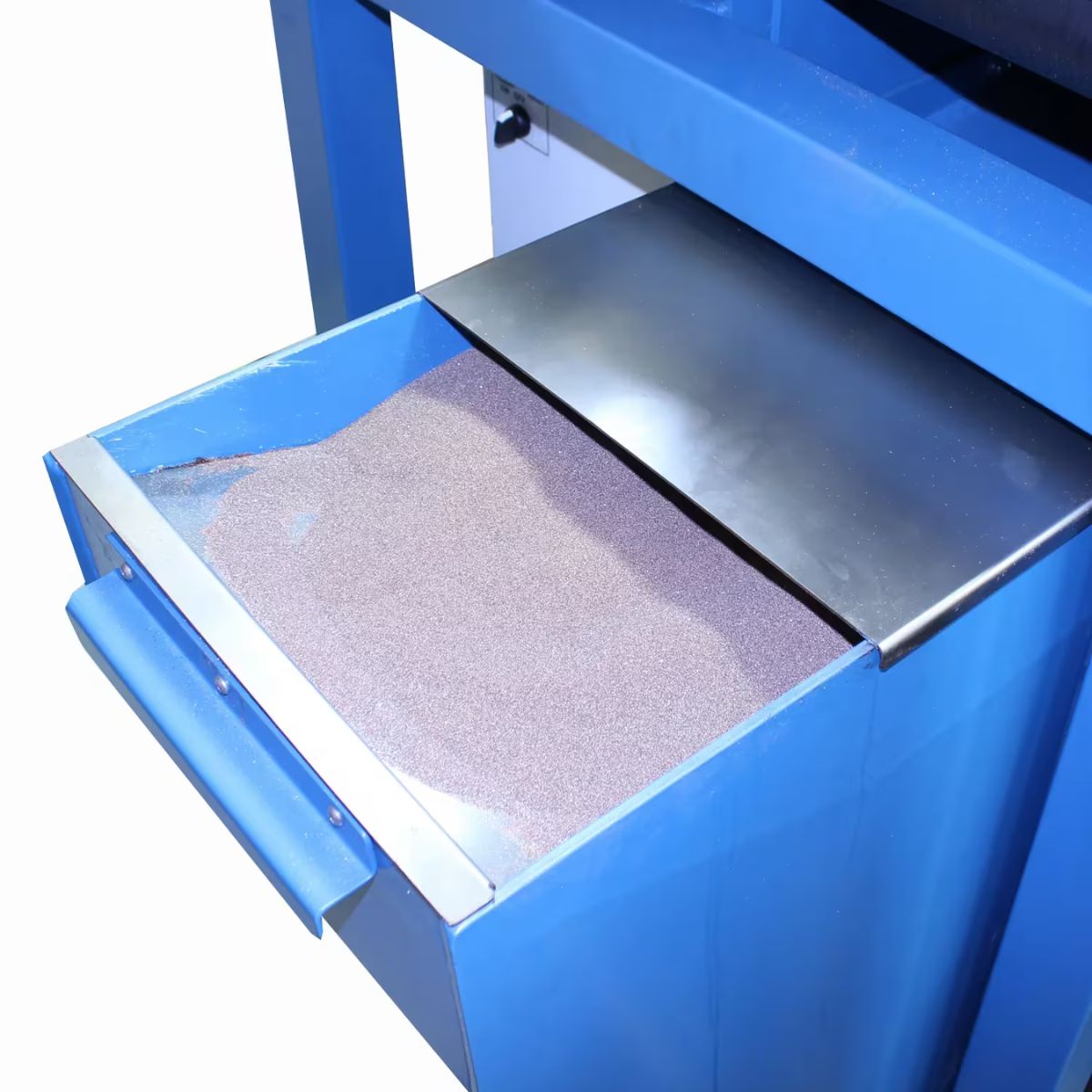

The proprietary abrasive auto-feed system delivers consistent garnet flow to the cutting head with a 250-unit hopper capacity. Reducing manual abrasive handling keeps the machine running longer between interruptions during production work.

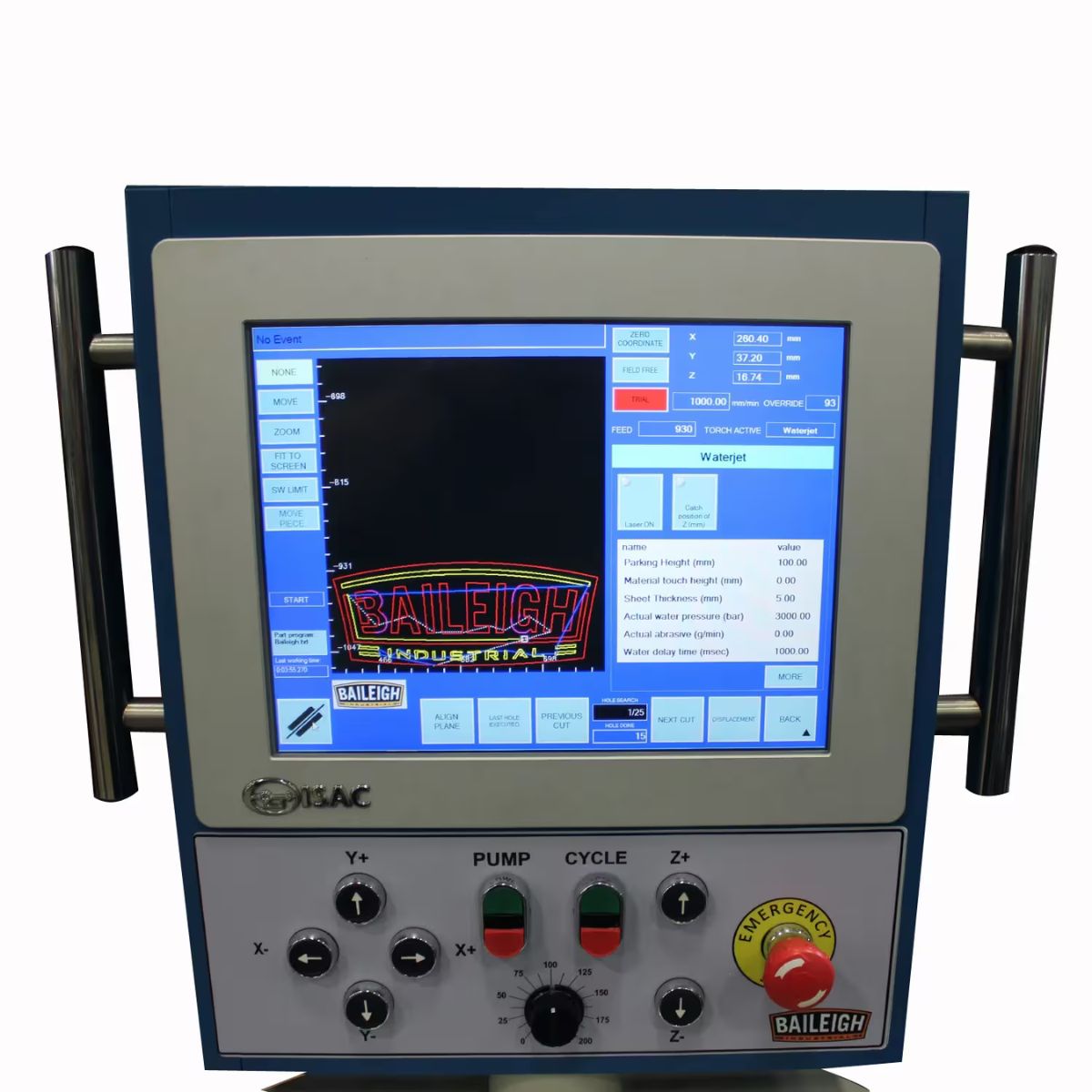

Windows Touchscreen CNC Supports DXF Files Directly
The Windows-based operator touchscreen accepts DXF files and works with the included BobCAD-CAM Express software for part programming. Load cut files via USB and move from design to first cut without complex file conversion steps.
What's Included
What's Included? Baileigh WJ-512CNC 60" × 144" CNC Water Jet Cutter
-
Baileigh WJ-512CNC Water Jet Cutter — Provides a large-format 60" × 144" CNC water jet cutting platform for industrial fabrication work.
-
BobCAD-CAM Express Software — Allows you to prepare and program cut files on a Windows-based system and load them via USB for immediate use.
Specs
Baileigh WJ-512CNC 60" × 144" CNC Water Jet Cutter Specifications
- Model: WJ-512CNC
- SKU: BA9-1016542
- Working Area: 60" × 144"
- Motor: 42 HP
- Cutting Pressure: 55,000 PSI
- Cutting Accuracy: ±0.001"
- Voltage: 460V, 3 Phase
- Amp Draw: 60A
- CNC System: Windows-Based Touchscreen
- Supported File Formats: DXF
- Hopper Capacity: 250
- Max Orifice Size: 0.014"
- Stroke Length: 6.5"

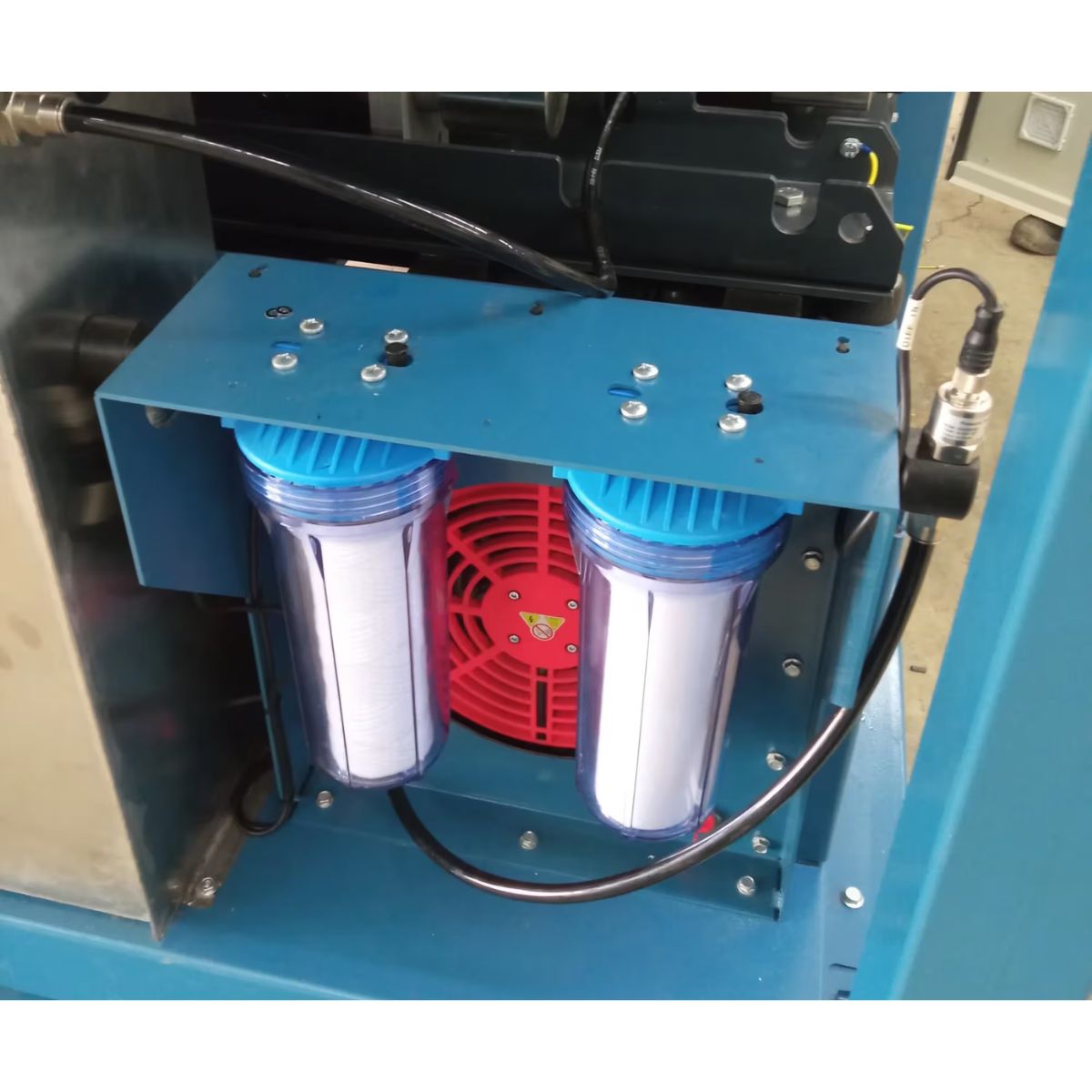

- Filter Type: 2-Stage/2-Filter, 10 Micron and 1 Micron
- Net Weight: 7,555 lb
- Warranty: 1 Year Parts, Lifetime Technical Support
