Baileigh WJ-4X4CNC 47" × 47" CNC Water Jet Cutter
Are you looking for a compact water jet cutter that handles precision work across metal, stone, glass, and more?
What if your shop had a CNC water jet that cuts clean, accurate parts without heat distortion or blade wear?

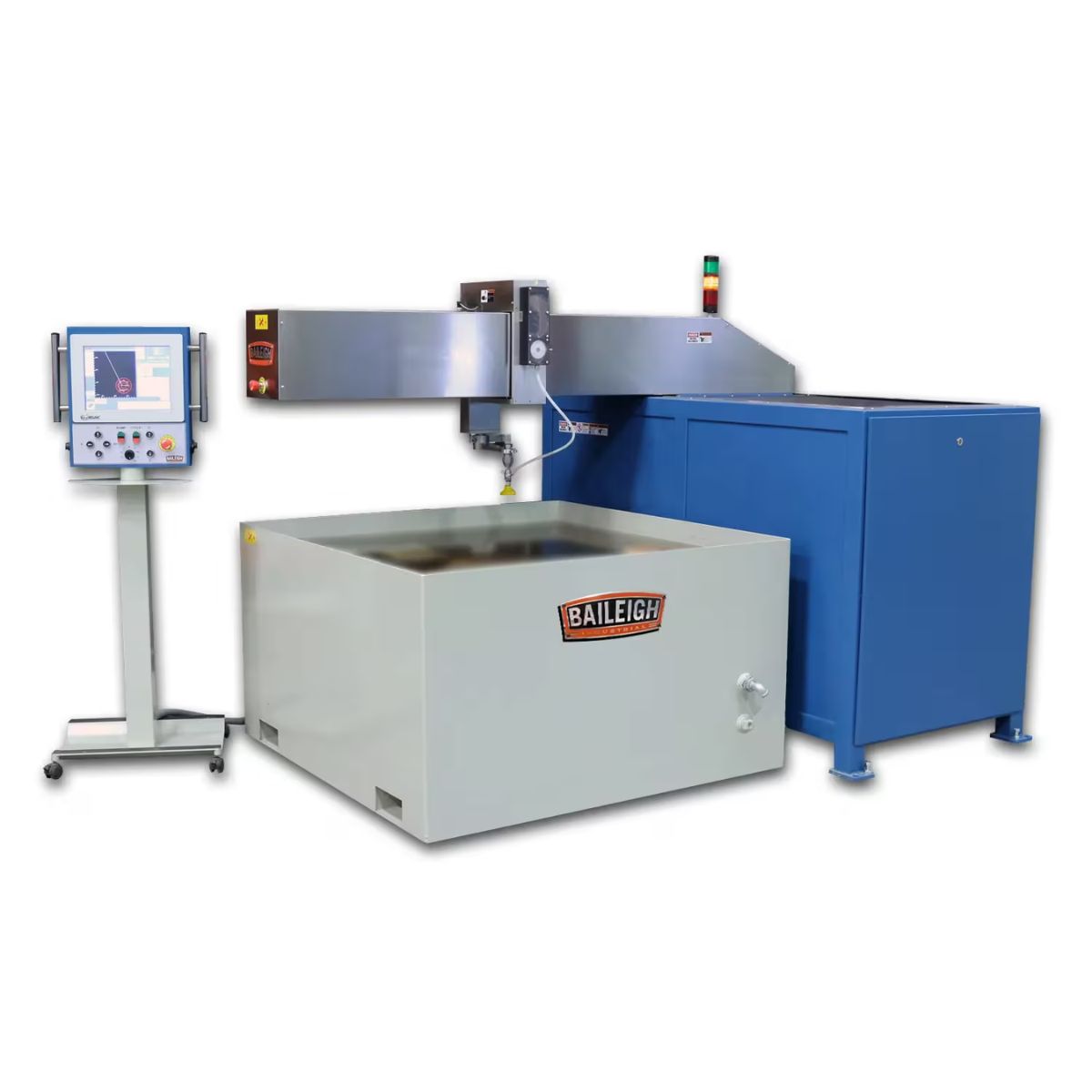

Meet the Baileigh WJ-4X4CNC 47" × 47" CNC Water Jet Cutter, a direct drive water jet built for fabrication shops that need industrial cutting in a manageable footprint.
With a 42 HP Hammelmann direct drive pump, 55,000 PSI cutting pressure, and BobCAD-CAM software included, the WJ-4X4CNC is ready to cut from day one.
When your shop has a machine that cuts this cleanly across this many materials, you can take on more work with confidence.
Baileigh WJ-4X4CNC for Precision Multi-Material Cutting
Hammelmann Direct Drive Pump Delivers Consistent Cutting Pressure

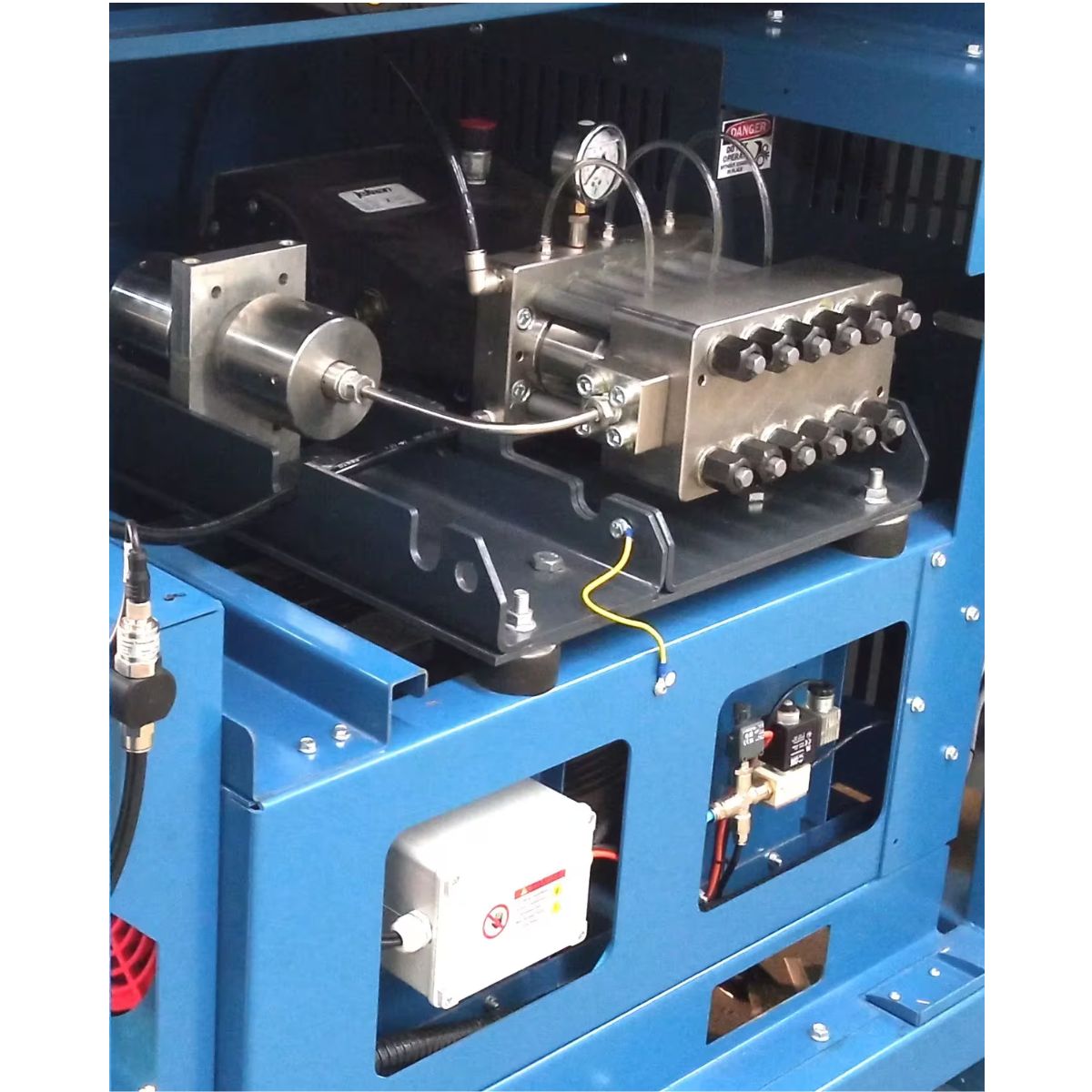

The 42 HP Hammelmann direct drive pump runs at 55,000 PSI to push a precise stream of water and abrasive through the material. Direct drive pumps have fewer wear components than intensifier-style pumps, which means lower maintenance demands over time.
Cantilever Frame Keeps the Work Area Clear
The heavy-duty welded steel cantilever frame supports the cutting head from one side, leaving the full 48" × 48" table open for loading and unloading material. This design improves access and makes it easier to position large or awkward stock.
Two-Stage Filtration Protects Pump Components

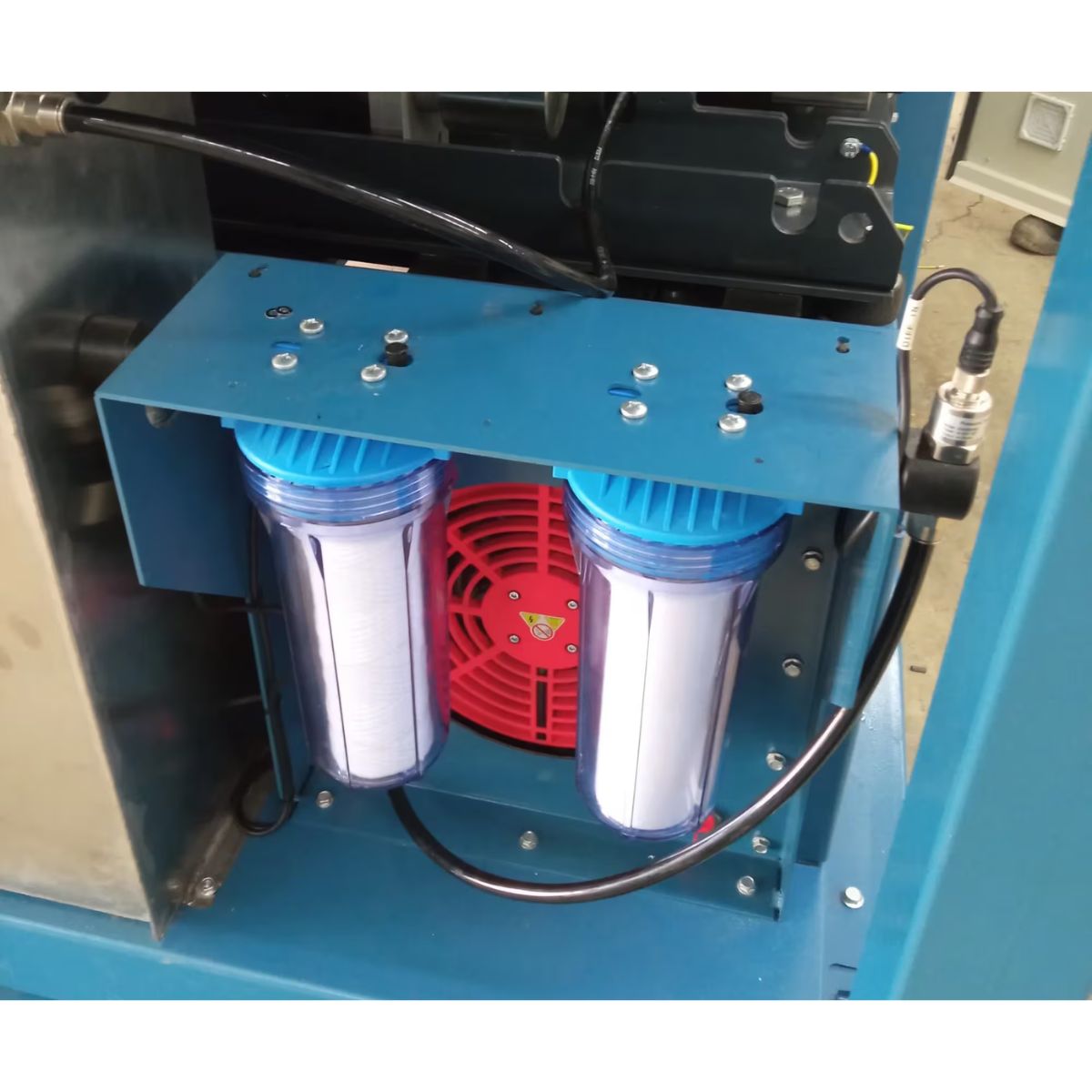

Water passes through a 10-micron pre-filter and a 1-micron final filter before reaching the pump. Clean water extends seal and orifice life, which reduces the frequency of scheduled maintenance stops.

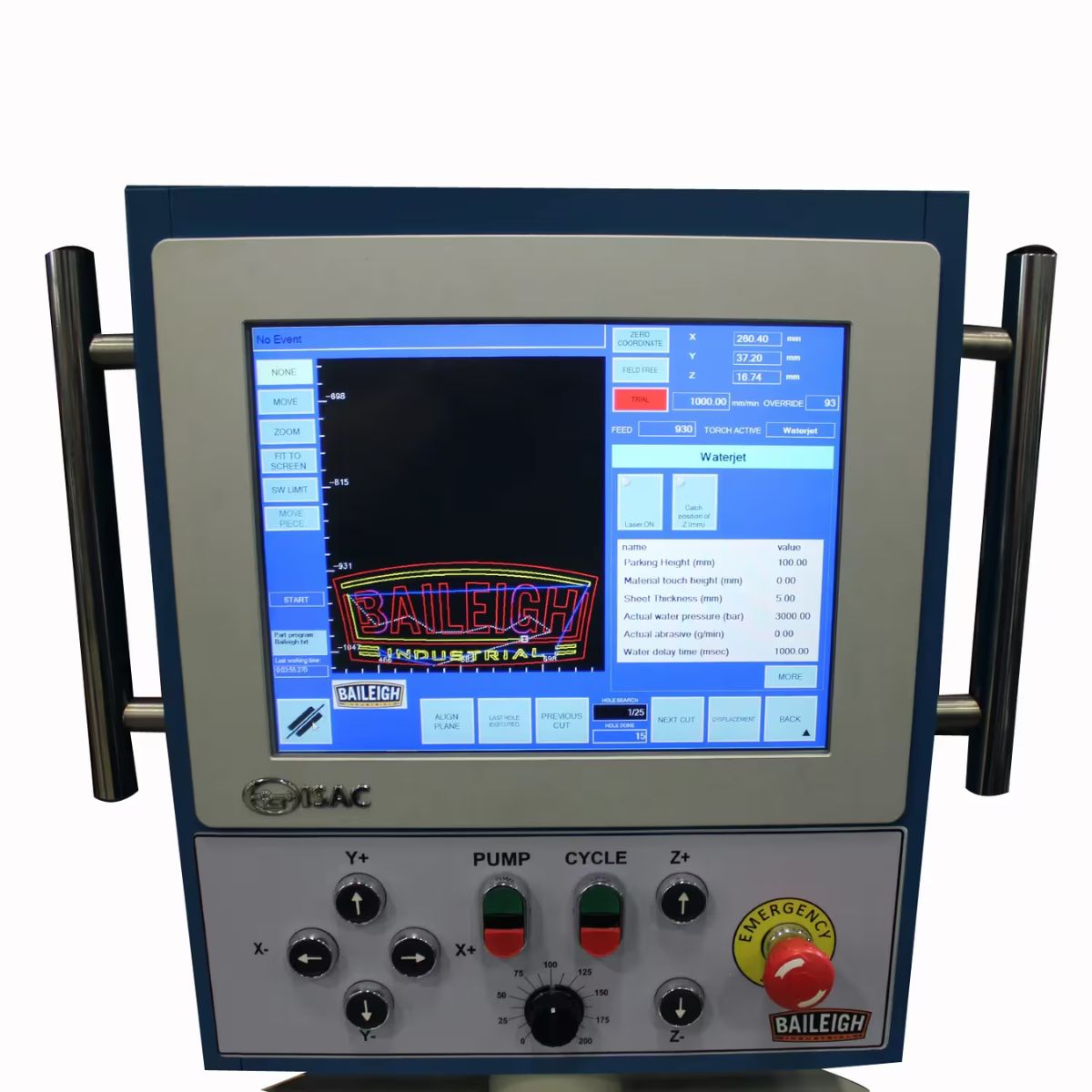

Windows-Based CNC Control Supports DXF Files
The operator interface runs on a Windows-based CNC system and accepts DXF files directly. BobCAD-CAM Express programming software is included, so you can nest parts, optimize cut paths, and move from design to cut without adding software costs.
What's Included
What's Included? Baileigh WJ-4X4CNC 47" × 47" CNC Water Jet Cutter
-
Baileigh WJ-4X4CNC Water Jet Cutter — Provides a 48" × 48" CNC water jet cutting platform for multi-material fabrication work.
-
BobCAD-CAM Express Software — Allows you to program parts, nest layouts, and export cut files directly to the machine.
-

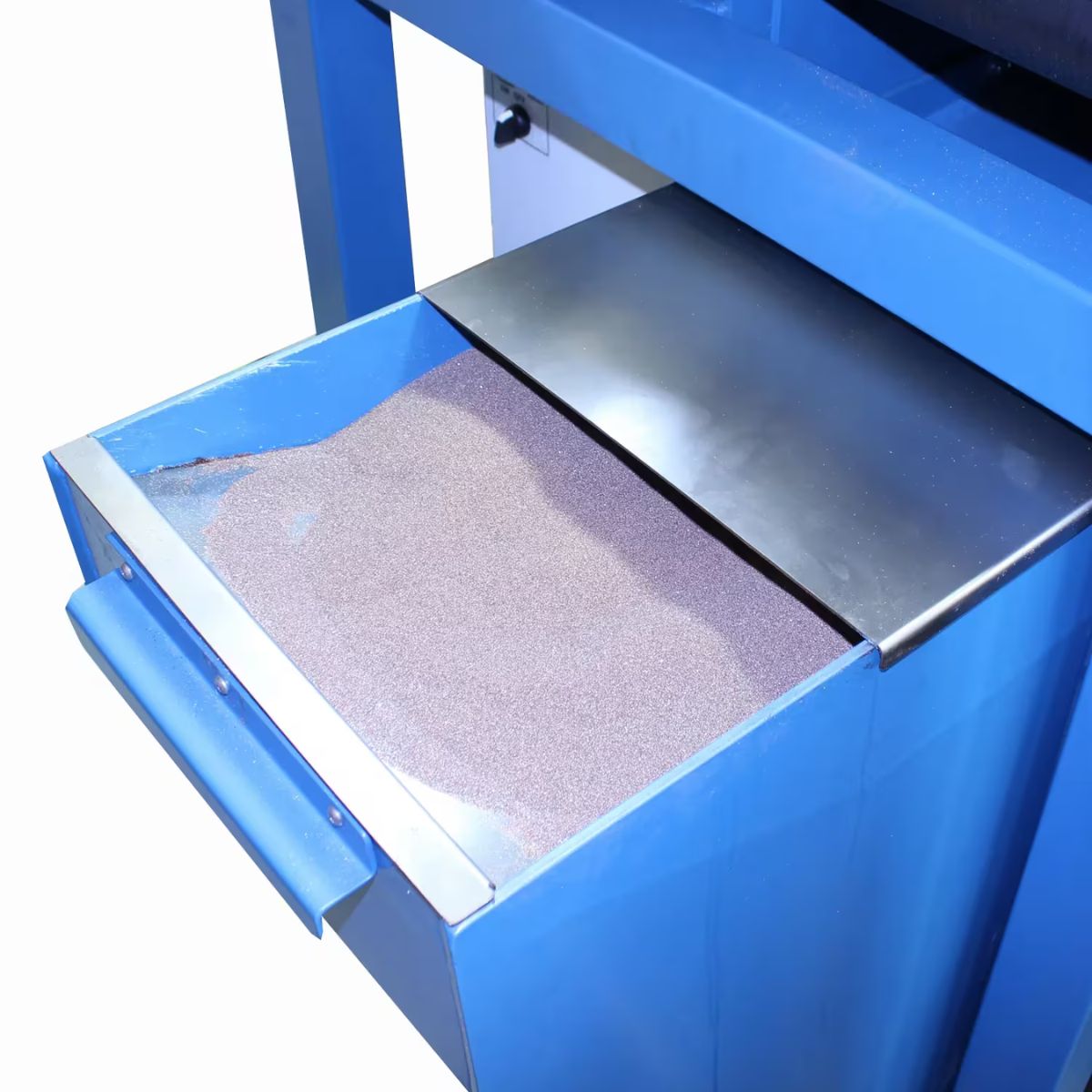

Abrasive Auto-Feed System — Delivers consistent garnet feed to the cutting head during operation.
-
Two-Stage Filter System — Protects pump components with 10-micron and 1-micron filtration.
Specs
Baileigh WJ-4X4CNC 47" × 47" CNC Water Jet Cutter Specifications
- Model: WJ-4x4CNC
- Stock Number: BA9-1019139
- Working Area: 48" × 48"
- Production Pressure: 55,000 PSI
- Motor: 42 HP
- Pump Type: Hammelmann Direct Drive
- Amp Draw: 60A
- Input Power: 460V, 3-Phase
- Stroke Length: 6.5"
- Max Orifice Size: 0.014"
- Cutting Accuracy: ±.001"
- Hopper Capacity: 250 lb
- CNC System: Windows-Based
- Supported File Formats: DXF
- Filter Type: 2-Stage — 10 Micron & 1 Micron
- Net Weight: 4,000 lb
- Warranty: 1 Year Parts, Lifetime Technical Support
