Baileigh PR-603-4 72" Four-Roll Double Pinch Plate Roll — 1/4"
Are you spending extra time pre-bending plate before every rolling pass?
What if your shop had a plate roll that pinched and formed in a single setup without extra handling steps.

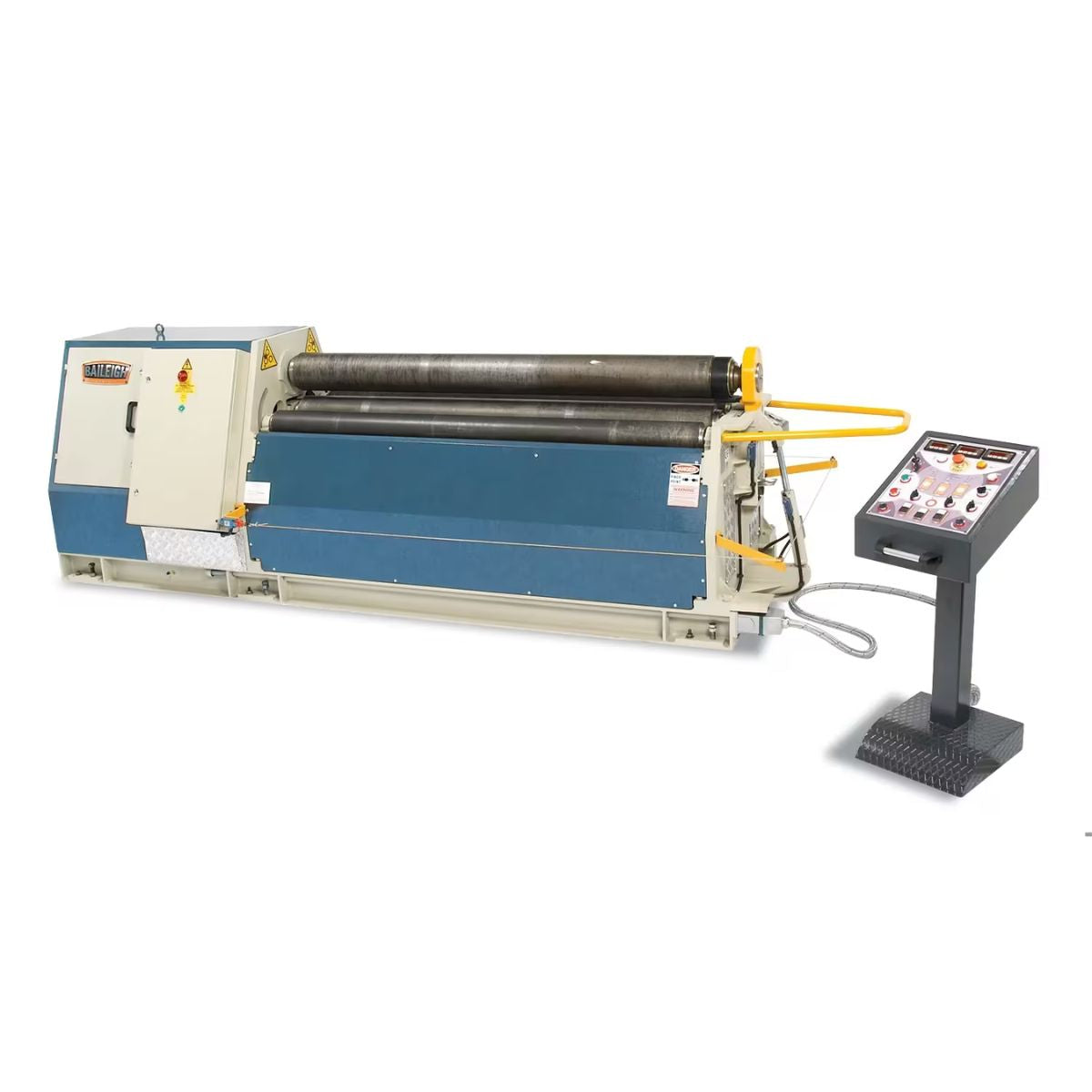

Meet the Baileigh PR-603-4 72" Four-Roll Double Pinch Plate Roll, a heavy-duty 4-roll machine built for steady, repeatable forming in metal fabrication shops.
With a 4 HP motor, hydraulic lateral roll movement, and a 72-inch bending capacity, the PR-603-4 handles 1/4-inch mild steel plate with consistent control.
When the machine holds your material firmly from the first pass, you can focus on forming accurate cylinders and cones without starting over.
Baileigh PR-603-4 for Heavy-Duty Plate Rolling and Cone Forming
Four-Roll Double Pinch Design Eliminates Pre-Bending
The four-roll double pinch configuration grips the plate at both ends of the roll before forming begins. This removes the need to flip or reposition material for pre-bending, reducing handling time and keeping the workflow moving steadily.
4 HP Motor and Planetary Gearbox Deliver Consistent Roll Power
The 4 HP, 220V three-phase motor drives the rolls through a planetary gearbox for smooth, controlled forming at 16 feet per minute. Consistent torque across the roll width helps produce uniform results when working with 1/4-inch mild steel plate.

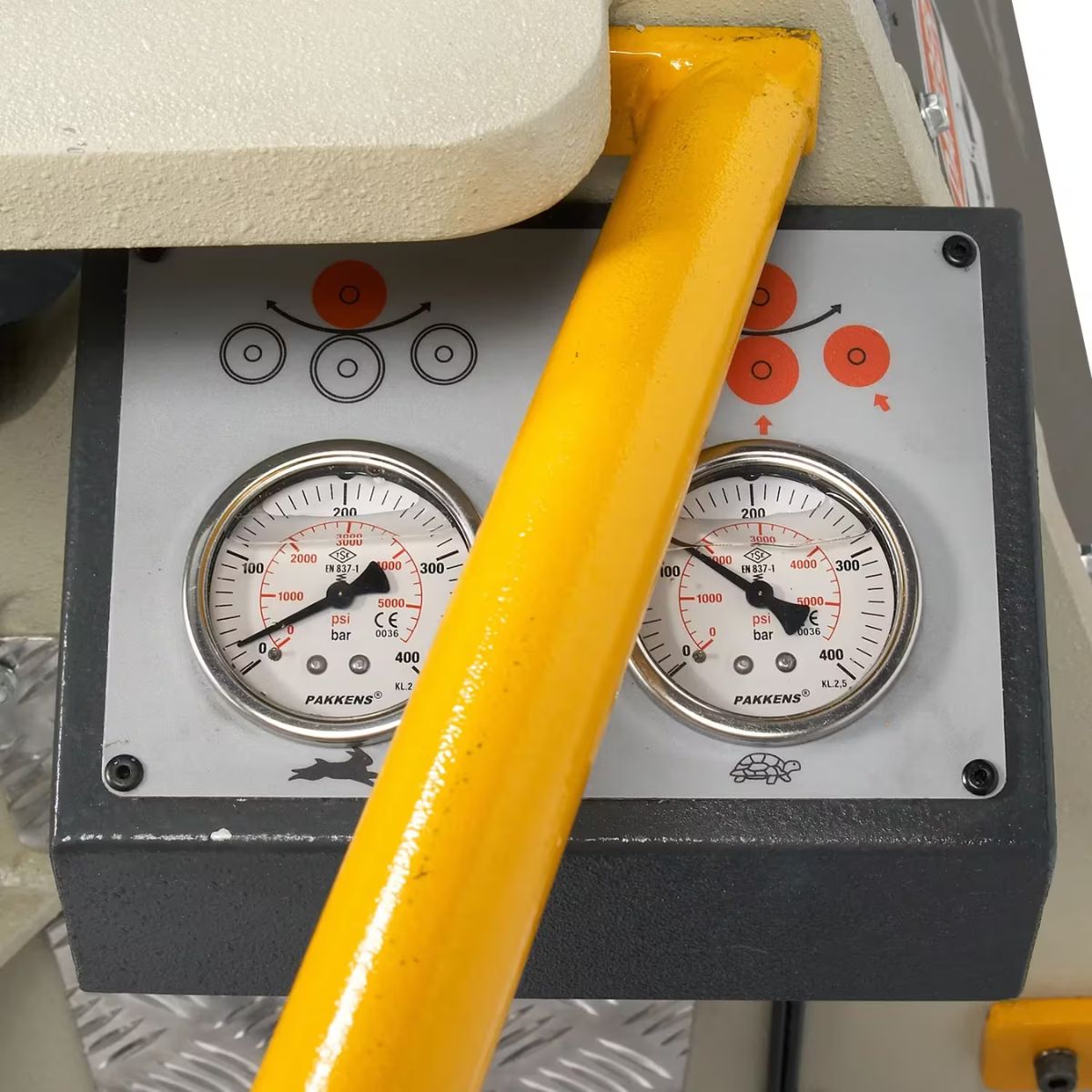

Hydraulic Lateral Roll Movement Supports Accurate Setup

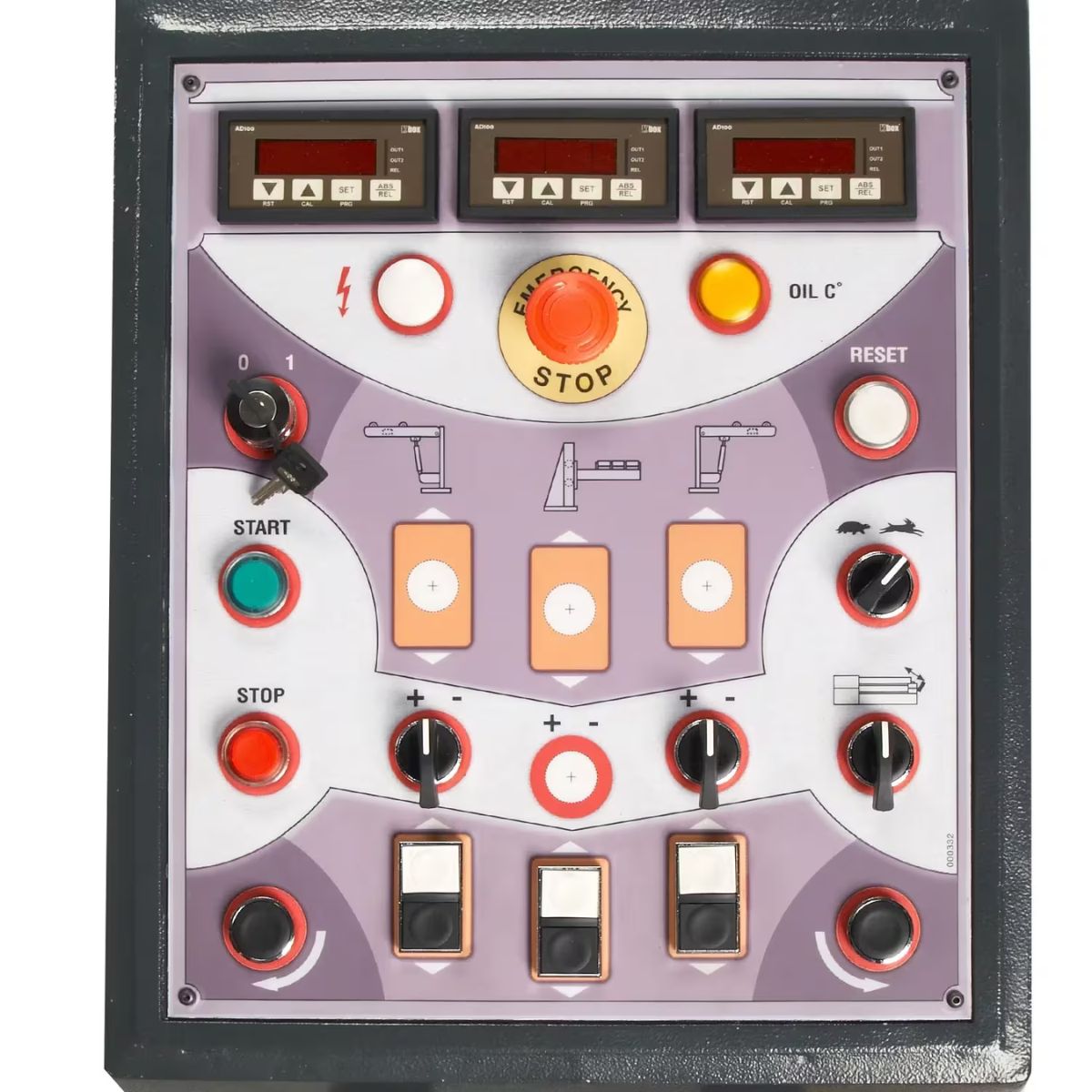

Hydraulic controls manage lateral roll movement for repeatable positioning on each job. Digital readouts give the operator a clear reference point during setup, helping produce consistent results from part to part.
Heavy-Duty All-Steel Frame Handles Production Workloads
The all-steel frame is built to absorb the stress of daily plate rolling without flexing under load. A solid frame keeps the rolls aligned during long production runs and supports accurate forming across the full 80-inch forming width.
What's Included
What's Included? Baileigh PR-603-4 72" Four-Roll Double Pinch Plate Roll
-
Baileigh PR-603-4 72" Four-Roll Double Pinch Plate Roll — Provides a heavy-duty four-roll forming platform for rolling 1/4-inch mild steel plate up to 72 inches.
-
Cone Bending Attachment — Allows the machine to form cone shapes in addition to standard cylinders, expanding the range of fabrication work the machine can handle.
Specs
Baileigh PR-603-4 72" Four-Roll Double Pinch Plate Roll Specifications
- Model: PR-603-4
- Stock Number: BA9-1006554
- Bending Capacity Length: 72 in
- Maximum Forming Length: 80 in
- Mild Steel Capacity: 1/4 in (Gauge 3)
- Motor: 4 HP
- Input Power: 220V Three Phase
- Roll Speed: 16 FPM
- Frame: Heavy-duty all-steel construction
- Net Weight: 7,600 lb
- Warranty: 1 Year Parts, Lifetime Technical Support
