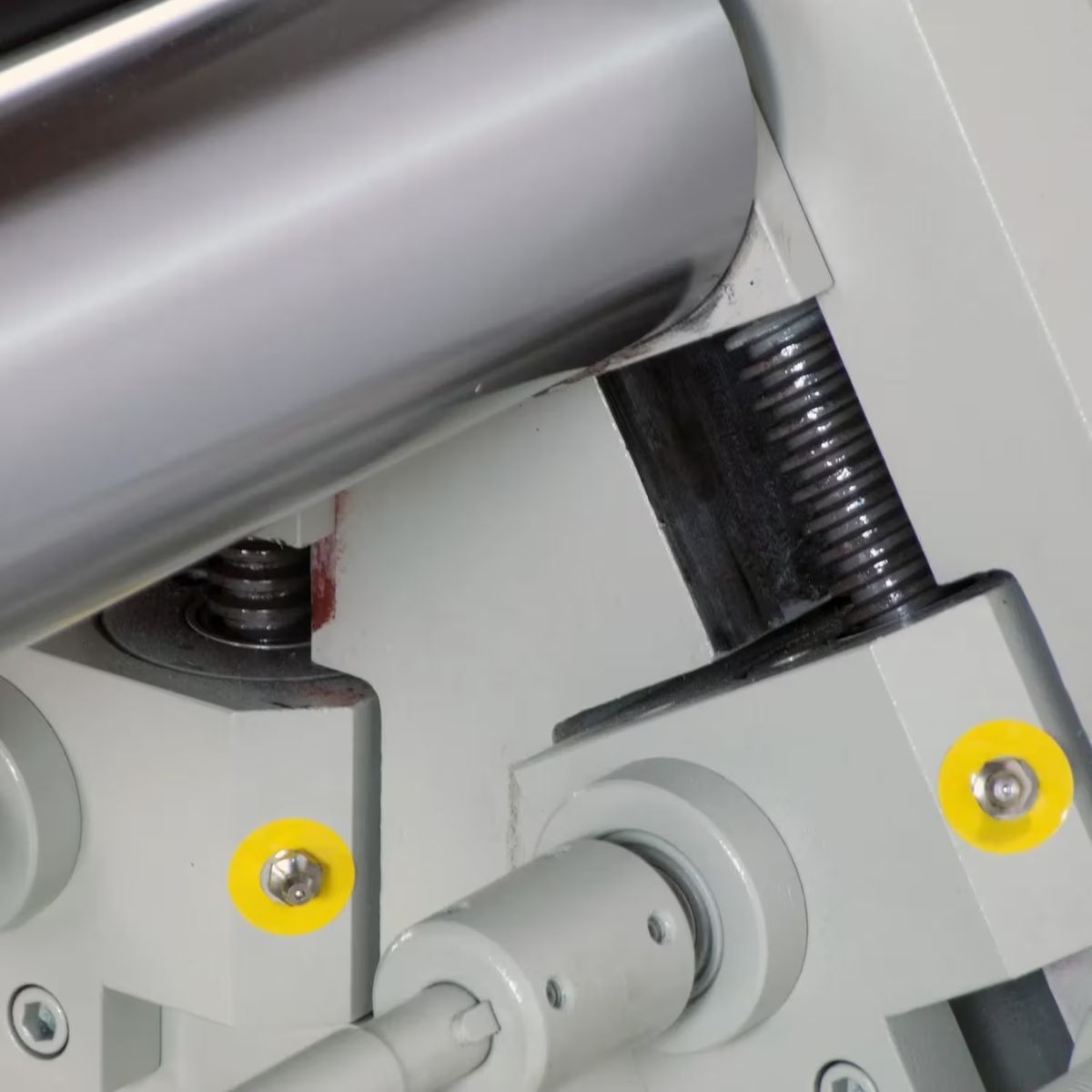

Baileigh PR-514 60" Plate Roll — 14 Gauge
Are you looking for a plate roll that handles 60 inch wide sheet metal with consistent results from one part to the next?
What if your shop had a hydraulic plate roller that let you dial in the back roll position and repeat it run after run?

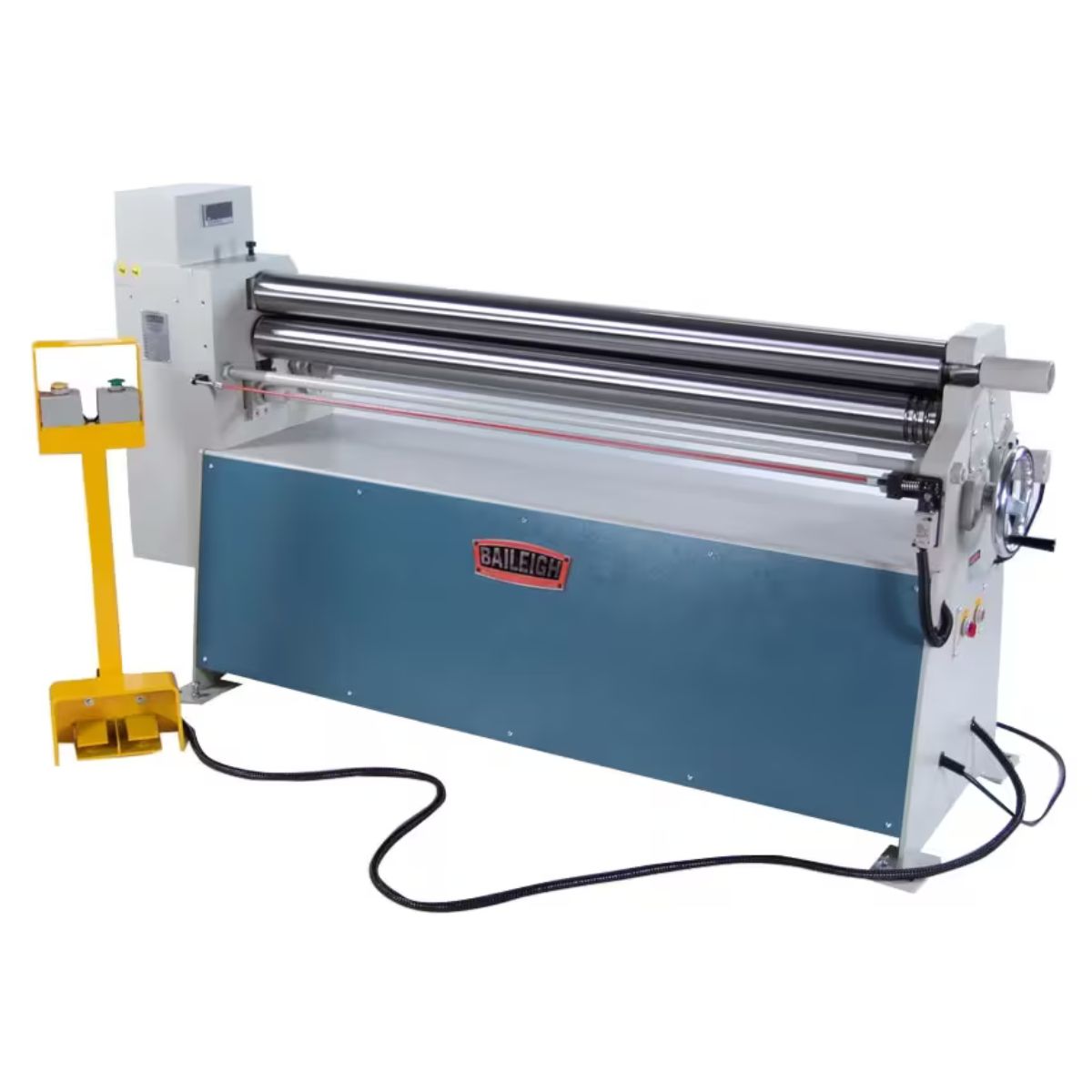

Meet the Baileigh PR-514 60" Plate Roll, a single-phase hydraulic plate roll built for fabrication shops working in 14 gauge mild steel.
With a welded steel frame, hardened rolls, foot pedal controls, and a digital readout for back roll position, the PR-514 gives you reliable forming across the full 60 inch width.
When your back roll position is tracked and repeatable, you can move through a run of parts with confidence in every bend.
Baileigh PR-514 for Consistent Plate Rolling in Mild Steel
Welded Steel Frame Holds Rolls in Alignment Under Load

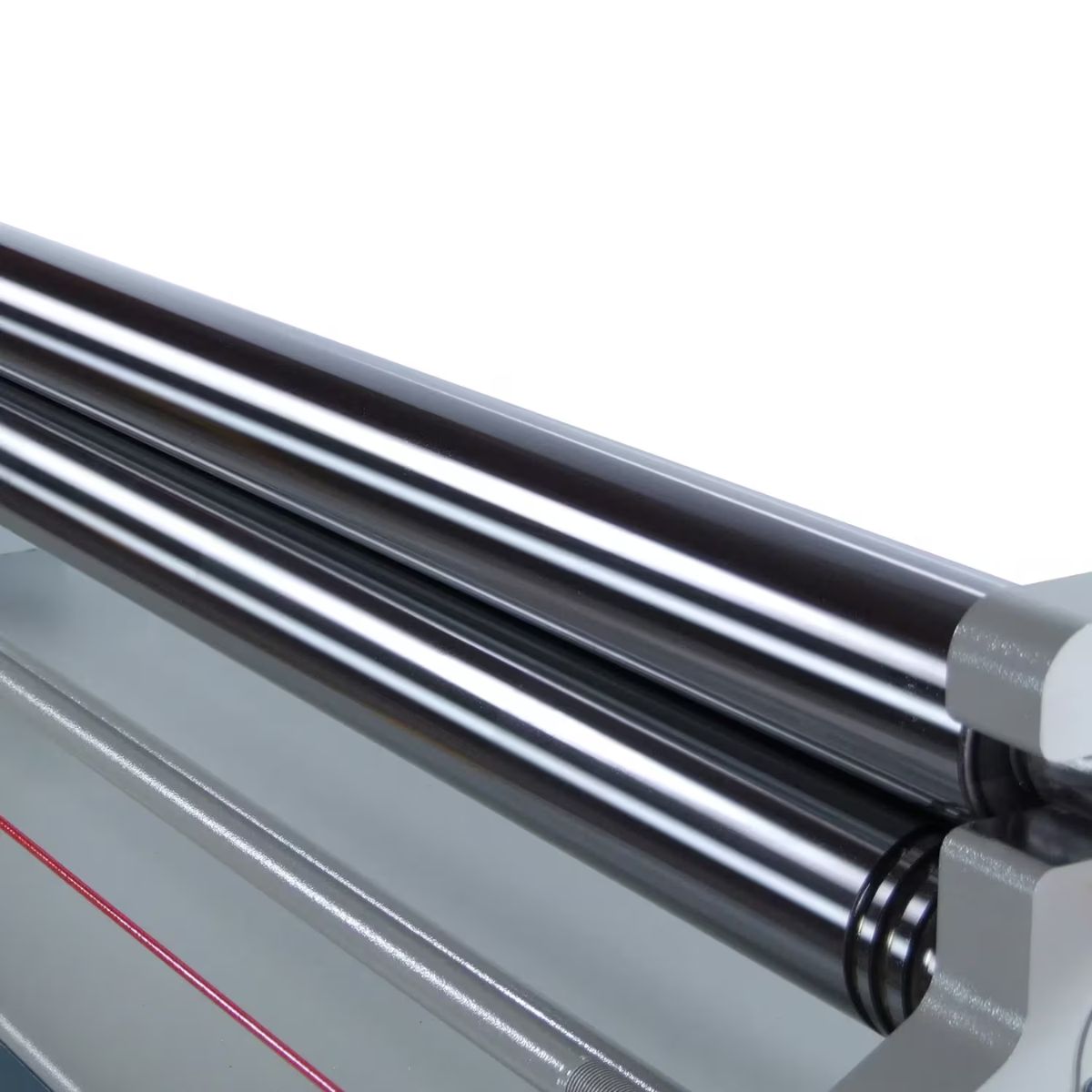

The PR-514 is built on a fully welded steel frame that resists deflection during forming. A rigid frame keeps the rolls in alignment across the full 60 inch working width, so bends stay consistent from one end of the sheet to the other.
Hydraulic Back Roll Adjustment Controls Forming Diameter

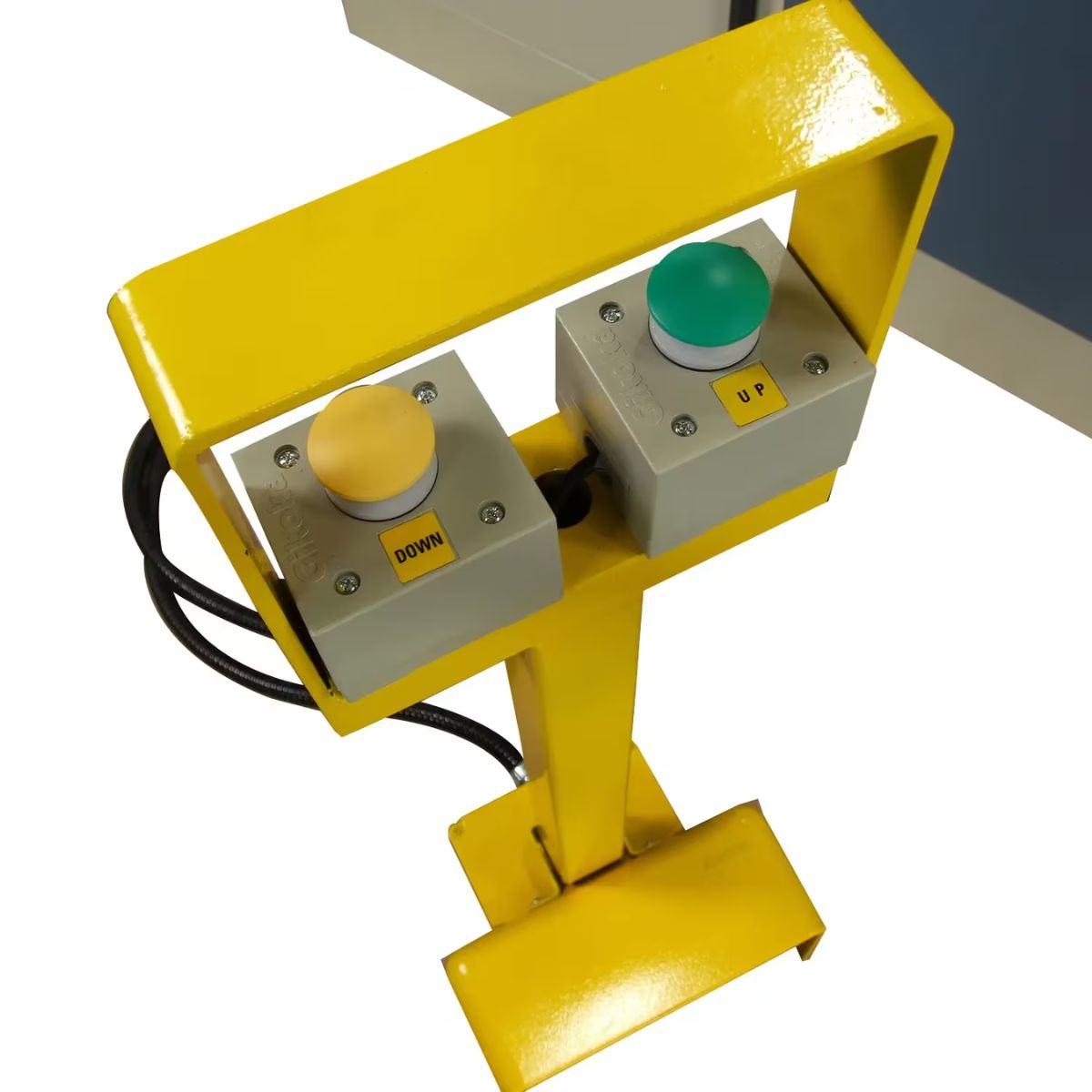

The back roll is raised and lowered by an independent hydraulic motor, controlled from the remote pedestal with UP and DOWN pushbuttons. This lets you adjust the forming diameter without stopping work and without leaving the operating position.

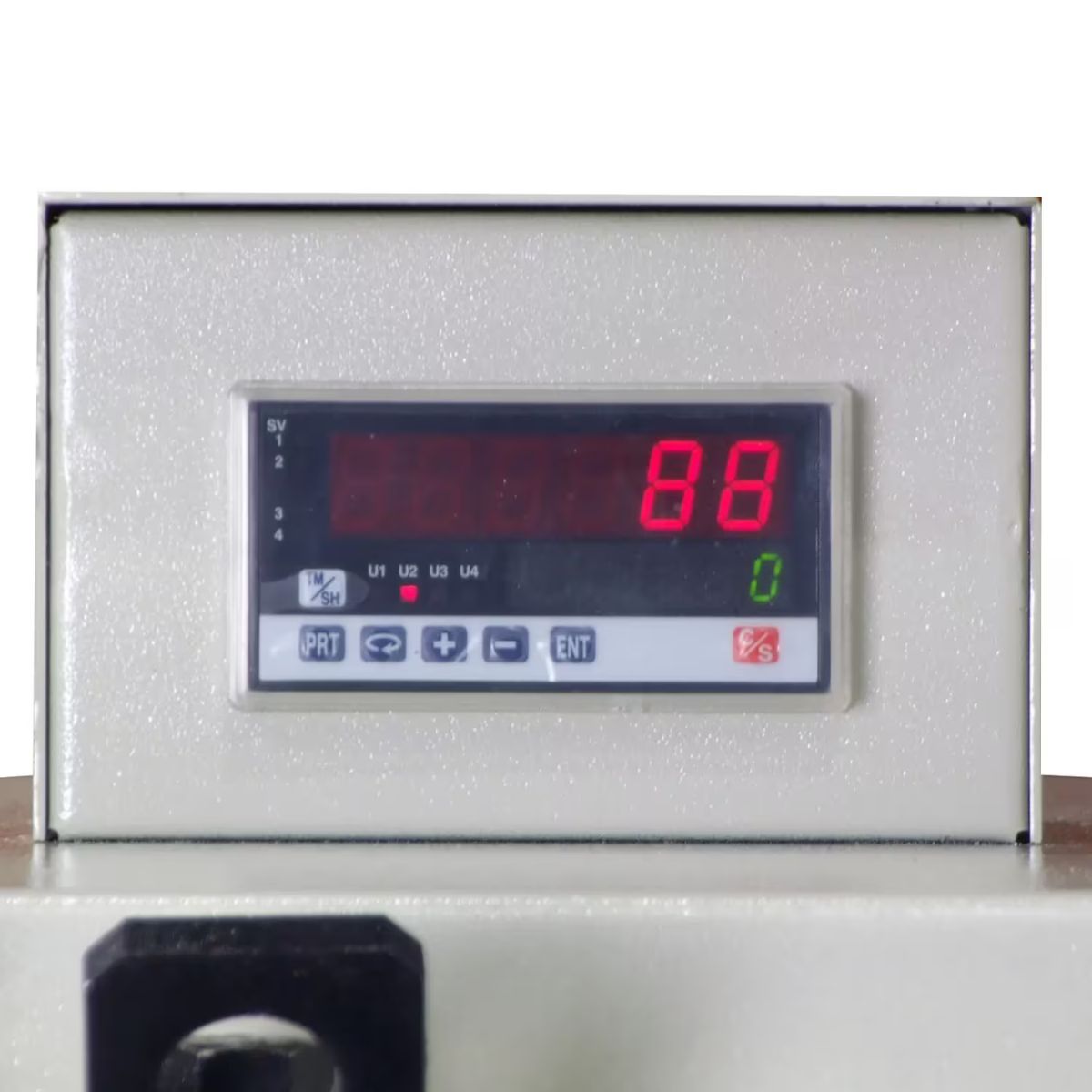

Digital Readout Tracks Back Roll Position for Repeatable Results
An encoder and digital readout display the back roll position so you can return to a setting on the next part or the next run. When you need to make multiples of the same cylinder or curve, the readout removes the guesswork from setup.
Foot Pedal Controls Keep Both Hands Free During Rolling
The left foot pedal feeds material into the rolls and the right pedal reverses direction. Hands-free roll control lets you guide and support the workpiece through the full rolling process without reaching for a switch.
What's Included
What's Included? Baileigh PR-514 60" Plate Roll — 14 Gauge
-
Baileigh PR-514 Plate Roll — Provides a 60 inch hydraulic plate rolling platform for forming mild steel sheet.
-
Remote Control Pedestal — Allows back roll adjustment and foot pedal operation from the working position.
-
Foot Switch Assembly — Controls roll direction with left and right foot pedals for hands-free feeding.
-
Tool Kit — Includes tools needed for setup and maintenance.
Specs
Baileigh PR-514 60" Plate Roll — 14 Gauge Specifications
- Model: PR-514
- Stock Number: BA9-1006546
- Forming Width: 60 in (1524mm)
- Mild Steel Capacity: 14 gauge (.075" / 1.9mm)
- Upper Roll Diameter: 3.50 in (89mm)
- Minimum Forming Diameter: 5.25 in (133mm)
- Roll Speed: 6 RPM
- Back Roll Adjustment: Hydraulic

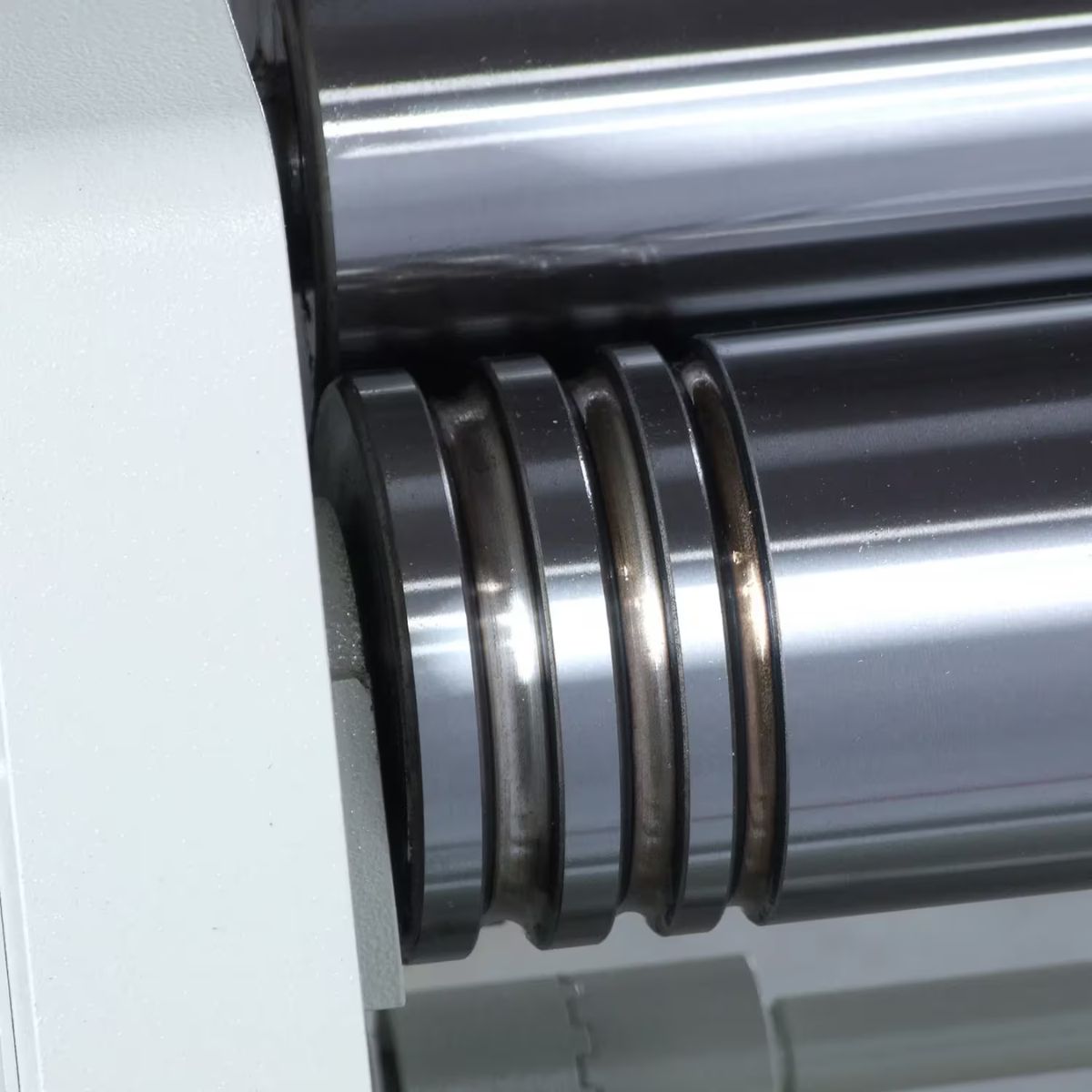

- Wire Grooves: Yes
- Motor: 2 HP (1.5kW)
- Power: 220V / 1-Phase
- Shipping Weight: 1,243 lbs (564kg)
- Shipping Dimensions: 89" x 29" x 56" (2261 x 737 x 1422mm)
- Warranty: 1 Year
