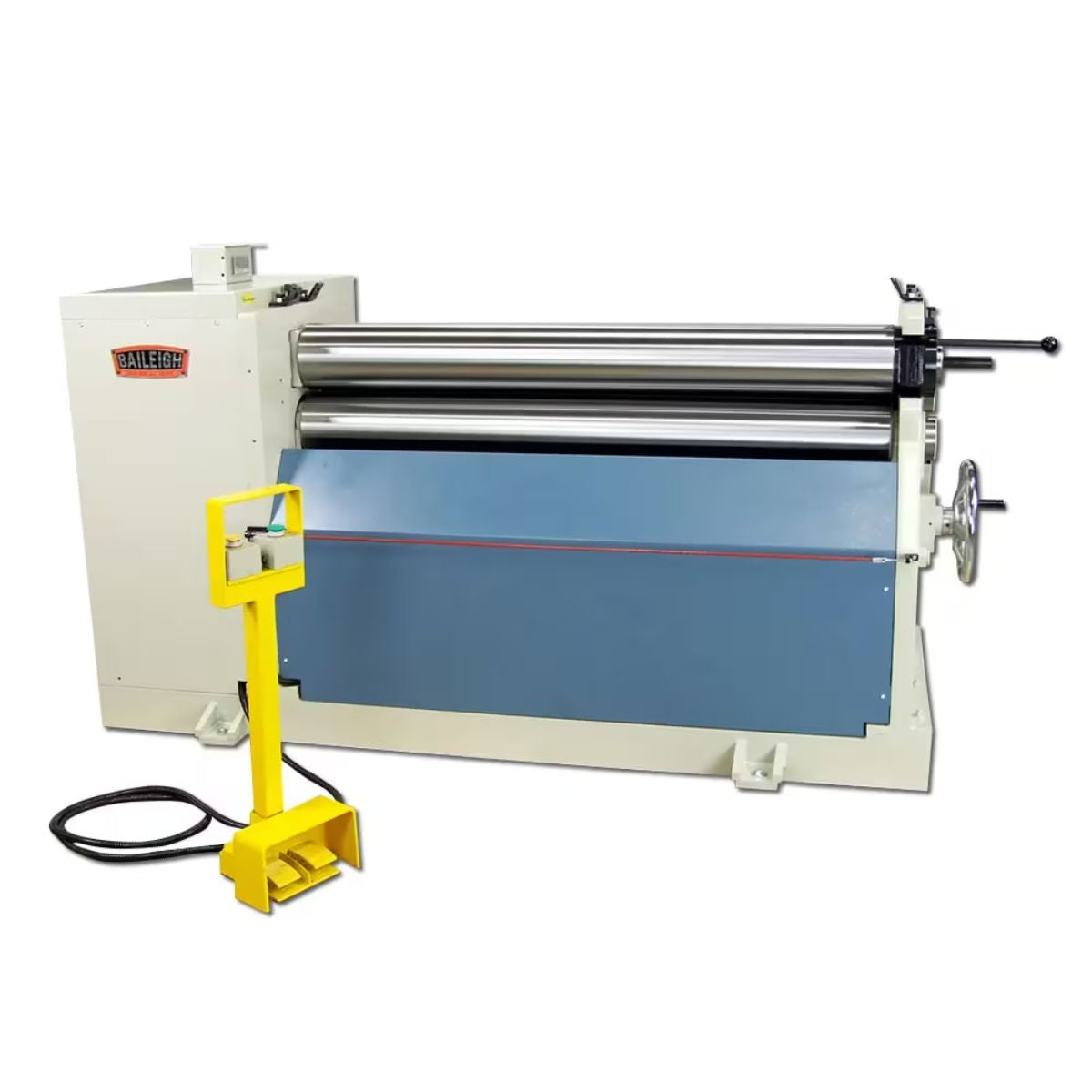

Baileigh PR-503 60" Hydraulic Plate Roll
Are you looking for a plate roll that handles full-width forming without losing accuracy across the bend?
What if your shop had a hydraulic plate roll that holds consistent positioning from the first pass to the last.
Meet the Baileigh PR-503 60" Hydraulic Plate Roll, a three-roll hydraulic machine built for professional fabrication work.
With a fully welded steel frame, hydraulic roll adjustment, and a digital readout for back roll position, the PR-503 holds its settings and repeats them reliably.
When the machine holds position through a full-width bend, you can move through production work with confidence.
Baileigh PR-503 for Hydraulic Plate Forming
Fully Welded Steel Frame Resists Deflection
The PR-503 is built on a heavy, fully welded steel frame designed to hold its shape under load. A rigid frame keeps the rolls aligned through the full forming width, which supports consistent results across every bend.

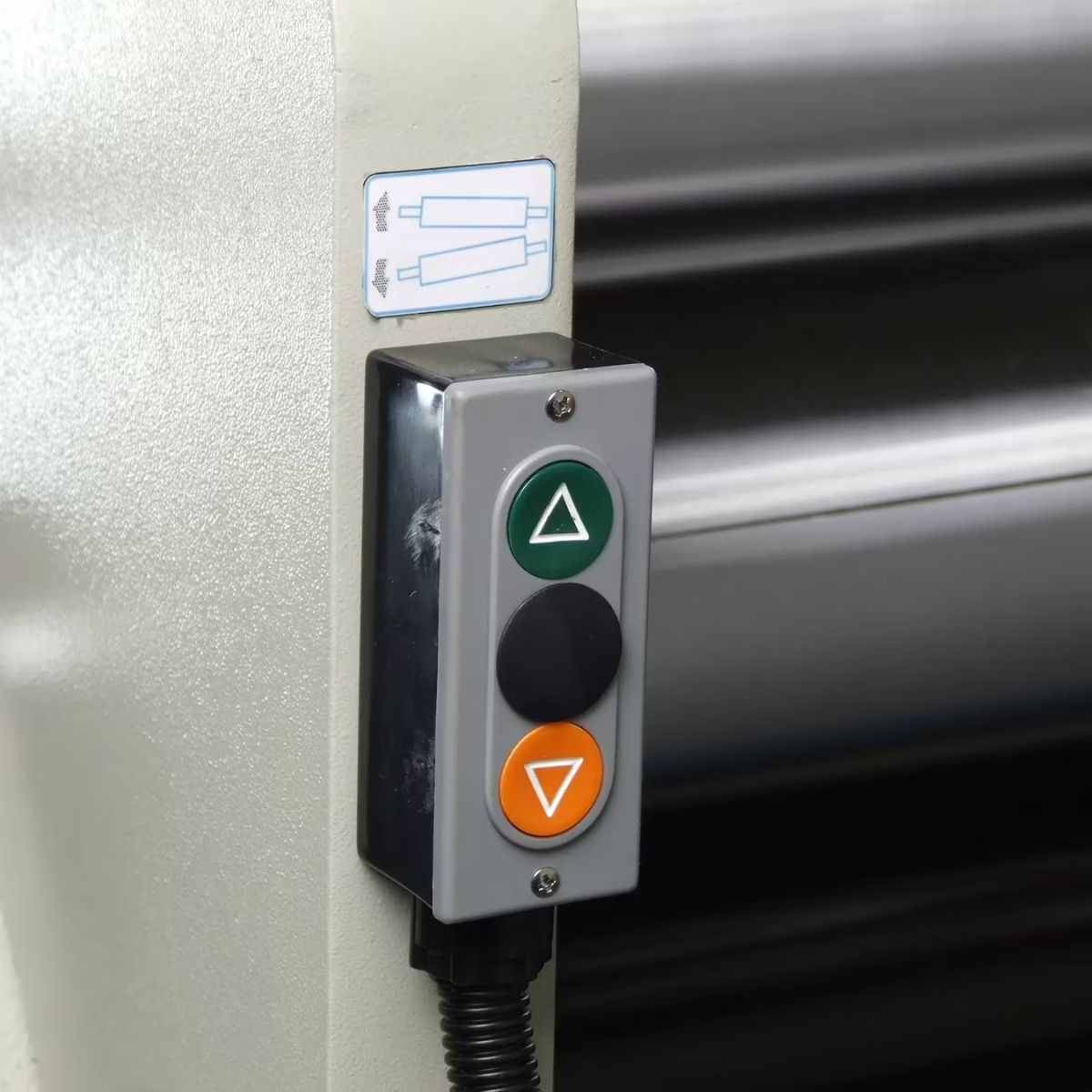

Hydraulic Roll Adjustment Holds Precise Position
All three rolls are hydraulically driven, and the top roll adjusts hydraulically for controlled positioning. This keeps setup repeatable and reduces the adjustments needed between parts.

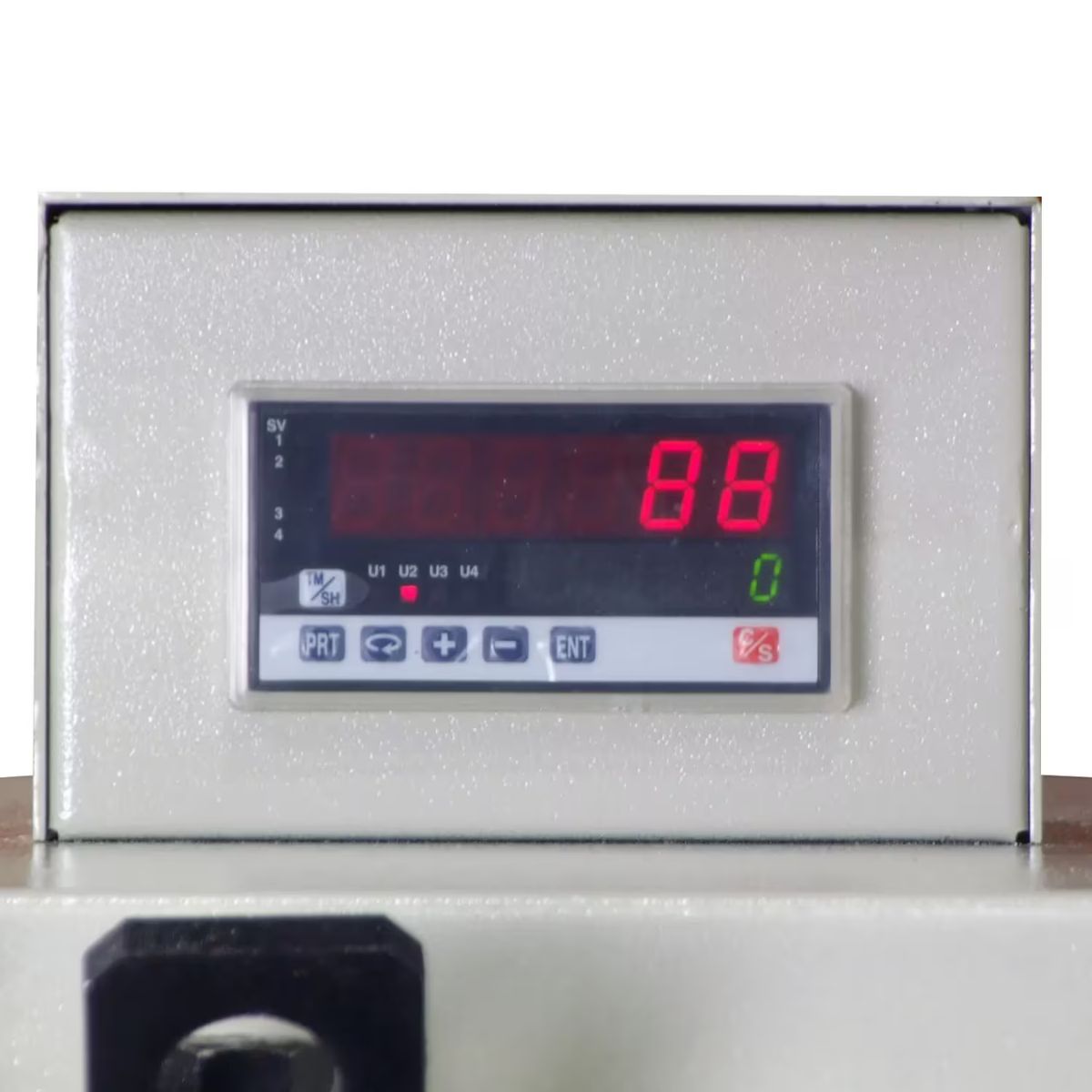

Digital Readout Supports Repeatable Forming
A standard digital readout displays back roll position so you can return to a proven setting without guesswork. Repeatable positioning is especially useful when running multiple identical parts.

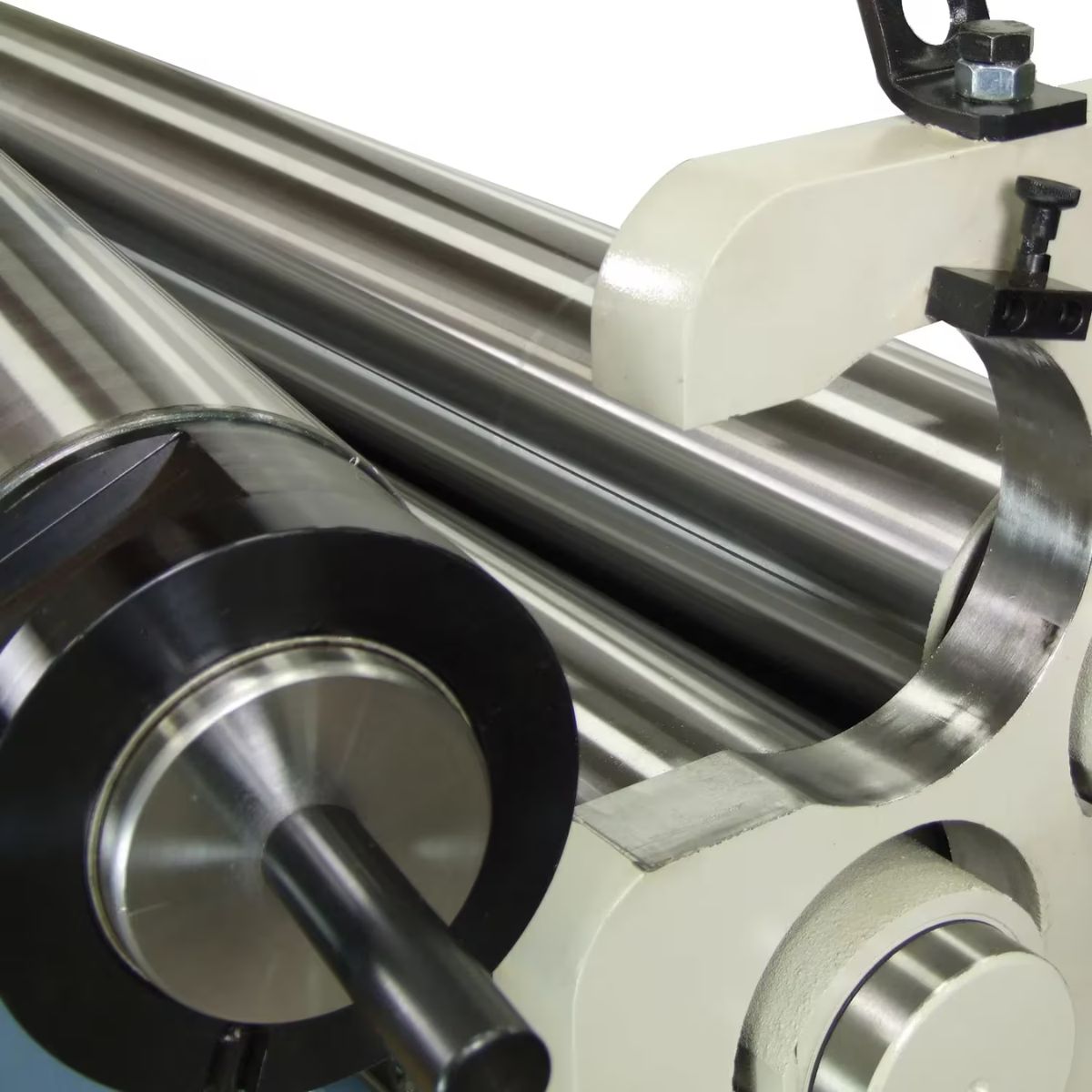

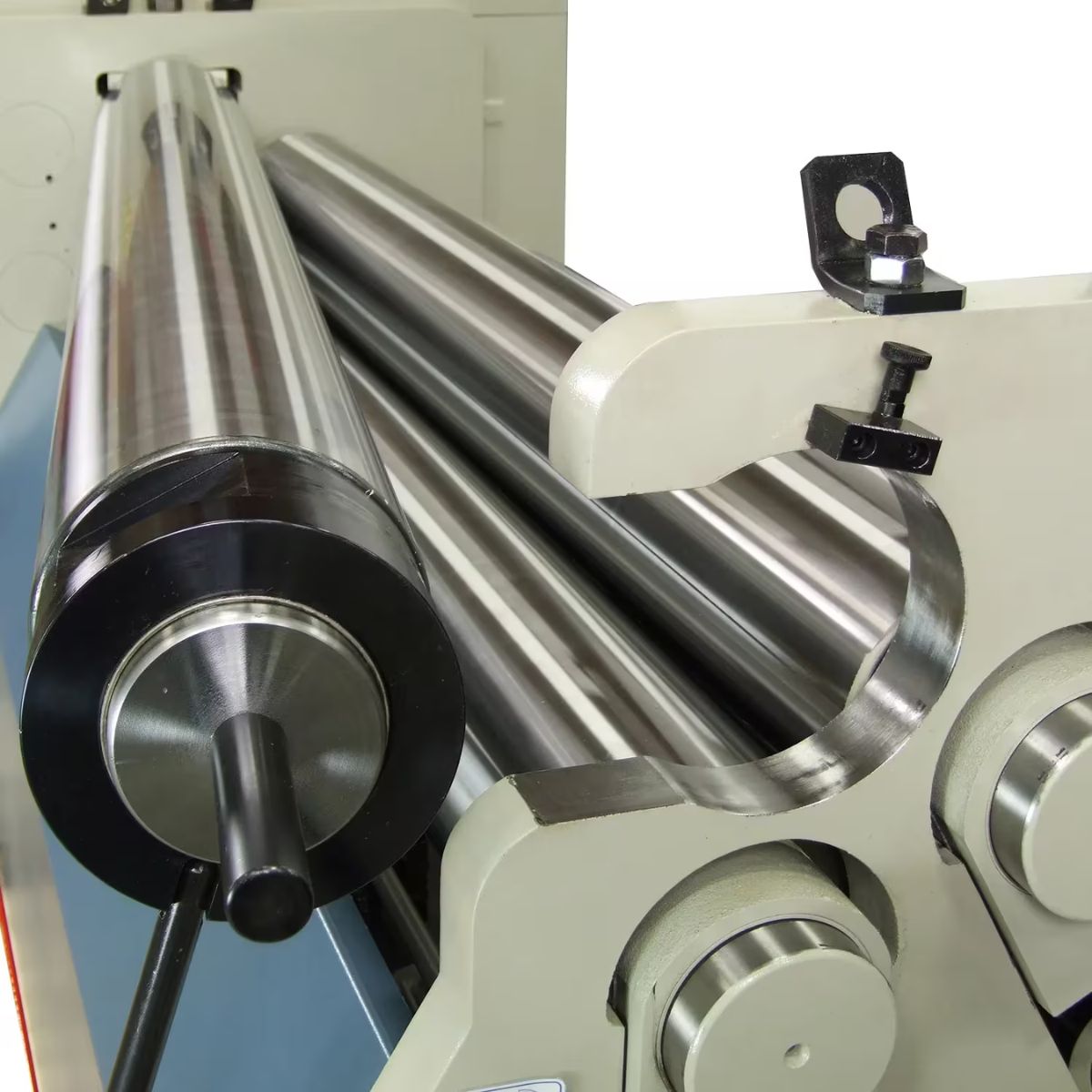

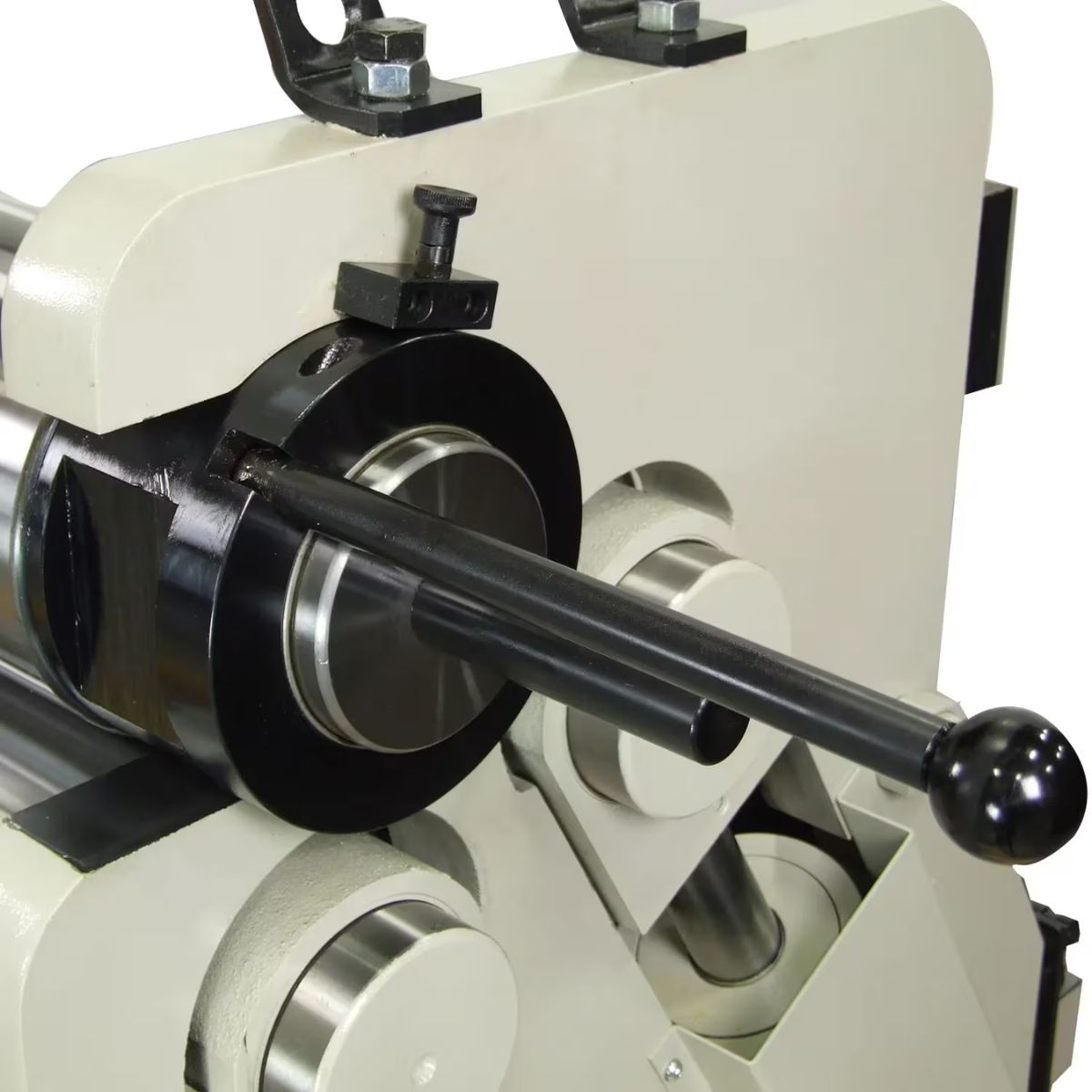

Quick-Release Top Roll Speeds Workpiece Removal
The top roll releases quickly to simplify removing finished cylinders and curved parts from the machine. This reduces handling time between pieces and keeps production moving.
What's Included
What's Included? Baileigh PR-503 60" Hydraulic Plate Roll
-
Baileigh PR-503 60" Hydraulic Plate Roll — Provides a hydraulically driven three-roll forming platform for professional plate bending work.
Specs
Baileigh PR-503 60" Hydraulic Plate Roll Specifications
- Model: PR-503
- SKU: BA9-1006531
- Maximum Forming Length: 61 in
- Bending Capacity Length: 60 in
- Mild Steel Capacity: 1/4 in (3/16 in recommended)

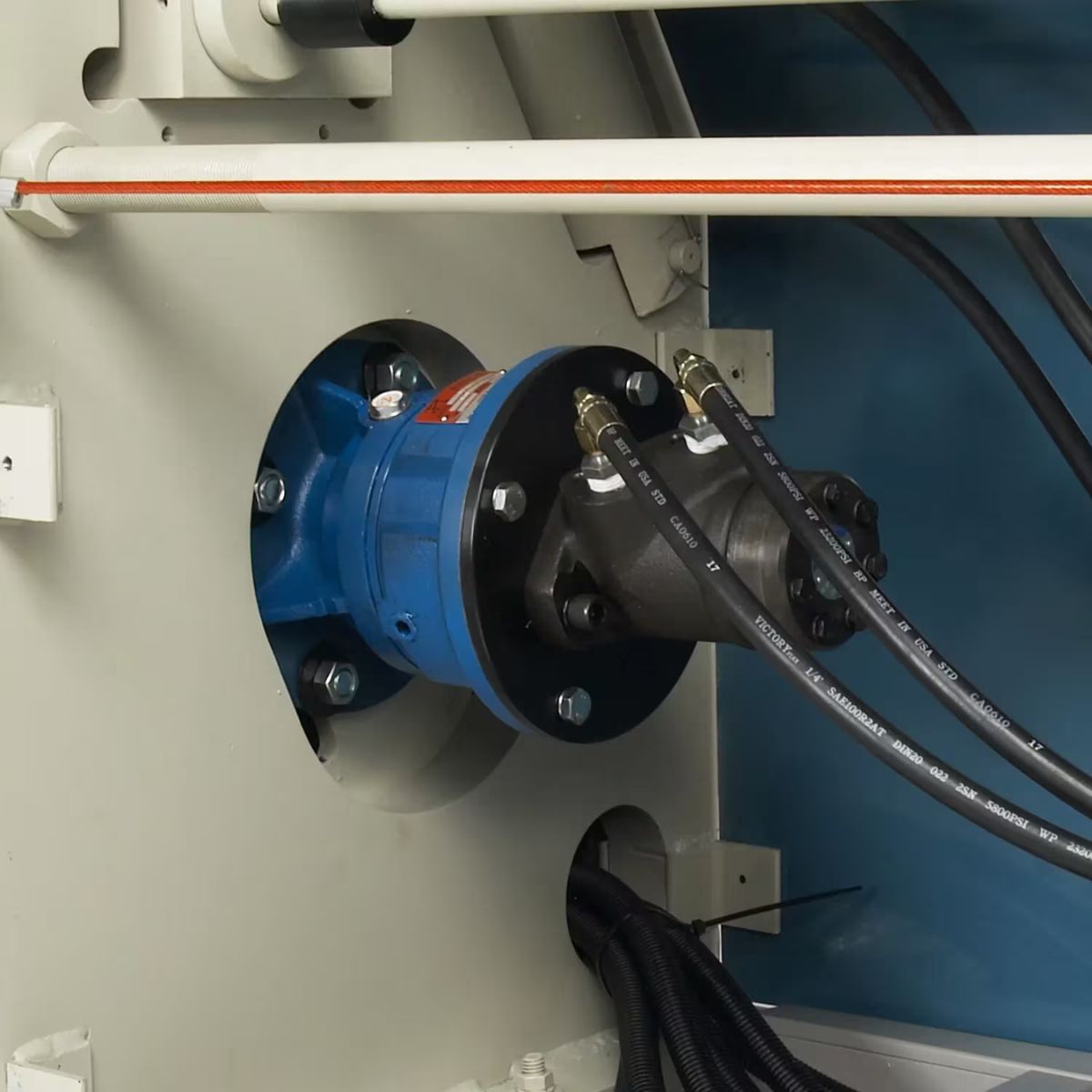

- Driven Rolls: 3 hydraulically driven

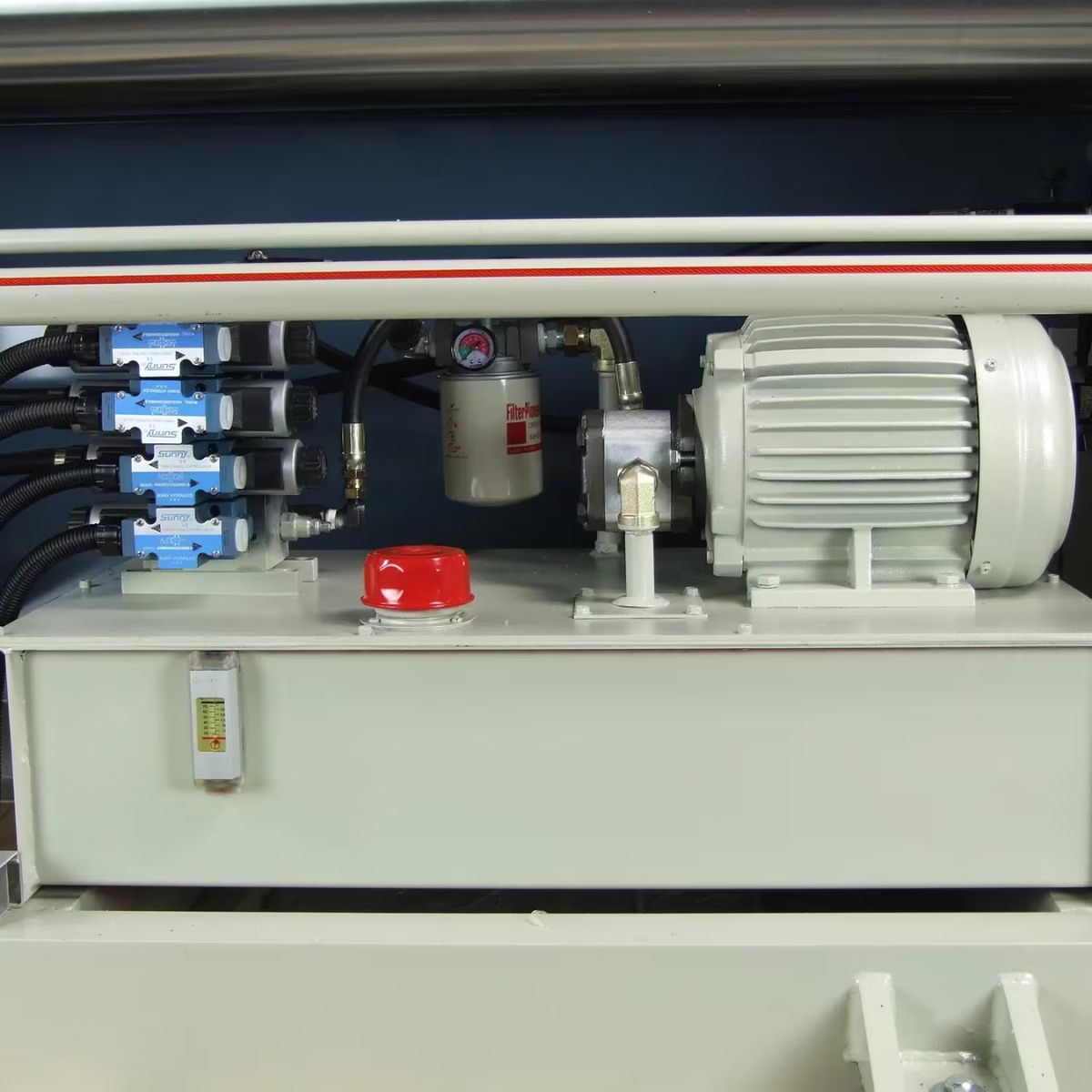

- Motor: 5 HP
- Input Power: 220V 3-Phase
- Net Weight: 6,380 lb
- Warranty: 1-year parts warranty, lifetime technical support
