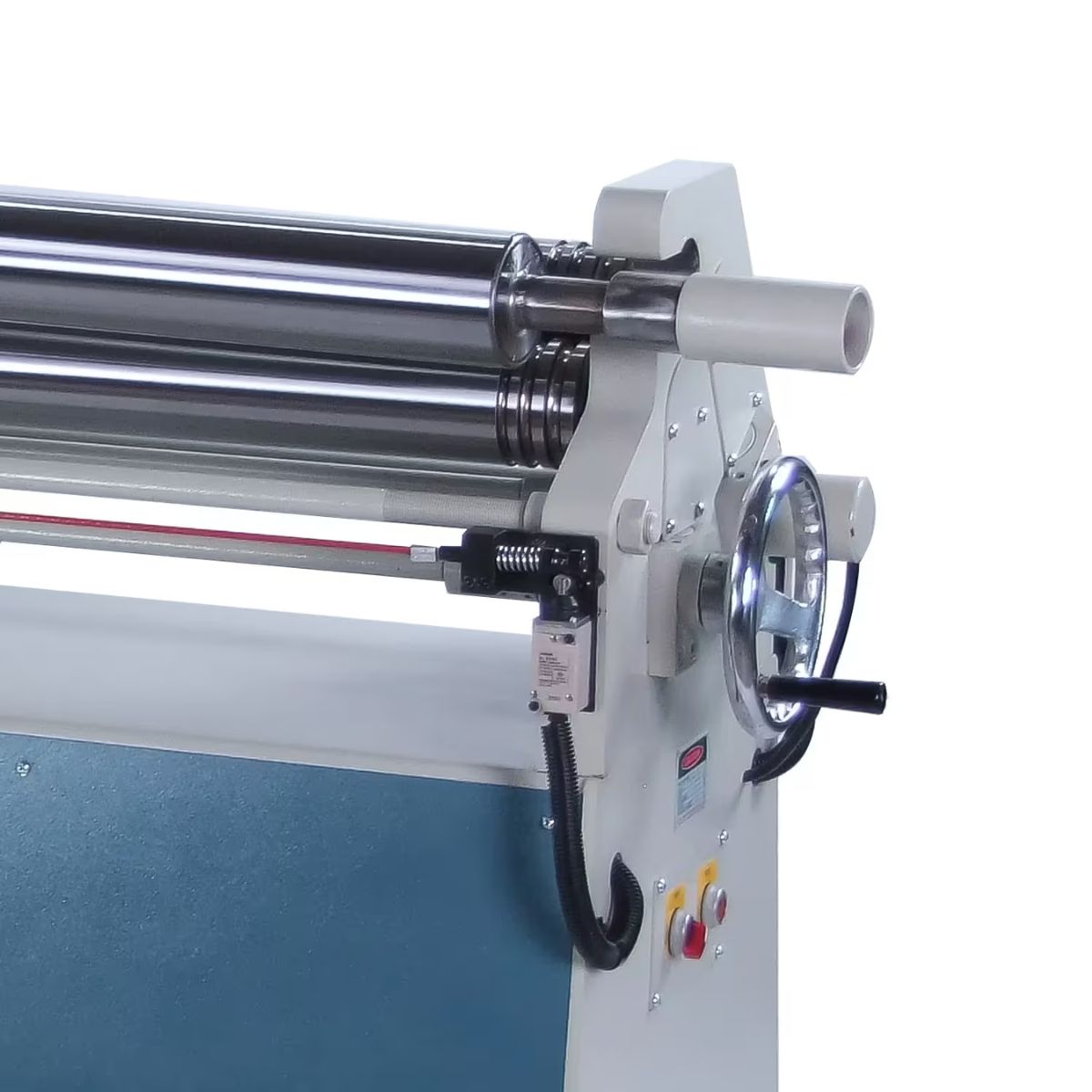

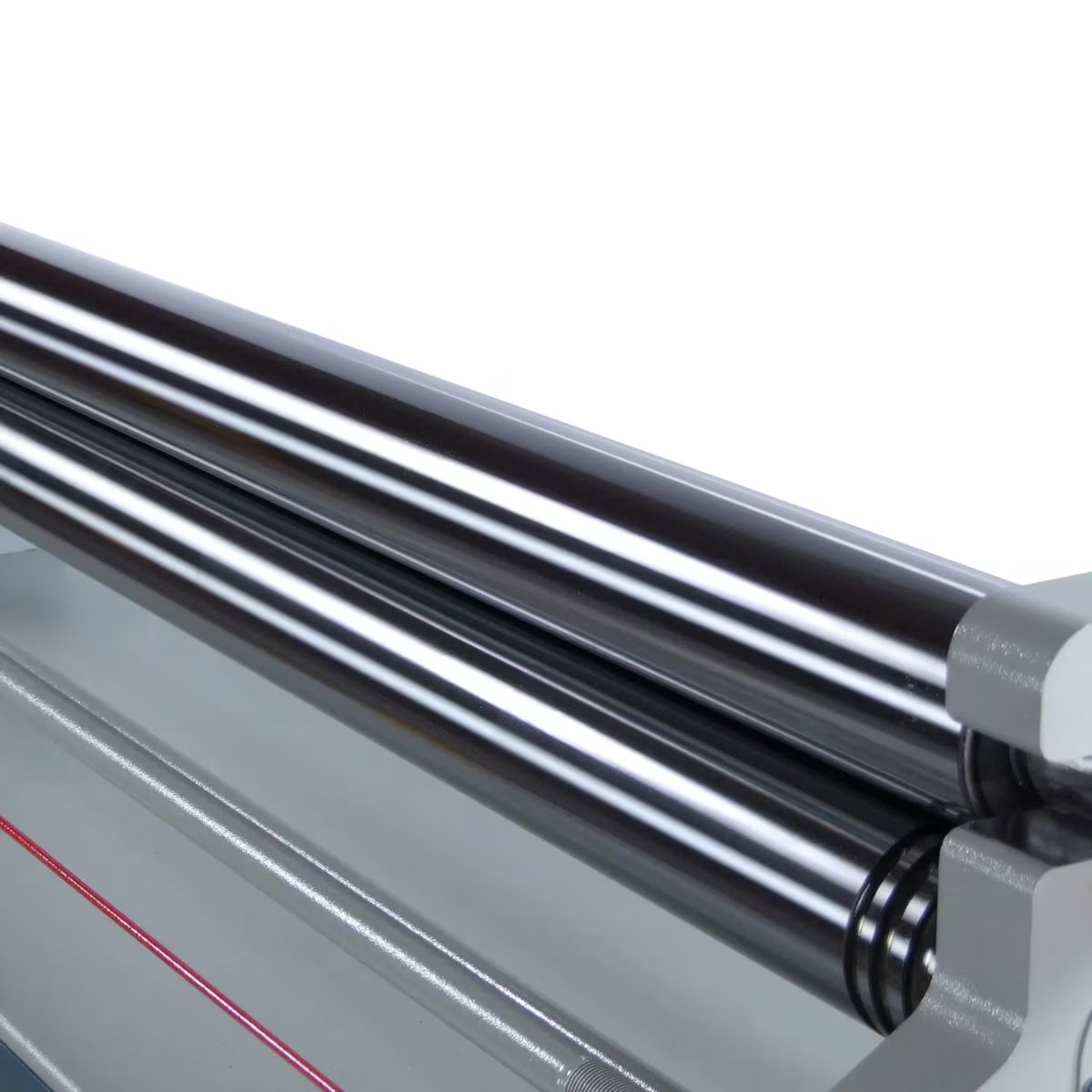

Baileigh PR-413 48" Plate Roll — 13 Gauge
Are you looking for a plate roll that handles 13 gauge mild steel across a full 48 inch width without fighting the machine to get repeatable results?
What if your shop had a plate roll with a hydraulic back roll and a digital readout so you could dial in a radius and hit it again on the next piece.

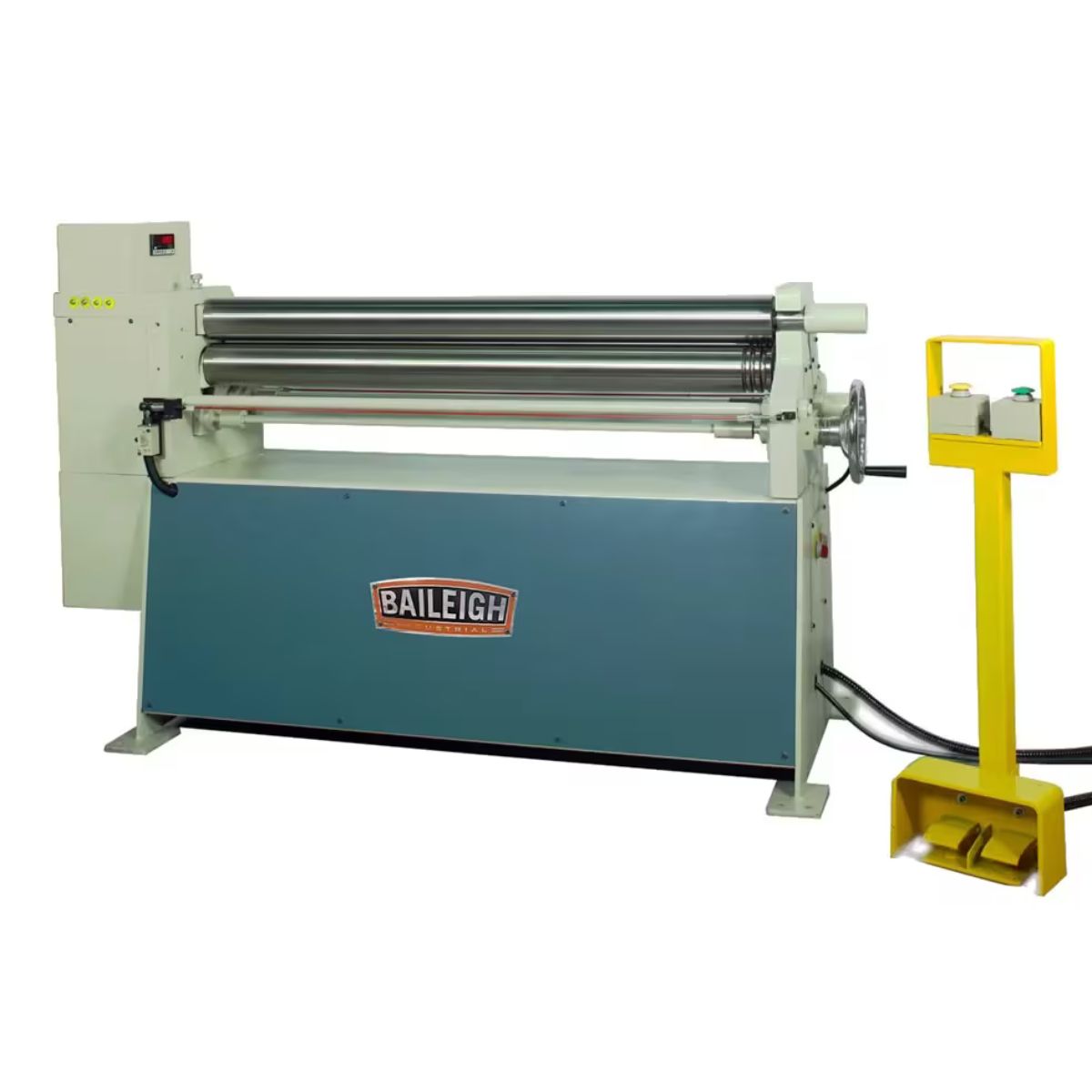

Meet the Baileigh PR-413 48" Plate Roll, a three-roll hydraulic plate forming machine built for fabrication shops that need consistent results on curved and cylindrical work.
With a fully welded steel frame, hydraulic back roll control, and a 2 HP single-phase motor, the PR-413 handles everyday forming work without constant manual adjustment.
When the back roll holds its position and the readout confirms it, you can move through a run of parts with confidence.
Baileigh PR-413 for Consistent Plate Forming Work
Welded Steel Frame Holds Rigidity Under Load
The PR-413 is built on a fully welded steel frame machined to close tolerances. That rigidity keeps the rolls aligned under forming pressure and supports accurate, repeatable bends across the full 48 inch width.

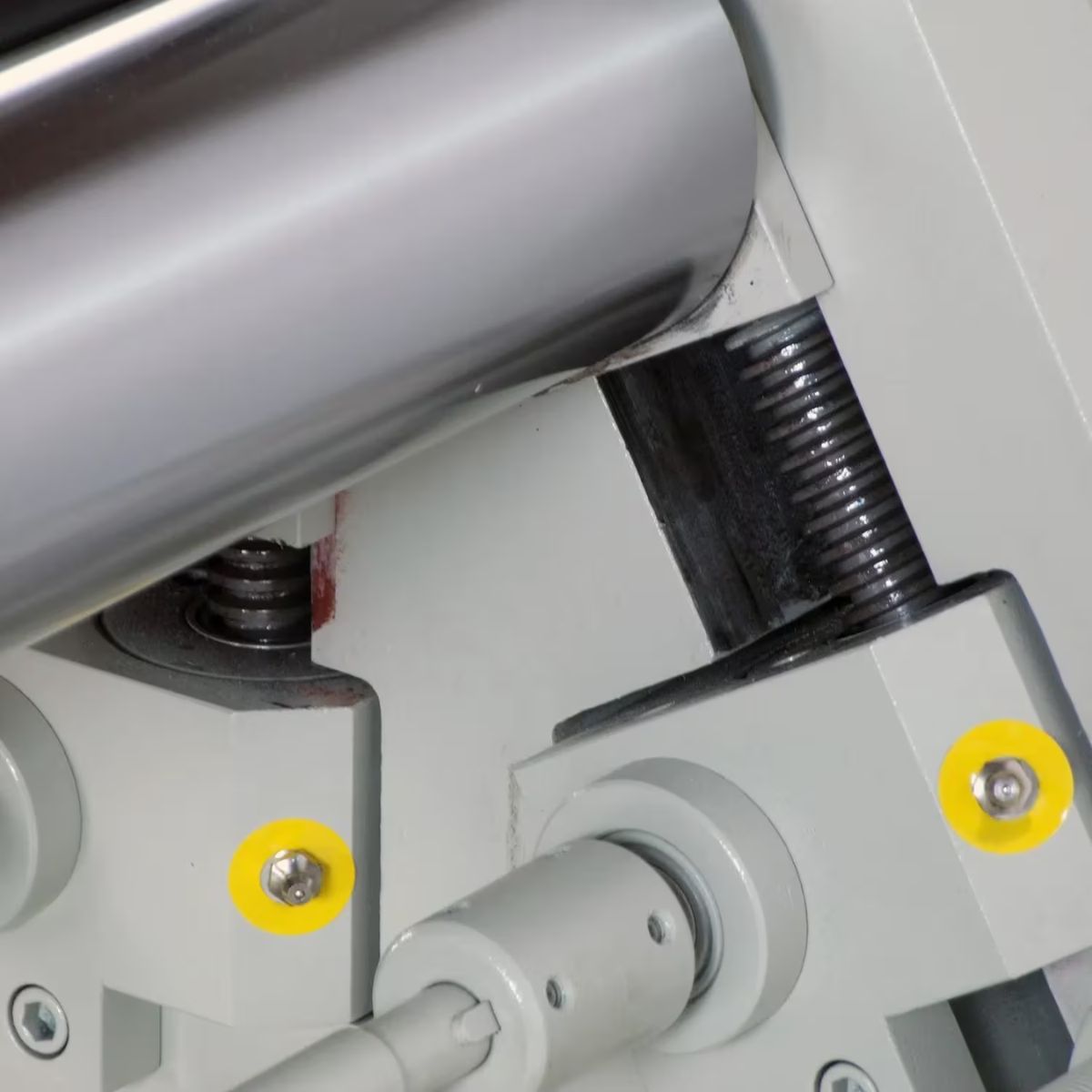

Hydraulic Back Roll Improves Forming Control
The hydraulic back roll moves vertically and tilts to give you controlled adjustment during the forming process. This lets you manage re-rolling and fine-tune the radius without stepping away from the machine.

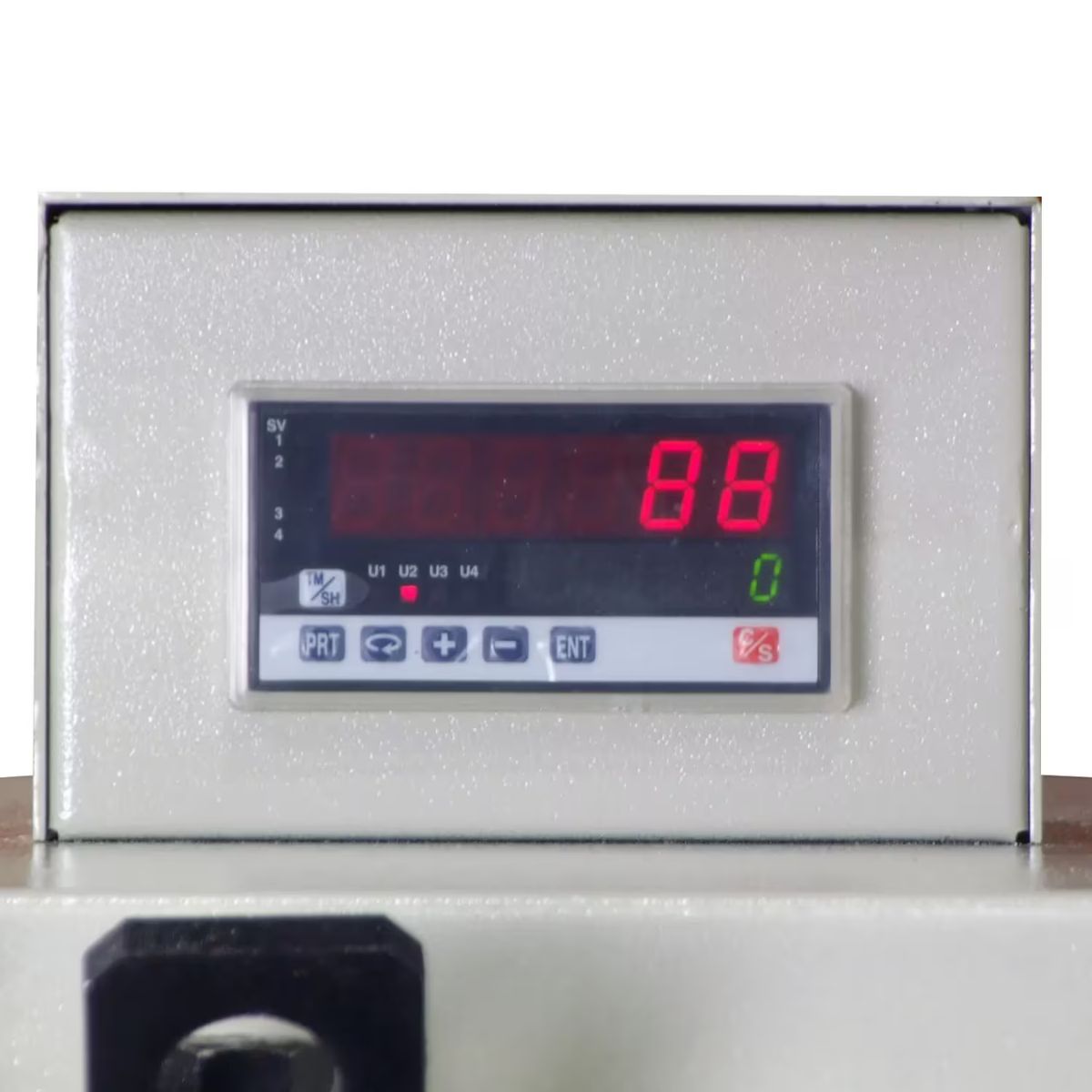

Digital Readout Supports Repeatable Positioning
A digital readout displays the back roll position so you can return to a setting with confidence. This makes it straightforward to produce consistent results across multiple pieces without re-dialing from scratch.

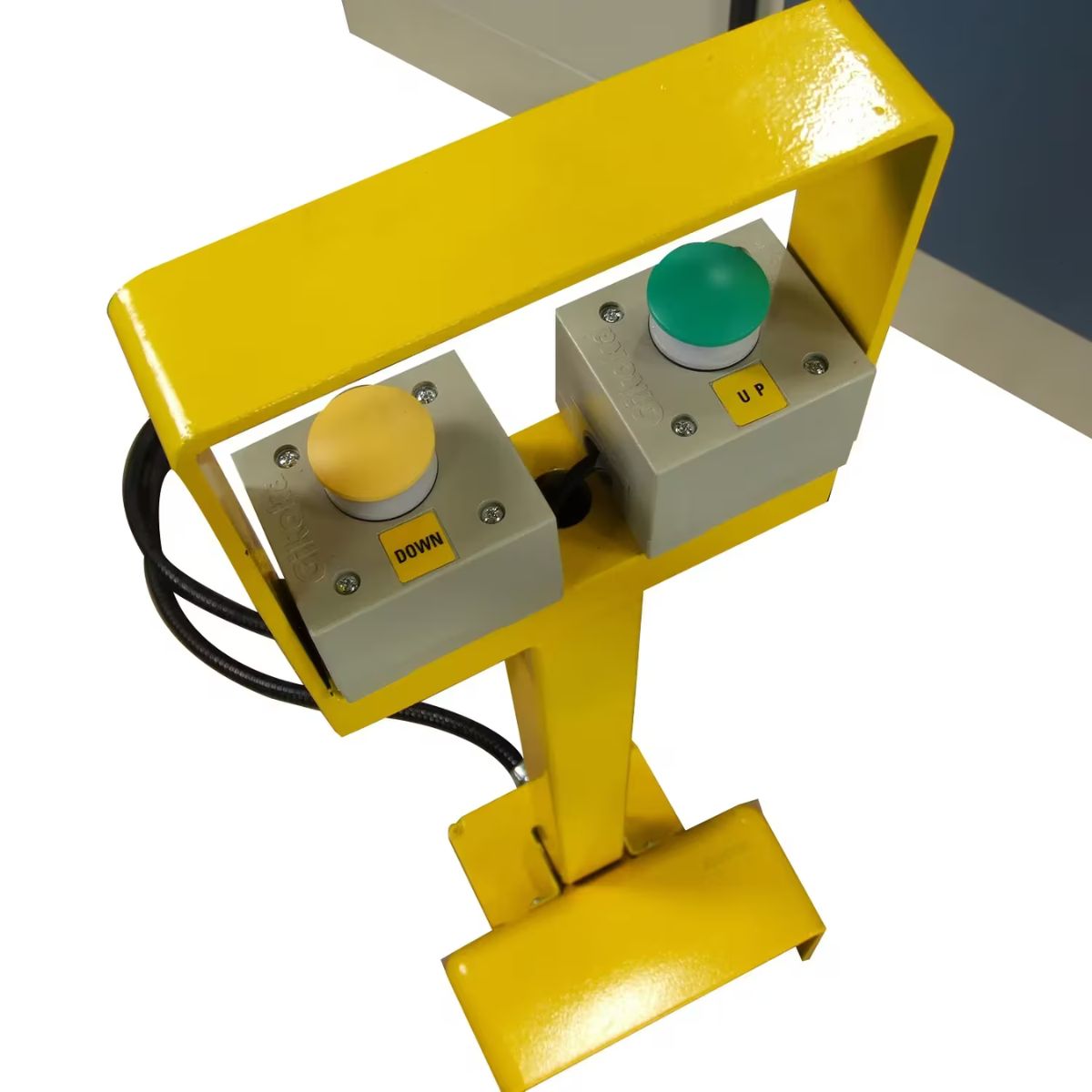

Foot Pedal Controls Keep Hands on the Work
A control pedestal with forward and reverse foot pedals manages roll operation while your hands guide the plate. The layout keeps the operator in a natural working position throughout the forming process.
What's Included
What's Included? Baileigh PR-413 48" Plate Roll — 13 Gauge
-
Baileigh PR-413 48" Plate Roll — 13 Gauge — Provides a hydraulically controlled three-roll forming machine for bending mild steel plate up to 13 gauge across a 48 inch width.
Specs
Baileigh PR-413 48" Plate Roll — 13 Gauge Specifications
- Model: PR-413
- Stock Number: BA9-1006521
- Mild Steel Capacity: 13 Gauge
- Maximum Forming Length: 48 in
- Motor: 2 HP
- Input Power: 220V Single Phase
- Back Roll: Hydraulic, vertical movement and tilt
- Rolls: 3 driven rolls
- Net Weight: 1,510 lb
- Warranty: 1 Year Parts, Lifetime Technical Support
