Baileigh PR-409 48" Hydraulic Plate Roll — 9 Gauge
Are you looking for a plate roll that forms 9 gauge mild steel cleanly without fighting the machine to get a consistent result?
What if your shop had a hydraulic roll that held position accurately and produced repeatable cylinders, cones, and panels from the first bend to the last.

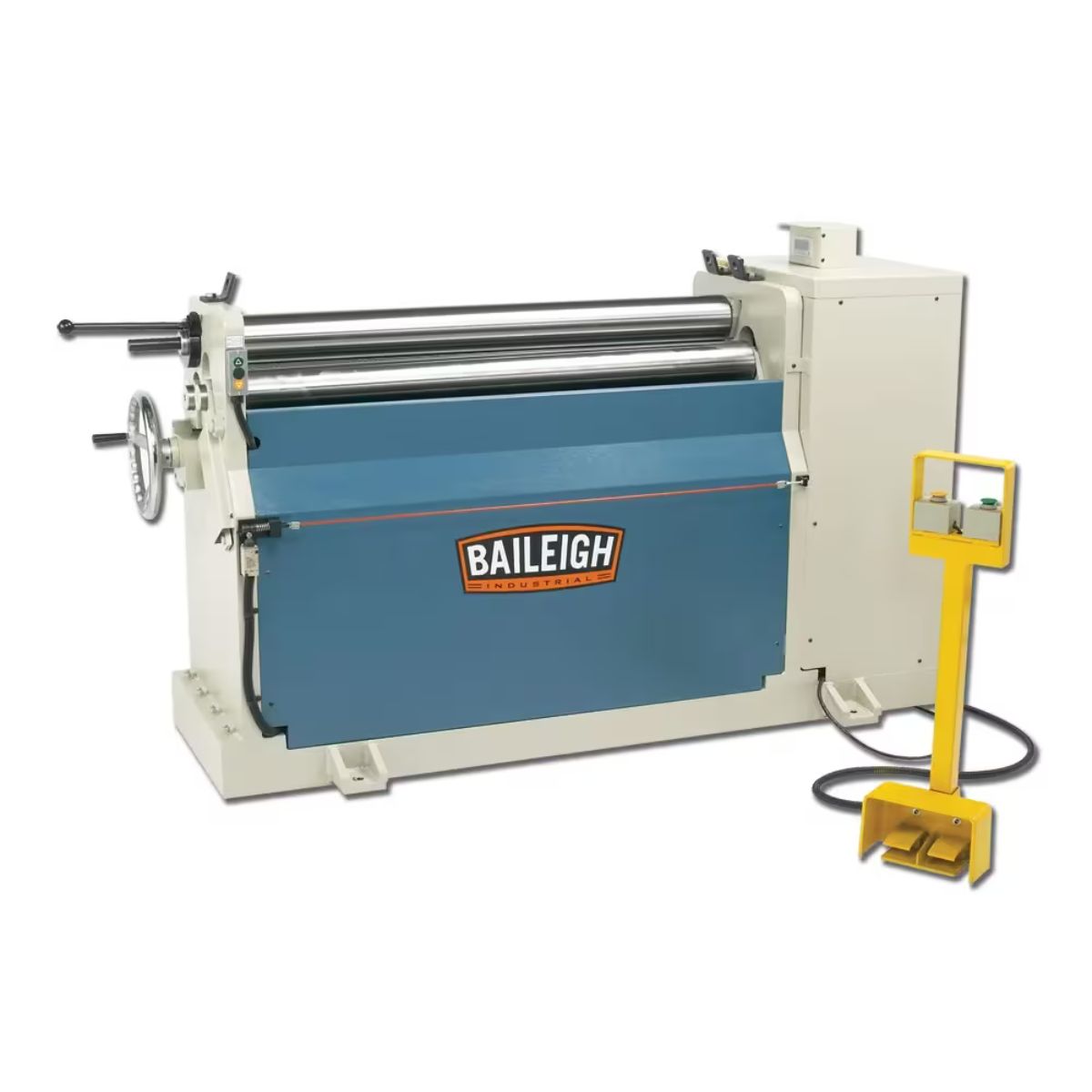

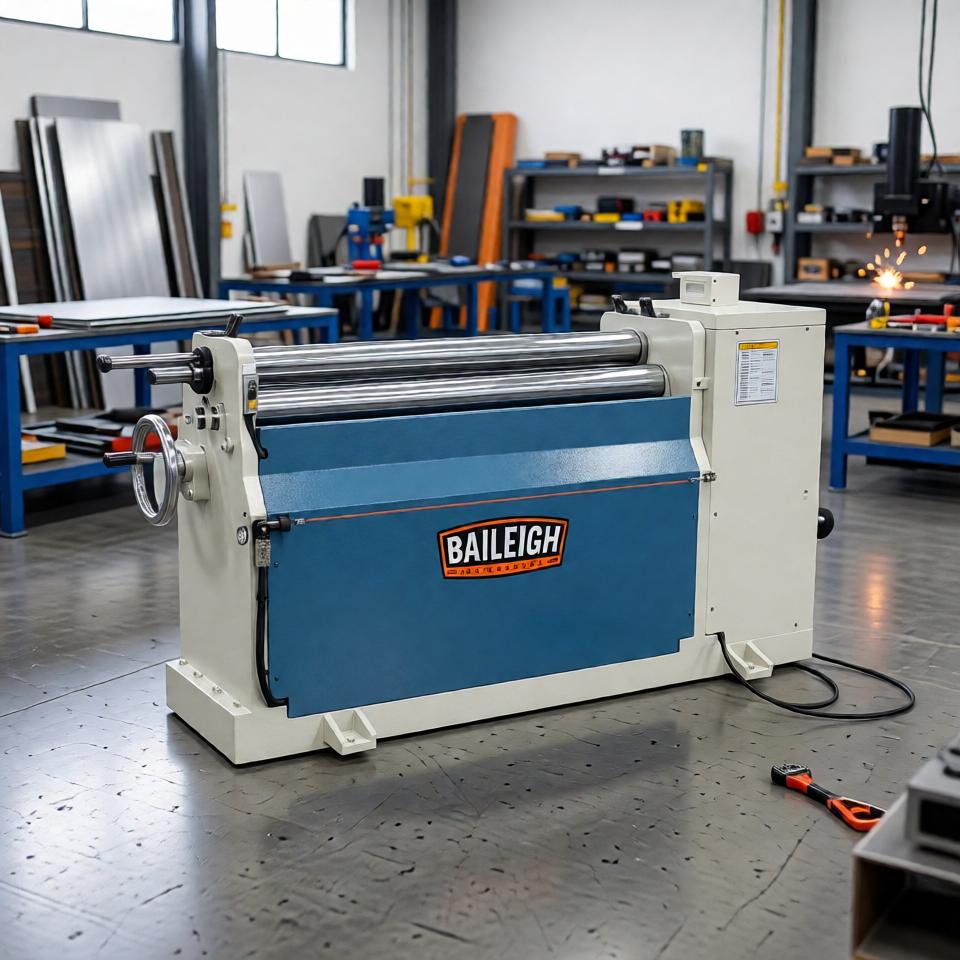

Meet the Baileigh PR-409 48" Hydraulic Plate Roll, a three-roll hydraulic forming machine built for professional fabrication work.
With three driven rolls, a hydraulic back roll, foot pedal controls, and a digital readout for back roll position, the PR-409 gives you accurate forming across a 52 inch working width.
When the machine holds position reliably through every pass, you can form consistent parts without stopping to measure and adjust.
Baileigh PR-409 for Hydraulic Plate Forming
Full Steel Frame Holds Accuracy Under Load
The PR-409 is built on a full welded steel frame precision machined to maintain tight tolerances during heavy forming work. This construction resists deflection under load so the rolls stay aligned and the bend stays consistent from one end of the plate to the other.

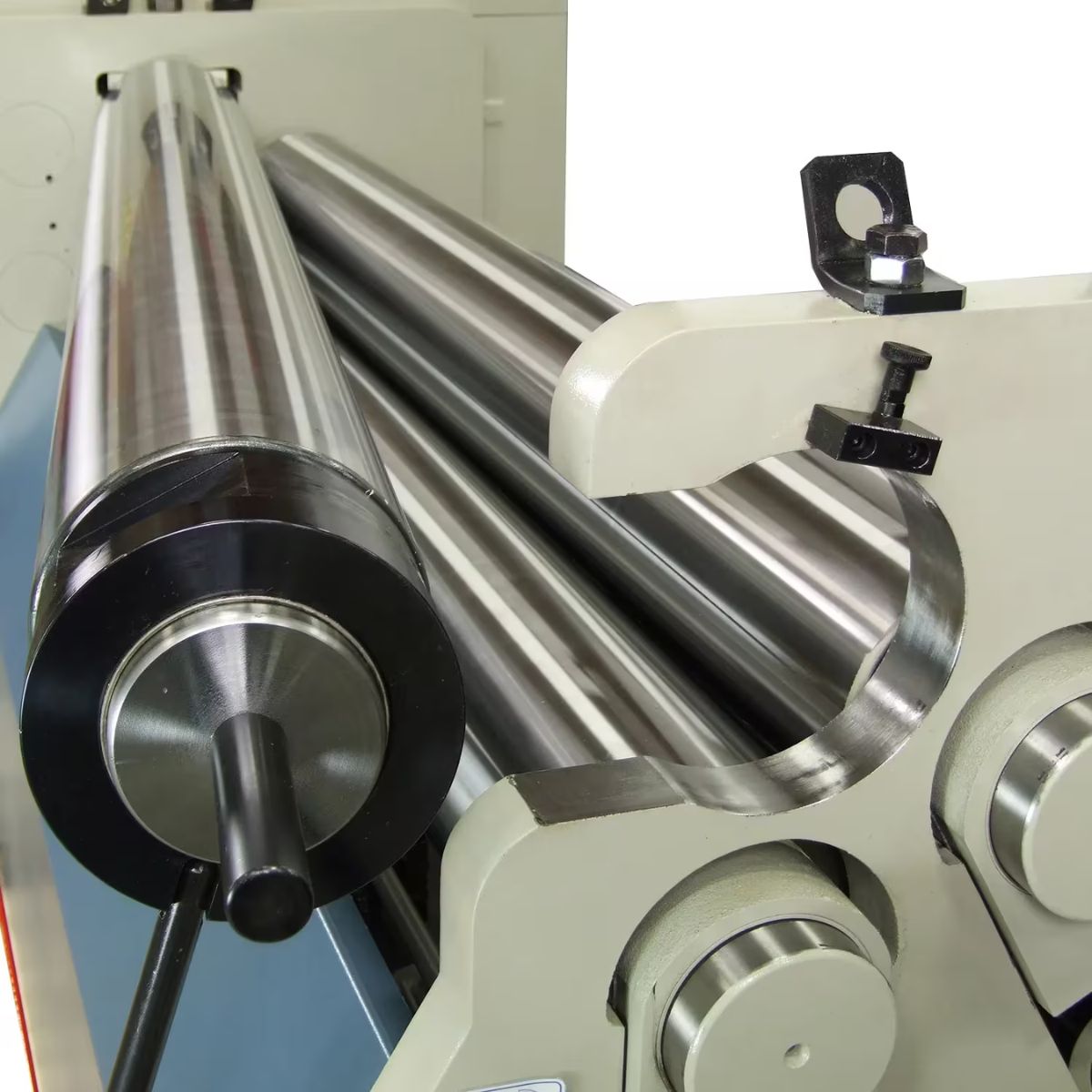

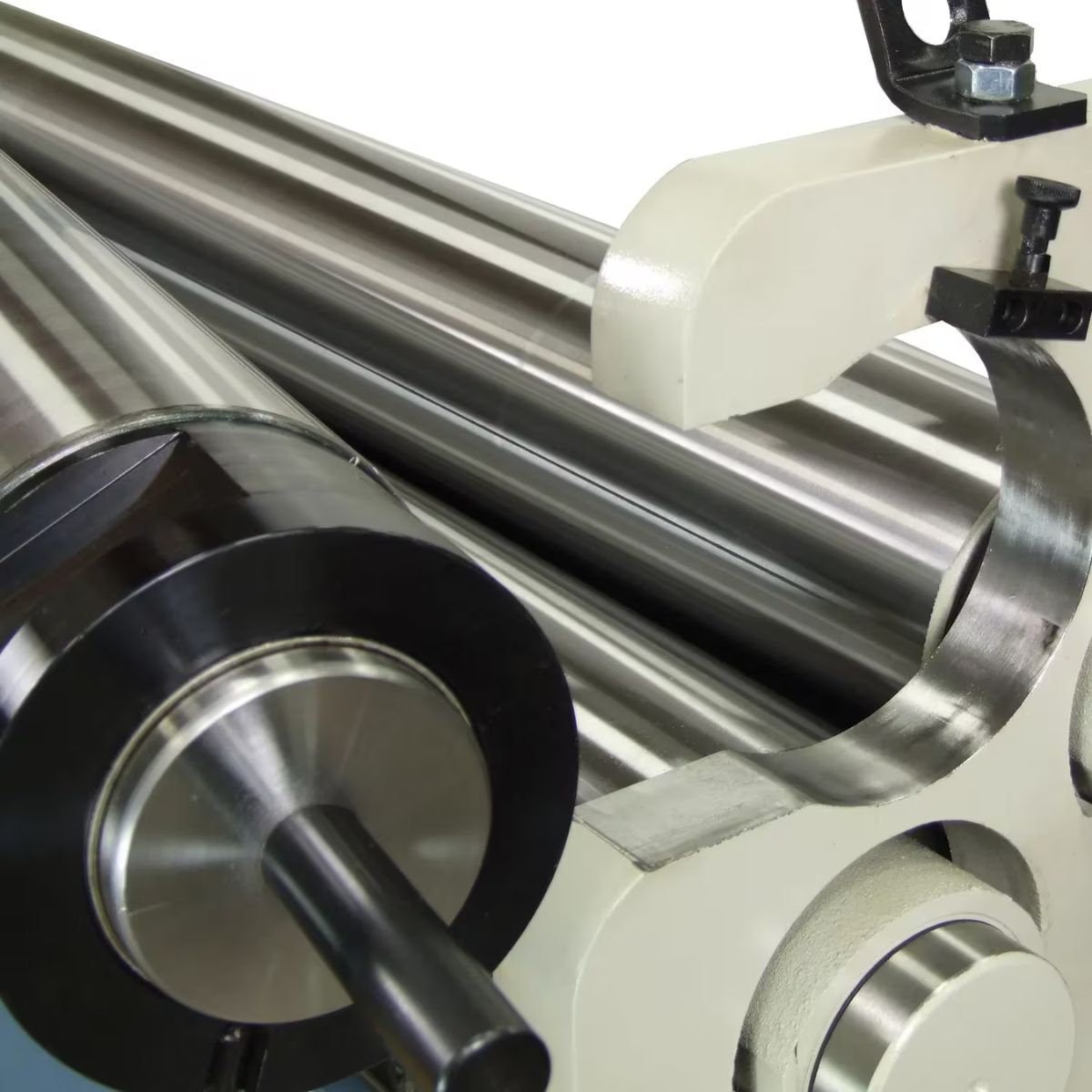

Three Driven Rolls Deliver Smooth, Even Forming

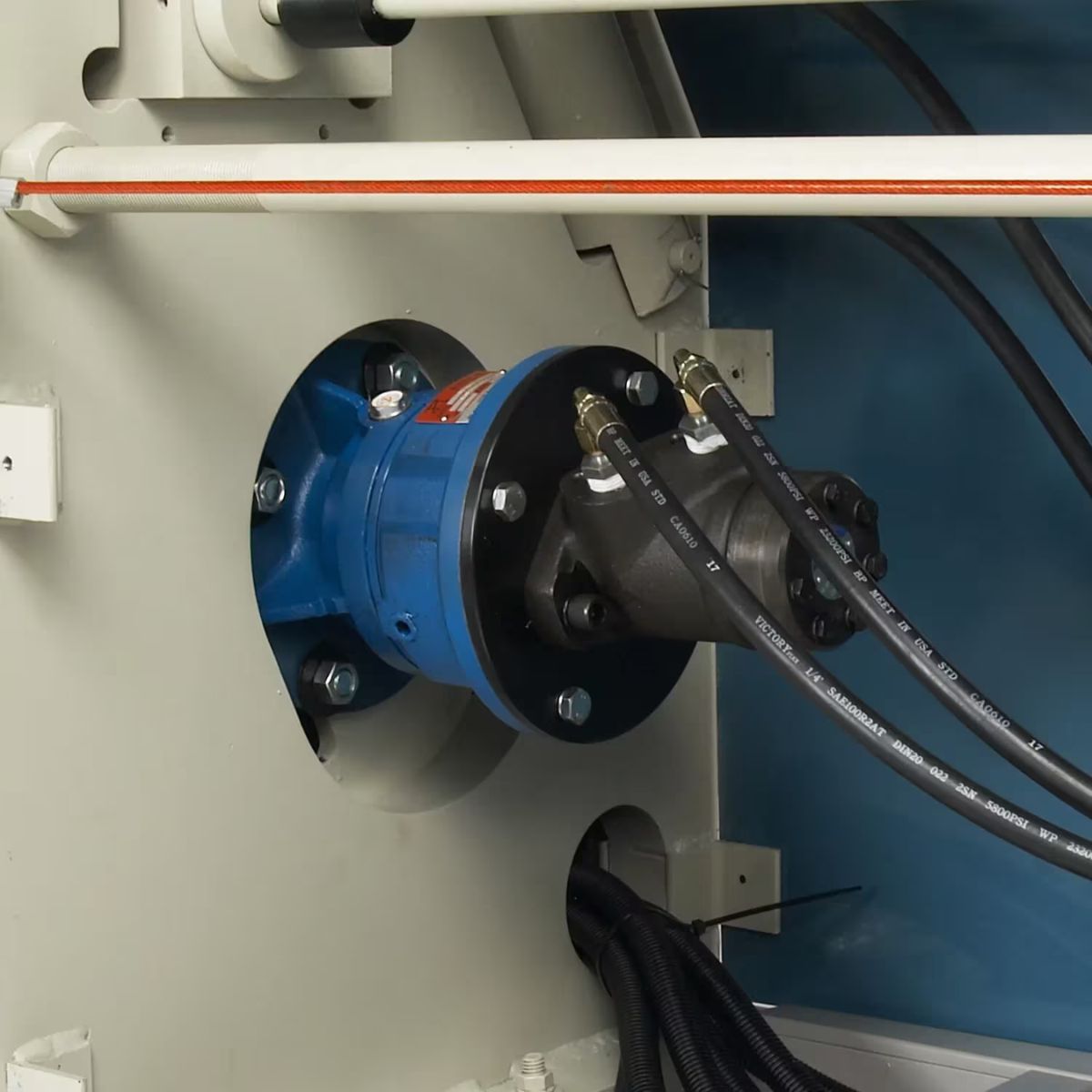

All three rolls are hydraulically driven, distributing forming force evenly across the full working width. This gives you smooth, controlled feeding through the machine whether you are forming cylinders, cones, or curved panels.

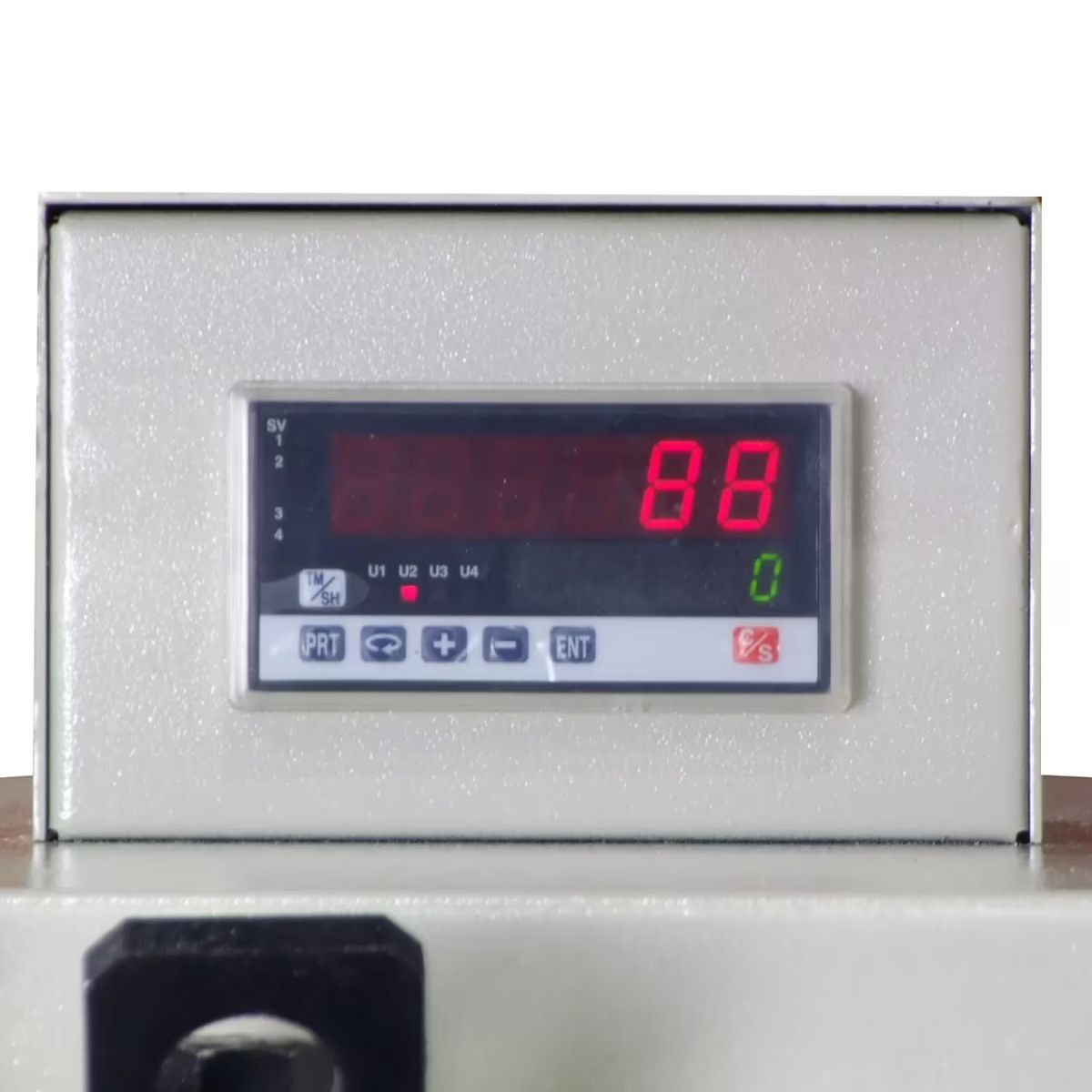

Digital Back Roll Readout Supports Repeatable Results

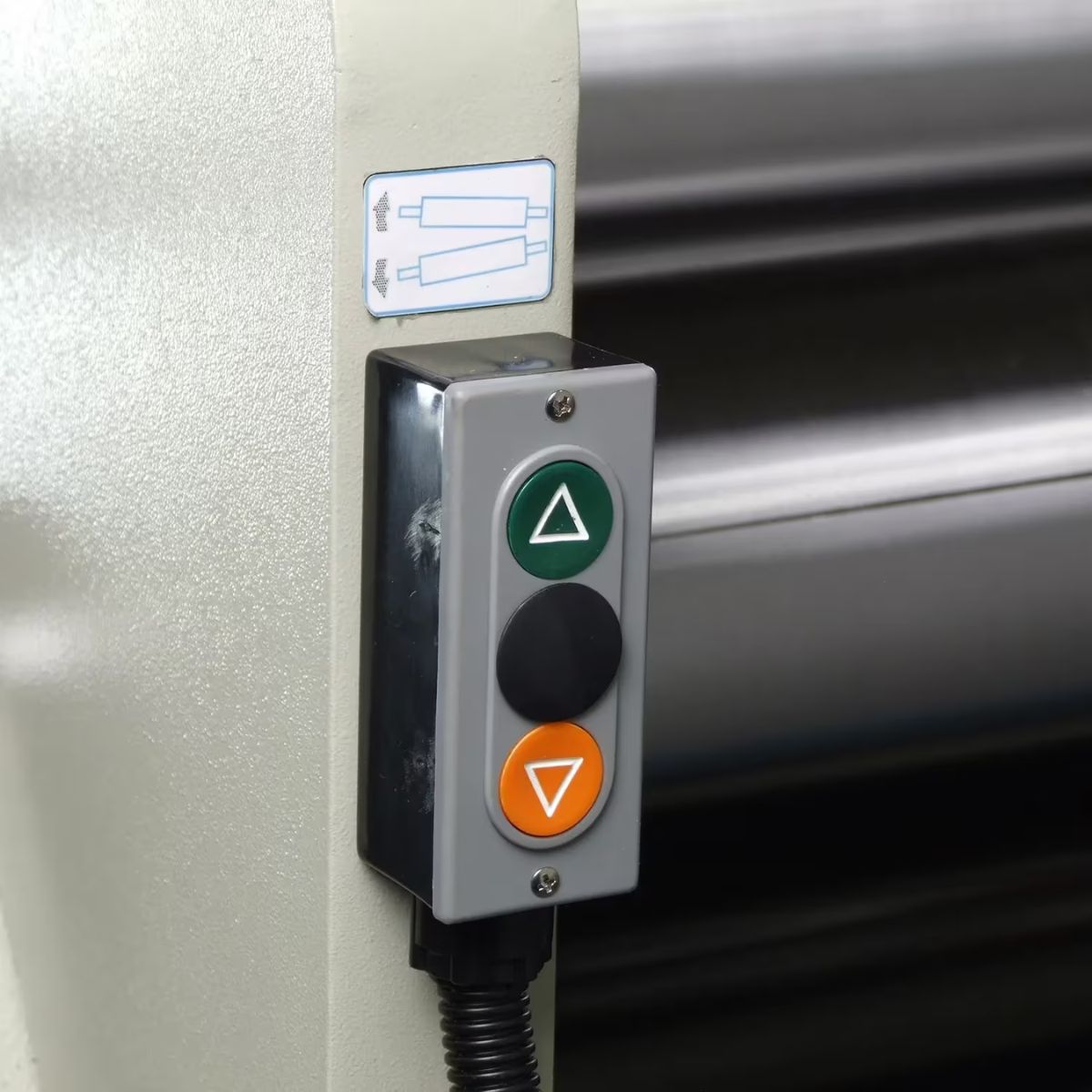

The hydraulic back roll is controlled from the pedestal and includes a digital readout for roll position. Once you dial in the right setting for a part, you can return to that position accurately and repeat the same bend across a full production run.
Foot Pedal Controls Keep Both Hands on the Work
Forward and reverse roll direction is controlled by foot pedals, leaving both hands free to guide and support the material through the machine. The control pedestal also handles hydraulic back roll adjustment, keeping everything the operator needs within reach during forming.
What's Included
What's Included? Baileigh PR-409 48" Hydraulic Plate Roll — 9 Gauge
-
Baileigh PR-409 48" Hydraulic Plate Roll — 9 Gauge — Provides a hydraulic three-roll forming platform for bending 9 gauge mild steel up to 52 inches wide.
-

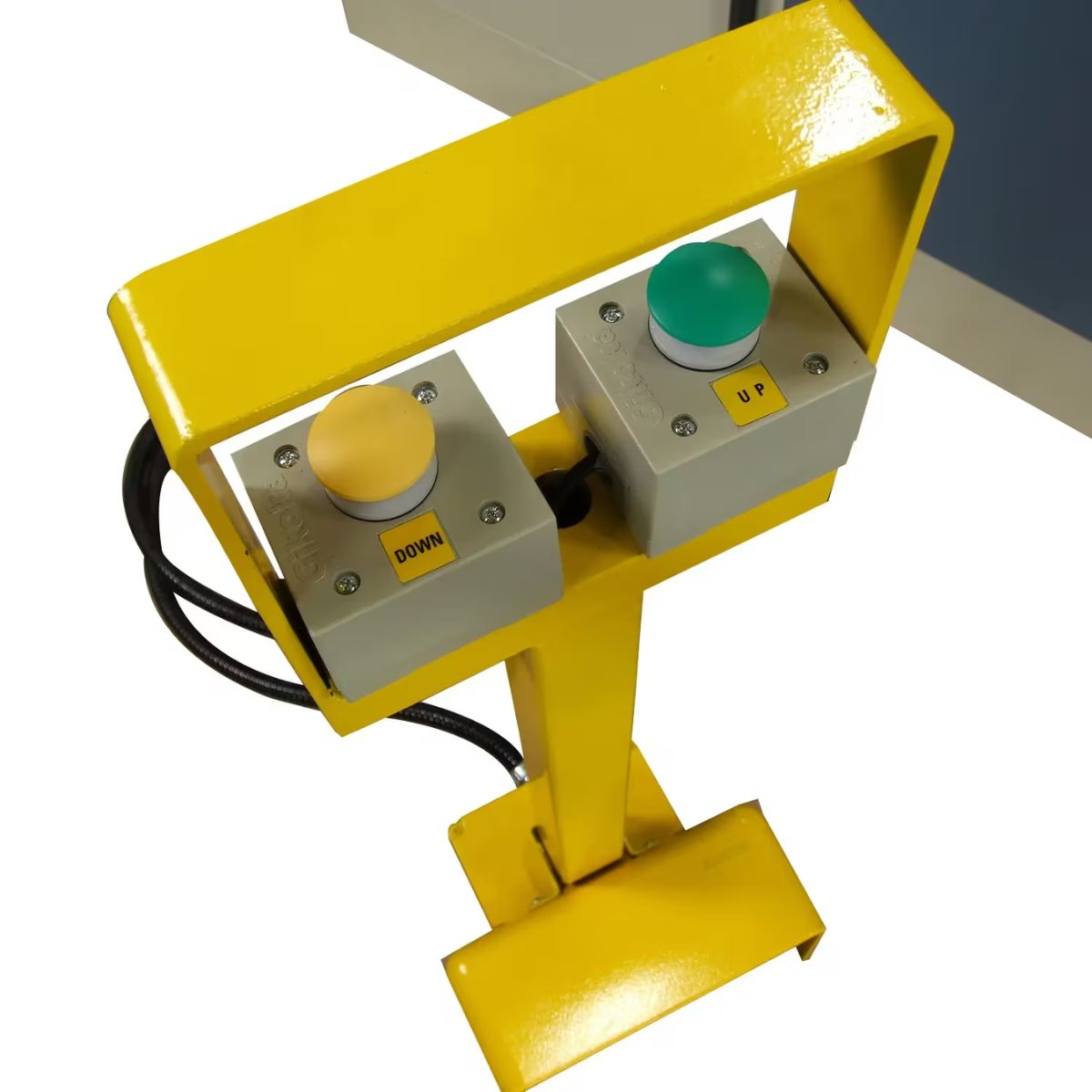

Control Pedestal — Houses the foot pedals, back roll up/down controls, and digital position readout for operating the machine.
-
Tool Kit — Includes the tools needed for setup and maintenance of the machine.
Specs
Baileigh PR-409 48" Hydraulic Plate Roll — 9 Gauge Specifications
- Model: PR-409
- Stock Number: BA9-1006517
- Forming Width: 52 in
- Mild Steel Capacity: 9 gauge (0.15 in)
- Minimum Forming Diameter: 8.86 in
- Upper Roll Diameter: 4.75 in
- Roll Speed: 4.67 RPM
- Driven Rolls: 3 hydraulic
- Back Roll Adjustment: Hydraulic
- Digital Position Readout: Yes

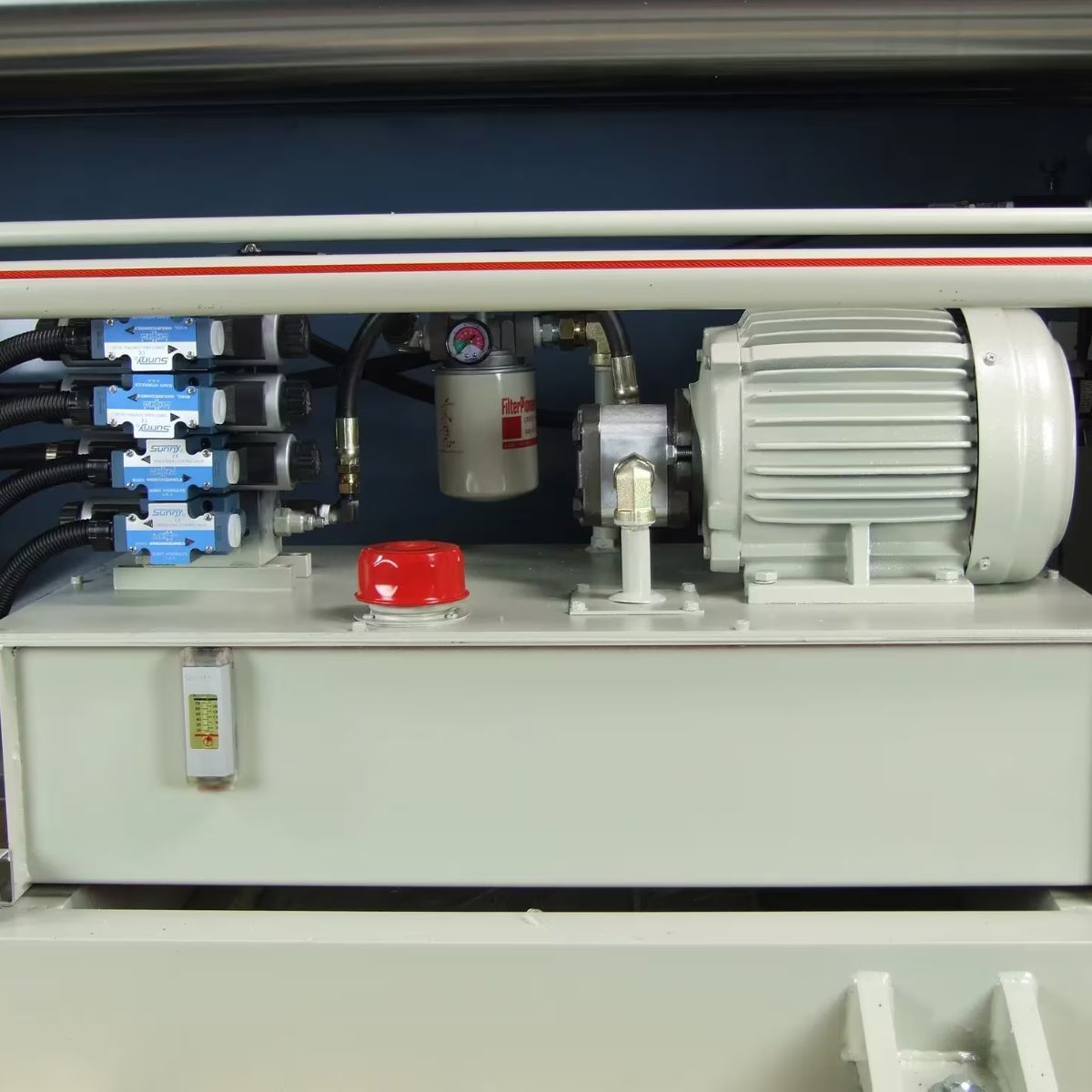

- Motor: 2 HP
- Voltage: 220V
- Phase: 3-phase
- Controls: Foot pedal forward/reverse, hydraulic back roll up/down
- Frame: Full welded steel, precision machined
- Shipping Weight: 4,180 lb
- Shipping Dimensions: 83 in x 32 in x 52 in
- Warranty: 1 Year Parts, Lifetime Technical Support
