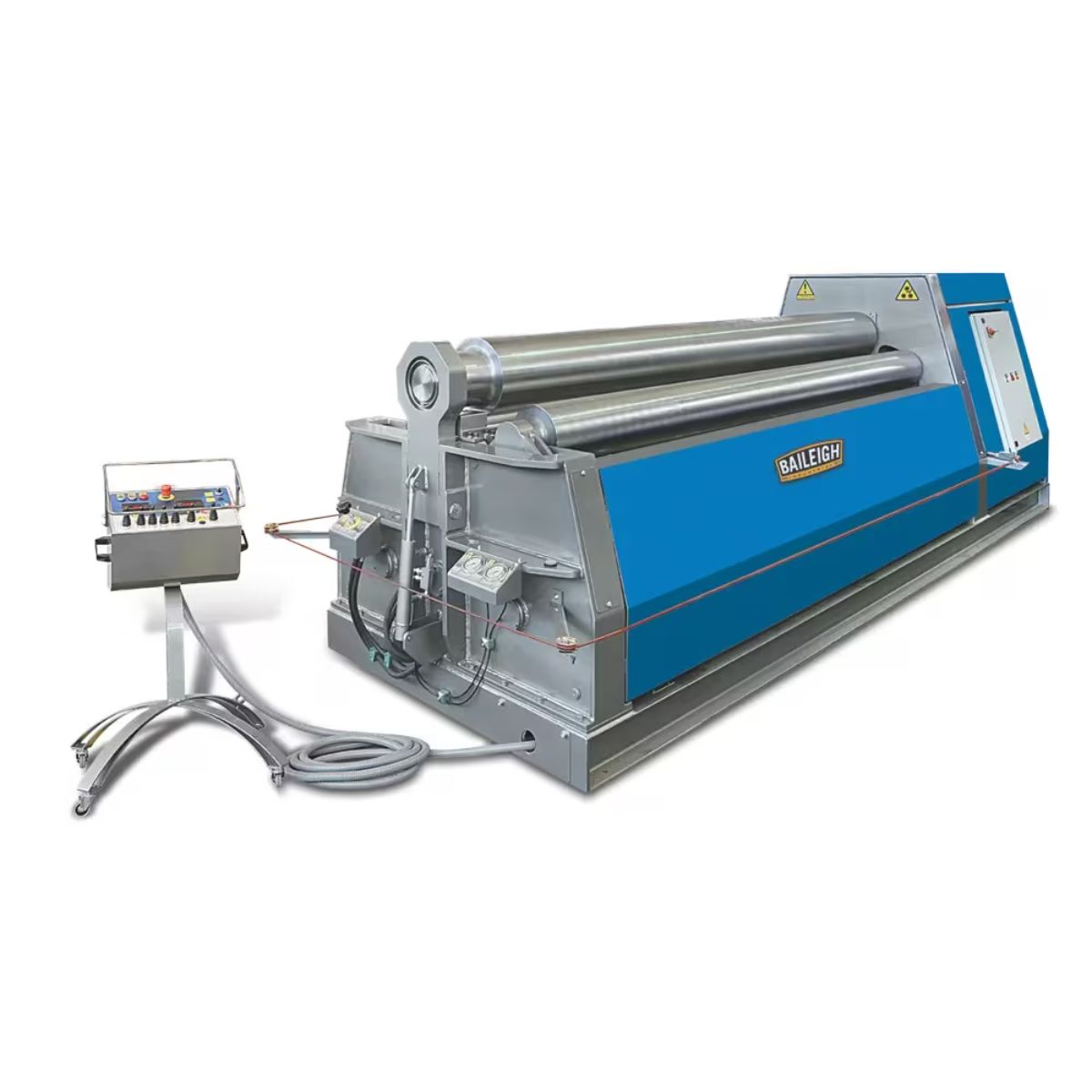

Baileigh PR-10500-4 120" Four-Roll Plate Roll — 1/2"
Are you rolling thick plate on a machine that makes you re-set the position between passes?
What if your shop had a 10-foot plate roll that pinches, pre-bends, and finishes the part in a single direction without losing position?
Meet the Baileigh PR-10500-4, a four-roll industrial plate roll built for heavy fabrication work on mild steel up to ½" thick.
With dual hydraulic motors, planetary gearboxes, hardened rolls, and two digital readouts, the machine holds position through every stage of the roll cycle.
When the plate stays pinched from start to finish, you get repeatable results on every part without resetting between passes.
Baileigh PR-10500-4 for Heavy Plate Rolling and Fabrication
Dual Hydraulic Motors Drive Consistent Roll Force
Two hydraulic motors paired with high-efficiency planetary gearboxes rotate the two central driven rolls directly. This drive system delivers steady torque across the full 120-inch forming length without the power loss common in gear-chain drive setups.
Four-Roll Design Completes the Part in One Pass
The four-roll configuration lets you pinch the plate between the two central rolls, pre-bend the leading edge, roll the body, and finish the trailing edge all in one direction without reversing. The plate stays pinched throughout the cycle, so position is never lost mid-roll.
Independent Front Roll Lifters Keep Rolls Parallel
The front rolls use independent hydraulic lifters that move in an orbital pattern, with a stabilizer torsion bar system keeping them parallel to the top roll throughout the cycle. This coordination maintains consistent pressure across the full width of the plate during bending.
Dual DROs and Movable Console Support Repeatable Work
Two digital readouts on the control panel display the front and back roll positions so you can return to the same settings across a production run. The operator console is movable, allowing the operator to work from the most practical position for the material being rolled.
What's Included
What's Included? Baileigh PR-10500-4 120" Four-Roll Plate Roll — 1/2"
-
Baileigh PR-10500-4 Four-Roll Plate Roll — Provides a complete 120-inch four-roll plate rolling platform for heavy fabrication work in mild steel up to ½" thick.
Specs
Baileigh PR-10500-4 120" Four-Roll Plate Roll — 1/2" Specifications
- Model: PR-10500-4
- Stock Number: BA9-1008483
- Mild Steel Capacity: ½" (0.500")
- Maximum Forming Length: 120"
- Number of Rolls: 4
- Driven Rolls: 2 (central)
- Motor: 10 HP
- Input Power: 480V, 3-Phase
- Drive System: Dual hydraulic motors with planetary gearboxes
- Roll Surface: Hardened and polished
- Front Roll Adjustment: Independent hydraulic lifters, orbital pattern
- Roll Parallelism: Stabilizer torsion bar system
- Digital Readouts: 2 (front and back roll positions)
- Operator Console: Movable
- Net Weight: 17,600 lb
- Warranty: 1 Year parts, lifetime technical support
