Baileigh PH-36A Pneumatic Planishing Hammer — 36" Throat
Are you spending too much time chasing dents and surface imperfections across large metal panels?
What if your shop had a planishing hammer that reached deep into big workpieces and left a smooth, consistent finish every pass?

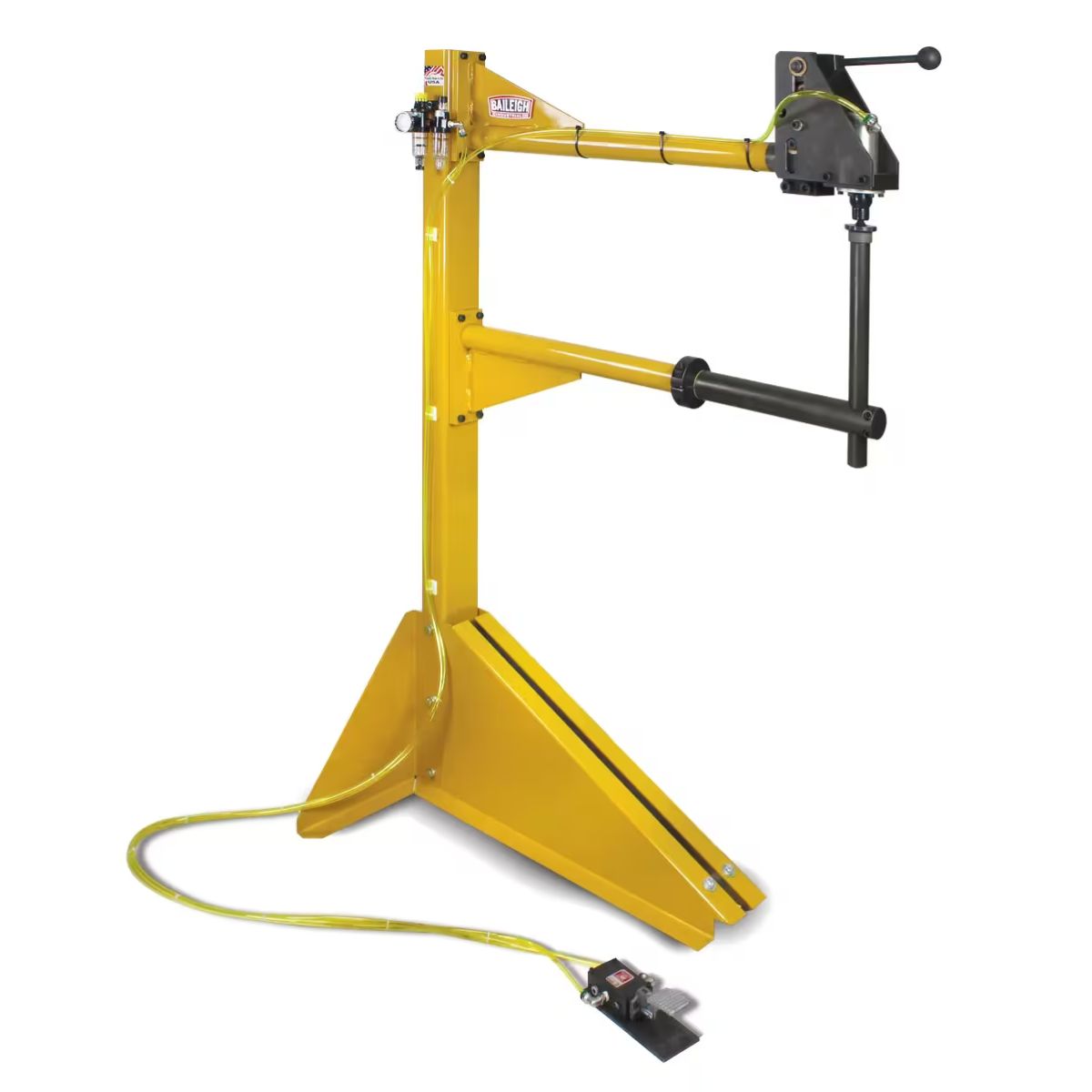

Meet the Baileigh PH-36A Pneumatic Planishing Hammer, a heavy-duty air-powered hammer built for sheet metal finishing and fabrication work.
With a 36 inch throat depth, foot pedal control, and 3,200 beats per minute, the PH-36A gives you the reach and speed to work through large panels without losing control of the material.
When the hammer runs smooth and your hands stay free, you can focus on shaping the work to the standard it deserves.
Baileigh PH-36A for Sheet Metal Finishing and Panel Work
36 Inch Throat Depth Reaches Deep Into Large Panels
The 36 inch throat gives you clear access to the center of wide panels, long contours, and large fabricated parts. That reach lets you work material that would be impossible to finish on a smaller machine.
Pneumatic Drive Delivers Consistent Impact Across the Surface
Running on 90 to 120 psi compressed air, the hammer delivers up to 3,200 beats per minute with steady force from the first strike to the last. Consistent impact rate means the finish stays even across the full panel without hot spots or uneven texture.

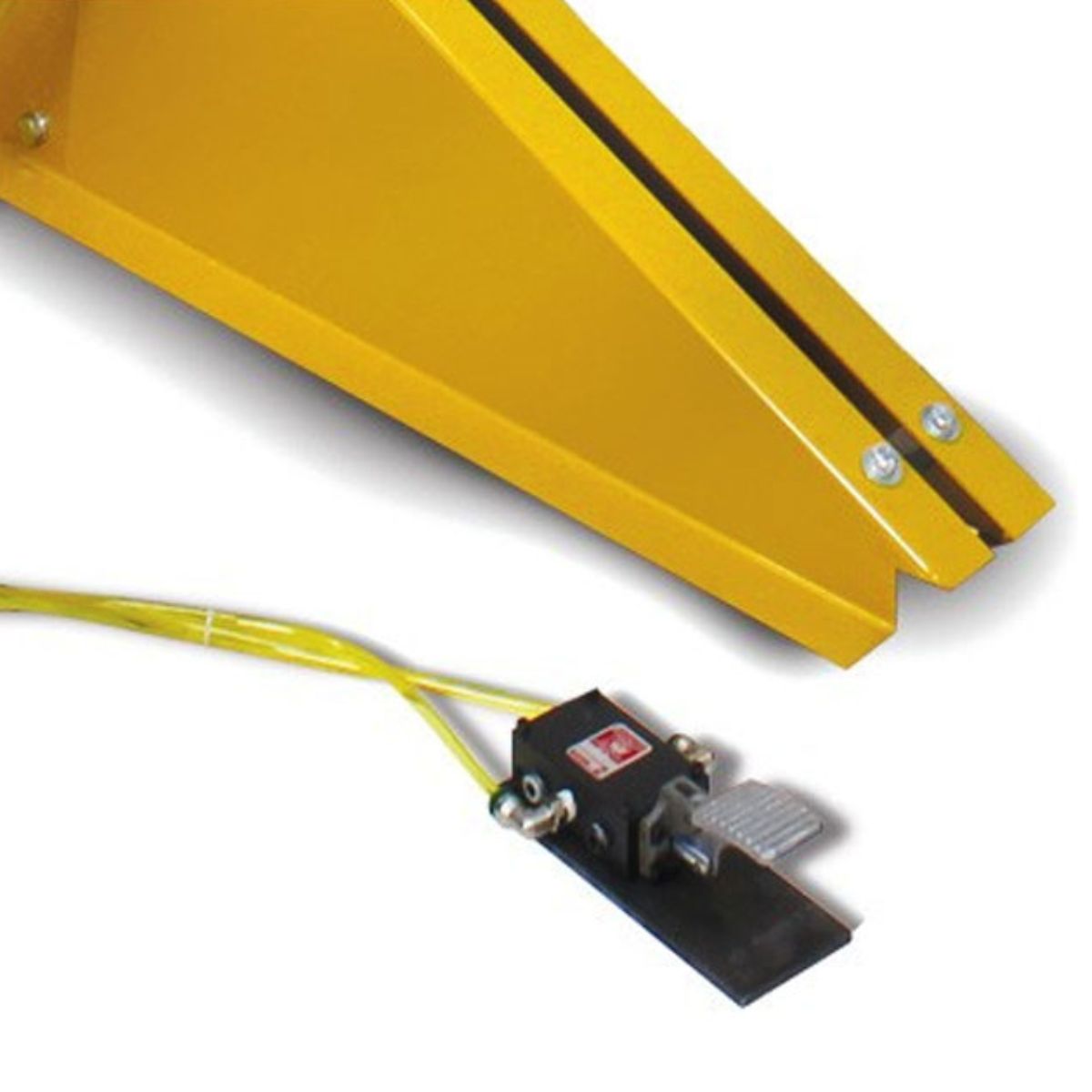

Foot Pedal Control Keeps Both Hands on the Work
The foot pedal lets you start and stop the hammer without taking your hands off the metal. That control is important when you are guiding a large panel through a contour and need to respond quickly to what you feel.
Seven Radius Dies Cover a Range of Finishing Shapes
The included set of 7 radius dies lets you move between flat finishing and curved contour work without hunting for additional tooling. Having the dies in hand from the start means you can begin shaping and smoothing the day the machine arrives.
What's Included
What's Included? Baileigh PH-36A Pneumatic Planishing Hammer — 36" Throat
-
Baileigh PH-36A Pneumatic Planishing Hammer — Provides a heavy-duty pneumatic platform for sheet metal finishing and panel fabrication work.
-
7 Radius Dies — Allows you to finish flat surfaces and a range of curved contours right out of the box.
-
Foot Pedal Control — Lets you operate the hammer hands-free for better material control during use.
Specs
Baileigh PH-36A Pneumatic Planishing Hammer — 36" Throat Specifications
- Model: PH-36A
- Stock Number: BA9-MEPH36A
- Throat Depth: 36 in
- Mild Steel Capacity: 16 gauge
- Aluminum Capacity: 14 gauge
- Beats Per Minute: 3,200
- Input Power: Pneumatic, 90–120 psi
- Warranty: 1 Year Parts, Lifetime Technical Support
