Baileigh PH-28A-CE Pneumatic Power Hammer with Die Set
Are you struggling to shrink, stretch, and planish sheet metal panels without the noise and bulk of a mechanical hammer?
What if your shop had a quiet, foot-pedal-operated power hammer that kept your hands free to guide the material through every pass?
Meet the Baileigh PH-28A-CE Pneumatic Power Hammer with Die Set, a USA-made air-powered hammer built for metalworking shops that demand clean, repeatable results.
With a 28" throat, variable speed up to 1,000 beats per minute, and six die sets included, the PH-28A-CE handles a wide range of shrinking, stretching, and planishing work right out of the box.
When the machine runs quiet and your hands stay on the material, you can focus on shaping the panel with confidence.
Baileigh PH-28A-CE for Sheet Metal Shrinking, Stretching, and Planishing

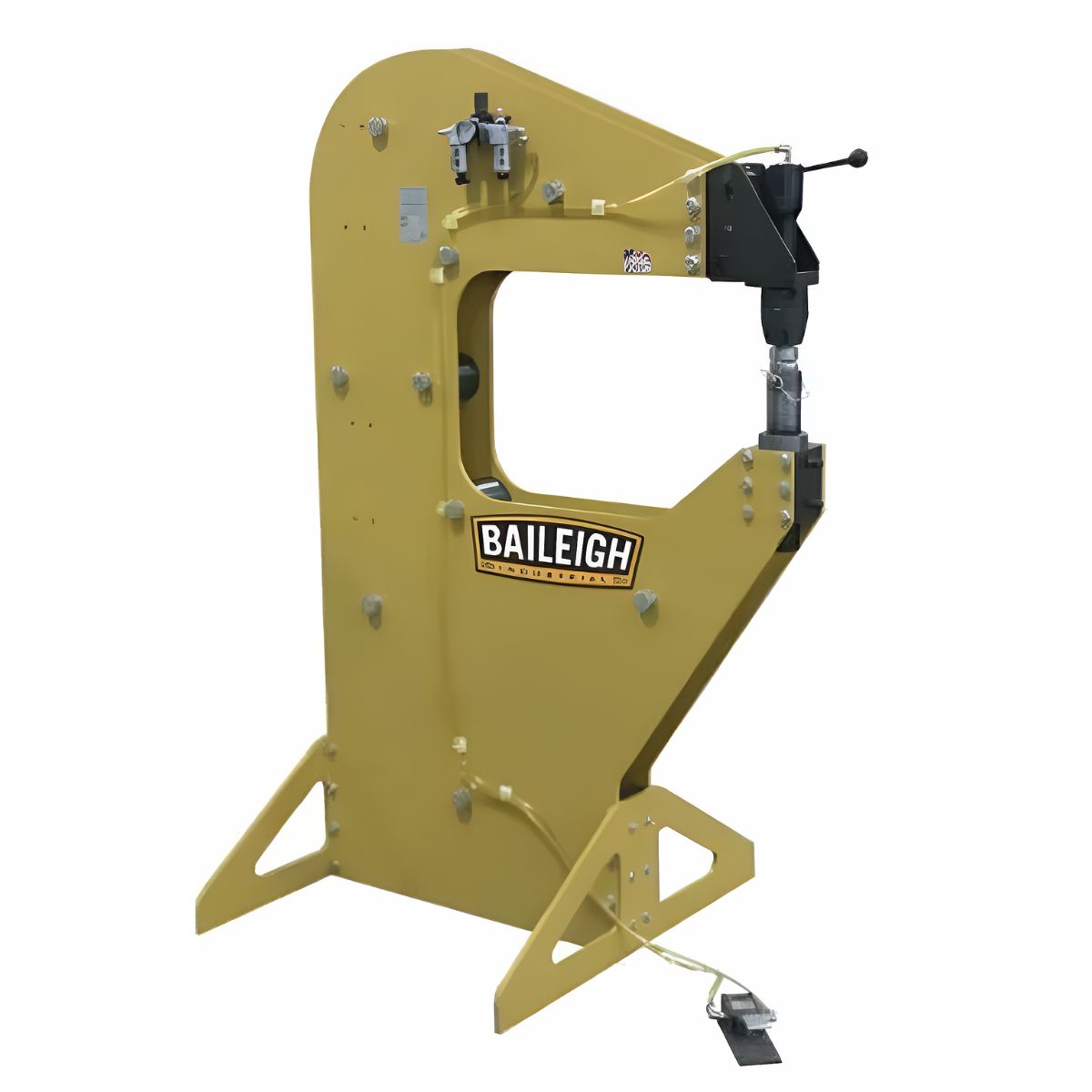

Heavy Steel Frame Transfers Force Directly to the Material
The frame is built from heavy half-inch steel plate to eliminate flex under load. A rigid frame keeps the machine's force fully directed into the tooling so results stay consistent from pass to pass.
28" Throat Handles Larger Panels with Room to Work
The 28-inch throat depth gives you clearance to move bigger panels through the machine without fighting for space. That extra reach makes it practical for body panels and larger sheet metal work that a smaller hammer cannot handle.
Variable Speed and Foot Pedal Keep You in Control
Speed adjusts from 0 to 1,000 beats per minute so you can match the hammer rate to the work in front of you. Foot pedal operation keeps both hands free to guide and reposition the material while the machine runs.
Air-Powered System Runs Quieter Than Mechanical Hammers

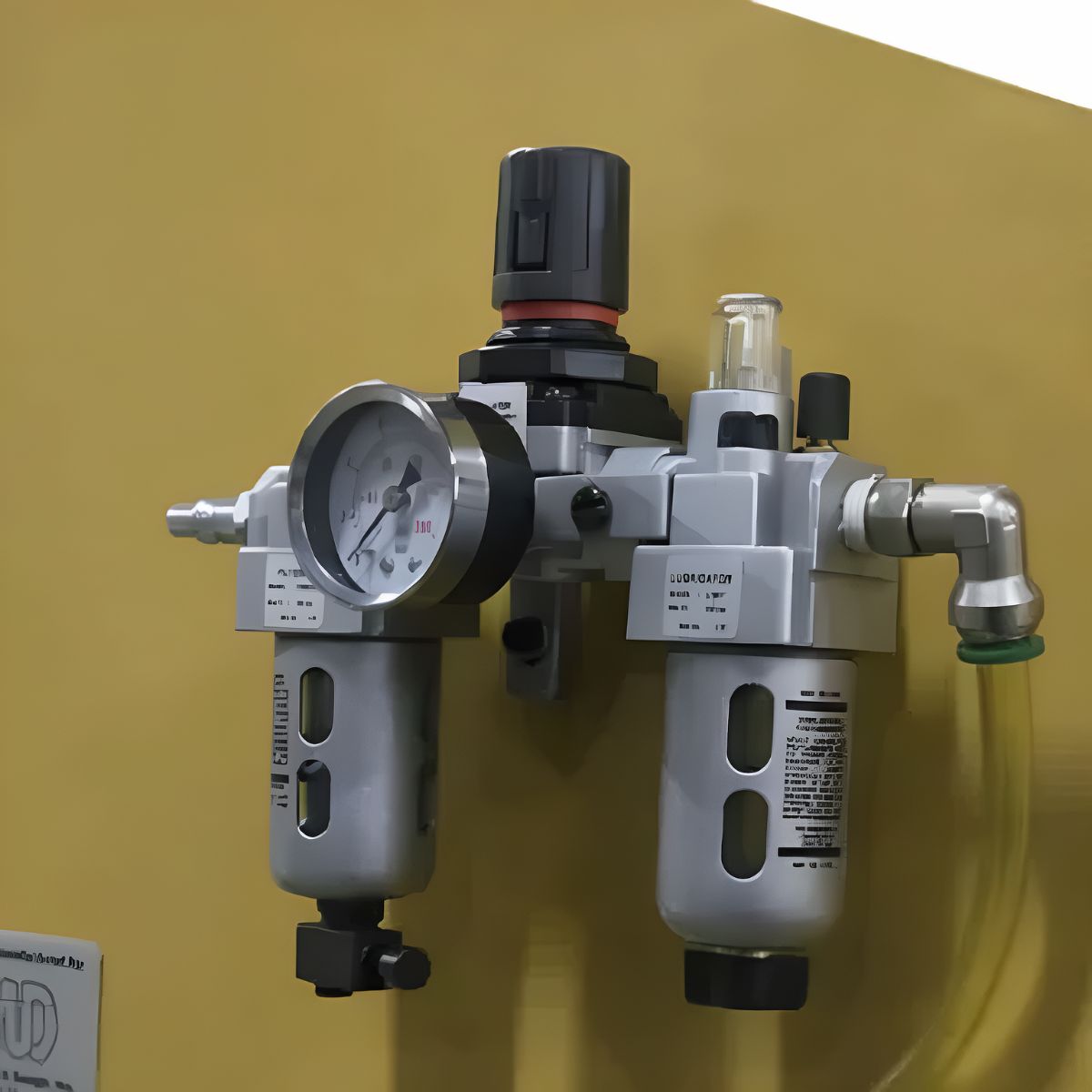

The pneumatic drive runs noticeably quieter than a mechanical power hammer, which makes it easier to work in a home shop or production facility without the noise. A side-mounted regulator lets you adjust airflow, and an integrated oiler system delivers oil directly to the tooling for routine maintenance.
What's Included
What's Included? Baileigh PH-28A-CE Pneumatic Power Hammer with Die Set
-
Baileigh PH-28A-CE Pneumatic Power Hammer — Provides the air-powered hammer platform for shrinking, stretching, and planishing sheet metal up to 16 gauge mild steel.
-

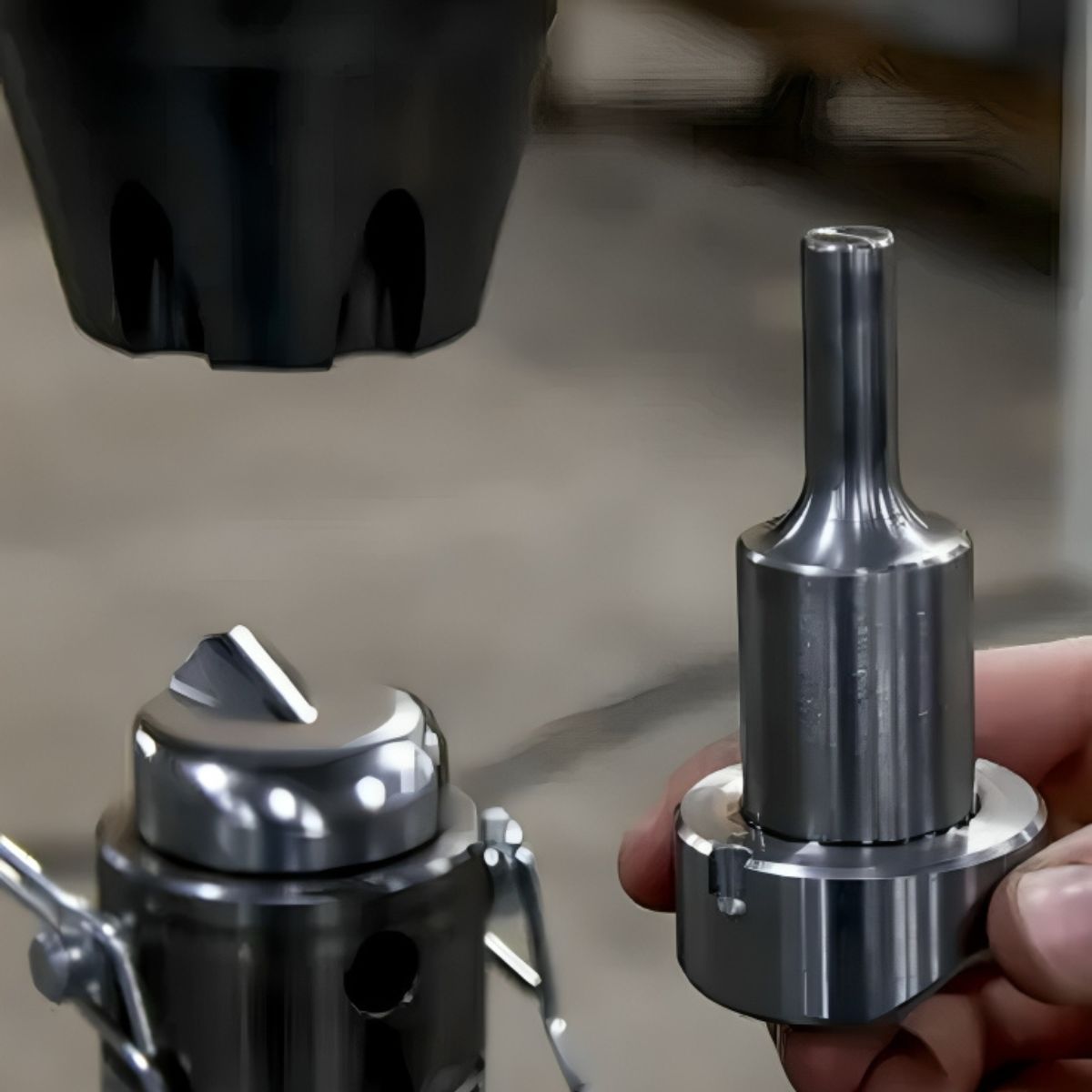

2" Thumbnail Shrinking Dies — Allows you to shrink sheet metal panels using a compact thumbnail die profile.
-
2.5" Master Flat Top Die — Supports general planishing and flattening work across a range of panel shapes.
-
1" Linear Stretch Die — Used for controlled linear stretching along a defined path in the material.
-
3" x 12" Radius Die — Shapes panels to a tighter radius for curved metalwork.
-
3" x 24" Radius Die — Provides a mid-range radius option for shaping larger panel sections.
-
3" x 36" Radius Die — Handles gradual radius shaping across wide or long panel areas.
Specs
Baileigh PH-28A-CE Pneumatic Power Hammer with Die Set Specifications
- Model: PH-28A-CE
- SKU: BA9-PH28ACE
- Country of Manufacture: United States
- Throat Depth: 28"
- Mild Steel Capacity: 16 ga.
- Aluminum Capacity: 14 ga.
- Speed: 0–1,000 beats per minute (variable)
- Air Pressure: 80–120 psi
- CFM: 15 @ 120 psi
- Tooling Height Adjustment: 1.5"
- Shipping Dimensions: 60" x 44" x 77"
- Shipping Weight: 1,000 lb
