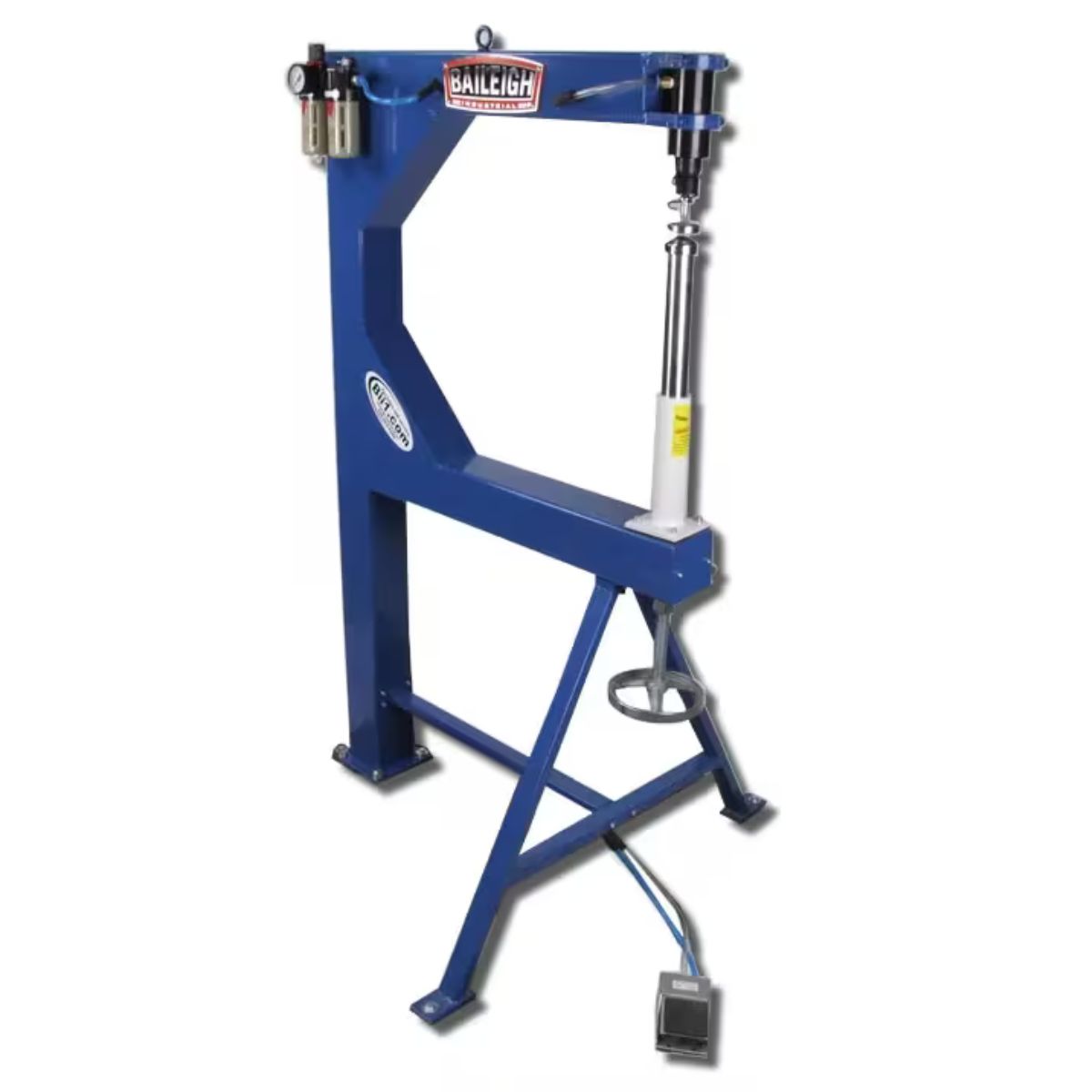

Baileigh PH-24A Pneumatic Planishing Hammer — 24" Throat
Are you spending too much time hand-finishing dents and surface imperfections in sheet metal?
What if your shop had a pneumatic planishing hammer that reached deep into large panels and smoothed them cleanly without fighting the material?
Meet the Baileigh PH-24A Pneumatic Planishing Hammer, a compressed air planishing hammer built for sheet metal finishing work.
With a fully welded frame, 24 inch throat depth, foot pedal control, and nine radius dies included, the PH-24A covers a wide range of finishing tasks right out of the box.
When the machine handles the hammering, you can keep both hands on the panel and focus on guiding the work where it needs to go.
Baileigh PH-24A for Sheet Metal Planishing and Surface Finishing
Fully Welded Frame Transfers Force Directly to the Work
The PH-24A is built on a fully welded 4 inch by 4 inch steel frame that stays rigid under load. A stable frame keeps the hammer on target so force goes into the panel rather than flex in the machine.
Pneumatic Power Delivers Consistent Beating Speed
Running on 90 to 120 psi compressed air, the hammer reaches up to 4,600 beats per minute for fast, consistent surface work. That speed lets you move through finishing passes efficiently without overworking any one area.
24 Inch Throat Reaches into Larger Panels
The 24 inch throat depth gives you room to work on larger sheet metal panels that a shorter-throat machine could not reach. A handwheel adjusts the material opening so you can dial in the gap for the thickness you are working.
Foot Pedal Control Keeps Both Hands Free
The foot pedal starts and stops the hammer so both hands stay on the material throughout the pass. That control lets you guide the panel smoothly without stopping to reach for a switch.
What's Included
What's Included? Baileigh PH-24A Pneumatic Planishing Hammer — 24" Throat
-
Baileigh PH-24A Pneumatic Planishing Hammer — Provides a stable pneumatic platform for sheet metal planishing and surface finishing work.
-

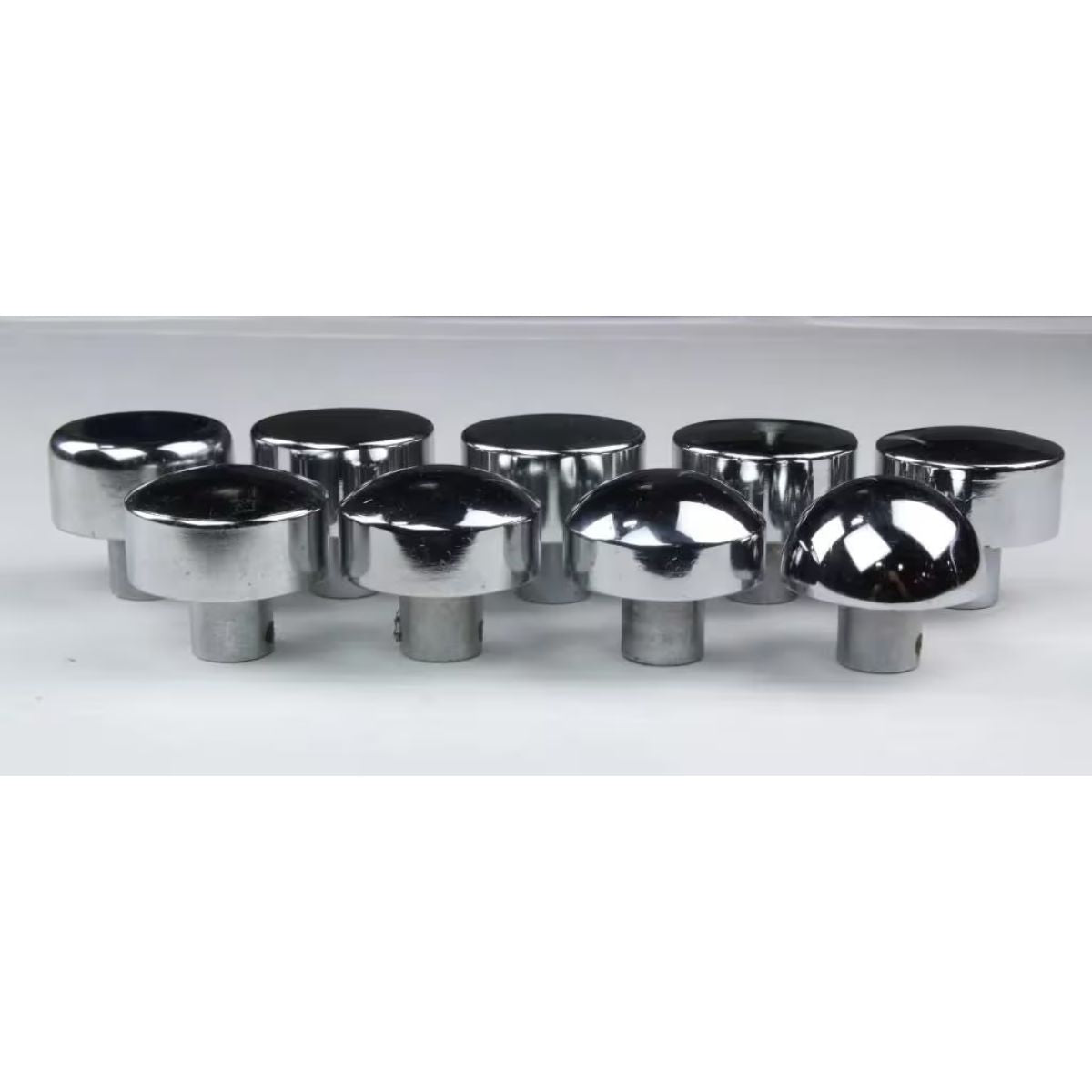

9 Radius Dies (Flat through 12" Radii) — Covers a wide range of finishing contours so you can begin working different panel shapes right away.
Specs
Baileigh PH-24A Pneumatic Planishing Hammer — 24" Throat Specifications
- Model: PH-24A
- Stock Number: BA9-1005948
- Throat Depth: 24 in
- Mild Steel Capacity: 16 gauge
- Aluminum Capacity: 14 gauge
- Beats Per Minute: 4,600
- Input Power: Pneumatic, 90–120 psi
- Frame: Fully welded 4" x 4" steel
- Net Weight: 185 lb
- Warranty: 1 Year Parts
