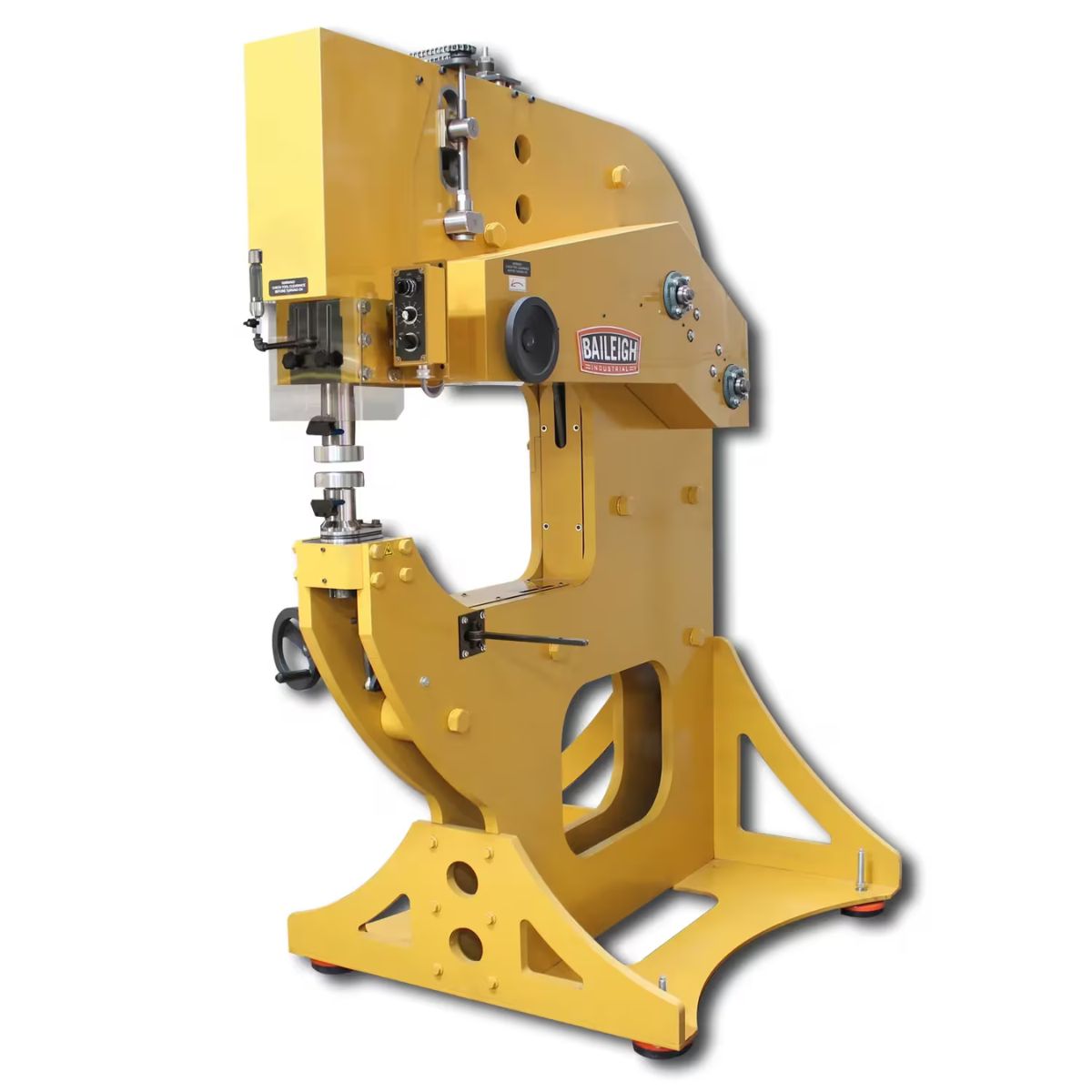

Baileigh MH-37HD 220V 3-Phase Multi-Function Power Hammer — 37" Throat
Are you doing large panel work that demands a power hammer with serious throat depth and consistent force?
What if your shop had a hammer that handles pre-bent panels, switches between hammering styles, and gives you precise speed control without stopping the work?
Meet the Baileigh MH-37HD 220V 3-Phase Multi-Function Power Hammer, an industrial-grade machine built for heavy metal shaping work.
With a rigid steel plate frame, 37" throat depth, and variable speed from 0 to 1,500 BPM, the MH-37HD is built to handle demanding production shaping.
When the hammer holds steady through a run of parts, you can focus on shaping clean and consistent results.
Baileigh MH-37HD for Industrial Metal Shaping
Heavy Steel Frame Resists Flex During Operation
The MH-37HD is built on a rigid 1½" thick steel plate frame that absorbs force and holds stable through shaping, shrinking, and planishing work. A frame this solid keeps the hammer performing consistently across long production runs without flex or fatigue.
37" Throat Depth Handles Large and Pre-Bent Panels
The 37" throat gives you room to maneuver large sheet panels and pre-bent work without fighting the machine for clearance. That depth is what separates a shop-grade hammer from one built for production metalworking.
Variable Speed and Stroke Adjust Without Stopping Work

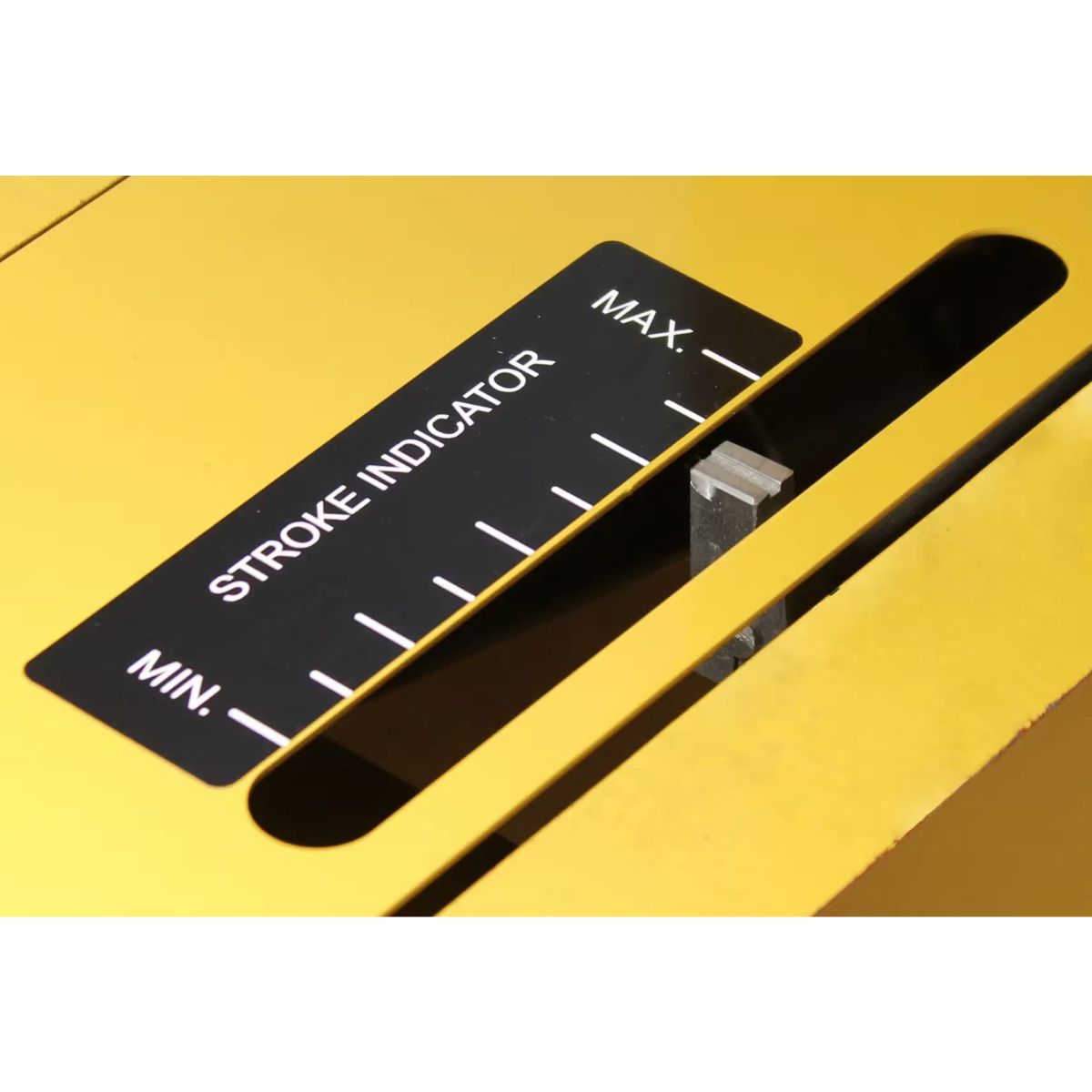

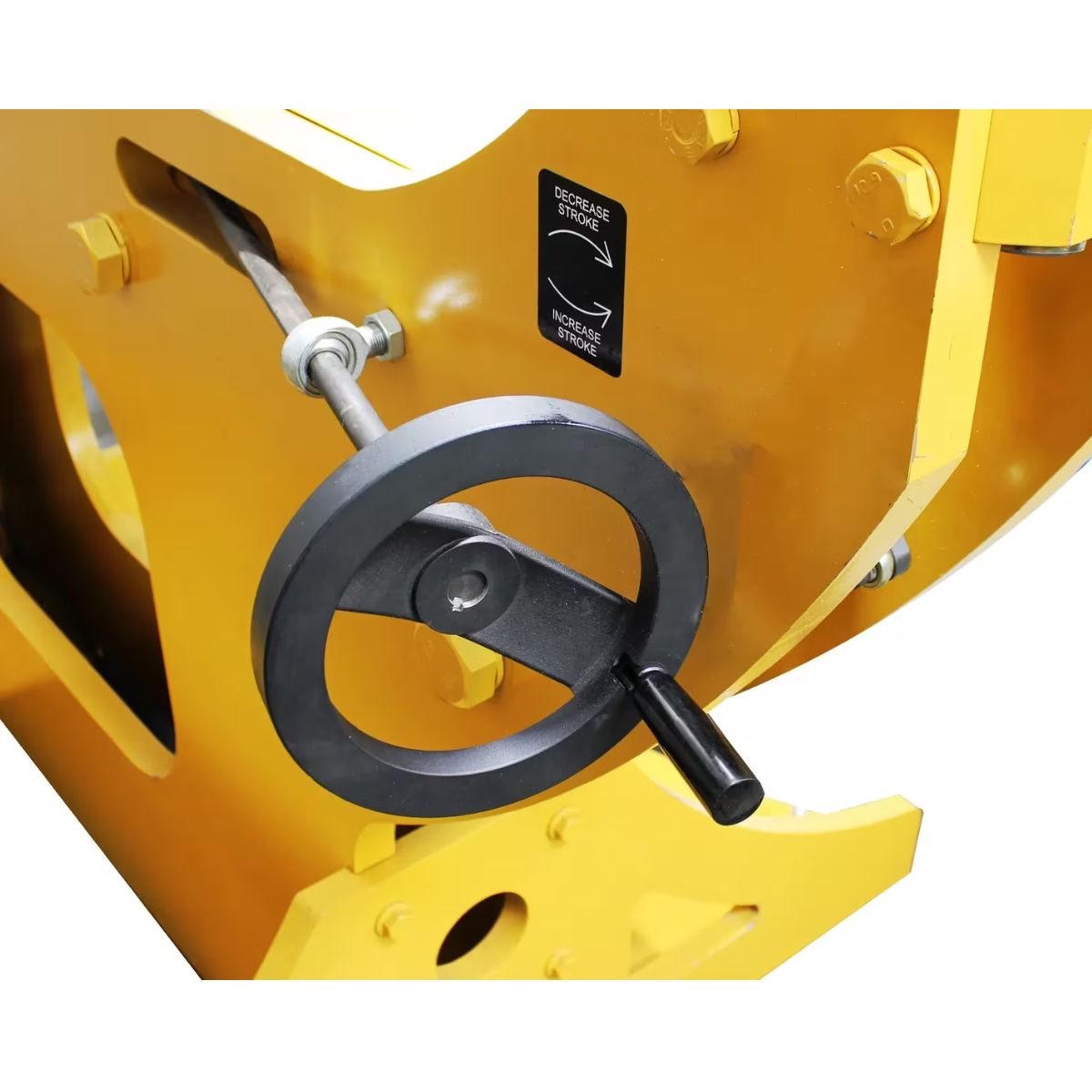

An inverter-driven motor delivers 0 to 1,500 beats per minute, adjustable on the fly from a foot pedal or operator panel. Stroke length adjusts from 0.1" to 0.75" so you can dial in the right combination for each material and finish.
Dual Hammering Styles Support Multiple Shaping Operations

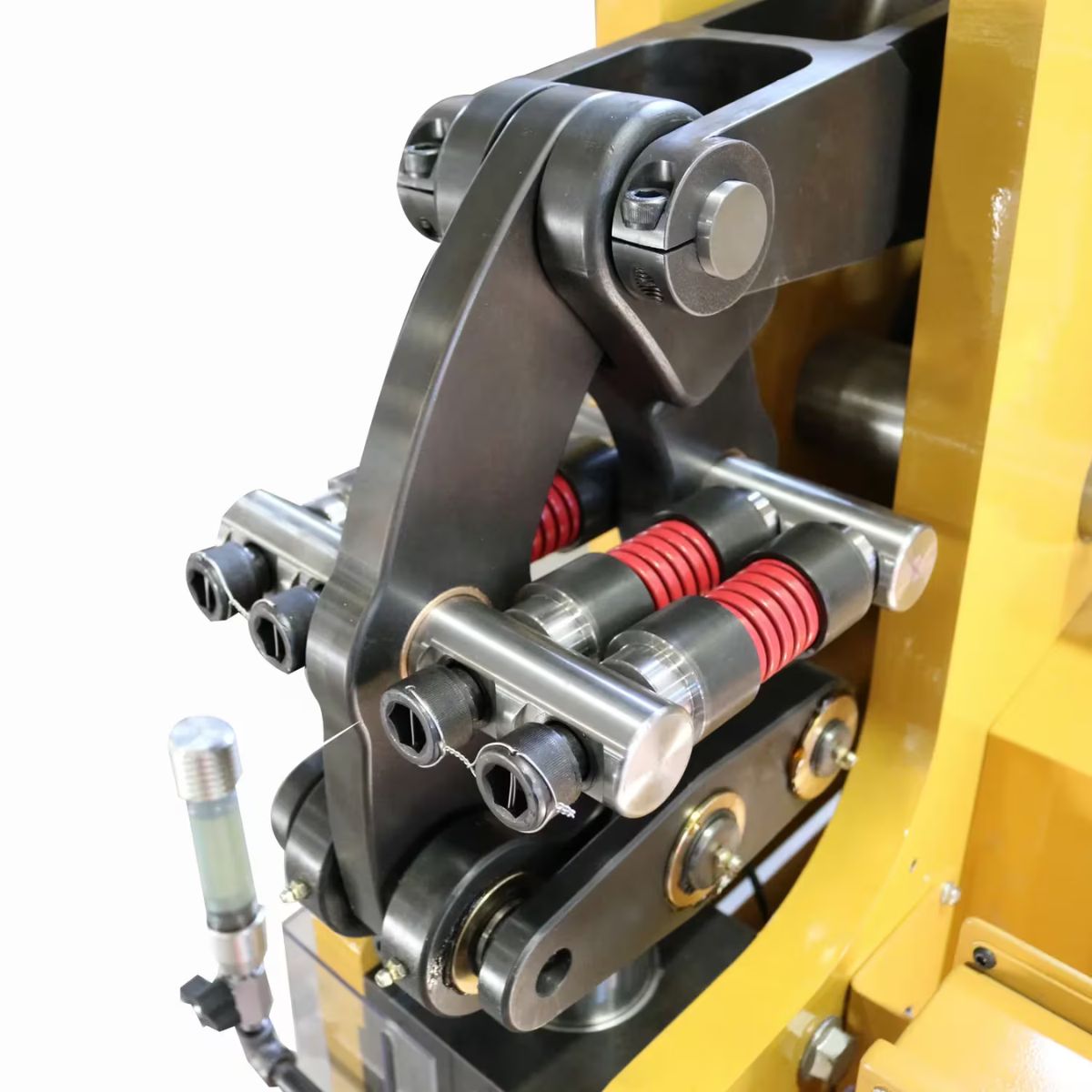

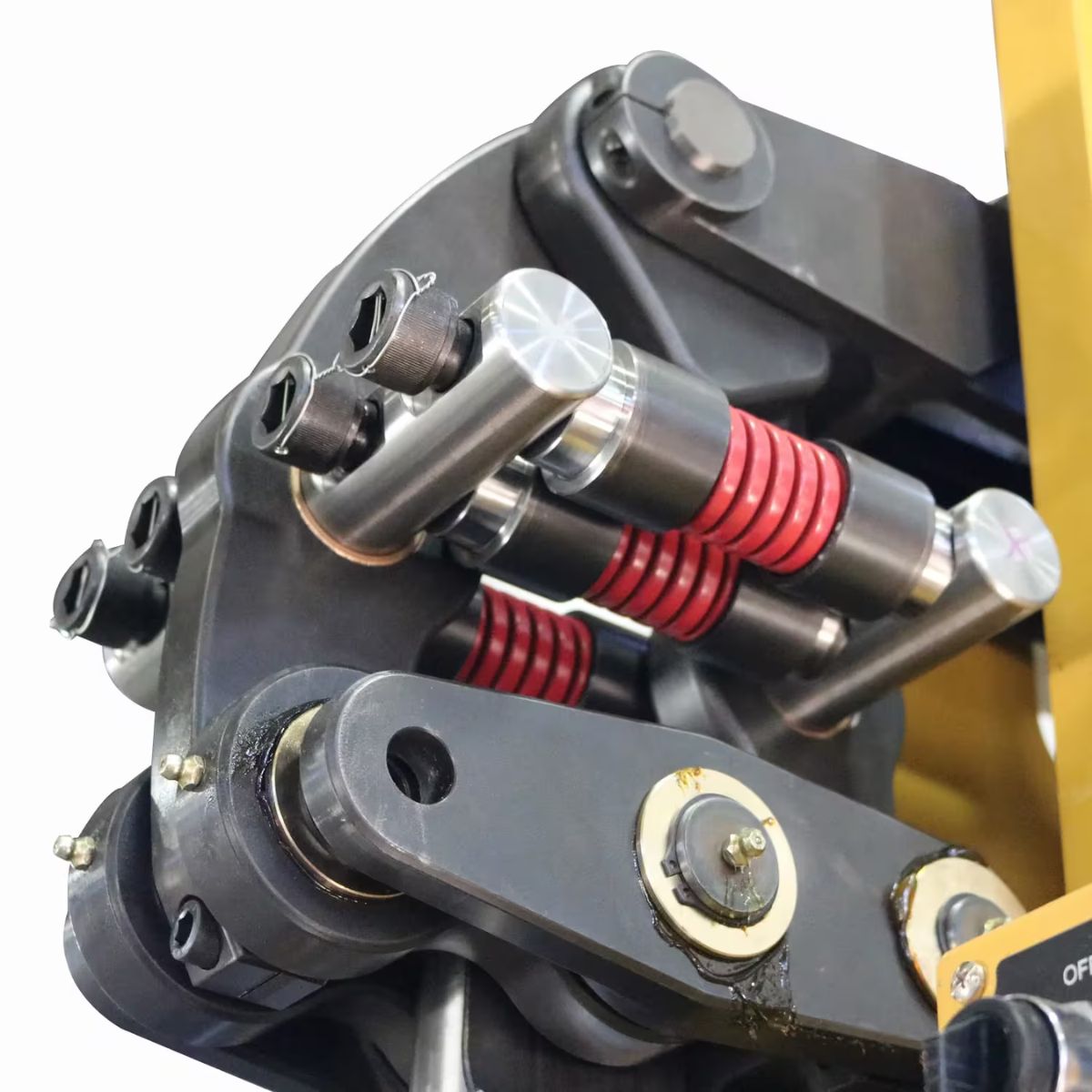

The MH-37HD runs both rigid Pullmax-style and spring-slapping Yoder-style hammering, giving you two distinct approaches in one machine. That flexibility covers shaping, shrinking, flanging, and planishing across different materials and contours.
What's Included
What's Included? Baileigh MH-37HD 220V 3-Phase Multi-Function Power Hammer — 37" Throat
-
Baileigh MH-37HD Power Hammer — Provides the complete industrial power hammer platform for shaping, shrinking, flanging, and planishing operations.
Specs
Baileigh MH-37HD 220V 3-Phase Multi-Function Power Hammer — 37" Throat Specifications
- Stock Number: BA9-MH37HD
- Model Number: MH-37HD
- Input Power: 220V 3-Phase
- Motor: 5 HP
- Speed Range: 0–1,500 BPM (variable)
- Stroke Length: 0.1" to 0.75" (adjustable on the fly)
- Throat Depth: 37"
- Mild Steel Capacity: 10 gauge
- Aluminum Capacity: .250" soft aluminum
- Frame Construction: 1½" thick steel plate
- Net Weight: 5,500 lb
- Warranty: 1 Year Parts
