Wilton SHR Strut & Threaded Rod Shear Starter Kit with Power Pack
Are you losing time sourcing a hydraulic power supply before strut cutting can start?
What if the shear and power unit came matched and ready to cut from the same box?
Meet the Wilton SHR Strut & Threaded Rod Shear Starter Kit with Power Pack, a complete hydraulic shearing system built for on-site strut work.
With a 30-ton cylinder and a matched SPX 10,000 psi power unit included, the kit connects and cuts without sourcing extra equipment.
When everything travels with the crew, clean cuts are ready wherever the job demands them.
Wilton SHR Starter Kit for Complete On-Site Strut and Rod Cutting
30-Ton Hydraulic Cylinder and Ductile Iron Frame Cut Clean Without Deburring
The 30-ton cylinder pushes through strut and threaded rod in about three seconds and leaves a straight edge that needs no cleanup before use. The precision machined ductile iron frame holds up to the force of repeated cuts in a demanding job site environment without flex or fatigue.
SPX Power Unit Runs the Shear On Site Without a Separate Supply

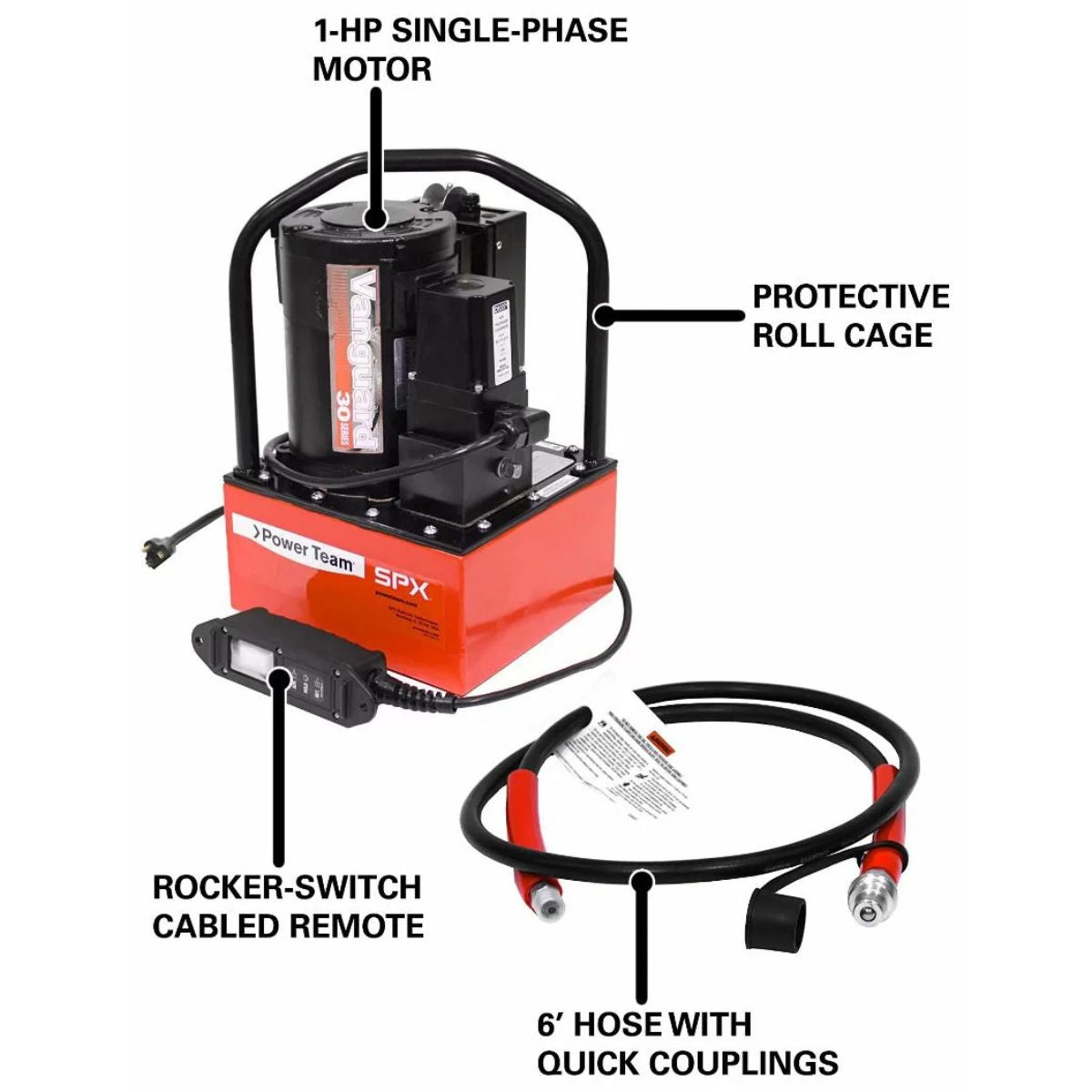

The included SPX hydraulic power unit runs on a 1 HP single phase permanent magnet motor and delivers 10,000 psi to drive the shear. A roll cage protects the unit during transport and on the job, and a rocker-switch cabled remote lets the operator trigger cuts from a comfortable position. The 6' hose with quick couplings connects the power unit to the shear without tools.
Standard Blade Set Handles Common Strut Profiles with Tool-Free Changes
The standard blade set shears 1-5/8" and 7/8" strut profiles and swaps out without extra tools when the job calls for a different profile. Additional blade sets are available separately for back-to-back strut, deep-only strut, Cooper B-Line® 4D21 and 4D22 strut, and threaded rod from 1/4" to 5/8" diameter.
Support Rods and Measurement Scale Keep Repeat Cut Lengths Consistent
Two support rods with a 17" measurement scale from backstop to cut point let you set a target length and hold it across multiple pieces without re-measuring each one. When the job calls for longer stock, the support rods swap out for standard 1" O.D. pipe to accommodate the application.
What's Included

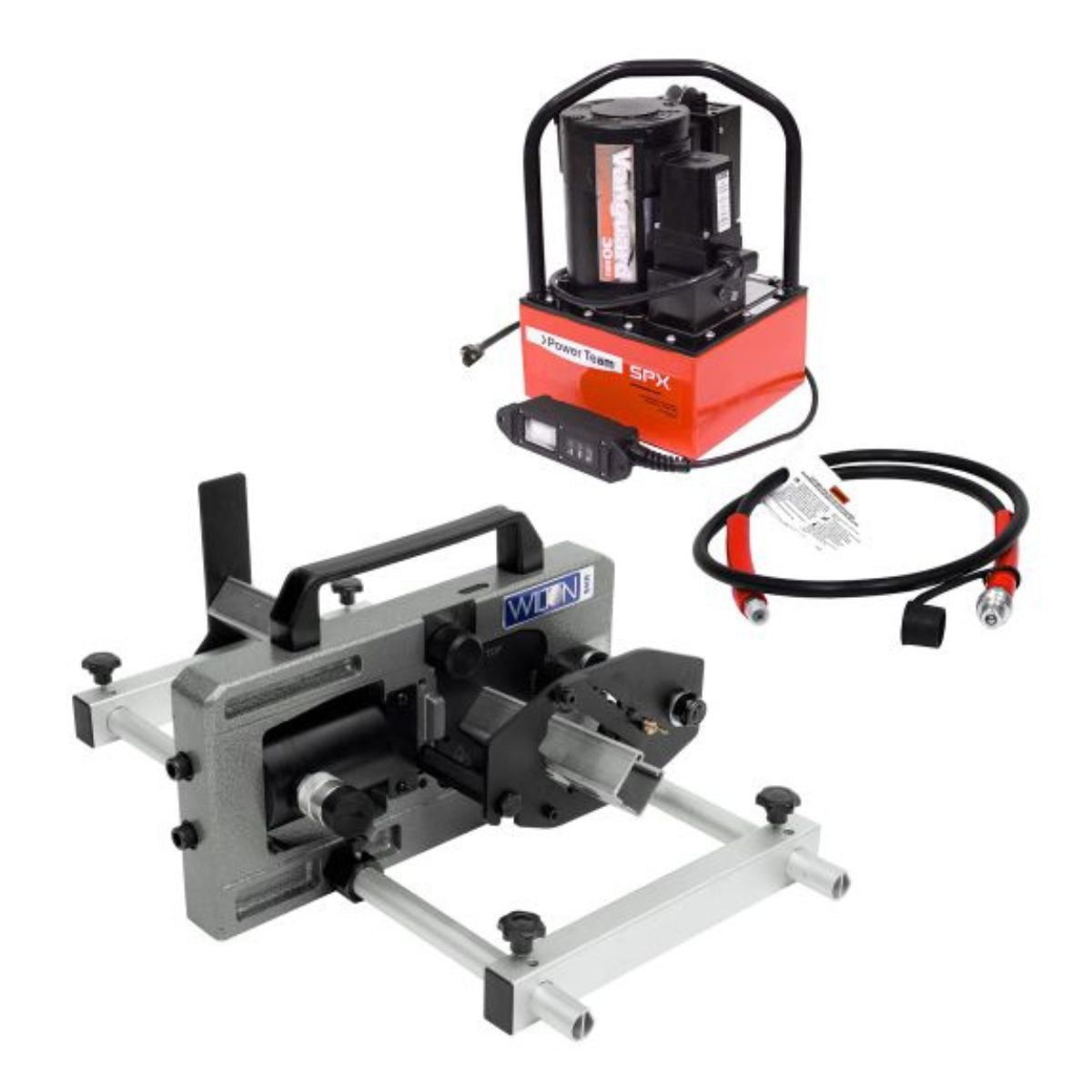

What's Included? Wilton SHR Strut & Threaded Rod Shear Starter Kit with Power Pack
-
Wilton SHR Strut & Threaded Rod Shear with Standard Blade Set — shears 1-5/8" and 7/8" strut profiles with a 30-ton hydraulic cylinder and ductile iron frame.
-
SPX 10,000 PSI Hydraulic Power Unit — 1 HP single phase motor with roll cage protection and rocker-switch cabled remote for easy operator control.
-
6' Hose with Quick Couplings — connects the power unit to the shear for immediate setup without tools.
-
Two Support Rods with 17" Measurement Scale — holds workpiece position and tracks cut lengths from backstop to cut point.
Specs
Wilton SHR Strut & Threaded Rod Shear Starter Kit with Power Pack Specifications
-
Stock Number: WL9-28920
-
Deep Strut Capacity: 1-5/8" x 1-5/8"
-
Power Unit: 1 HP, Single Phase, Permanent Magnet Motor
-
Power Unit Output: 10,000 psi
-
Hose Length: 6'
-
Net Weight: 137.0 lbs
-
Warranty: 1 Year
-
Prop 65: Cancer and Reproductive Harm
