Wilton SHR Strut & Threaded Rod Shear
Are you losing time to deburring after every strut and threaded rod cut?
What if one hydraulic shear made clean, straight cuts in seconds with no secondary operations?

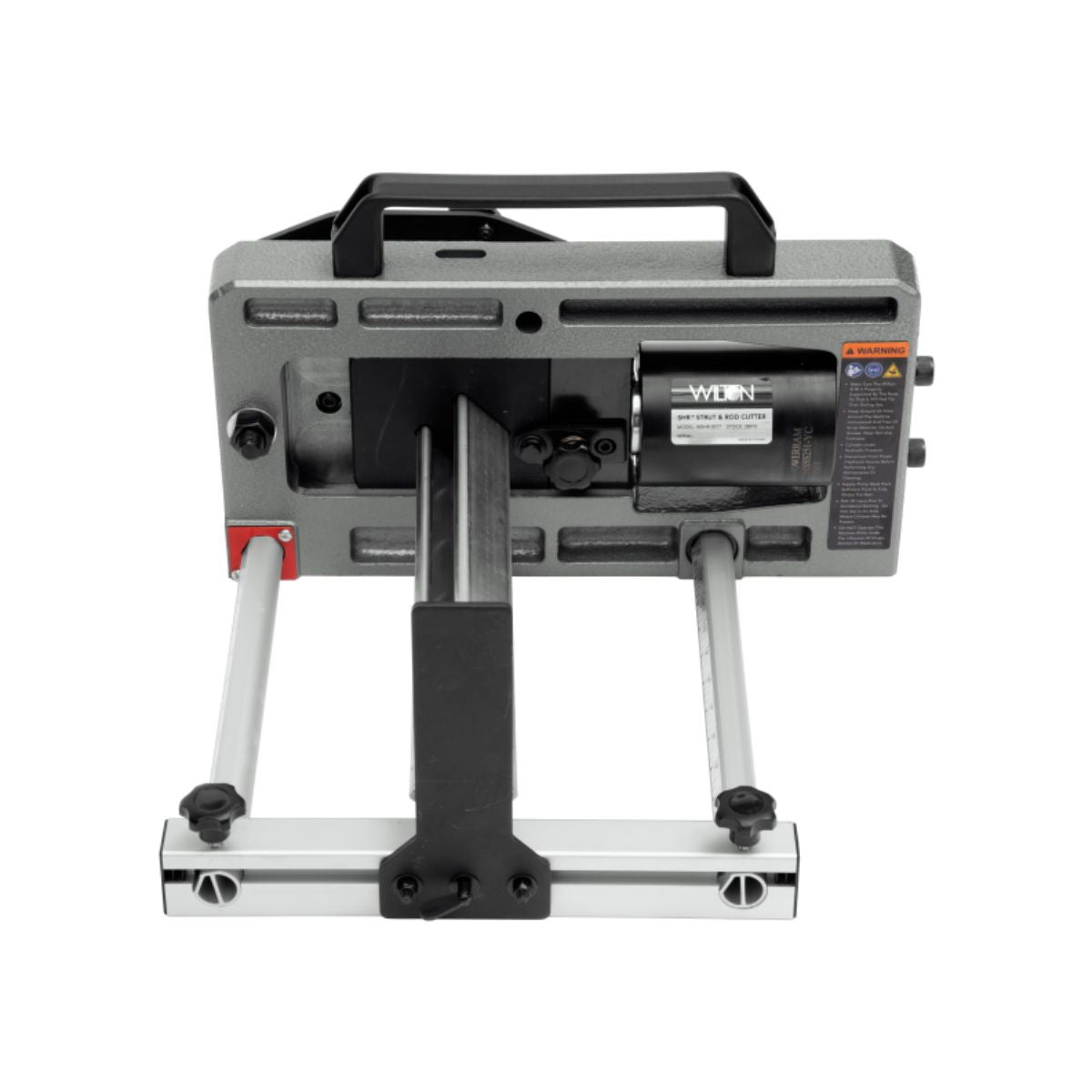

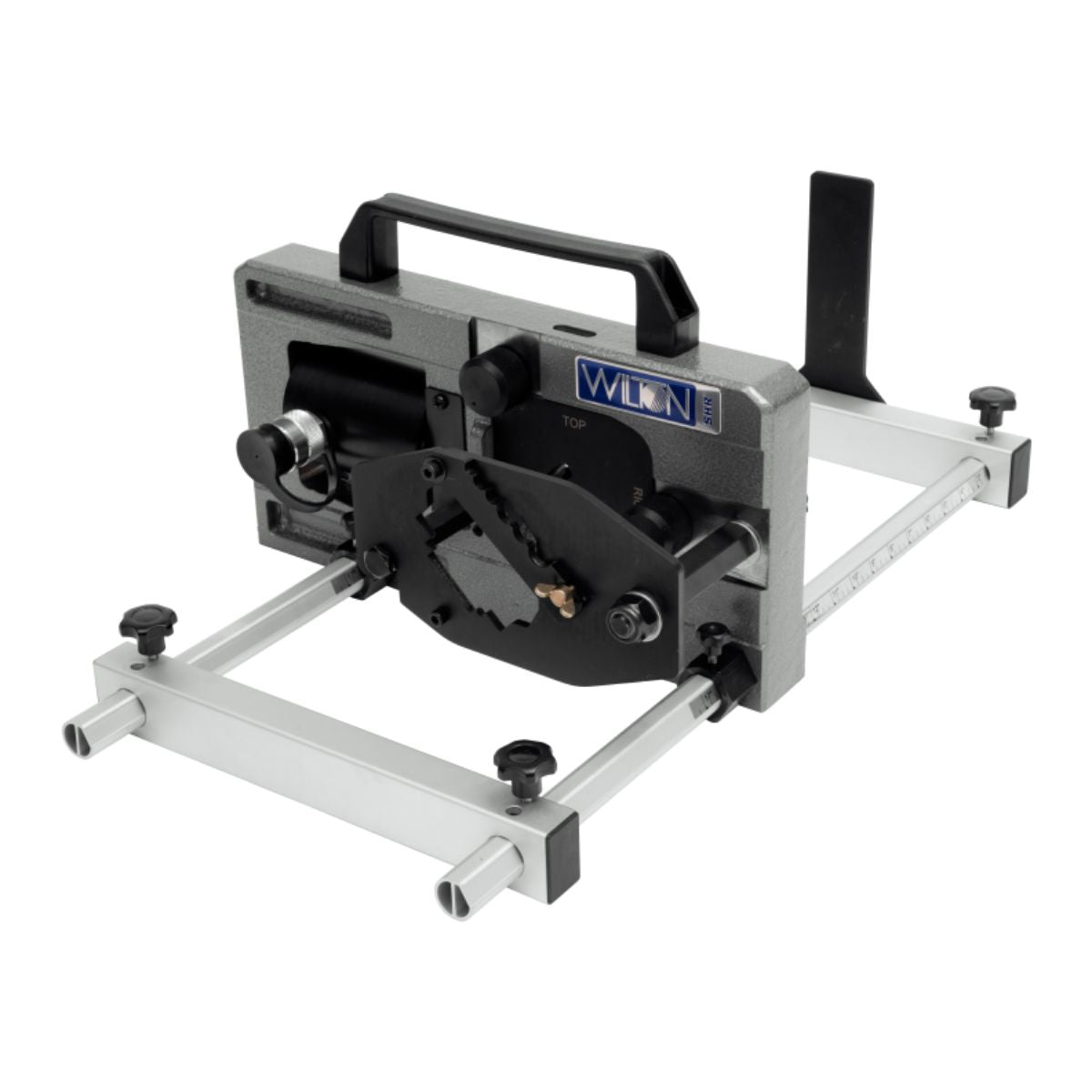

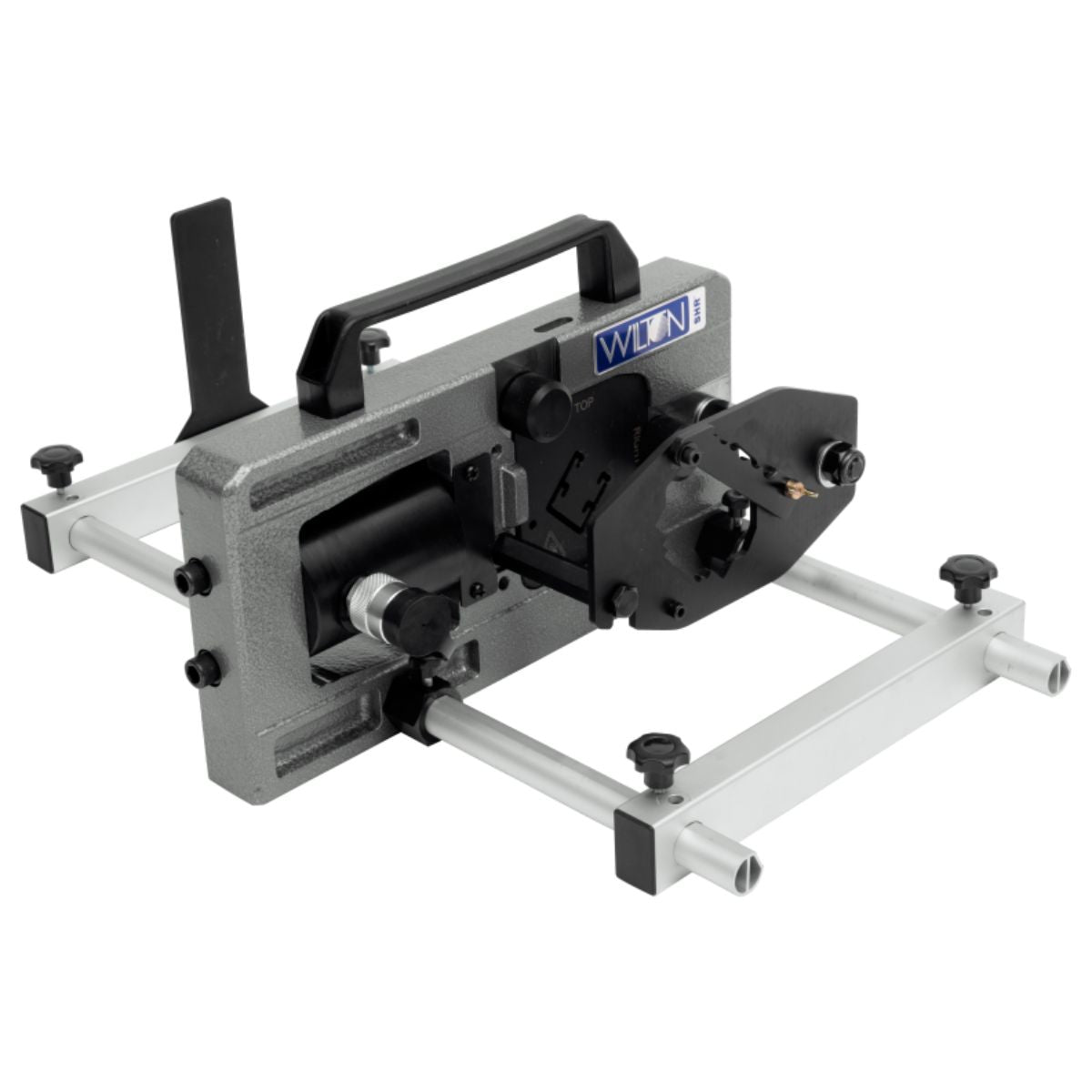

Meet the Wilton SHR Strut & Threaded Rod Shear, a hydraulic shear that cuts strut and threaded rod fast and clean.
With a 30-ton cylinder and quick coupler, it connects to any 10,000 psi supply and keeps up wherever the work takes you.
When cuts come out clean the first time, your crew stays on schedule and the job keeps moving.
Wilton SHR for Fast, Clean Strut and Threaded Rod Cuts
30-Ton Hydraulic Cylinder Cuts Without Secondary Operations

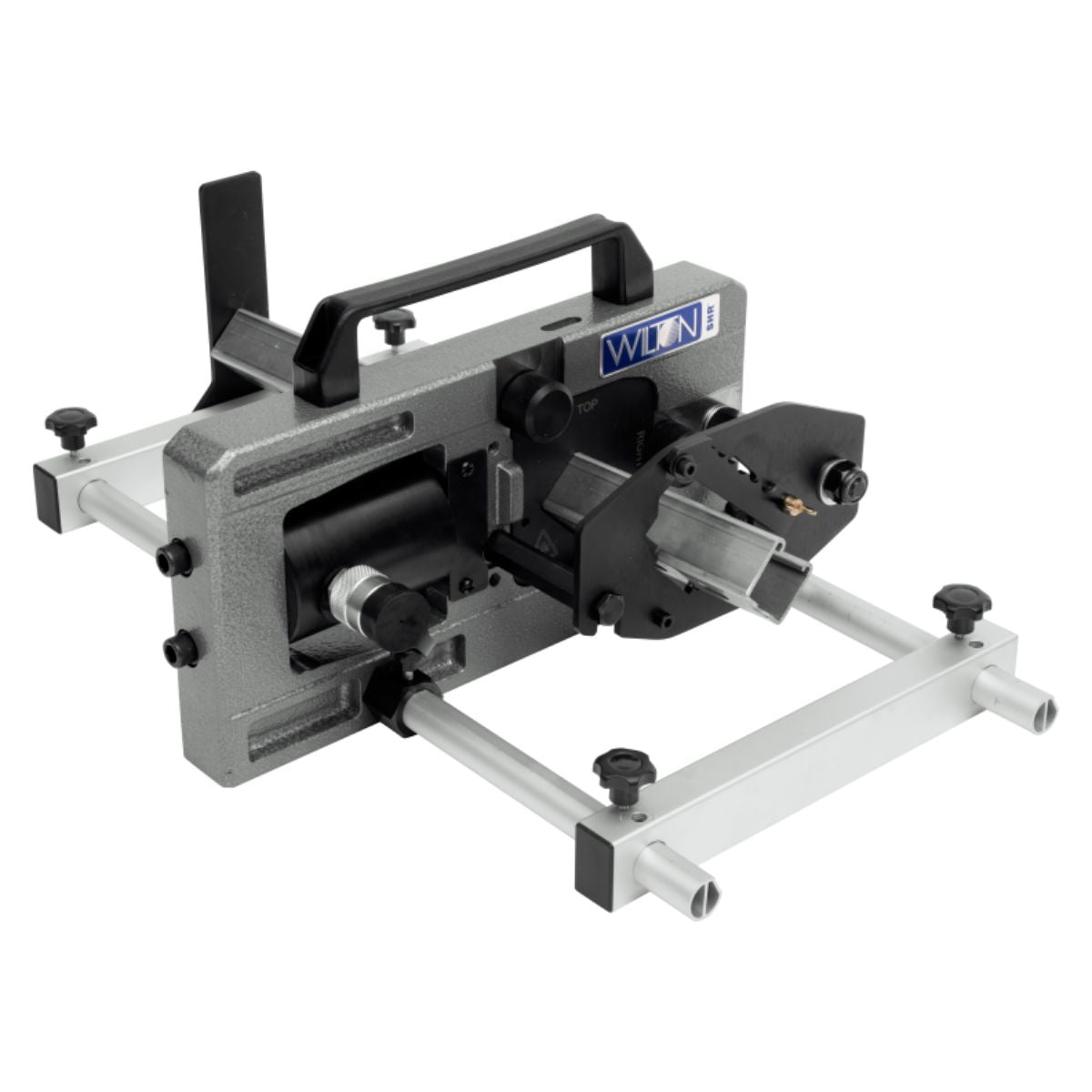

The 30-ton cylinder generates enough force to shear through 12 gauge mild steel, shallow strut, and deep strut in a single stroke. Each cut takes about three seconds and leaves a clean, straight edge that goes directly to use with no deburring required.

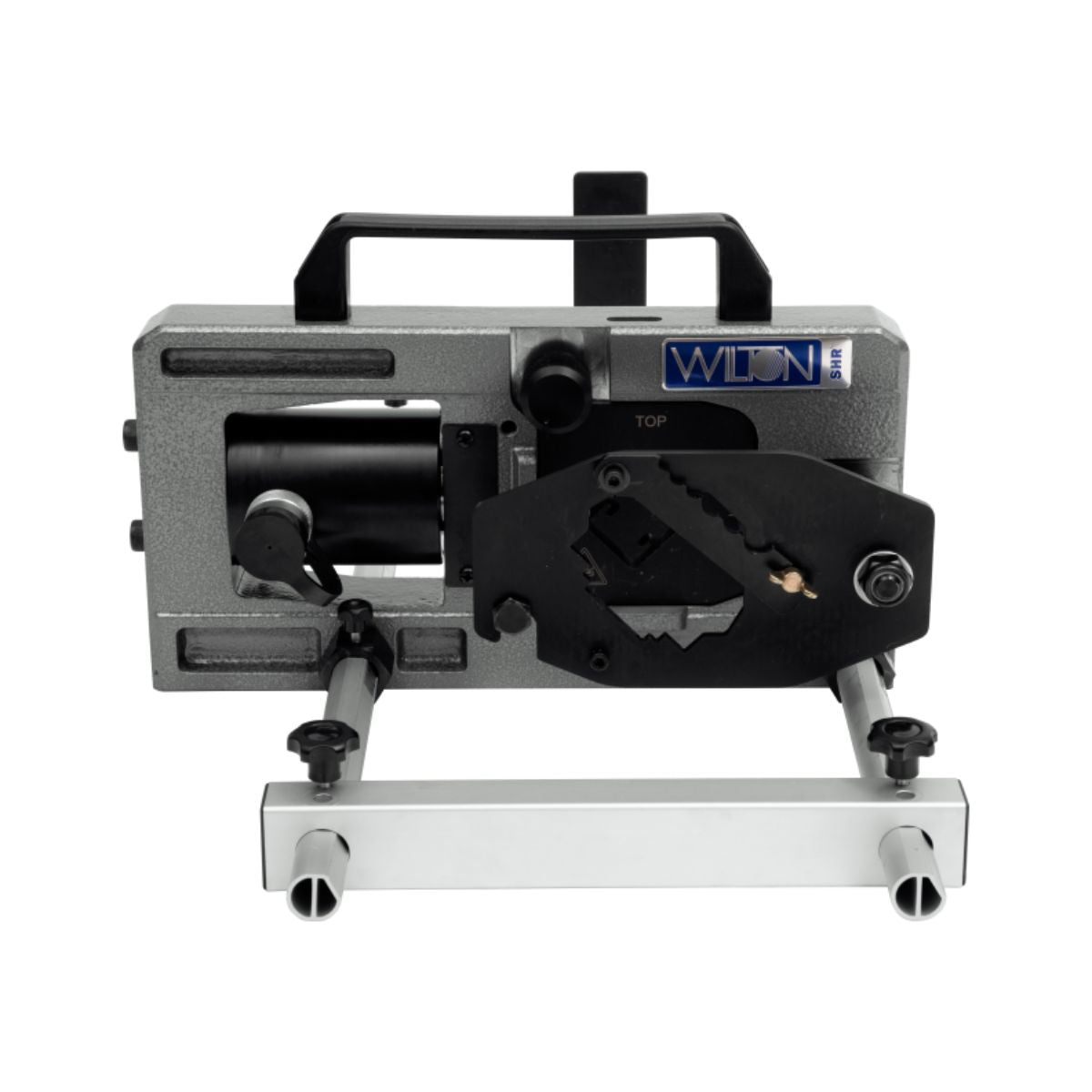

Standard Blade Set Handles Multiple Strut Profiles
The standard blade set shears 1-5/8" and 7/8" strut profiles without switching setups between cuts. Additional blade sets are sold separately for back-to-back strut, deep-only strut, Cooper B-Line® 4D21 and 4D22 strut, and threaded rod from 1/4" to 5/8" diameter.

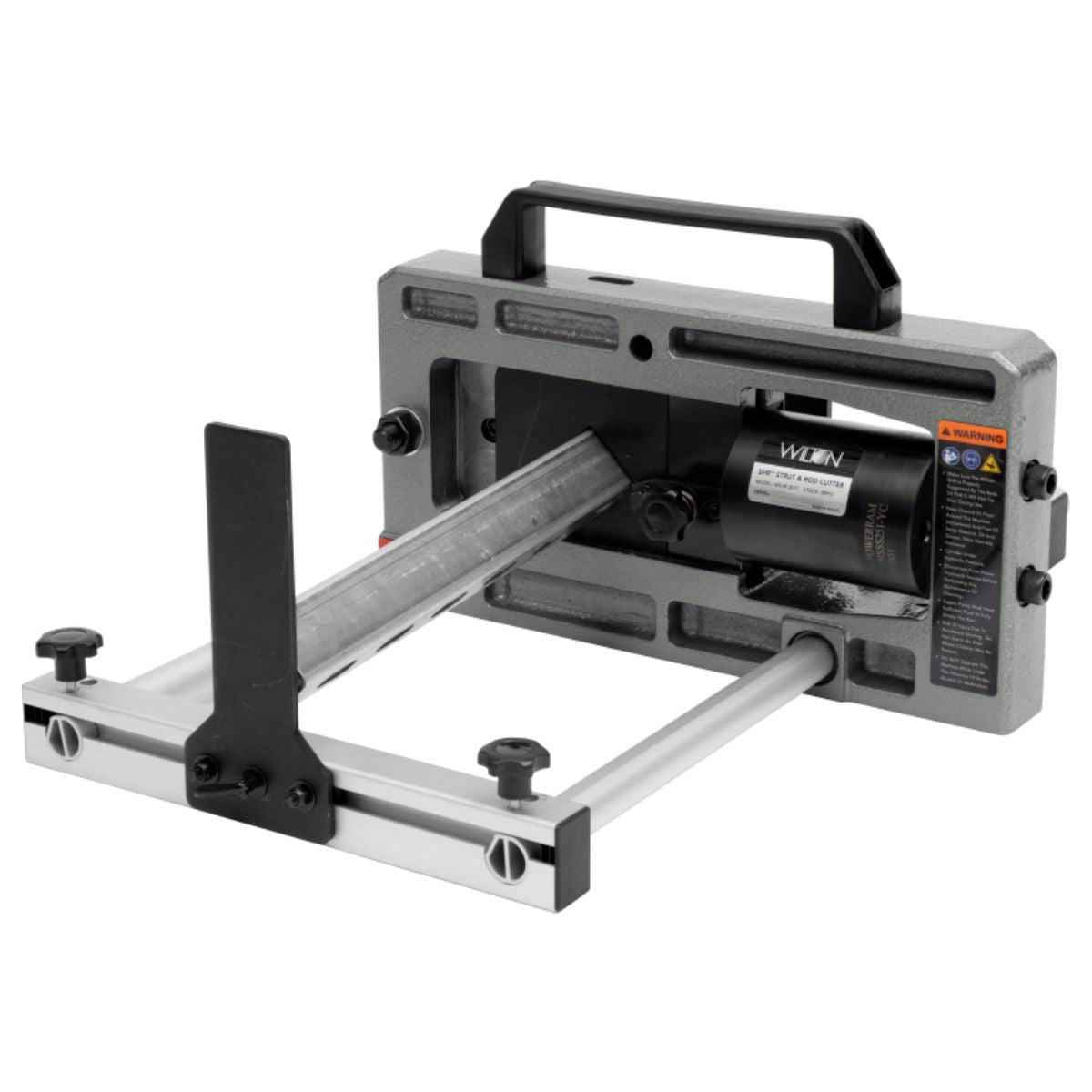

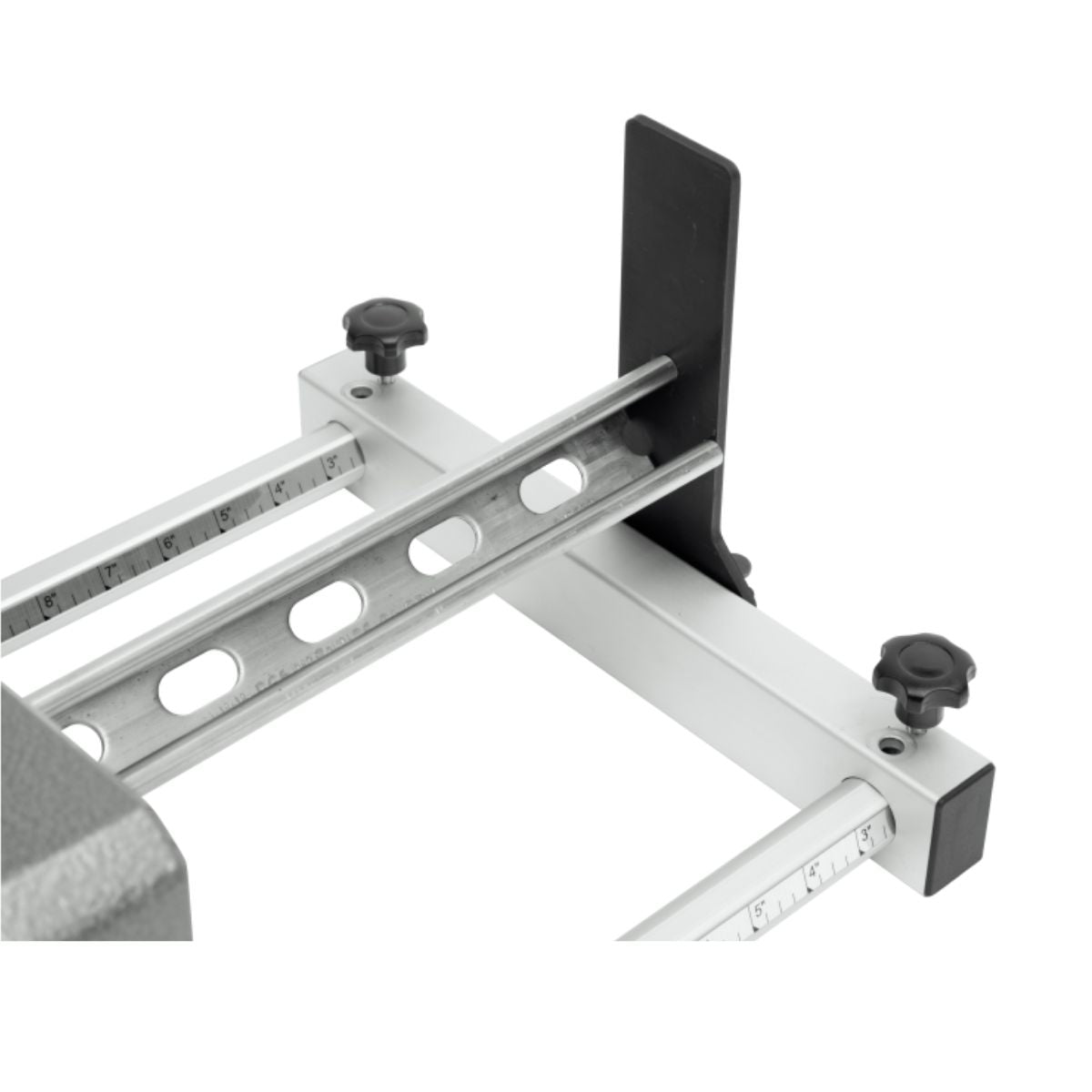

Support Rods and Measurement Scale Speed Up Repeat Cuts
Two support rods include a 17" measurement scale from backstop to cut point, so you can dial in a cut length and hold it across multiple pieces without re-measuring each one. When the job calls for longer stock, the rods swap out for standard 1" O.D. pipe.
Quick Coupler Connects to Your Existing 10,000 PSI Supply
The SHR uses a quick coupler that works with any 10,000 psi hydraulic power supply, so it connects to the setup you already have on site. This keeps the tool mobile and lets it move with the crew as the work shifts from one location to the next.
What's Included
What's Included? Wilton SHR Strut & Threaded Rod Shear
-
Standard Blade Set — shears 1-5/8" and 7/8" strut profiles without a setup change.
-
Two Support Rods with Measurement Scale — 17" scale from backstop to cut point for consistent repeat cut lengths.
Specs
Wilton SHR Strut & Threaded Rod Shear Specifications
-
Model: WSHR-3017
-
Stock Number: WL9-28910
-
Cylinder: 30 Tons
-
Stroke: 1"
-
Deep Strut Capacity: 1-5/8" x 1-5/8"
-
Shallow Strut Capacity: 1-5/8" x 13/16"
-
Maximum Capacity: 12 Gauge Mild Steel
-
Width: 17-1/32"
-
Net Weight: 71.5 lbs
-
Warranty: 1 Year
-
Prop 65: Cancer and Reproductive Harm
