Wilton SHR Power Pack for SHR Rod Shear
Are you running the Wilton SHR without a matched hydraulic supply?
What if a purpose-built power unit paired with the shear and drove it at full capacity?

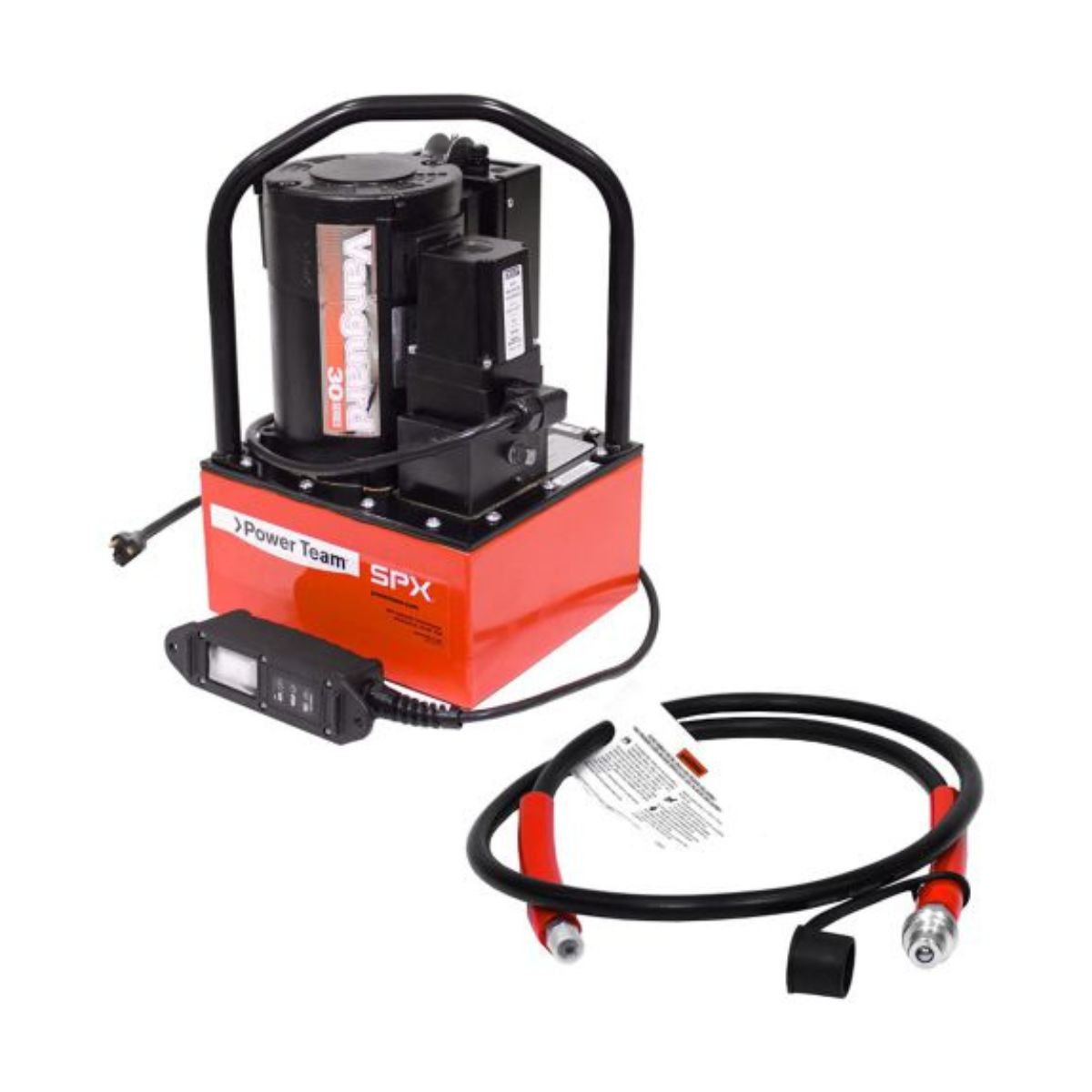

Meet the Wilton SHR Power Pack for SHR Rod Shear, a 10,000 psi hydraulic unit designed to run the SHR shear.
With a 30-ton SPX power unit, 1 HP permanent magnet motor, and a 6' hose with quick couplings, it connects and runs the shear without adapters.
When the power is matched to the tool, the shear performs as designed and cuts stay clean.
Wilton SHR Power Pack for Reliable 30-Ton Hydraulic Output
SPX 10,000 PSI Power Unit Delivers 30 Tons to the SHR Shear
The SPX power unit is rated to 10,000 psi and 30 tons of output, which matches the operating requirements of the Wilton SHR shear directly. Running the shear from a matched supply means it reaches full cutting force on every stroke without performance loss from an undersized or mismatched unit.
1 HP Permanent Magnet Motor Powers a Single Acting Cylinder
The single phase, 1 HP permanent magnet motor drives a single acting cylinder at the pressures the SHR shear was designed around. This motor type runs consistently under the repeated demand of job site cutting cycles without the performance drop that comes from motors running outside their rated load.
Roll Cage Protects the Unit Through Transport and On the Job
The roll cage surrounds the power unit to protect it during moves between job sites and while it operates in a busy work area. A unit that stays protected holds its calibration and connection points in better condition over the long term, which keeps the shear running without unplanned downtime.
Cabled Remote and Quick Couplings Keep Operation Simple
The rocker-switch cabled remote lets the operator trigger cuts from a comfortable and safe position without reaching across the work area. The 6' hose with quick couplings connects to the SHR shear without tools, so setup moves fast and the unit is ready to cut shortly after it arrives on site.

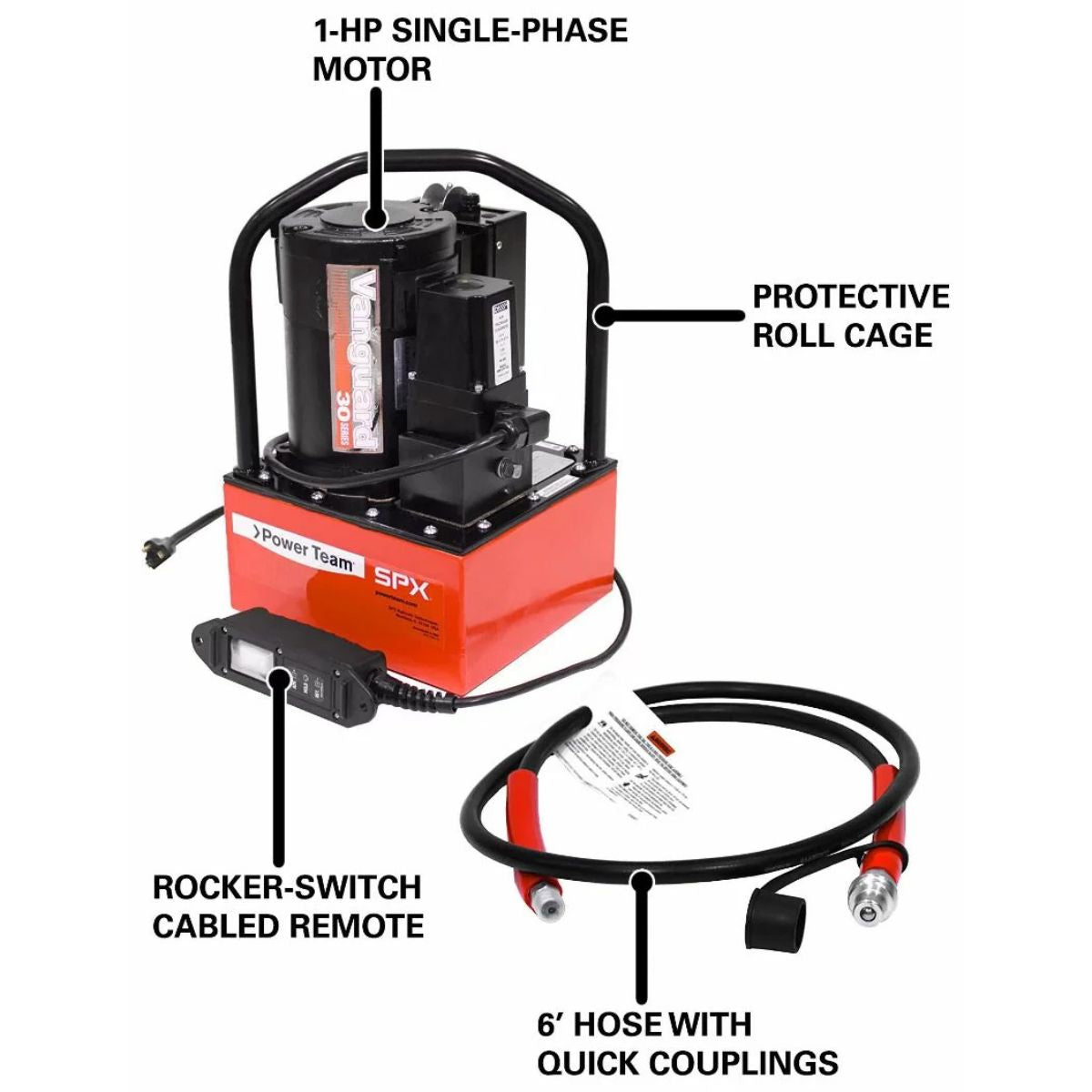

What's Included
What's Included? Wilton SHR Power Pack for SHR Rod Shear
-
SPX 10,000 PSI Hydraulic Power Unit with Roll Cage — 1 HP single phase permanent magnet motor rated to 30 tons to drive the Wilton SHR shear at full capacity.
-
6' Hose with Quick Couplings — connects the power unit to the SHR shear for fast setup without tools or adapters.
-
Rocker-Switch Cabled Remote — lets the operator trigger cuts from a safe working position away from the shear head.
Specs
Wilton SHR Power Pack for SHR Rod Shear Specifications
-
Model: PE302S
-
Stock Number: WL9-28990
-
Maximum Pressure: 10,000 PSI
-
Capacity: 30 Tons
-
Motor: 1 HP, Single Phase, Permanent Magnet
-
Cylinder Type: Single Acting
-
Hose Length: 6'
-
Net Weight: 68.0 lbs
-
Warranty: 1 Year
