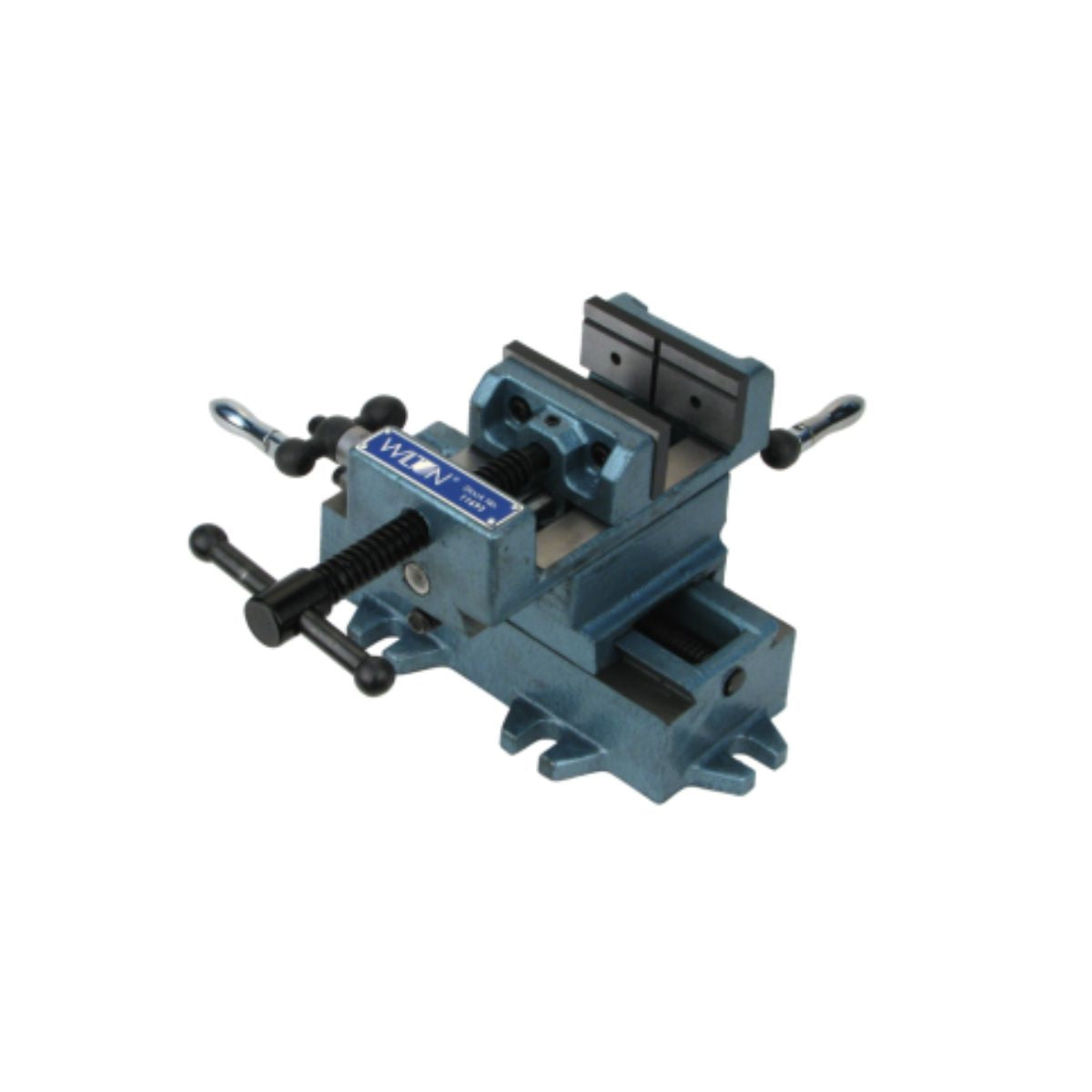

Wilton CS4 4" Cross Slide Drill Press Vise

Wilton CS4 4" Cross Slide Drill Press Vise

The Wilton CS4 brings cross-slide positioning to a 4" jaw width, handling small to medium stock with the same 4-9/10" of X and Y travel as the CS3. The two-axis slide lets you move the workpiece to the next hole location without unclamping it from the table, keeping your drilling pattern accurate and repeatable. A 1-5/16" jaw depth holds stock firmly through each shift. The 45° swivel clamp-on base fixes to the table without permanent hardware and adds rotational adjustment when your setup requires it.

• Cross-slide design moves the workpiece in X and Y without unclamping from the table
• 4-9/10" of travel in each axis keeps hole patterns accurate and repeatable
• 4" jaw width and 1-5/16" jaw depth handle small to medium stock firmly
• 45° swivel clamp-on base fixes to the table without permanent hardware
• Lifetime warranty covers daily shop use

Specs

Wilton CS4 4" Cross Slide Drill Press Vise Specifications

• Model Number: CS4
• Stock Number: WL9-11694
• Jaw Width: 4"
• Jaw Depth: 1-5/16"
• X-Travel: 4-9/10"
• Y-Travel: 4-9/10"
• Base Type: Clamp-On, 45° Swivel
• Net Weight: 20.0 lbs
• Gross Weight: 20.0 lbs
• Warranty: Lifetime
