JET JWS-20CS 1.5HP Shaper
Are you struggling to achieve precise, controlled shaping on large or heavy stock?
What if a compact yet powerful shaper could handle tough jobs with ease and accuracy?
Meet the JET JWS-20CS 1.5HP Shaper, built for durability, precision, and flexibility in any workshop.
With its 1.5 HP reversing motor, precision-ground cast iron table, and micro-adjustable fences, it delivers smooth, repeatable shaping results every time.
When you use the JET JWS-20CS, shaping projects become faster, safer, and more professional in your shop.

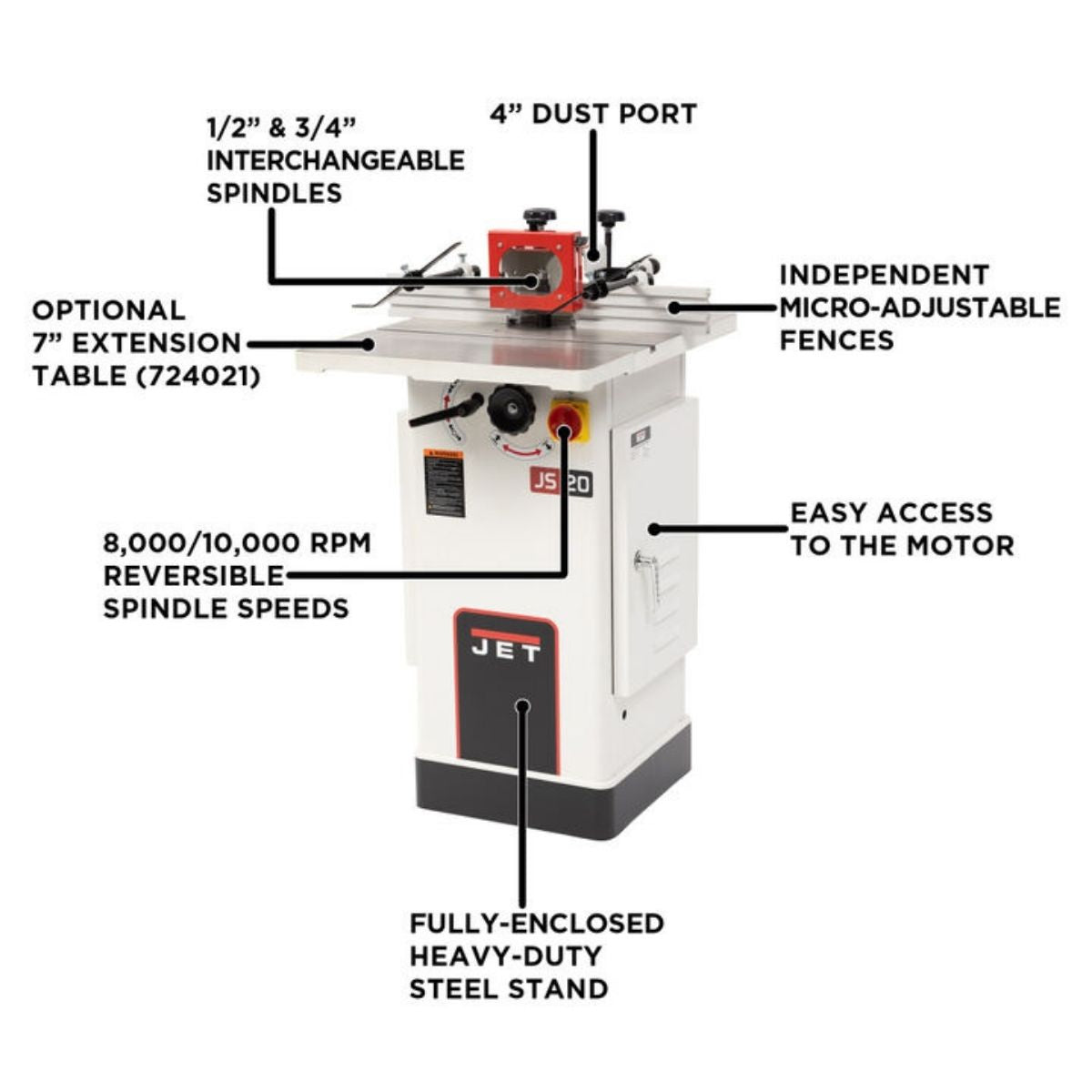

JET JWS-20CS for Precise Shaping Work

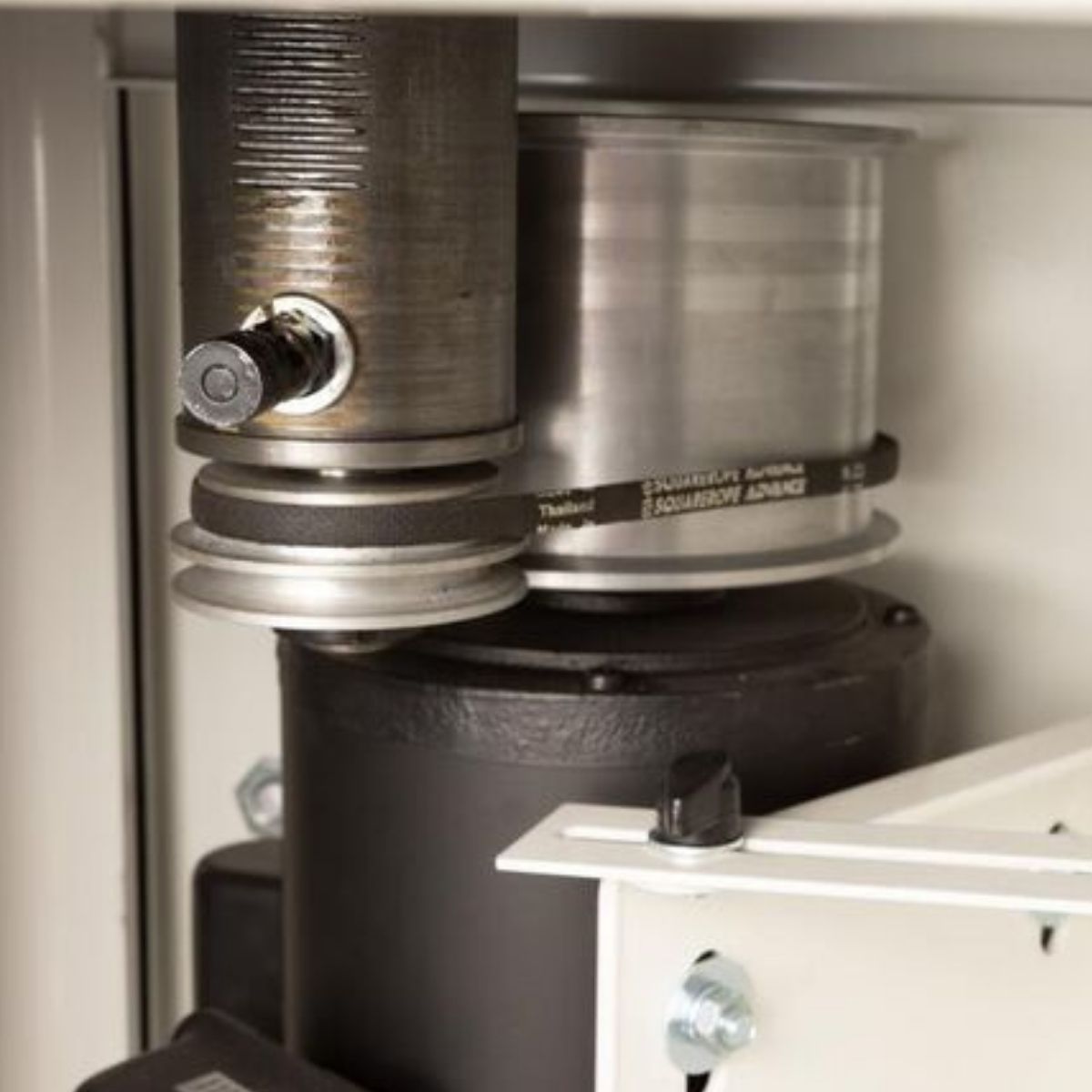

1.5 HP Reversing Motor Powers Heavy Jobs
The 1-1/2 HP motor provides consistent power for large or tough stock. Reversible operation allows both left and right-hand shaping, giving flexibility for various cutter diameters.
Precision-Ground Cast Iron Table
The 18"x20" cast iron table delivers a flat, rigid surface to minimize vibration. It ensures smooth and repeatable shaping results for professional-quality work.

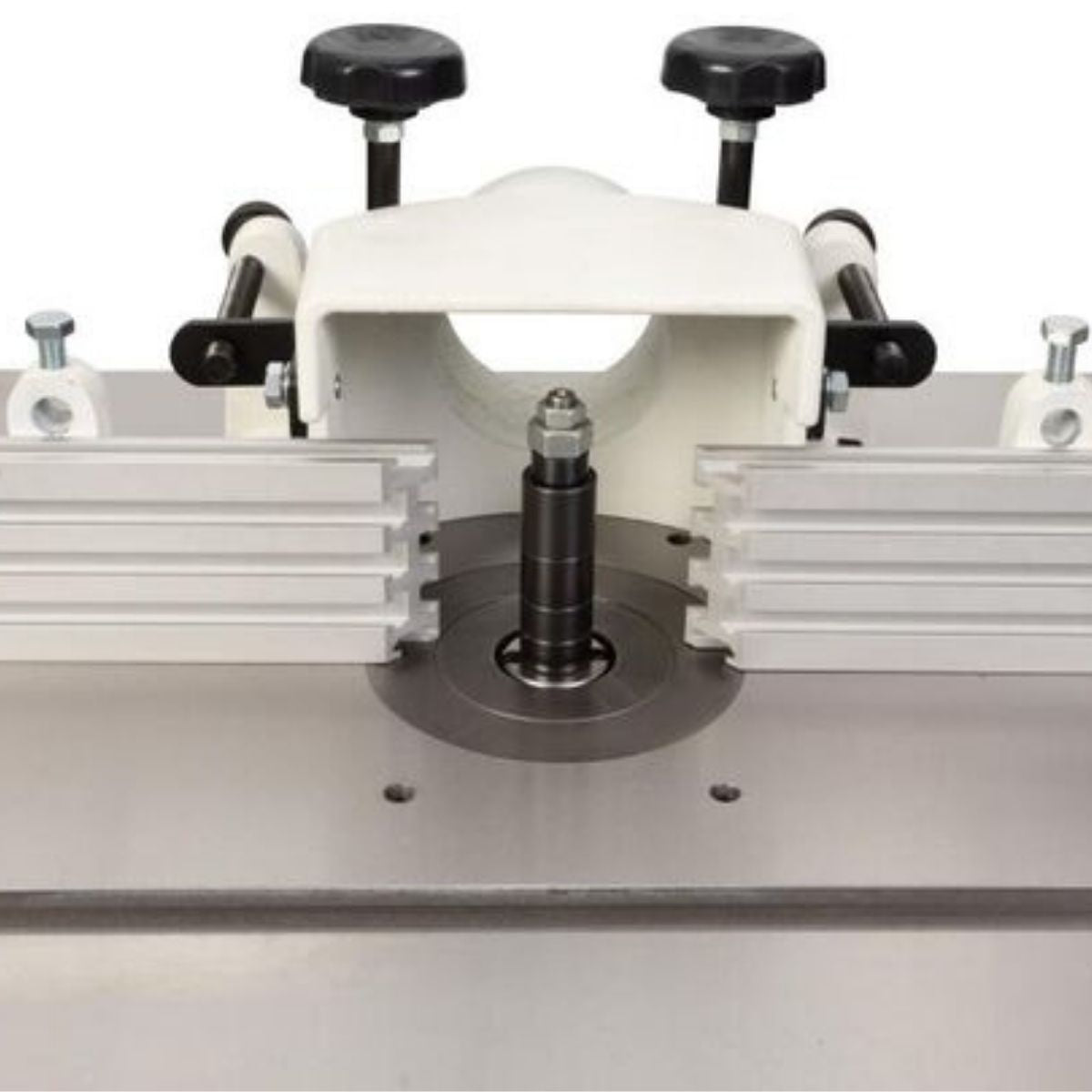

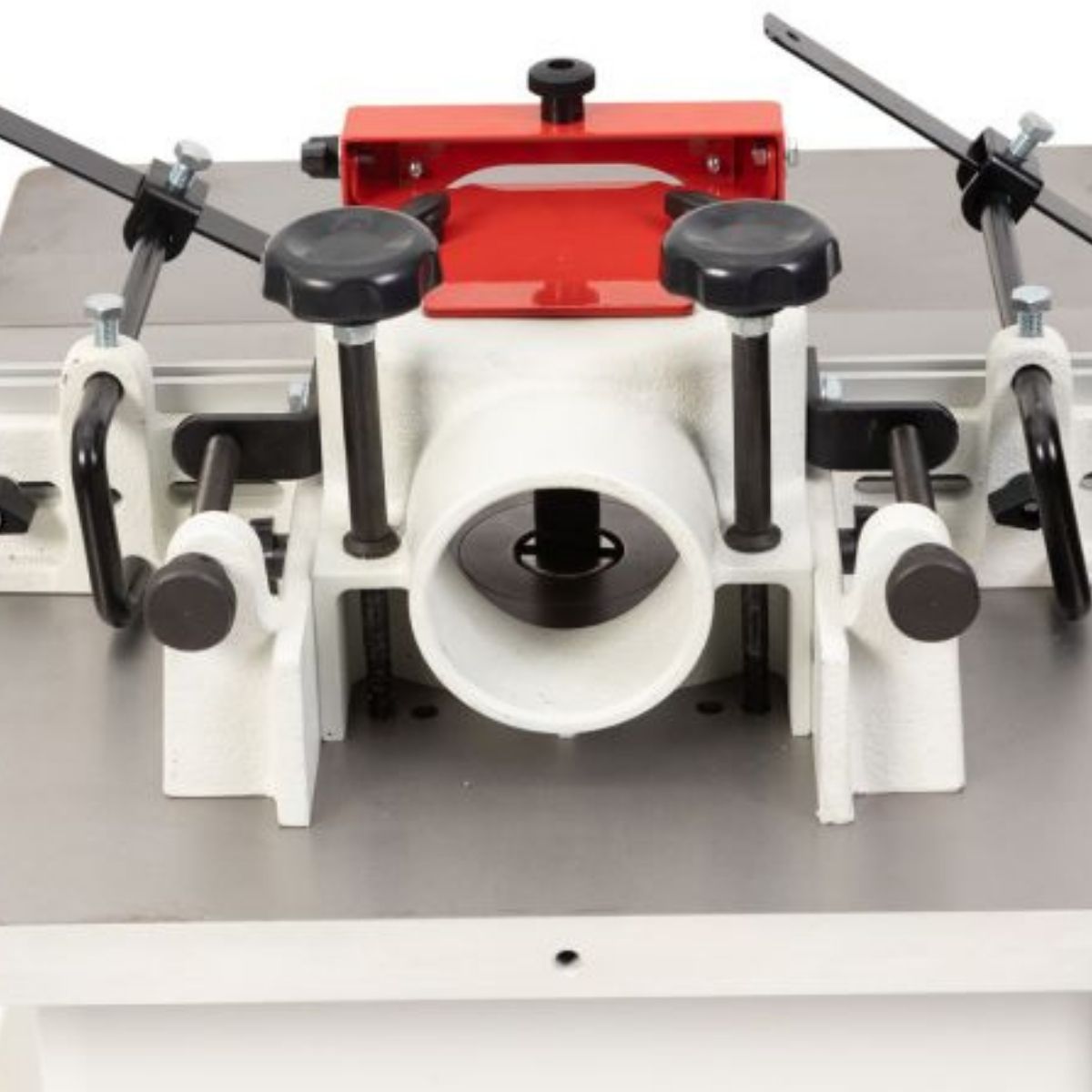

Micro-Adjustable Left and Right Fences
Independent fences allow fine adjustments for zero-clearance cutting and improved control. They secure the workpiece while enhancing accuracy and workflow efficiency.
Enclosed Heavy-Duty Steel Stand
The fully enclosed steel stand provides stability and safety. Removable panels allow easy access for motor maintenance or adjustments, keeping your machine running smoothly.
What’s Included
What’s Included? JET JWS-20CS 1.5HP Shaper
-

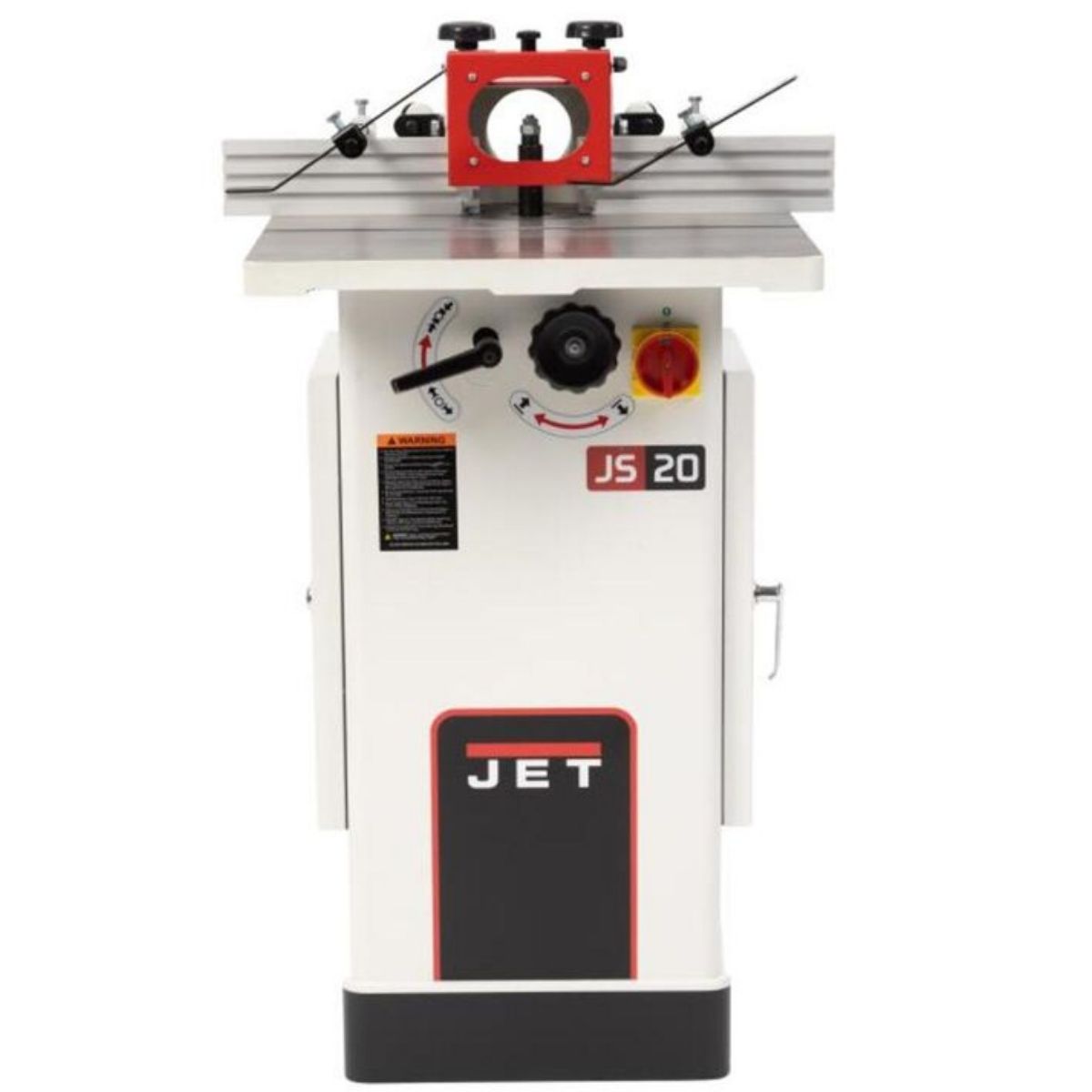

JET JWS-20CS Shaper – Floor-standing shaper with 1.5 HP motor and cast iron table
-
Left and Right Fences – Micro-adjustable fences for precise shaping
-
Spindle Lock – Positive detent for safe cutter setup
-
1/2" and 3/4" Spindles – Interchangeable for shaper or router bits
-
Adjustable Work Hold-Downs – Secure workpieces during shaping
-
Instruction Manual – Guides setup and safe operation
Specs
JET JWS-20CS Shaper Specifications
- Stock Number: JT9-724020
- Model Number: JWS-20CS
- Motor Power (HP): 1-1/2
- Motor Voltage (V): 115/230
- Motor Amps: 15/7.5
- Motor Phase: 1
- Spindle Speed (RPM): 8,000 & 10,000
- Spindle Travel (In.): 2
- Table Size (L x W): 18 x 20 In.
- Table Height from Floor: 33-1/2 In.
- Dust Port Diameter: 4 In.
- Reversible: Yes
- Router Bit Collet Included: 1/2
- Style (Type): Floor-standing Model
- Warranty: 5 Year
- Gross Weight: 220 lbs
- Net Weight: 198 lbs
