Powermatic WP2510 25-Inch Helical Head Planer
Are you struggling to maintain consistent finishes and efficient workflow when planing large, heavy, or uneven stock?
What if your planer delivered powerful, controlled cutting with precise adjustments and smooth feeding across every pass?

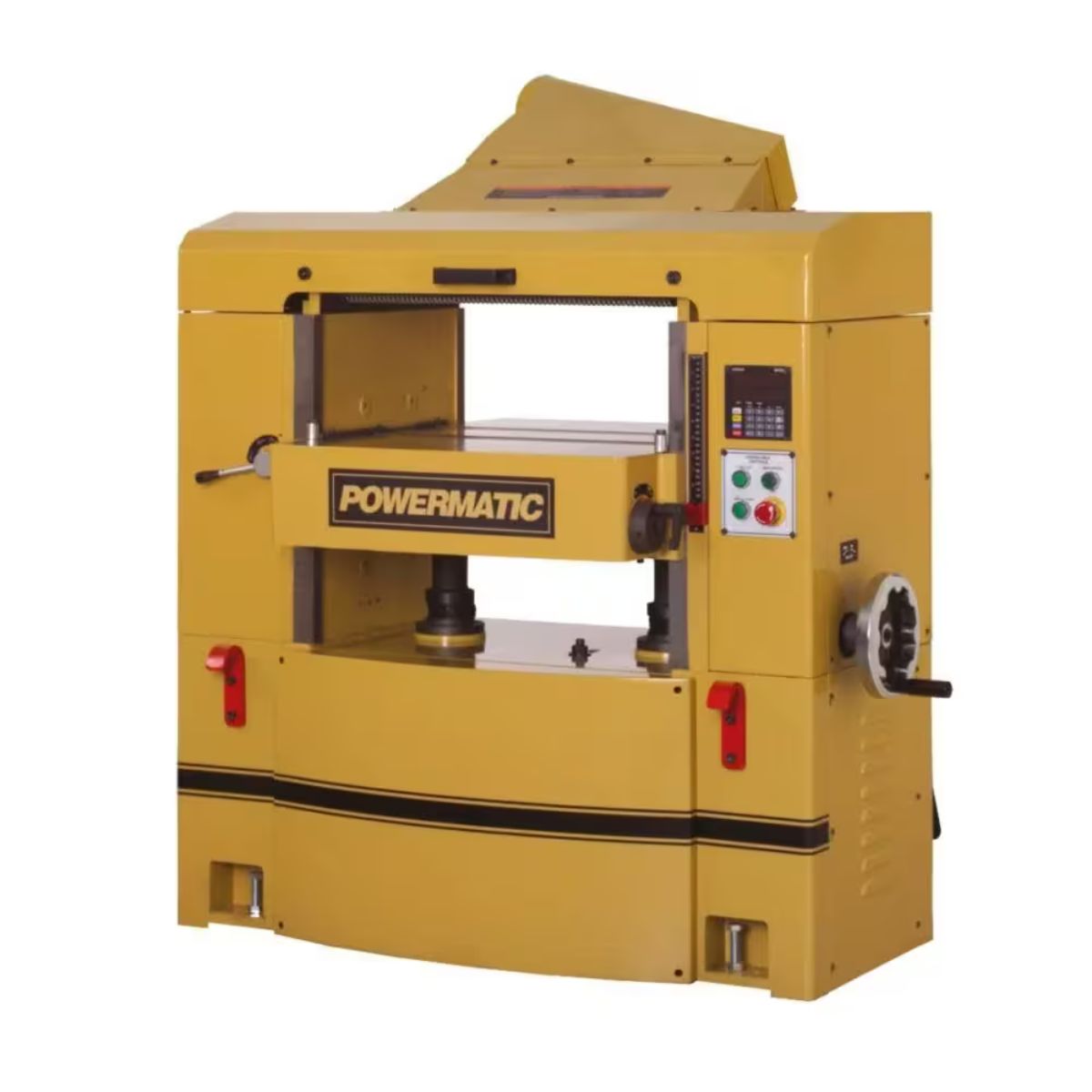

Meet the Powermatic WP2510, a 25-inch helical head planer designed for high-capacity production environments and precision surfacing.
With the 15 HP motor, 174 carbide inserts, and three-speed feed system, it provides consistent cutting power, flexible feed control, and reliable performance.
When your machine handles wide stock with accuracy and efficiency, your operation runs smoother with fewer delays and less rework.
Powermatic WP2510 for Industrial Capacity and Precision Control
Choose Your Power Configuration
This planer is available in multiple power options to match your facility requirements: 230/460V Three Phase or 460V Three Phase.
25-Inch Capacity for Large Workpieces
The 25-inch planing width supports processing wide boards and panels efficiently, reducing handling time in production environments.

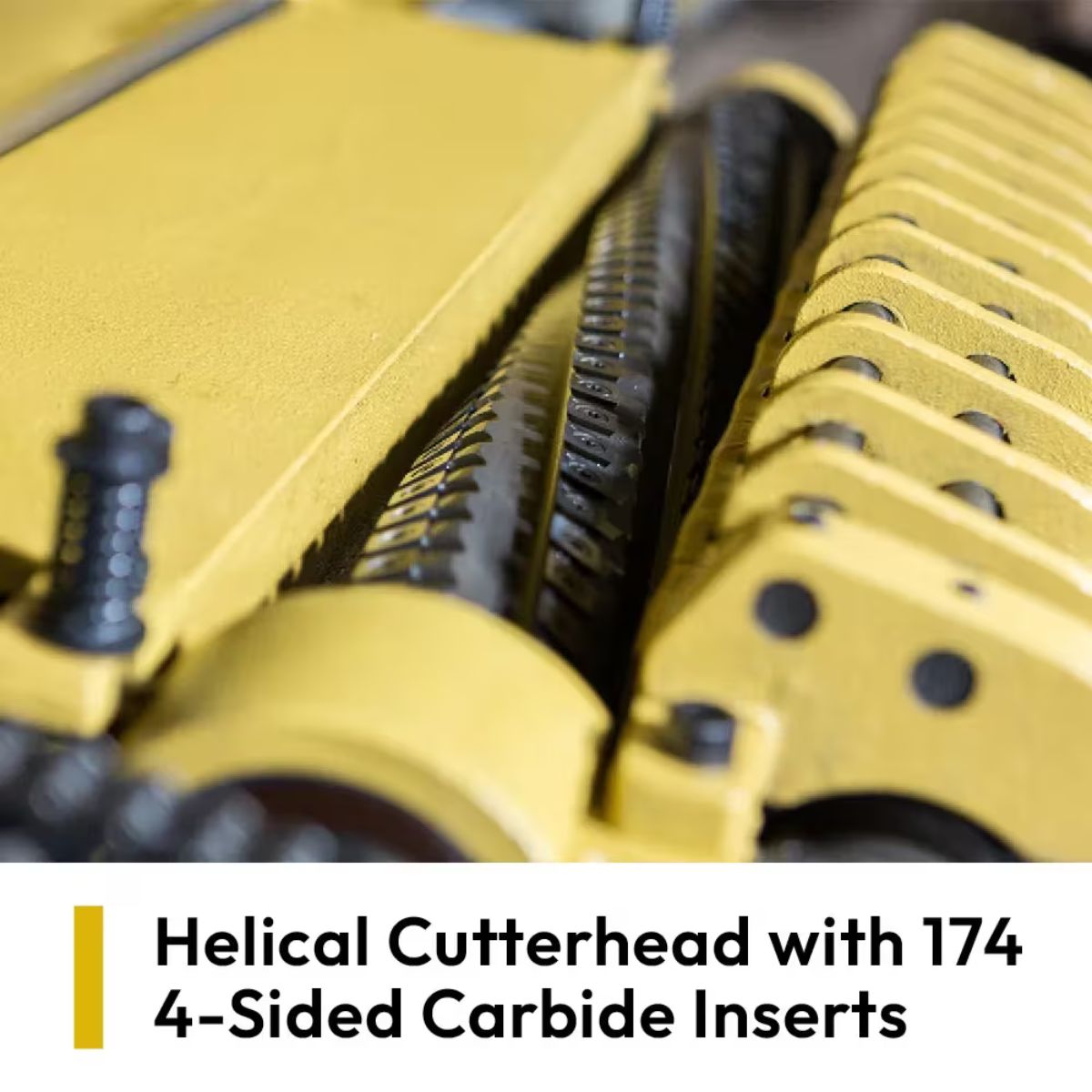

Helical Cutterhead with 174 Carbide Inserts
The cutterhead uses four-sided indexable carbide inserts that require no adjustment, delivering consistent cutting performance and extended tool life.
15 HP Motor for Continuous-Duty Performance
The 15 HP three-phase motor provides the power required for heavy stock removal and continuous operation in industrial settings.
Three-Speed Feed System for Flexibility
The feed selector offers speeds of 20, 25, and 30 FPM, allowing operators to balance material removal rates with surface finish quality.

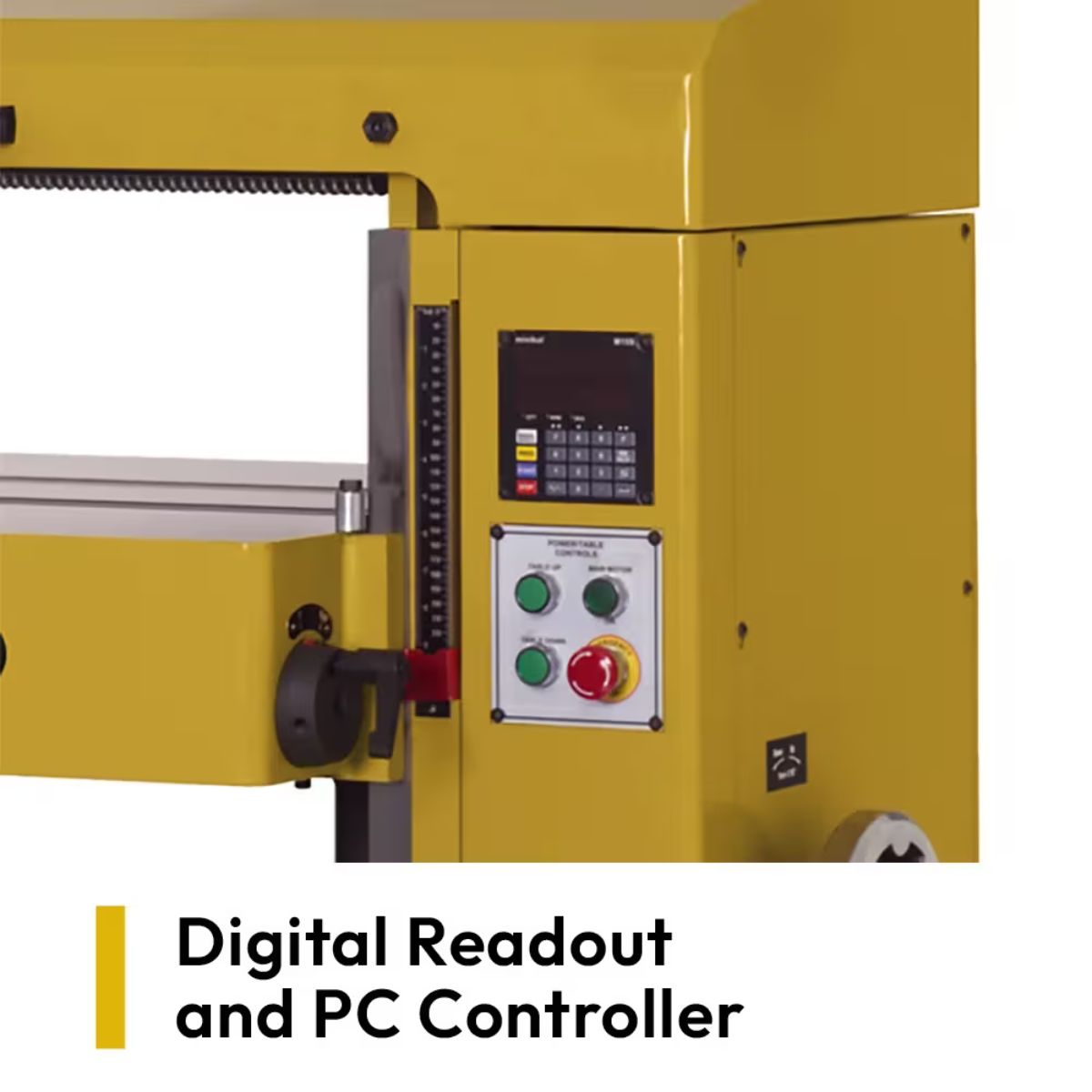

Digital Table Control for Precision Setup
A digital readout with PC controller enables accurate, repeatable table height adjustments for consistent thicknessing results.

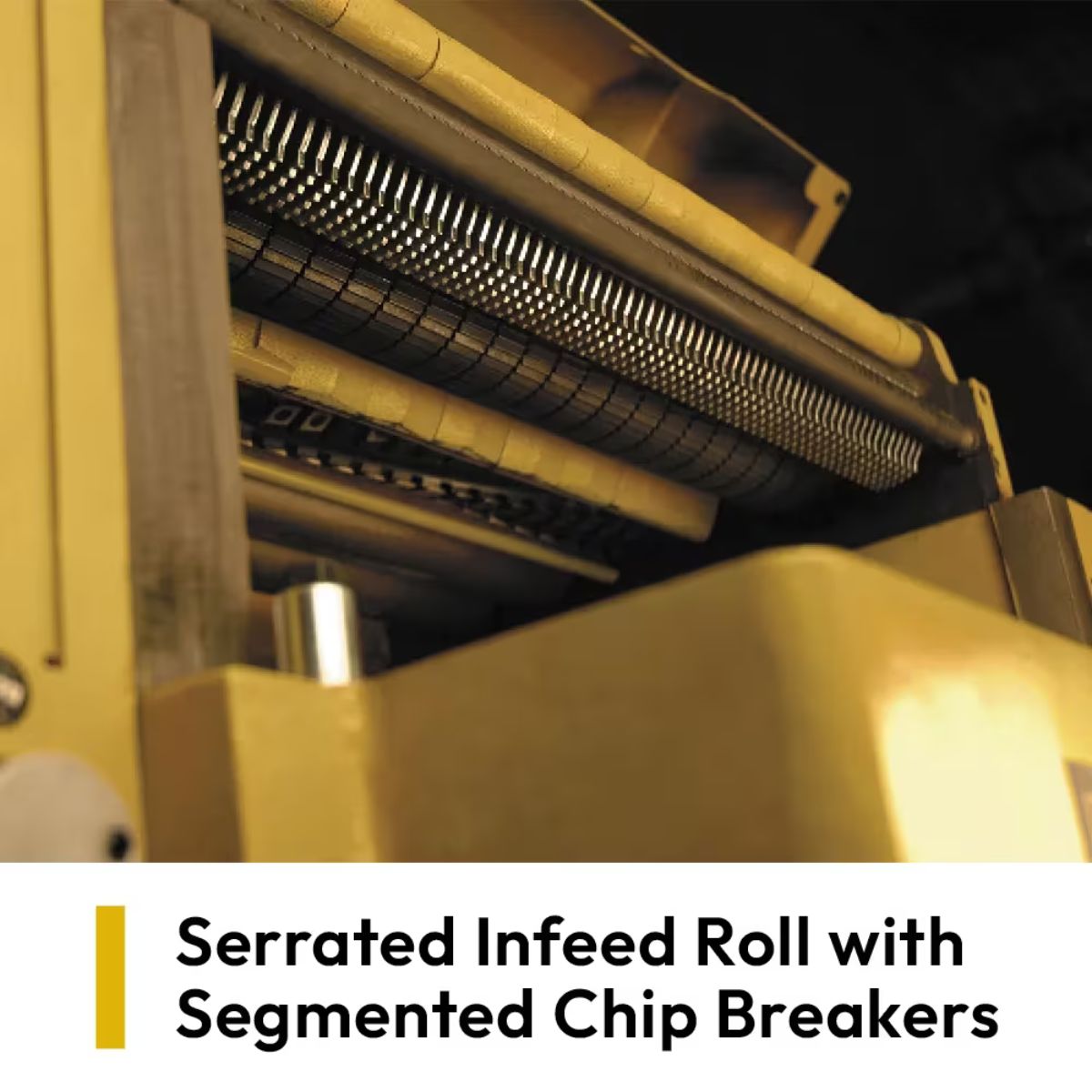

Segmented Infeed System for Mixed Stock
Segmented serrated infeed rollers and chip breakers allow multiple boards of varying thickness to be processed smoothly in a single pass.
What’s Included
What’s Included? Powermatic WP2510
-
Powermatic WP2510 Planer – 25-inch helical head planer
-
Helical Cutterhead – Pre-installed with carbide inserts
-
Digital Control System – Integrated readout and PC controller
-
User Manual – Setup and operating instructions
Specs

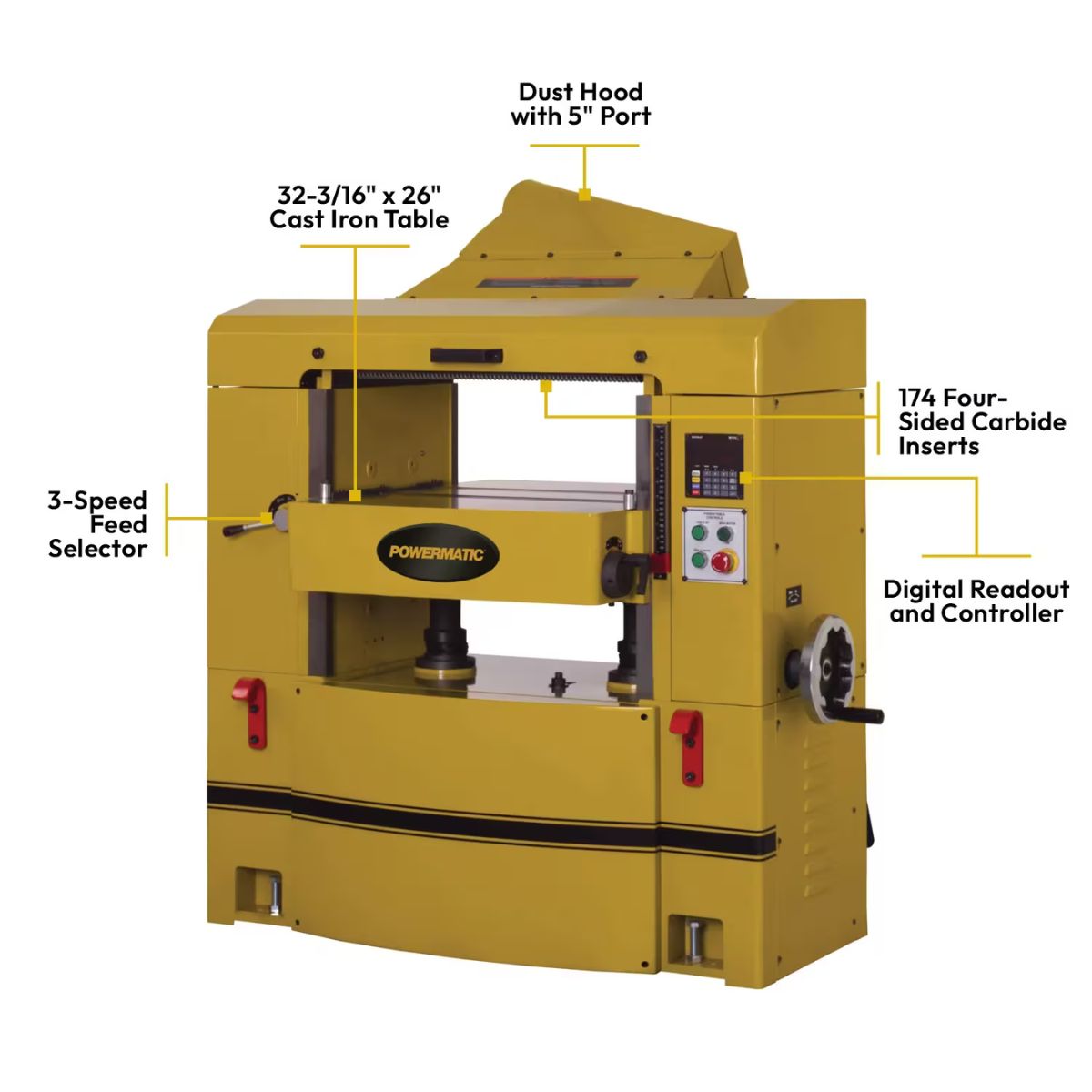

Powermatic WP2510 Specifications
Base Machine
- Planing Width Capacity: 25 in.
- Maximum Board Thickness: 9 in.
- Maximum Depth of Cut: 1/8 in.
- Cutterhead Type: Helical Head
- Number of Inserts: 174
- Cutterhead Speed: 5000 RPM
- Cutterhead Diameter: 3-3/8 in.
- Feed Speeds: 3 (20 / 25 / 30 FPM)
- Motor Power: 15 HP
- Dust Port Diameter: 5 in.
- Table Size: 32-3/16 in. x 26 in.
- Table Height Control: Digitally Controlled
- Net Weight: 1725 lbs
- Gross Weight: 1760 lbs
- Warranty: 5 Year
- Prop 65: Cancer and Reproductive Harm
Power Options
- 230/460V Three Phase
- 460V Three Phase
