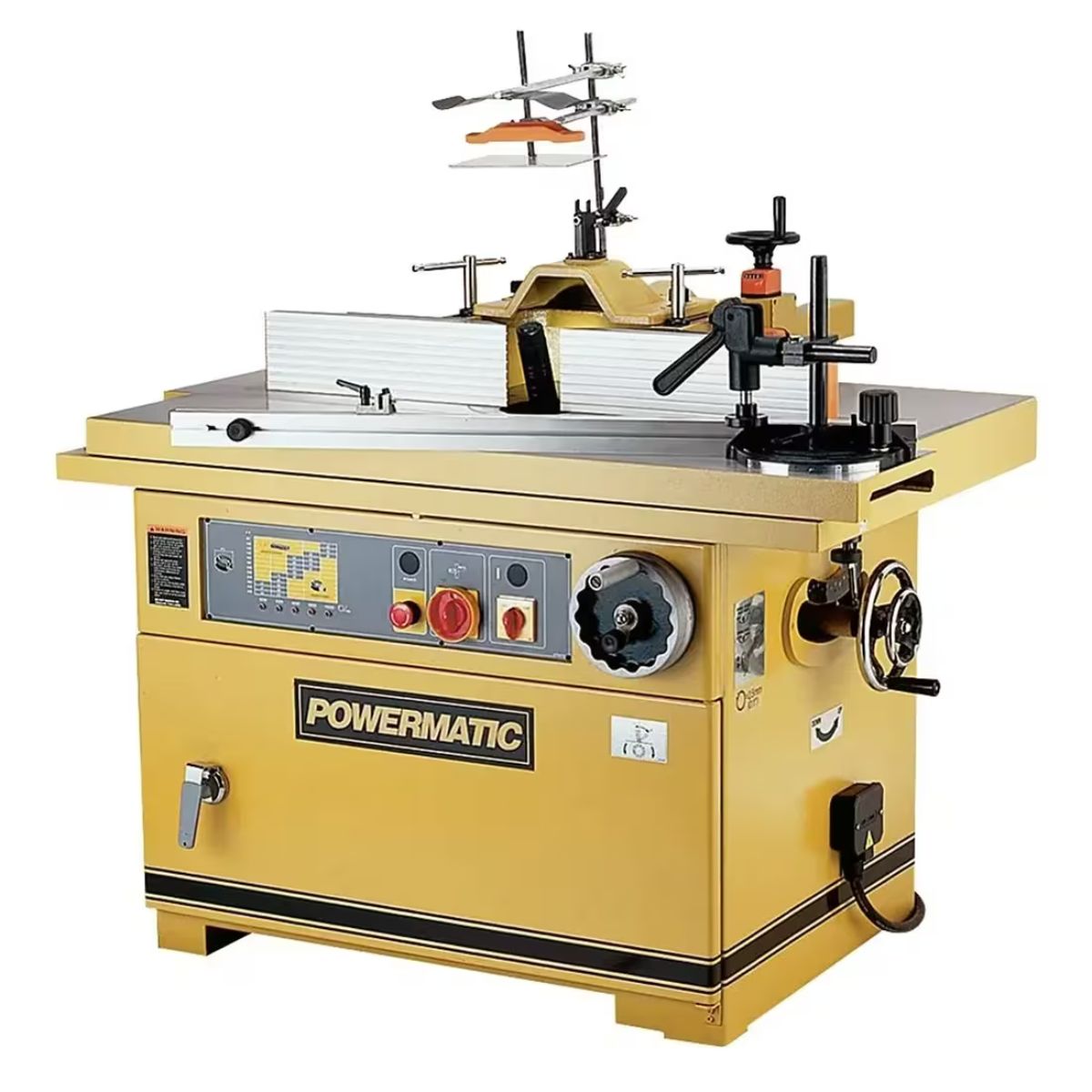

Powermatic TS29 7.5HP Sliding Table Shaper, 230/460V 3Ph (TS29)
Are you handling large workpieces that challenge standard shapers?
What if a single machine gave precise control, smooth cuts, and reliable output for heavy shaping?
Meet the Powermatic TS29 Sliding Table Shaper, equipped with a 7.5 HP motor and integrated sliding table for professional woodworking.
With precision components and a rigid platform, it delivers stability and repeatable results across extended production runs.
When your workflow is supported by a controlled sliding table and robust spindle, shaping and profiling large stock becomes accurate and efficient.
Powermatic TS29 for Heavy-Duty Shaping and Profiling

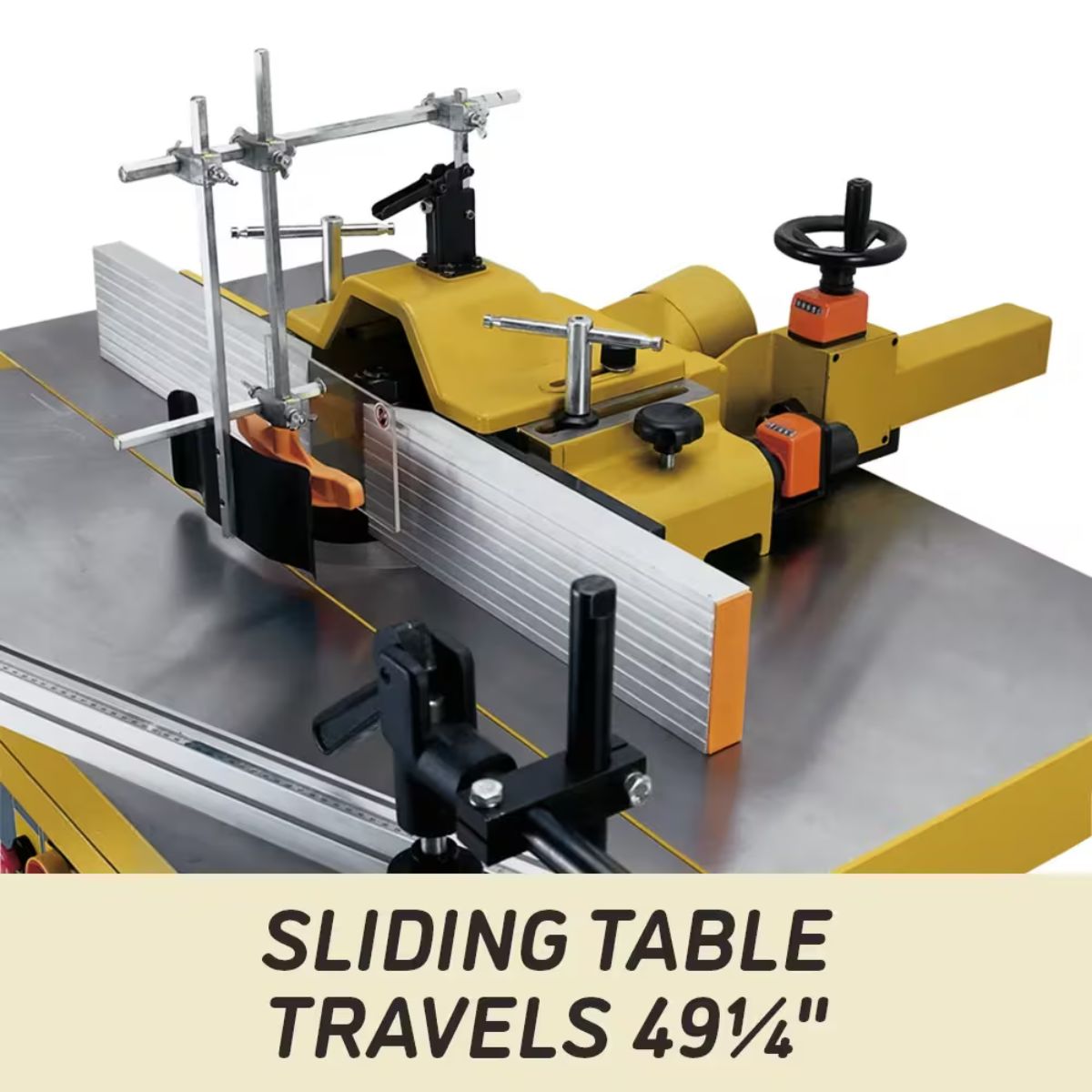

Sliding Table Assembly Ensures Smooth Workpiece Handling
The integrated sliding table provides controlled movement for larger or heavier pieces. Smooth travel reduces operator fatigue and helps maintain cut consistency. This improves safety and repeatable shaping outcomes. Complex profiles are easier to manage with reliable material positioning.
7.5 HP Motor Delivers Consistent High Power
The industrial-duty motor supports heavy shaping and profiling tasks. It maintains torque under load and across long production runs. This ensures clean cuts and reduces the risk of slowing down on dense stock. The TS29 can handle demanding shop operations without compromising finish quality.

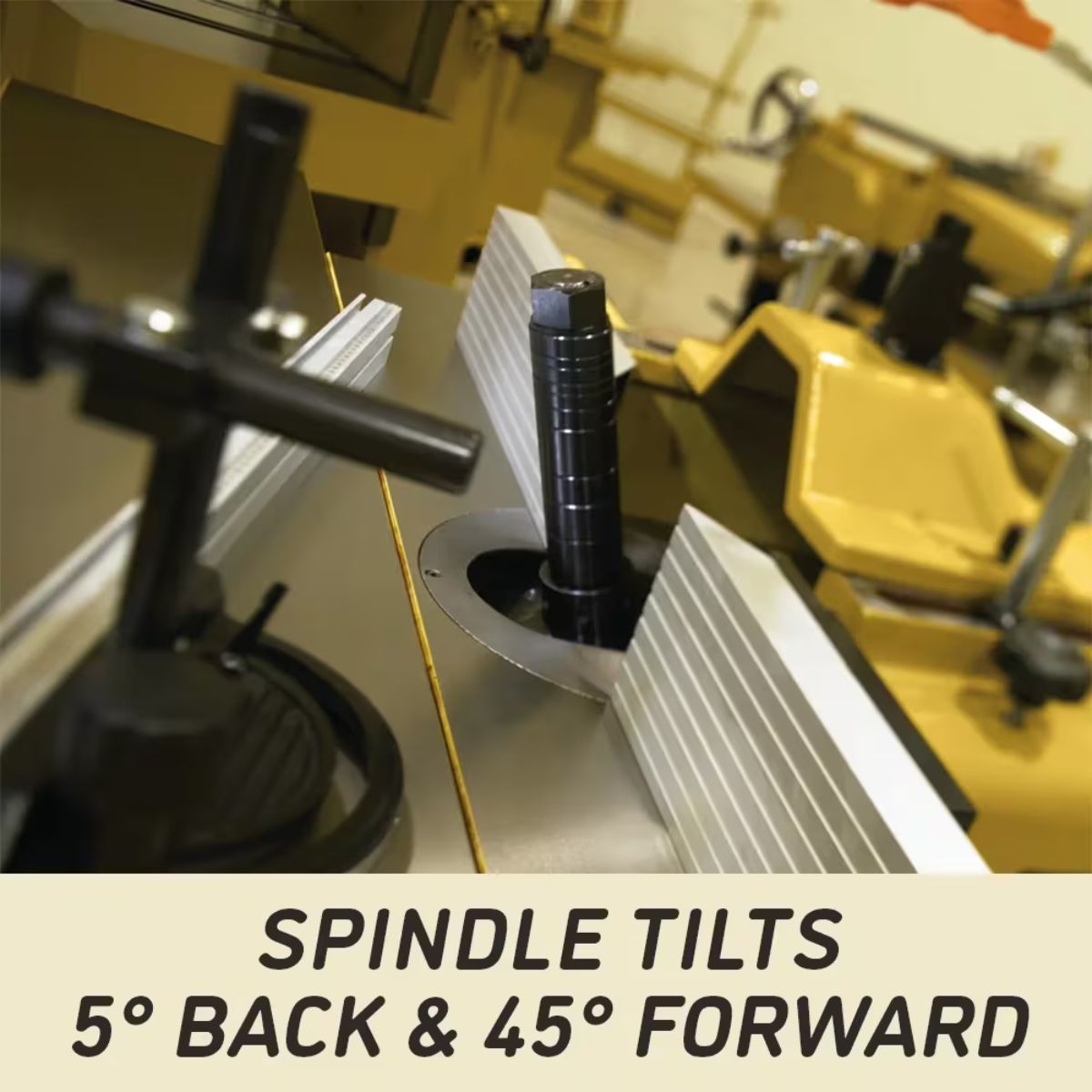

Precision Spindle System Maintains Accuracy
The spindle accepts 3/4", 1", and 1-1/4" cutters. Multiple spindle speeds from 3,000 to 10,000 RPM allow matching cutter speed to material. This keeps cut conditions optimal. Resulting profiles are precise and repeatable across multiple runs.
Rigid Machine Construction Reduces Vibration
The floor-standing platform and precision-machined components provide stability. Reduced vibration improves spindle performance and surface finish. Operators maintain better control over the workpiece. It ensures consistent quality for production shaping tasks.
What’s Included
What’s Included? Powermatic TS29 Shaper
-
TS29 Shaper Unit – Main machine for heavy-duty shaping, profiling, and edge-forming
-
Sliding Table Assembly – Provides controlled movement for larger workpieces
-

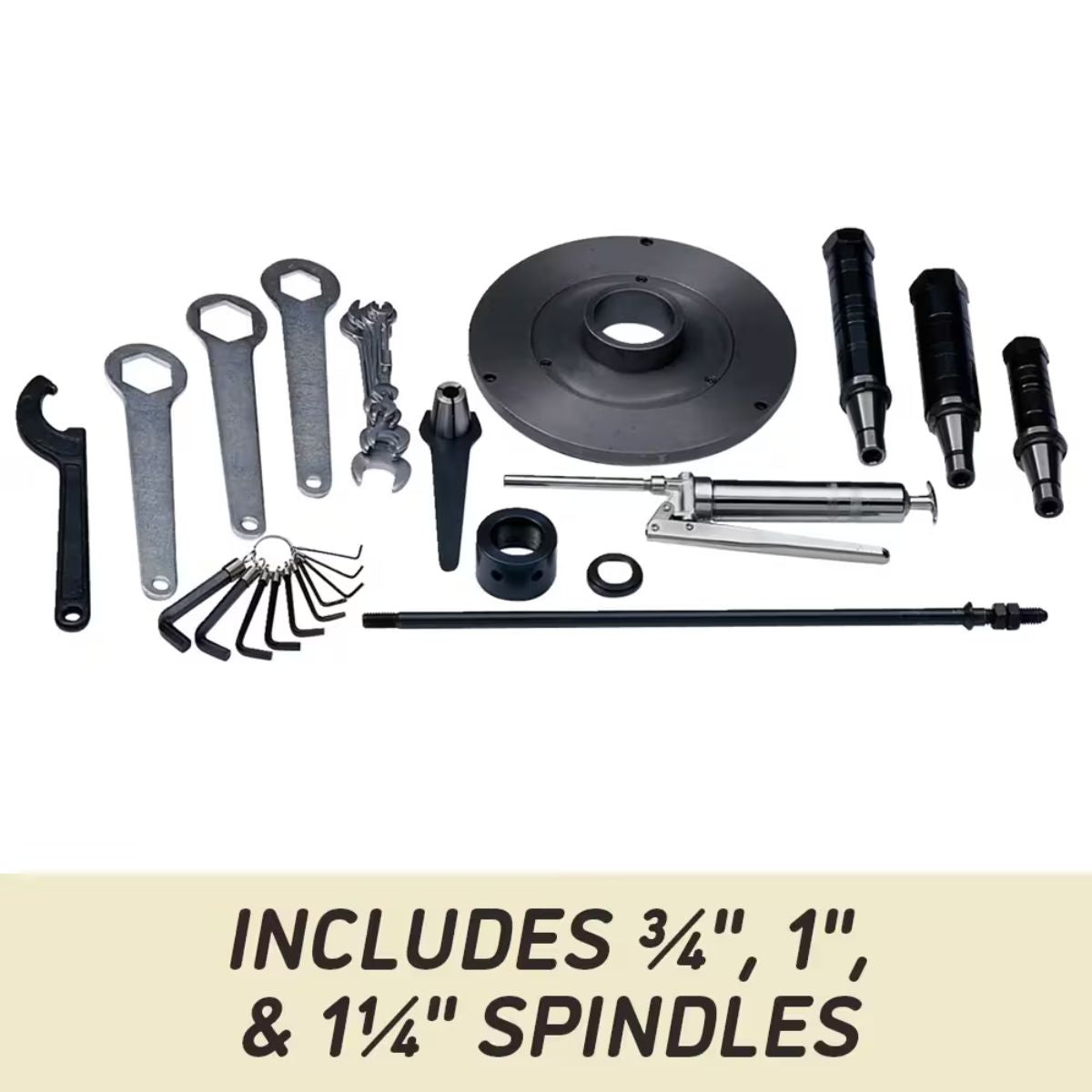

Spindles (3/4", 1", 1-1/4") – Allow flexibility in cutter selection and material handling
-

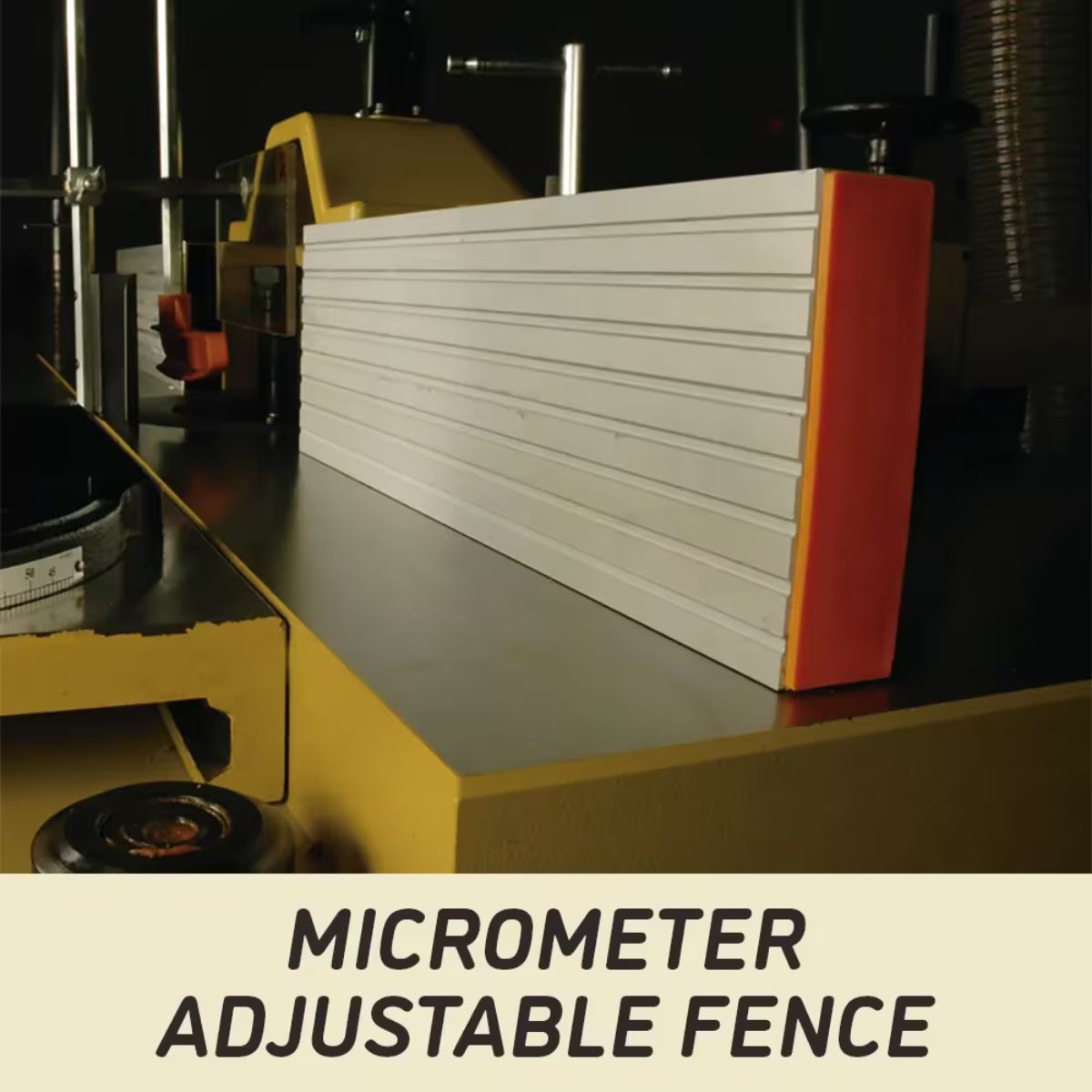

Fence Assembly – Supports accurate positioning and safe operation
Specs
Powermatic TS29 Shaper Specifications
- Model: TS29
- Stock Numbers: PM9-1791284 (230V 3Ph), PM9-1791284-4 (460V 3Ph)
- Motor: 7.5 HP
- Input Power: 230V 3 Phase or 460V 3 Phase

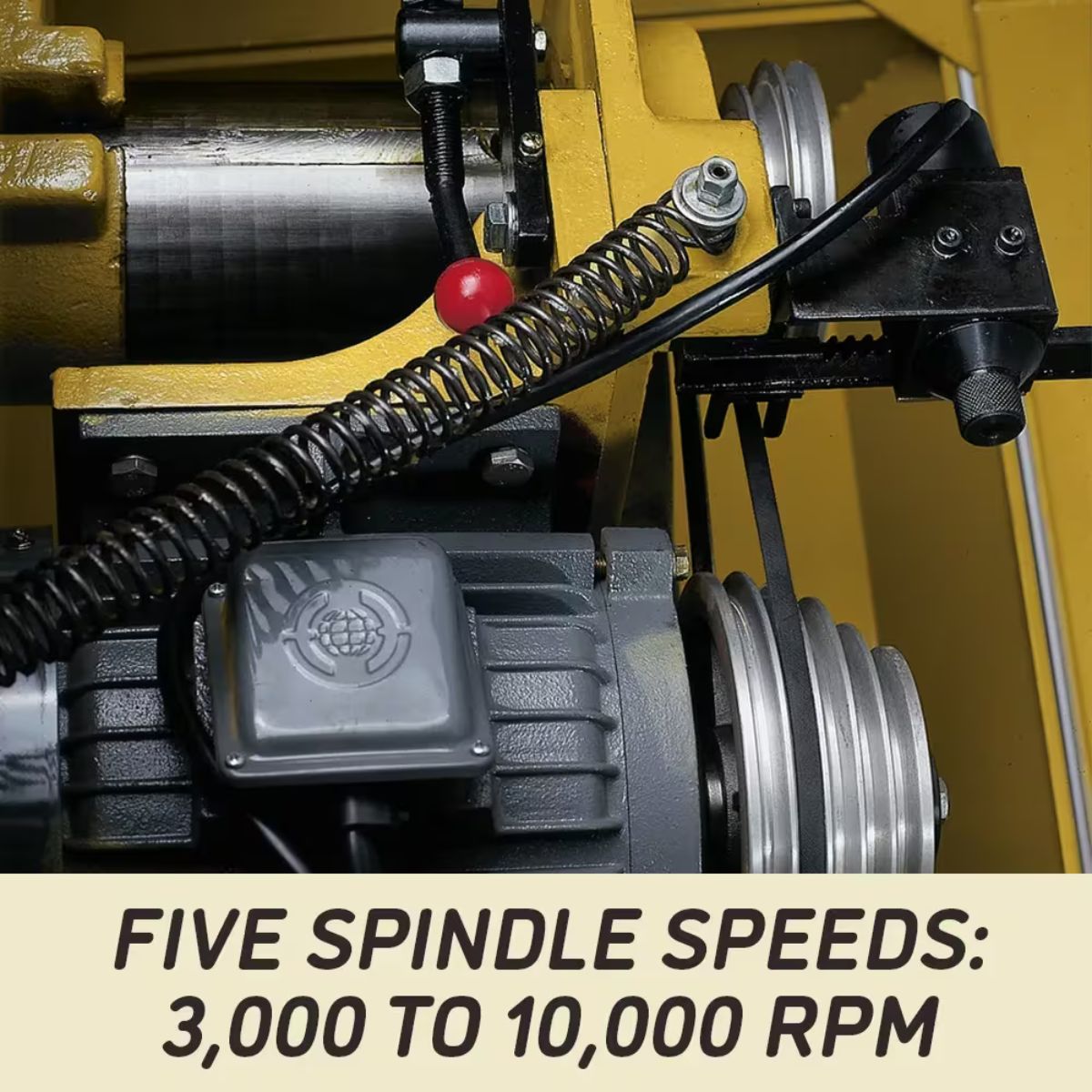

- Spindle Speeds: 3,000 / 4,000 / 6,000 / 8,000 / 10,000 RPM
- Spindle Travel: 7 in.
- Maximum Spindle Diameter: 1-1/4"
- Fence Size: 46" x 5"

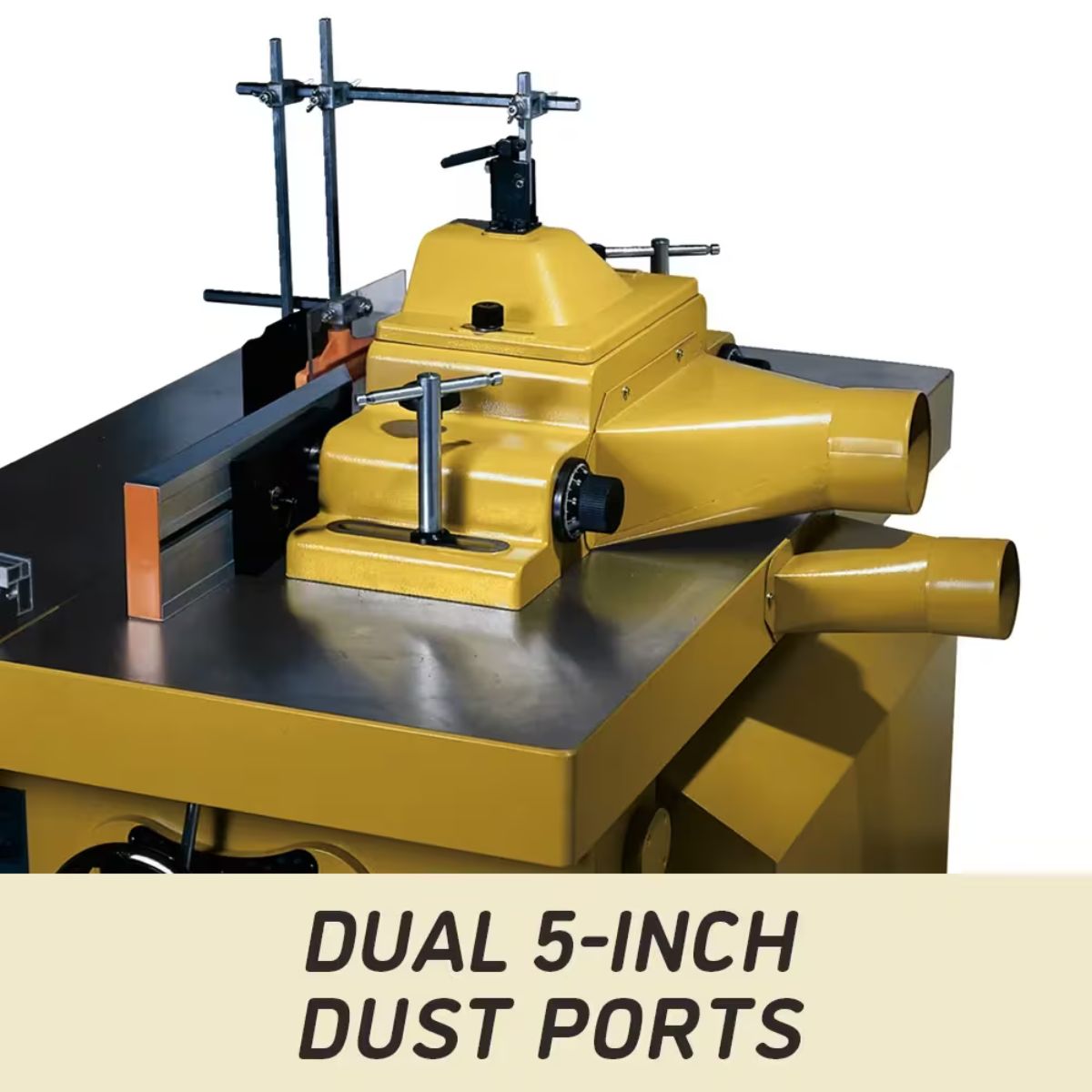

- Dust Port Diameter: 5 in.
- Gross Weight: 1,280 lbs
- Net Weight: 1,100 lbs
- Style: Floor Standing
- Warranty: 5 Year
- Manual: TS29 Manual (available)
- Available Power Configurations:
- 7.5 HP, 230V 3 Phase
- 7.5 HP, 460V 3 Phase
