Powermatic PM2820EVS 20" Variable Speed Drill Press
Need to move your bandsaw without sacrificing stability?
Looking to make your shop more flexible and space-efficient?
The Powermatic Mobile Base for the PWBS-14CS Bandsaw allows you to easily reposition your machine while maintaining the strength and durability required for professional shop use.
Built with a heavy-duty steel frame and secure locking wheels, this mobile base gives you the freedom to adapt your workspace as needed.
Mobility when you need it. Stability when you don’t.

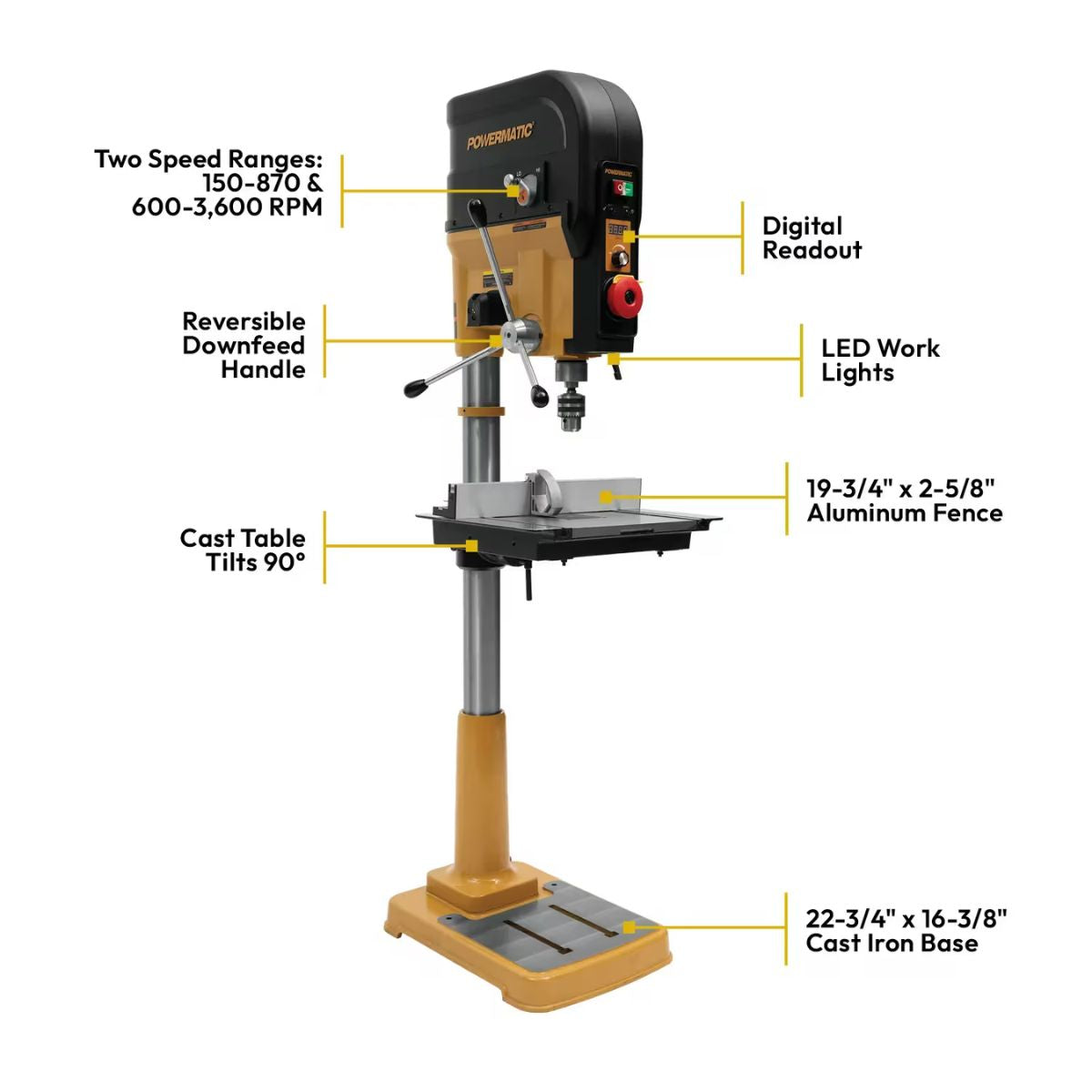

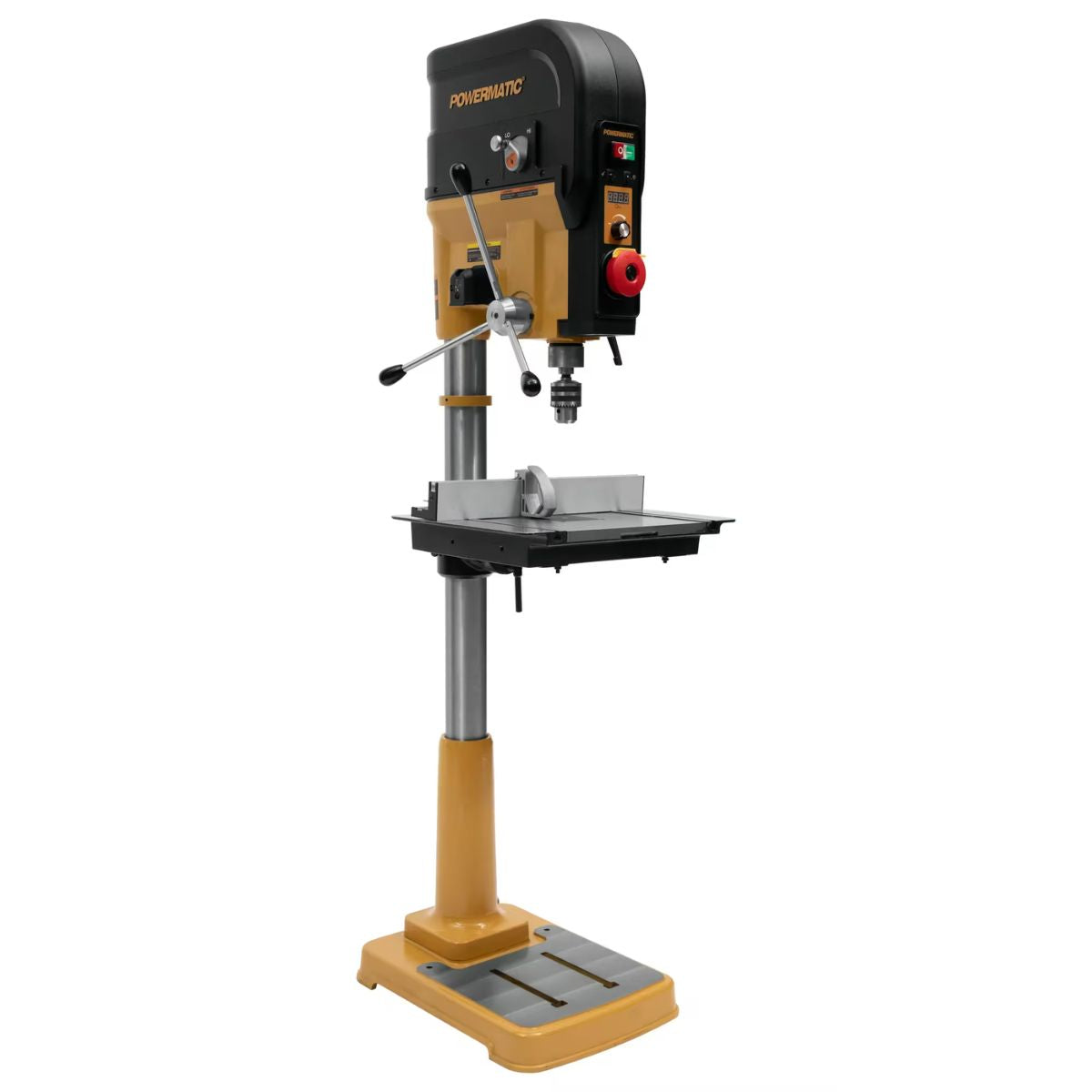

Powermatic PM2820EVS Drill Press
Motor & Power Configuration
This machine features a 1HP motor and operates on 120V single-phase power, providing strong performance without requiring industrial power infrastructure.
Electronic Variable Speed with Gear Drive
The gear-driven system delivers consistent torque across two speed ranges: 150–870 RPM (low) and 600–3600 RPM (high), allowing precise control for a wide range of materials and applications.
High Torque Performance
The gear-driven powertrain maintains torque at lower speeds, making it ideal for drilling hardwoods and using larger diameter bits.

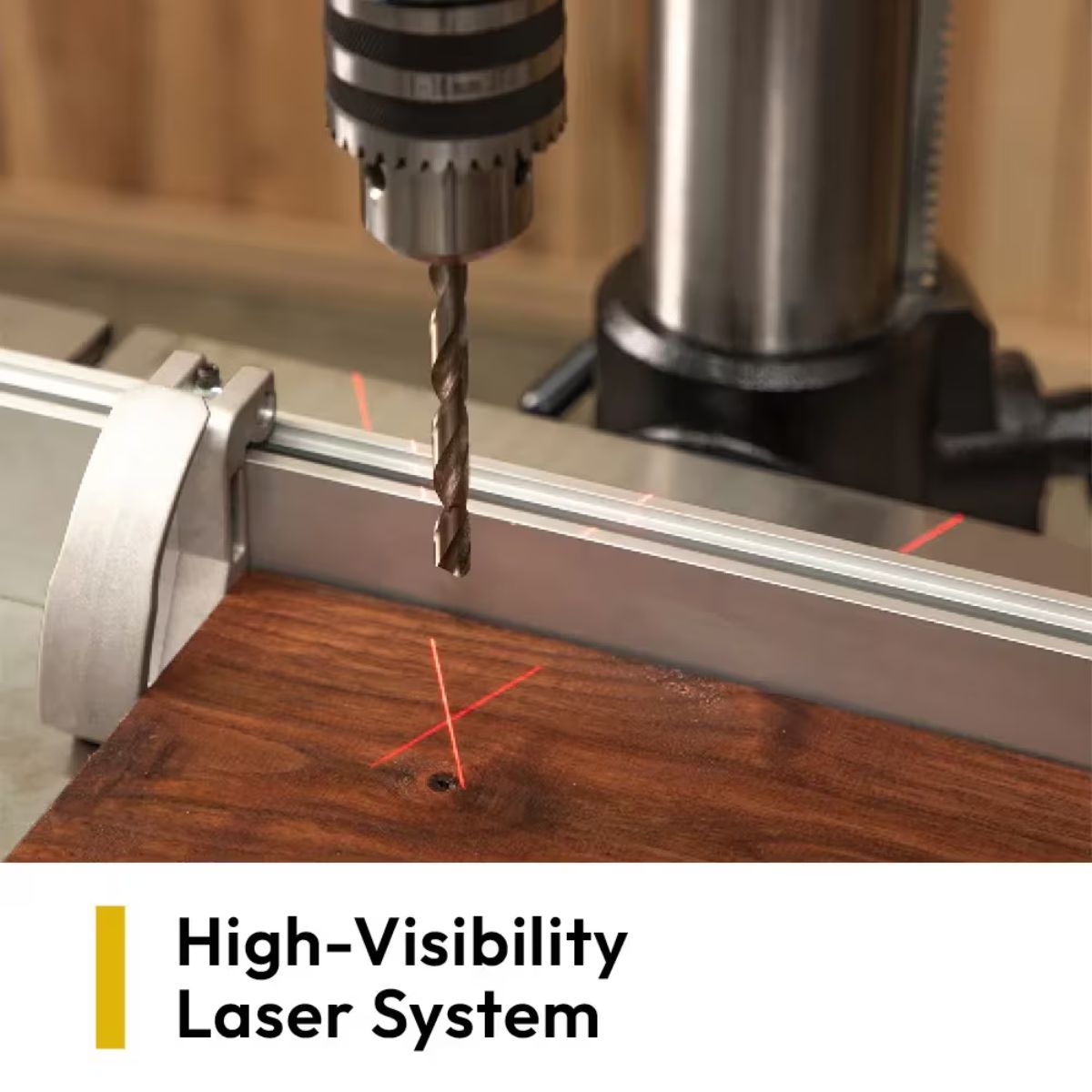

Laser Alignment System
A high-visibility crosshair laser clearly marks the drilling point for improved accuracy and repeatable hole placement.

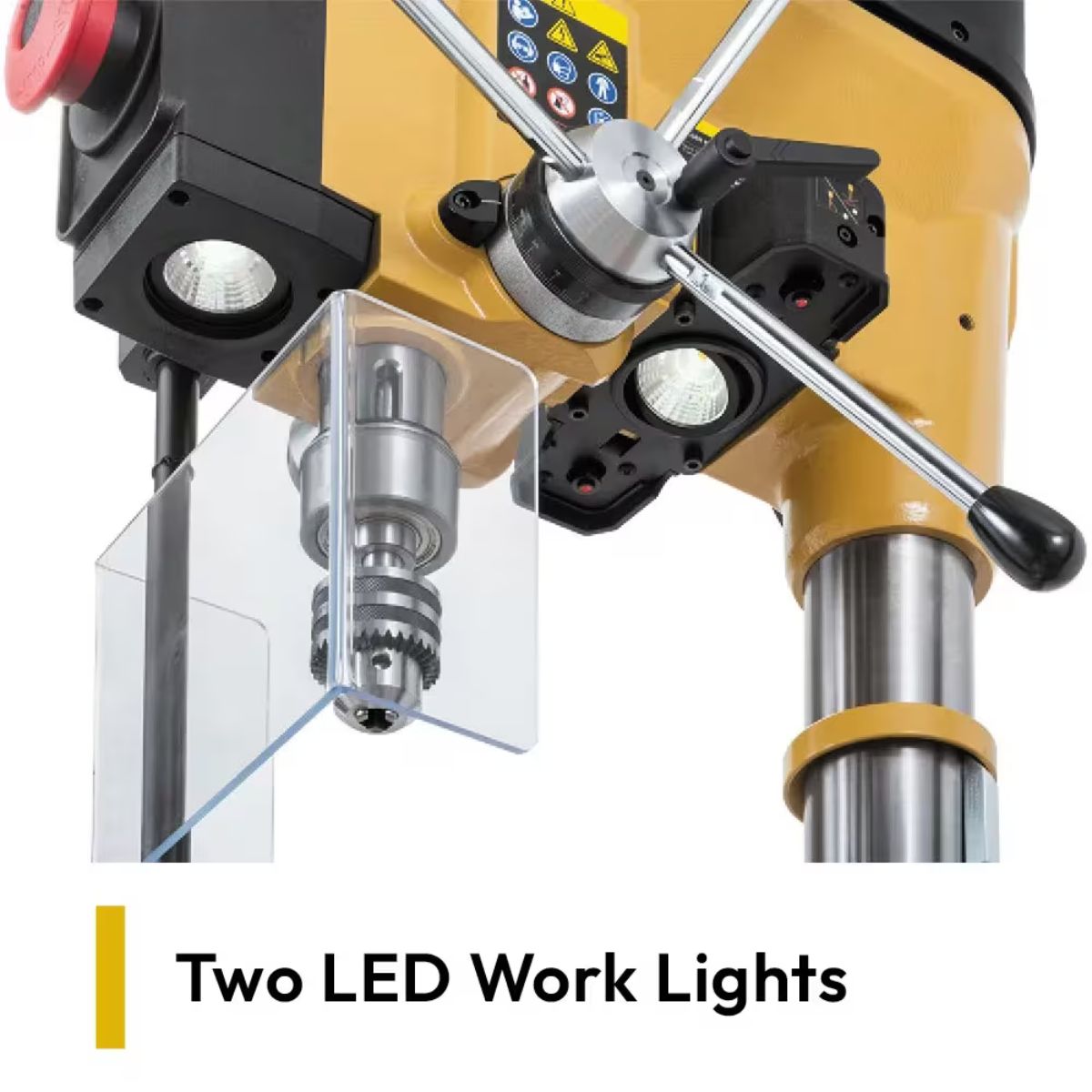

Integrated LED Work Lighting
Two built-in LED lights illuminate the work area, reducing shadows and improving visibility at the point of drilling.

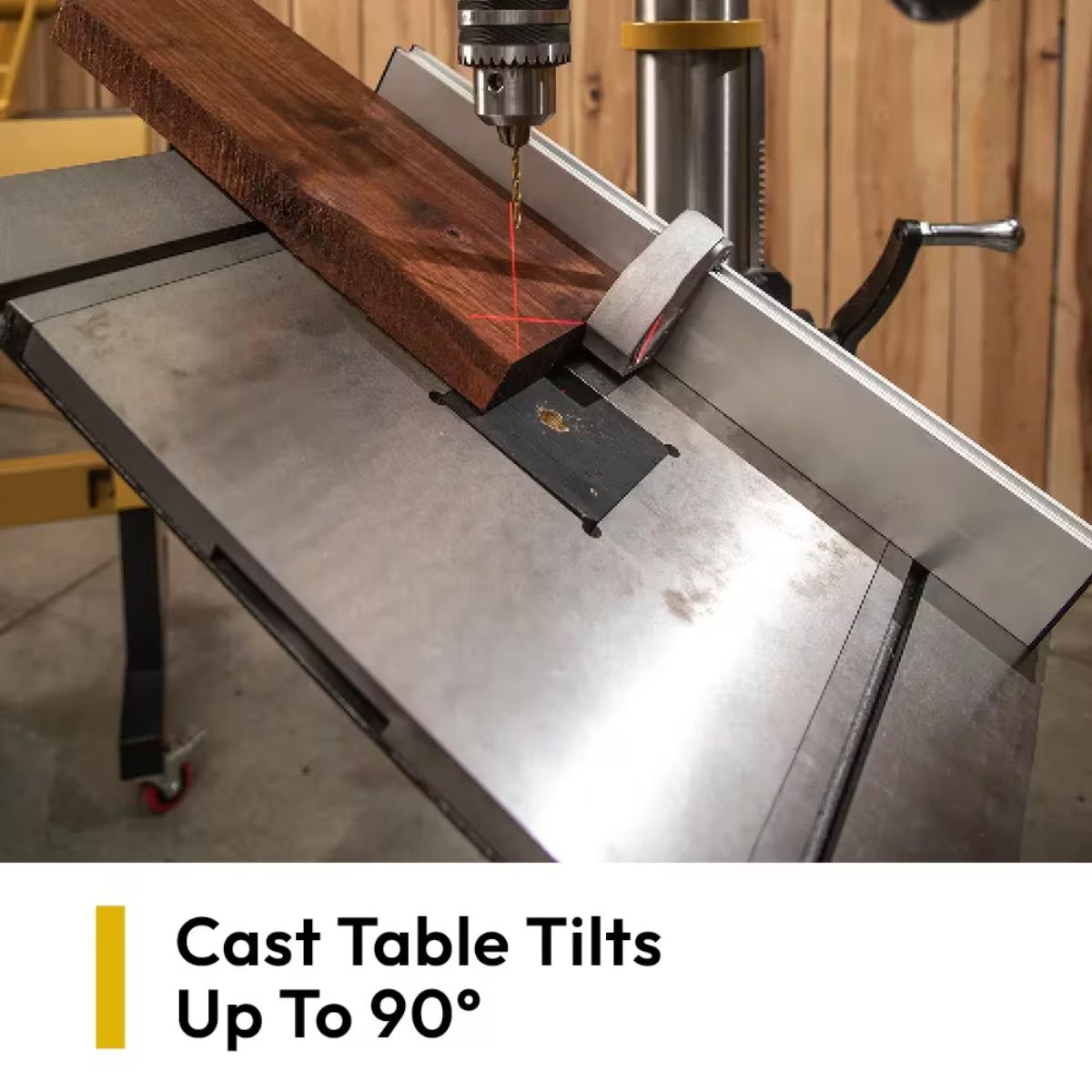

Large Cast Iron Work Table
The 20-1/2" x 15-1/3" cast iron table provides stable support and tilts up to 90° for angled drilling applications.
Adjustable Fence System
The included fence system improves alignment and repeatability for production drilling tasks.

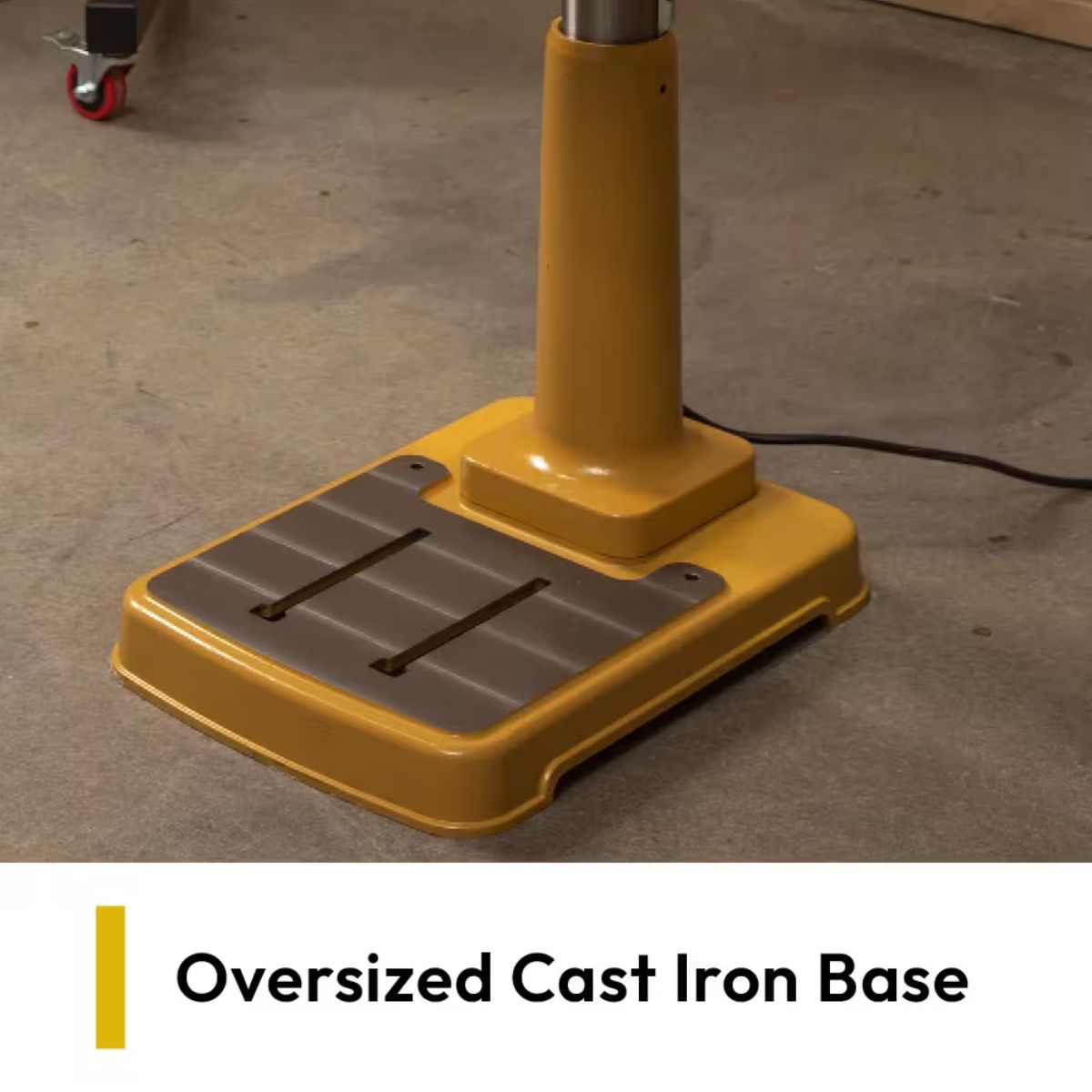

Heavy-Duty Stability
An oversized cast iron base reduces vibration and ensures stable operation across the full 20-inch swing capacity.

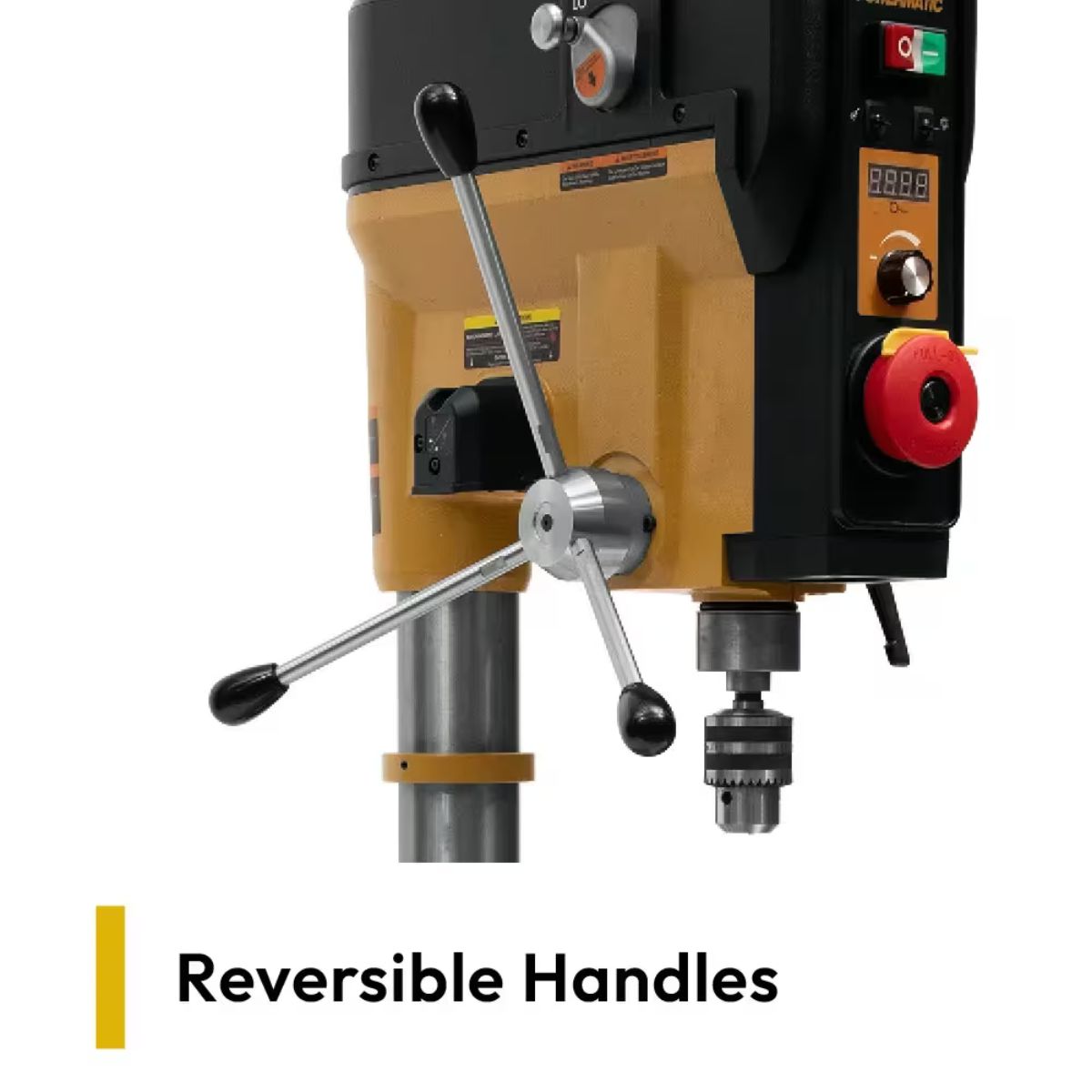

User-Friendly Operation
Reversible downfeed handles allow left- or right-hand operation, improving ergonomics and control.
What’s Included
What’s Included? Powermatic PM2820EVS
- Powermatic PM2820EVS Drill Press
- Adjustable Fence System
- 5/8" Keyed Chuck
- Laser Alignment System
- Dual LED Work Lights
- Operating Handles
Specs
Powermatic PM2820EVS Specifications
- Model Number: PM2820EVS
- Swing: 20 in.
- Motor: 1 HP
- Input Power: 120V Single Phase
- Prewired Voltage: 115V
- Speed Range:
- 150 – 870 RPM (Low Range)
- 600 – 3600 RPM (High Range)
- Spindle Travel: 6 in.
- Spindle Taper: MT2
- Chuck Size: 5/8 in.
- Fence Size: 19-3/4 in. x 2-5/8 in.
- Chuck Distance to Table: 19-1/4 in.
- Chuck Distance to Base: 41-1/4 in.
- Table Size: 20-1/2 in. x 15-1/3 in.
- Table Tilt: 0° to 90°
- Style Type: Floor Standing
- Net Weight: 336.6 lbs
- Gross Weight: 412.6 lbs
- Warranty: 5 Year
- SKU: PM9-1792820
- Prop 65: Cancer and Reproductive Harm
