Powermatic PM2800B 18" Variable Speed Drill Press
Need a drill press that delivers precision, power, and flexibility for demanding shop work?
Looking for smooth variable speed control without the hassle of belt changes?
The Powermatic PM2800B Floor Drill Press combines advanced drilling features with intuitive operation and heavy-duty construction for professional results.
With electronic variable speed and dual-voltage capability, this machine adapts easily to different materials, bit sizes, and shop power setups.
Built for accuracy. Designed for efficiency. Ready for production.

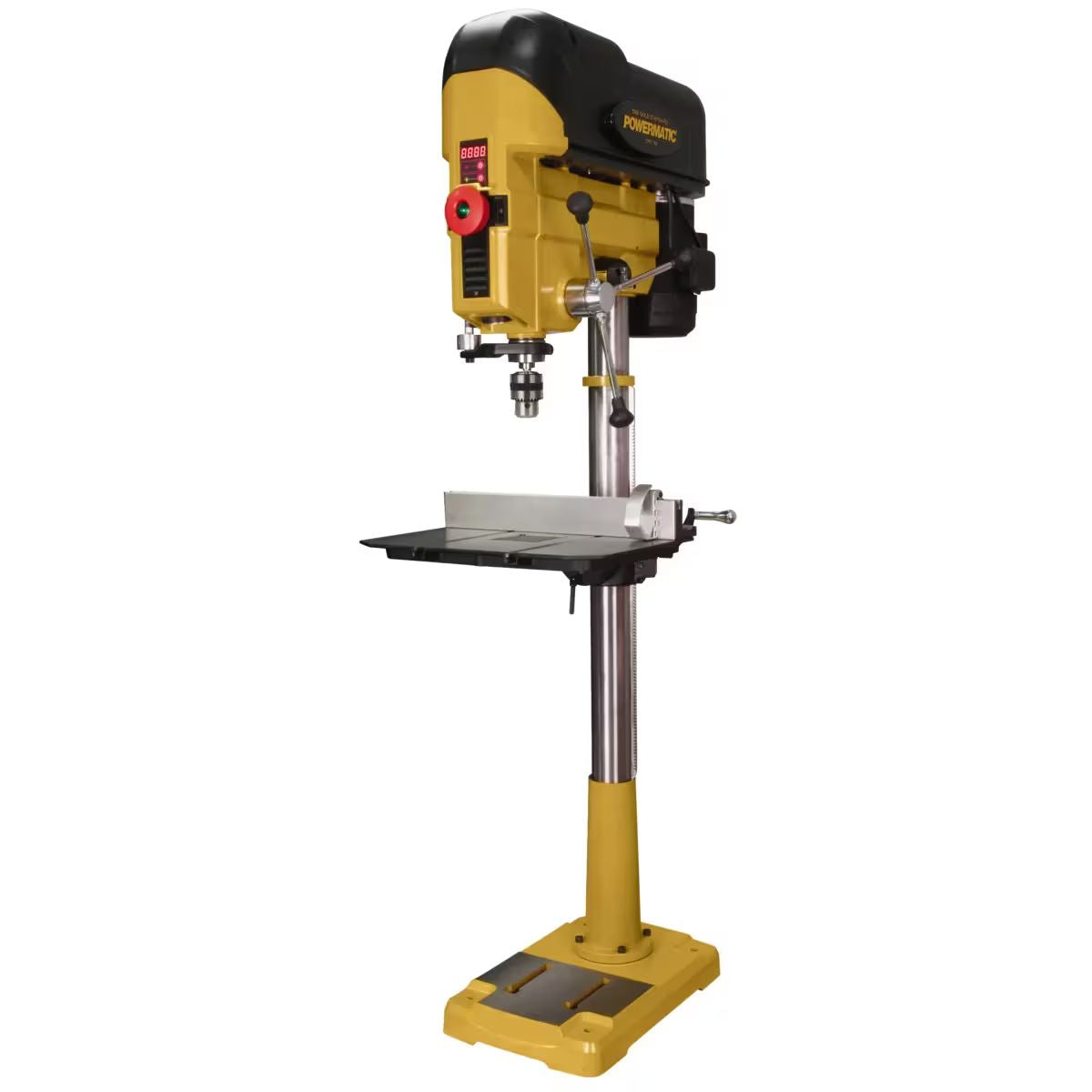

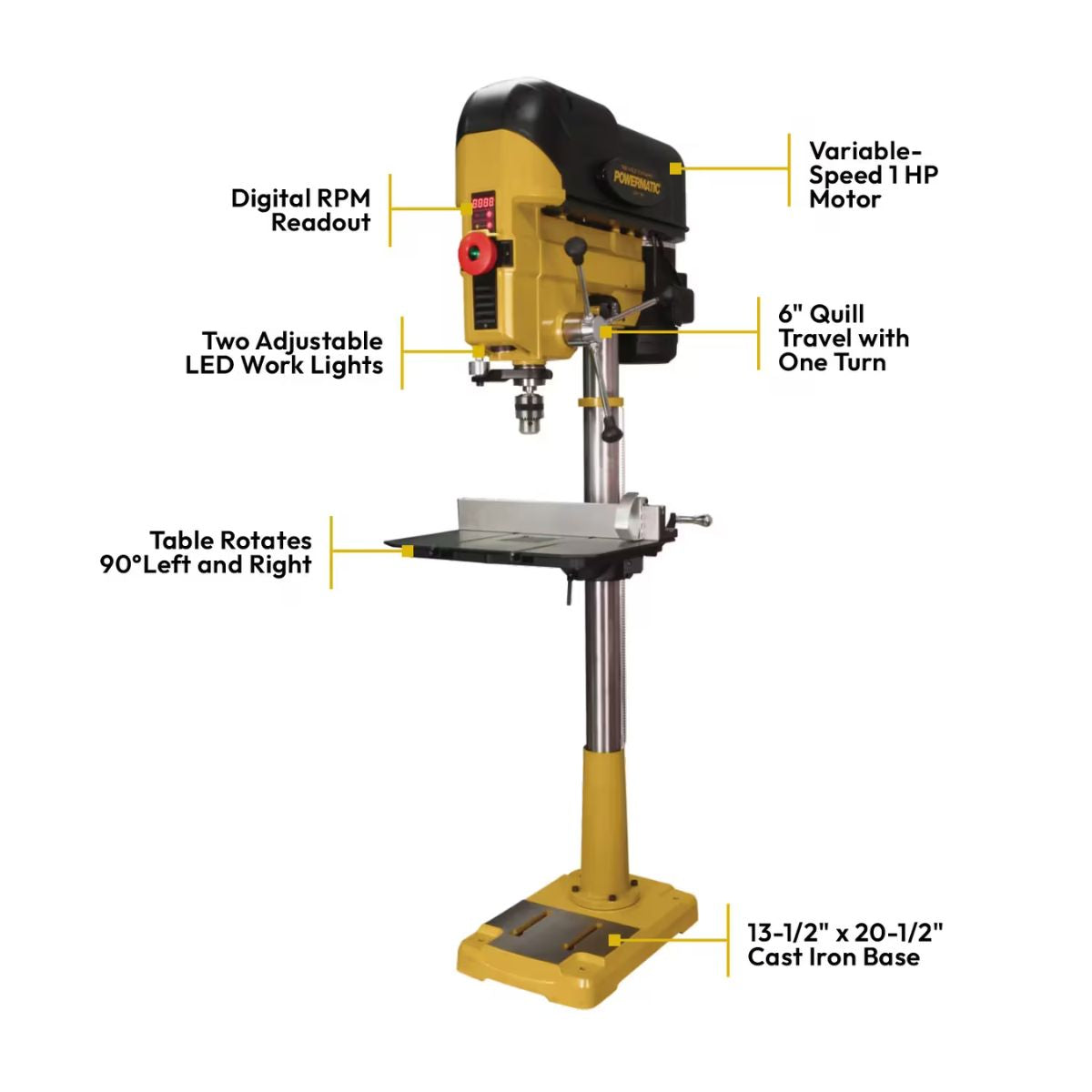

Powermatic PM2800B Drill Press
Motor & Power Configuration
This machine features a 1HP motor and operates on 115V or 230V single-phase power, providing flexible installation for both home and professional shops.

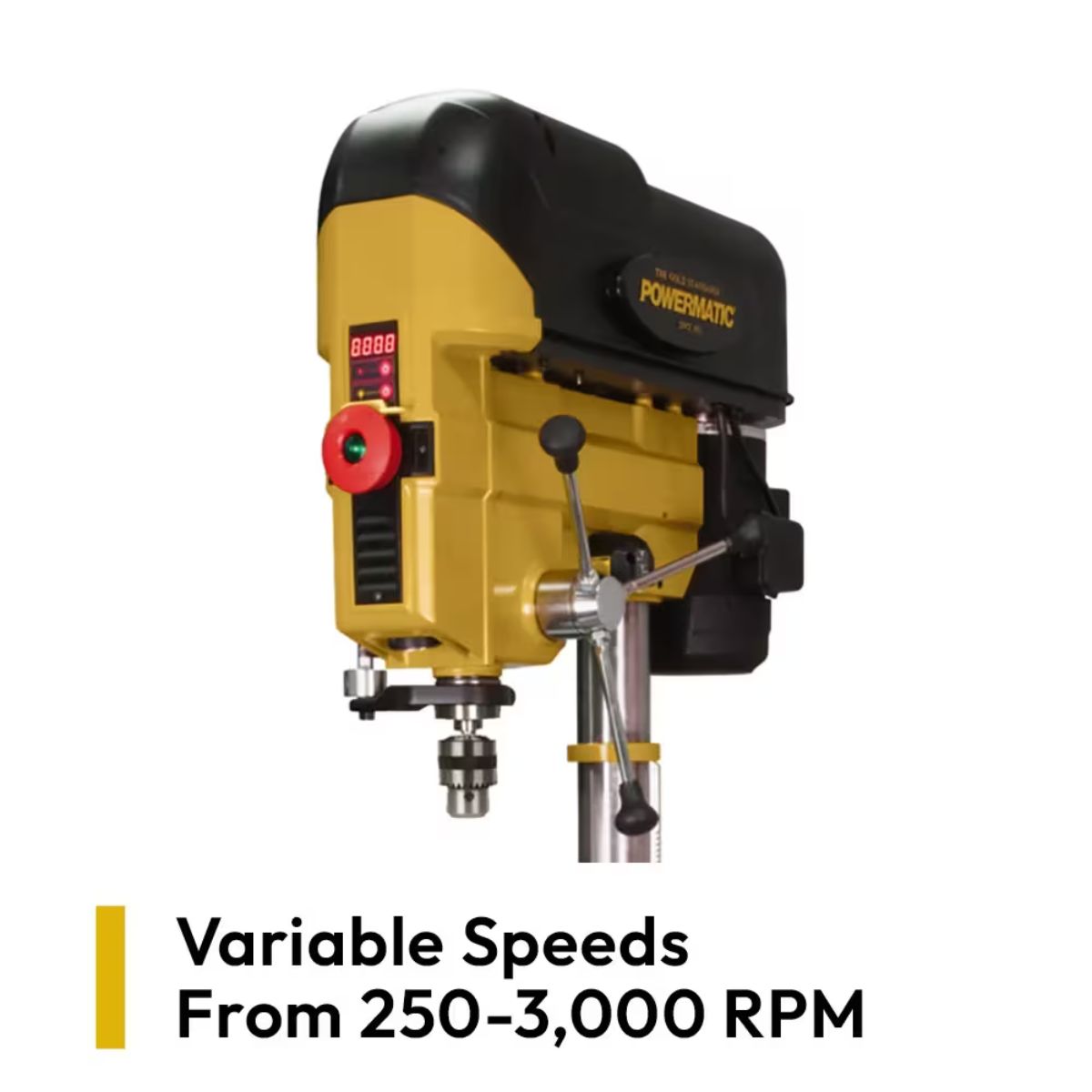

Infinitely Variable Speed Control
Adjust speeds from 250 to 3,000 RPM without changing belts, allowing precise speed matching for different materials and drilling applications.
Digital RPM Readout
The integrated digital display provides real-time feedback, helping maintain consistent cutting conditions and improve repeatability.
Laser Alignment System
A high-visibility crosshair laser improves drilling accuracy by clearly marking the drilling point for faster setup and better precision.
Extended Quill Travel
With 6 inches of quill travel in a single revolution, the PM2800B supports deep drilling with less repositioning.

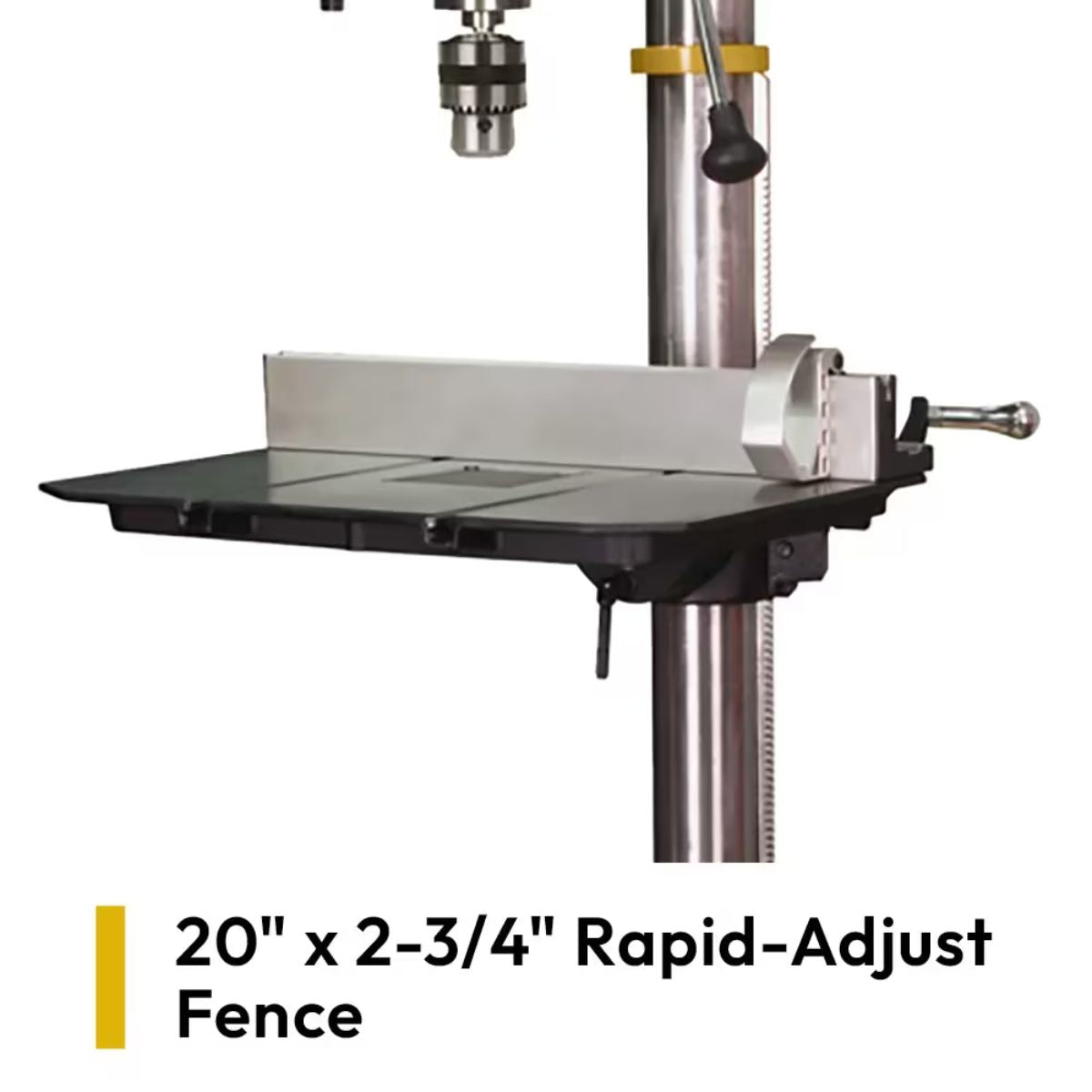

Adjustable Fence System
The 20" x 2-3/4" fence maintains a true 90° relationship to the table, improving alignment and repeatability.

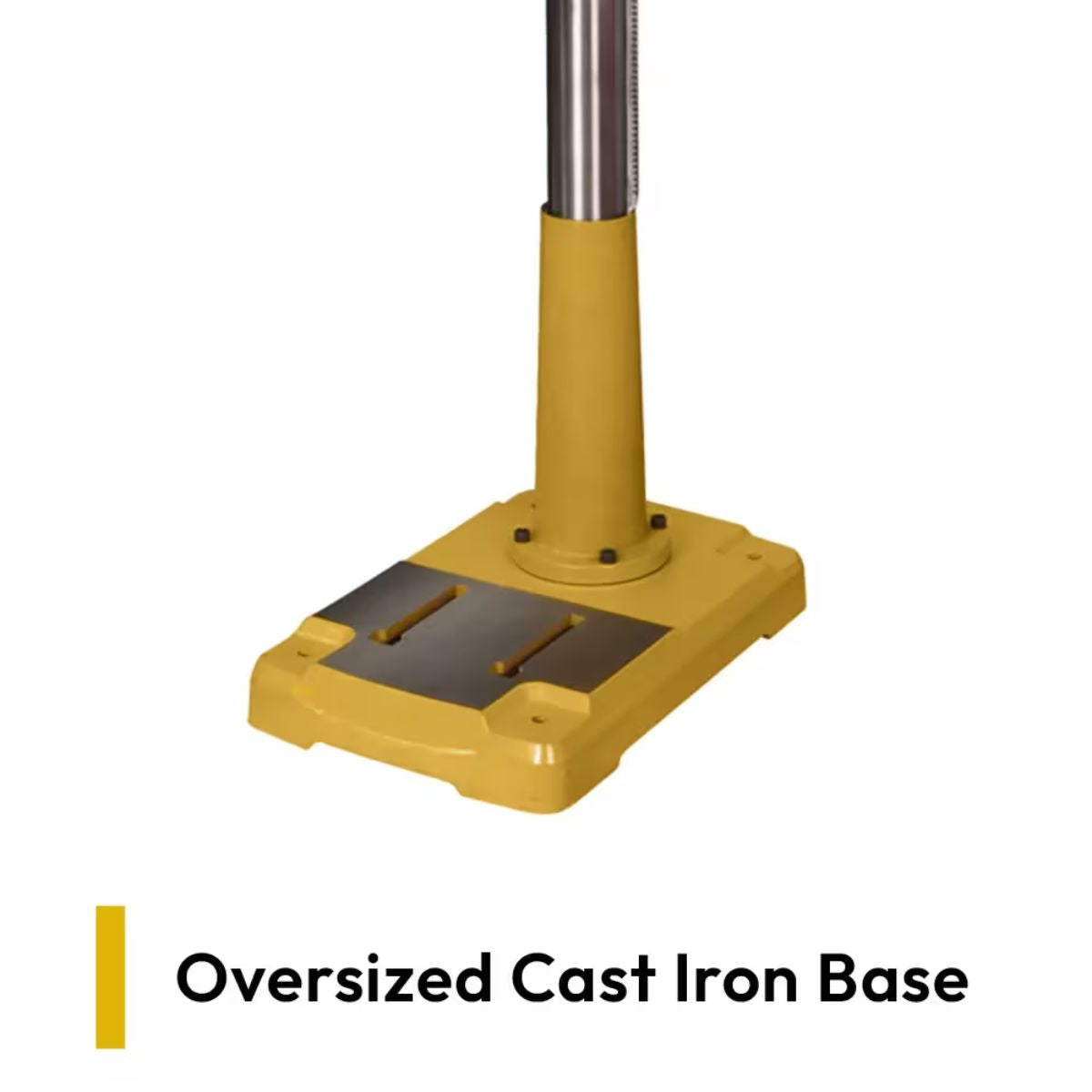

Heavy-Duty Cast Iron Stability
The oversized cast iron base and table reduce vibration and provide the stability needed for accurate drilling.
Tilting Work Table
The cast iron table tilts up to 90°, allowing angled drilling and increased versatility.
User-Friendly Operation
Reversible operating handles allow left- or right-hand configuration for improved comfort and control.
What’s Included
What’s Included? Powermatic PM2800B
- Powermatic PM2800B Drill Press
- Adjustable Fence System (20" x 2-3/4")
- 5/8" Keyed Chuck
- Laser Guide System
- Operating Handles
Specs
Powermatic PM2800B Specifications
- Model Number: PM2800B
- Swing: 18 in.
- Motor: 1 HP
- Input Power: 115/230V Single Phase
- Prewired Voltage: 115V
- Speed Range: 250 – 3000 RPM (Variable)
- Spindle Travel: 6 in.
- Spindle Taper: MT2
- Chuck Size: 5/8 in.
- Fence Size: 20 in. x 2-3/4 in.
- Chuck Distance to Table: 22-3/8 in.
- Chuck Distance to Base: 40-1/2 in.
- Table Tilt: 0° to 90°
- Style Type: Floor Standing
- Net Weight: 246 lbs
- Gross Weight: 266 lbs
- Warranty: 5 Year
- SKU: PM9-1792800B
- Prop 65: Cancer and Reproductive Harm
