Powermatic DT65 Pneumatic Dovetail Machine
Are you spending too much time manually clamping stock when producing dovetail joints?
What if you could lock and release workpieces instantly while maintaining precise, repeatable joints?

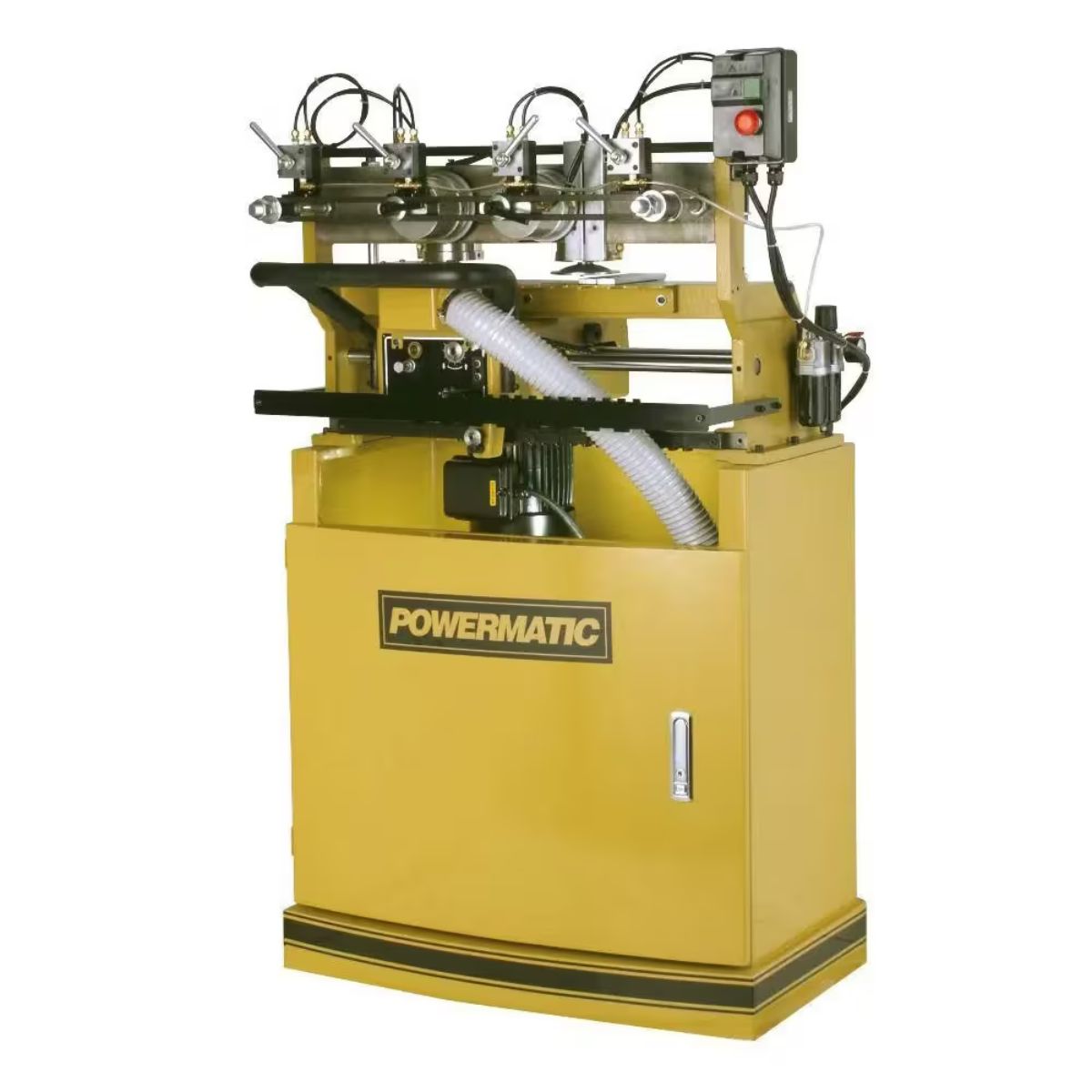

Meet the Powermatic DT65 Pneumatic Dovetail Machine, a single-end dovetailer designed for production-focused drawers and furniture joinery.
With pneumatic clamping, sealed linear carriage bearings, and adjustable cutter height, it delivers fast, accurate, and consistent dovetail cutting.
When your setup is quicker and more repeatable, you gain both productivity and confidence in every dovetail joint you produce.
Powermatic DT65 for High-Speed Dovetail Joinery

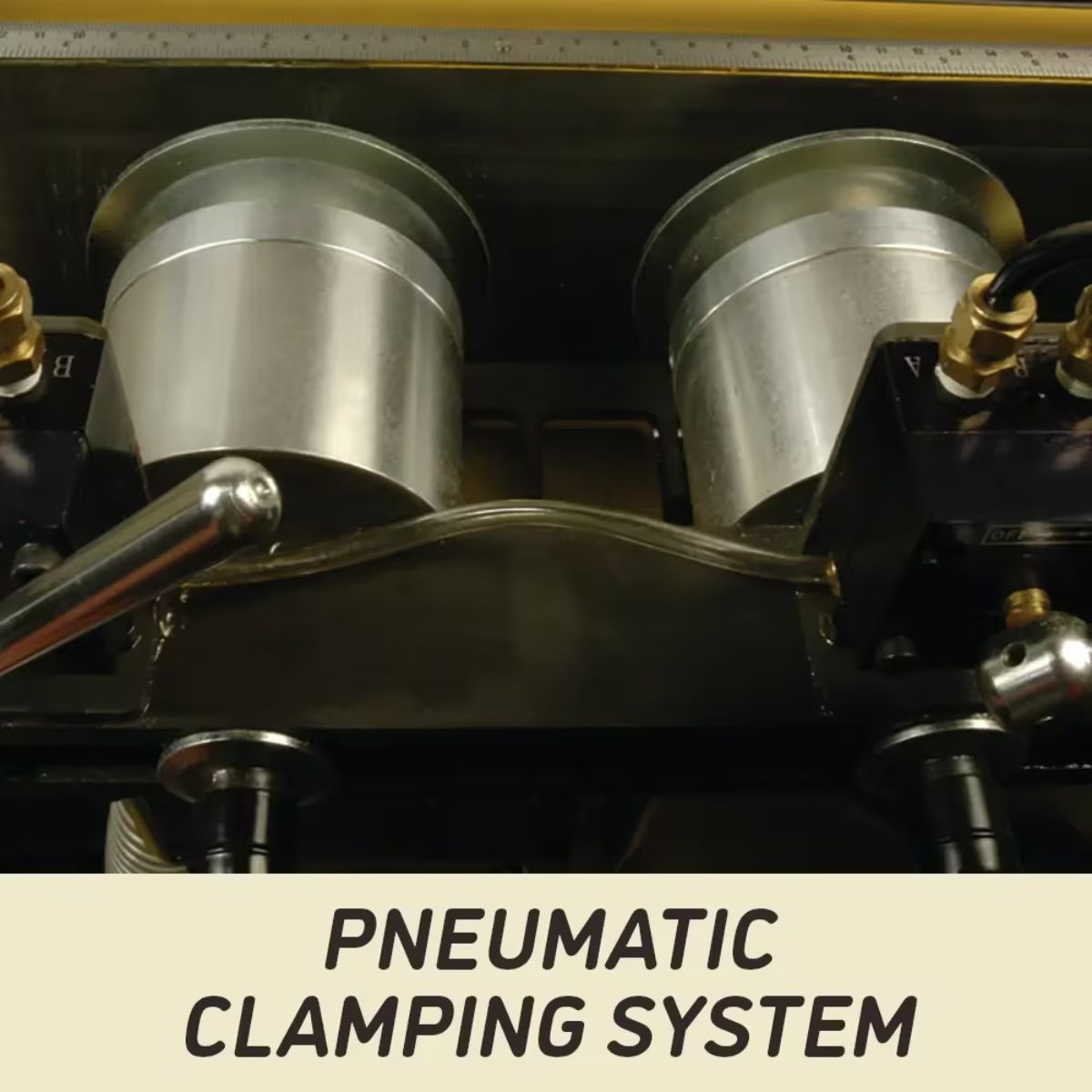

Pneumatic Clamping for Faster Workholding
The DT65 uses a pneumatic clamping system to lock and release material instantly. This reduces cycle times and ensures consistent pressure on stock during cutting. It improves efficiency and repeatability for production runs.

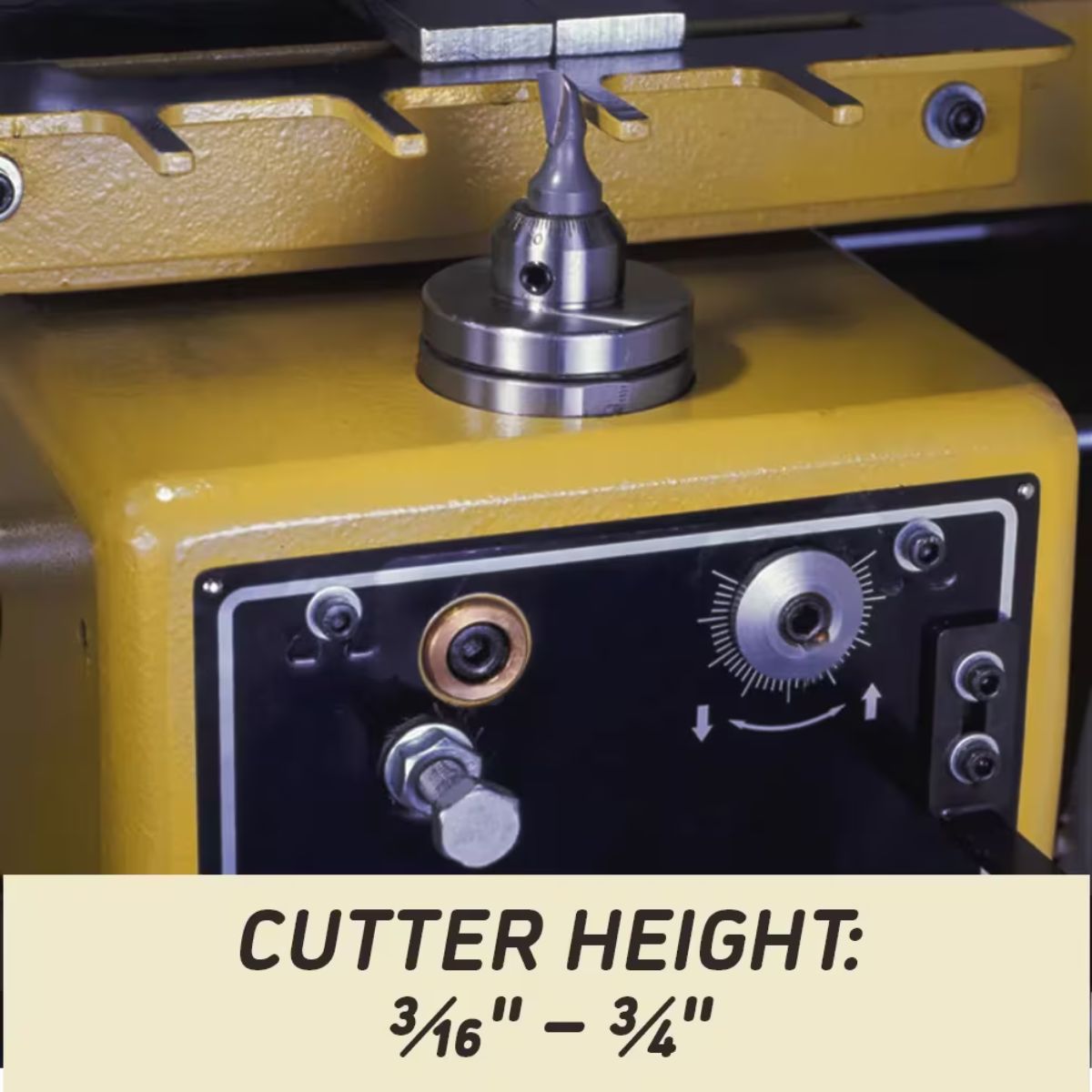

Adjustable Cutter Height Expands Material Capability
Adjustable cutter height from 3/16 inch to 3/4 inch allows precise dovetailing on a wide range of drawer and furniture stock. Operators can quickly adapt to different workpieces without additional tooling, improving versatility.

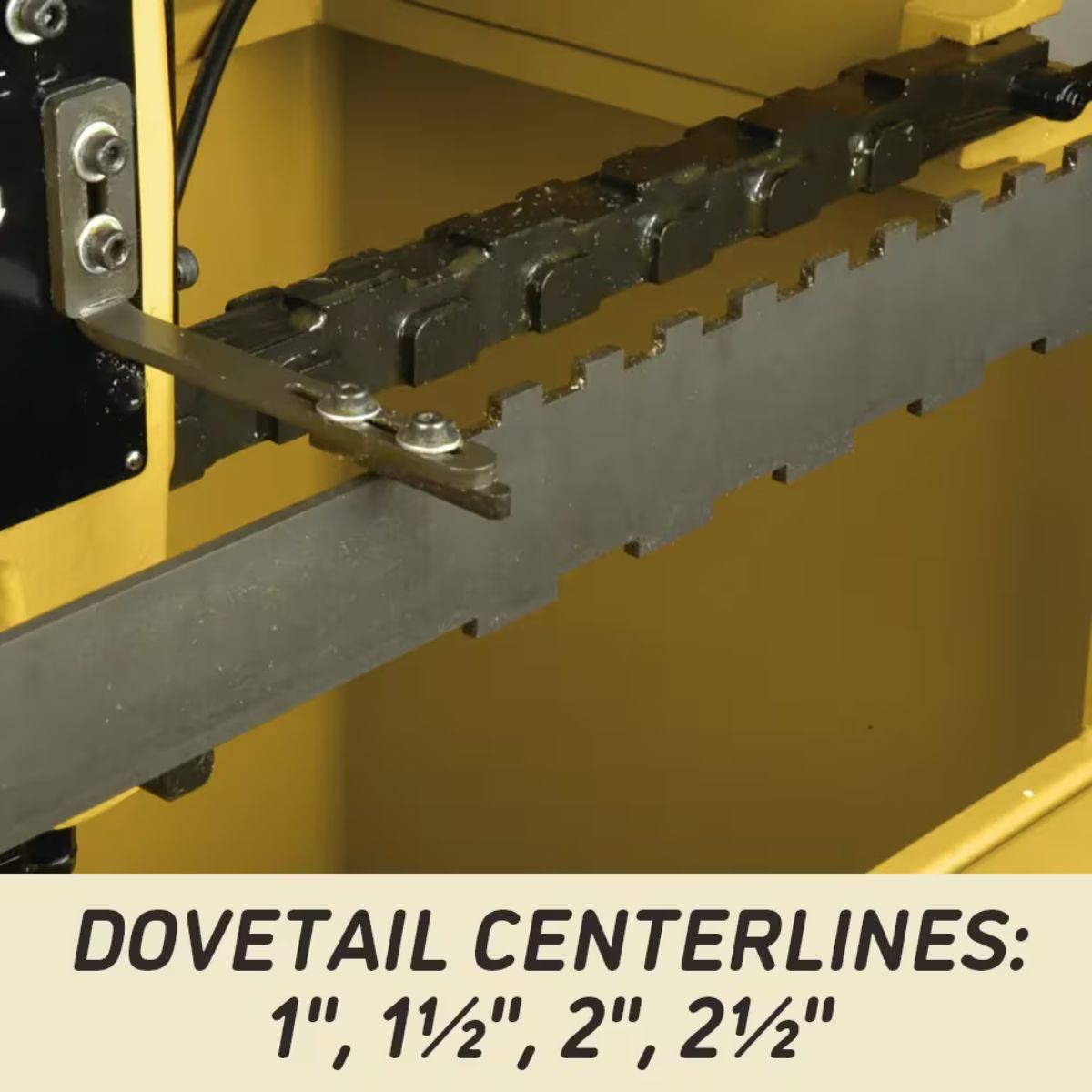

Fixed Centerline System for Consistent Joints
Four dovetail centerlines at 1", 1.5", 2", and 2.5" provide consistent spacing and professional-looking joinery. This system eliminates guesswork and ensures uniform dovetails across all production pieces.
Sealed Linear Bearings Ensure Smooth Carriage Travel
Precision linear bearings, sealed against dust, maintain smooth, controlled carriage movement. This preserves alignment, reduces wear, and supports long-term accuracy for consistent dovetail quality.
What’s Included
What’s Included? Powermatic DT65 Pneumatic Dovetail Machine
-
Dovetail Machine Unit – Main assembly for accurate dovetail cutting.
-
Pneumatic Clamping System – Instantly secures stock for fast, repeatable operation.
-
Router Spindle Assembly – Powers the carbide-tipped cutter for precise dovetails.
-
Material Stops – Allow repeatable positioning for consistent joint spacing.
-

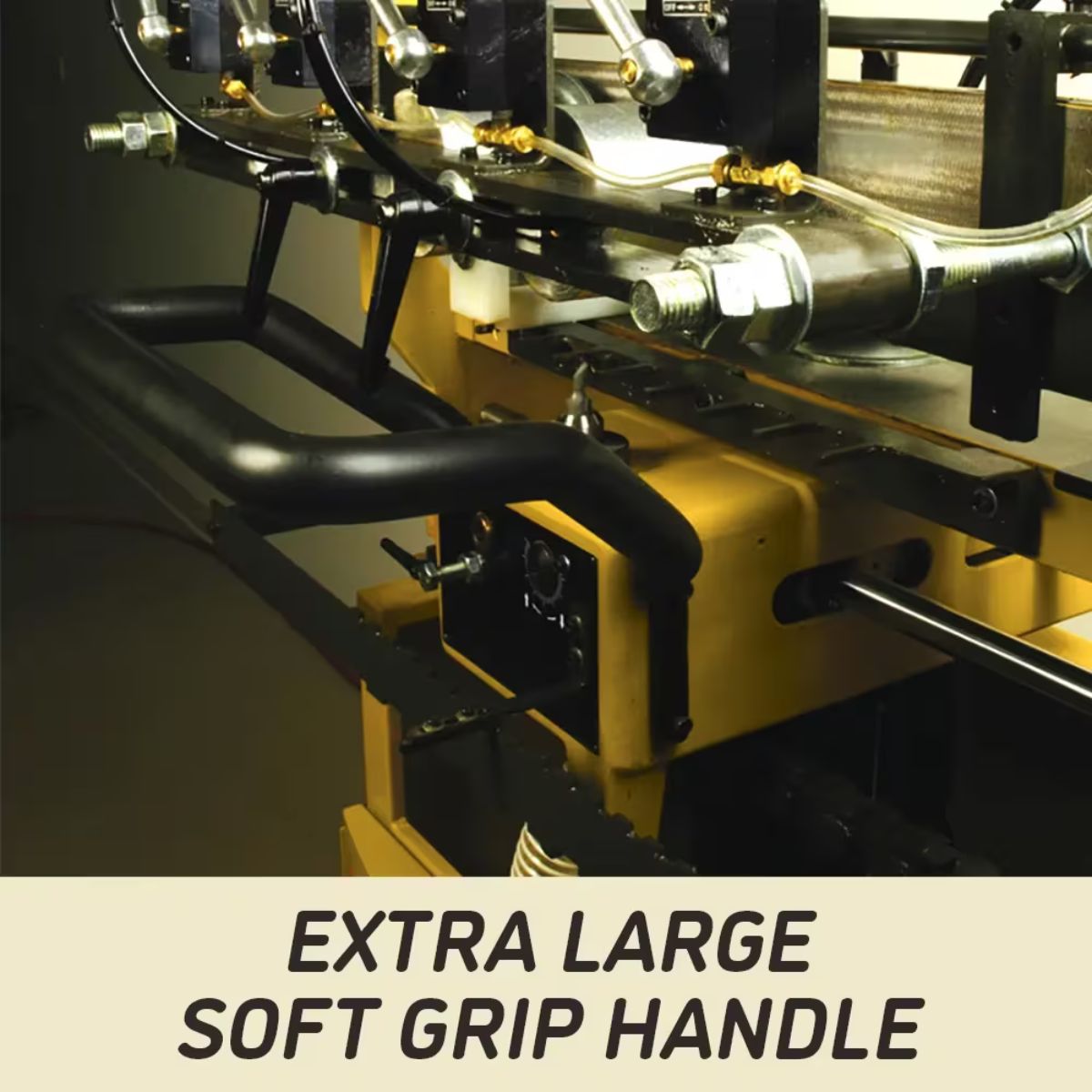

Operating Handle – Provides leverage and precise control of carriage movement.
-
Visual Stylus & Template Guides – Helps align stock for accurate dovetail placement.
-
Instruction Manual – Provides setup, operation, and maintenance guidance.
Specs
Powermatic DT65 Dovetail Machine Specifications
- Model Number: DT65
- Stock Number: PM9-1791305
- Motor: 1 HP
- Input Power: 230V Single Phase
- Prewired Voltage: 230V
- Cutter Height Capacity: 3/16 inch to 3/4 inch
- Dovetail Centerlines: 1 inch, 1.5 inch, 2 inch, 2.5 inch
- Carriage System: Sealed precision linear bearings
- Pneumatic Clamping: Yes
- Net Weight: 420 lbs
- Gross Weight: 510 lbs
- Construction: Cast iron and steel
- Product Type: Machine
- Warranty: 5 Year
