Powermatic DT45 Dovetail Machine
Are you struggling to produce consistent dovetail joints with time-consuming setups and uneven results across drawer builds?
What if you could create clean, repeatable dovetails quickly with simple controls and reliable accuracy every time?

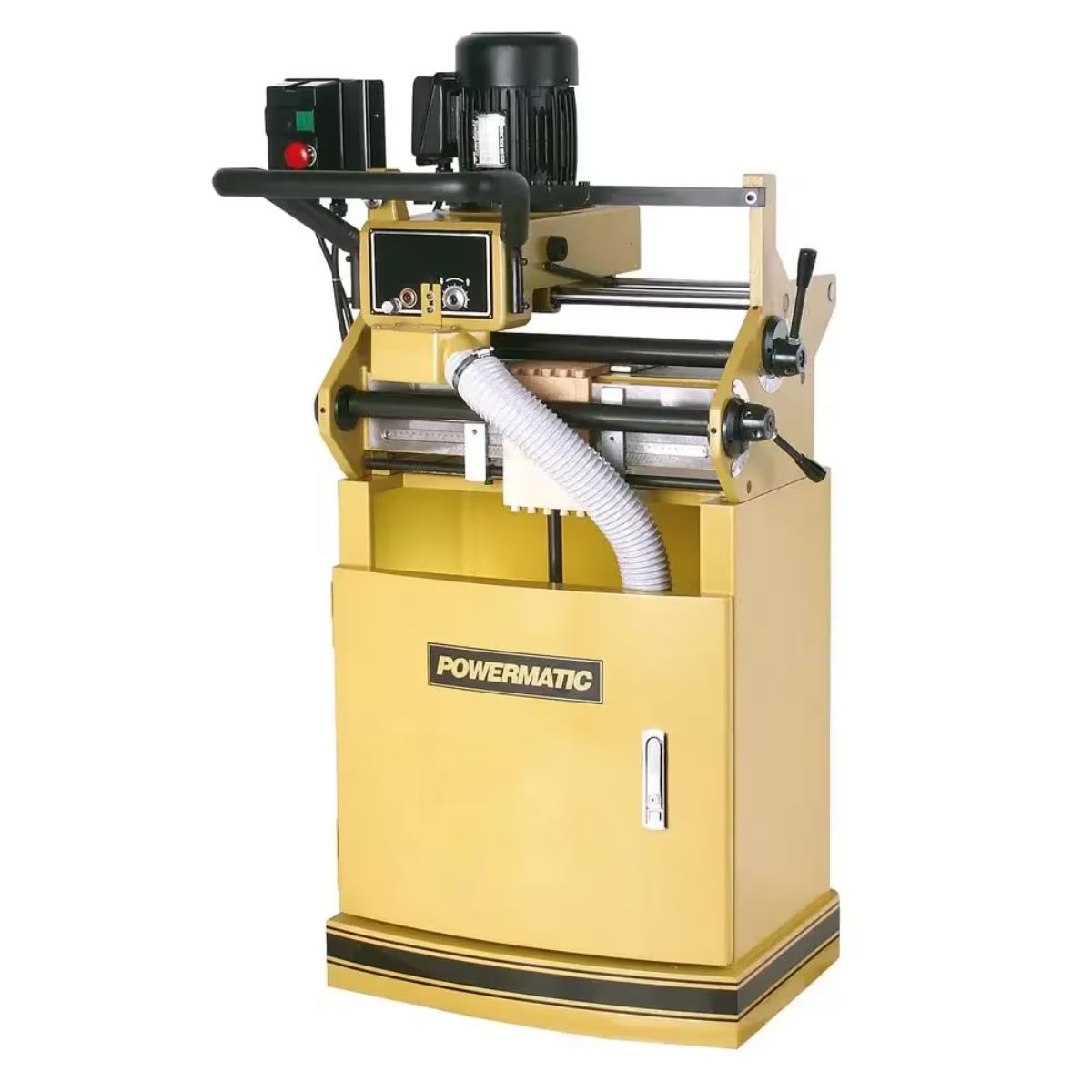

Meet the Powermatic DT45 Dovetail Machine, a single-end dovetailer designed for efficient, repeatable joinery in professional and small-shop environments.
With the DT45’s sealed linear carriage bearings, adjustable cutter height, and fixed centerline spacing, it delivers dependable performance across a range of drawer and furniture applications.
When your workflow demands precision without complexity, the DT45 helps you produce tight-fitting joints with confidence and consistency.
Powermatic DT45 for Precision Dovetail Joinery Work

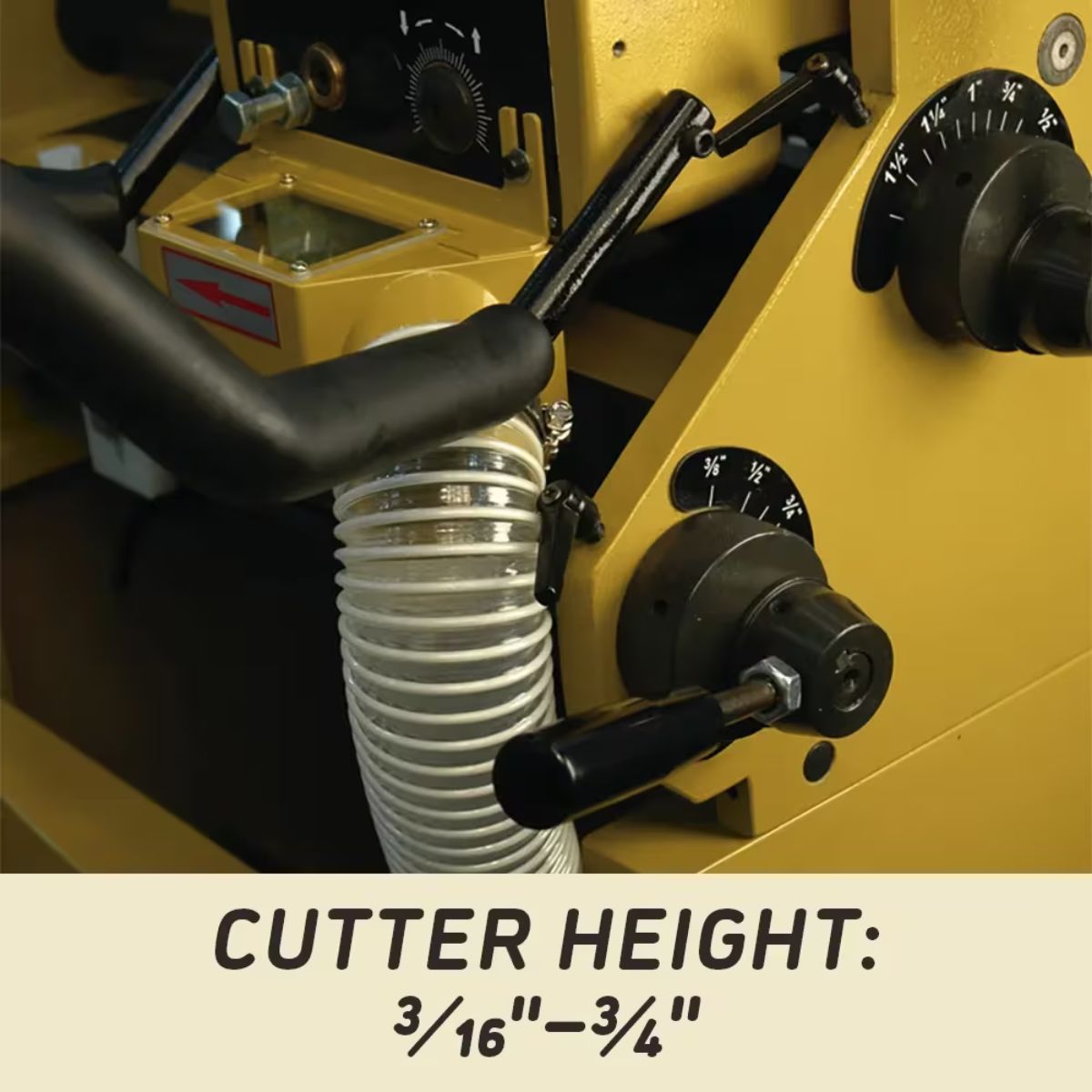

Adjustable Cutter Height Expands Material Capability
The DT45 features an adjustable cutter height from 3/16 inch to 3/4 inch, allowing you to match a wide range of stock thicknesses. This flexibility supports different drawer sizes and furniture components without changing machines. It reduces setup limitations and keeps production moving efficiently.

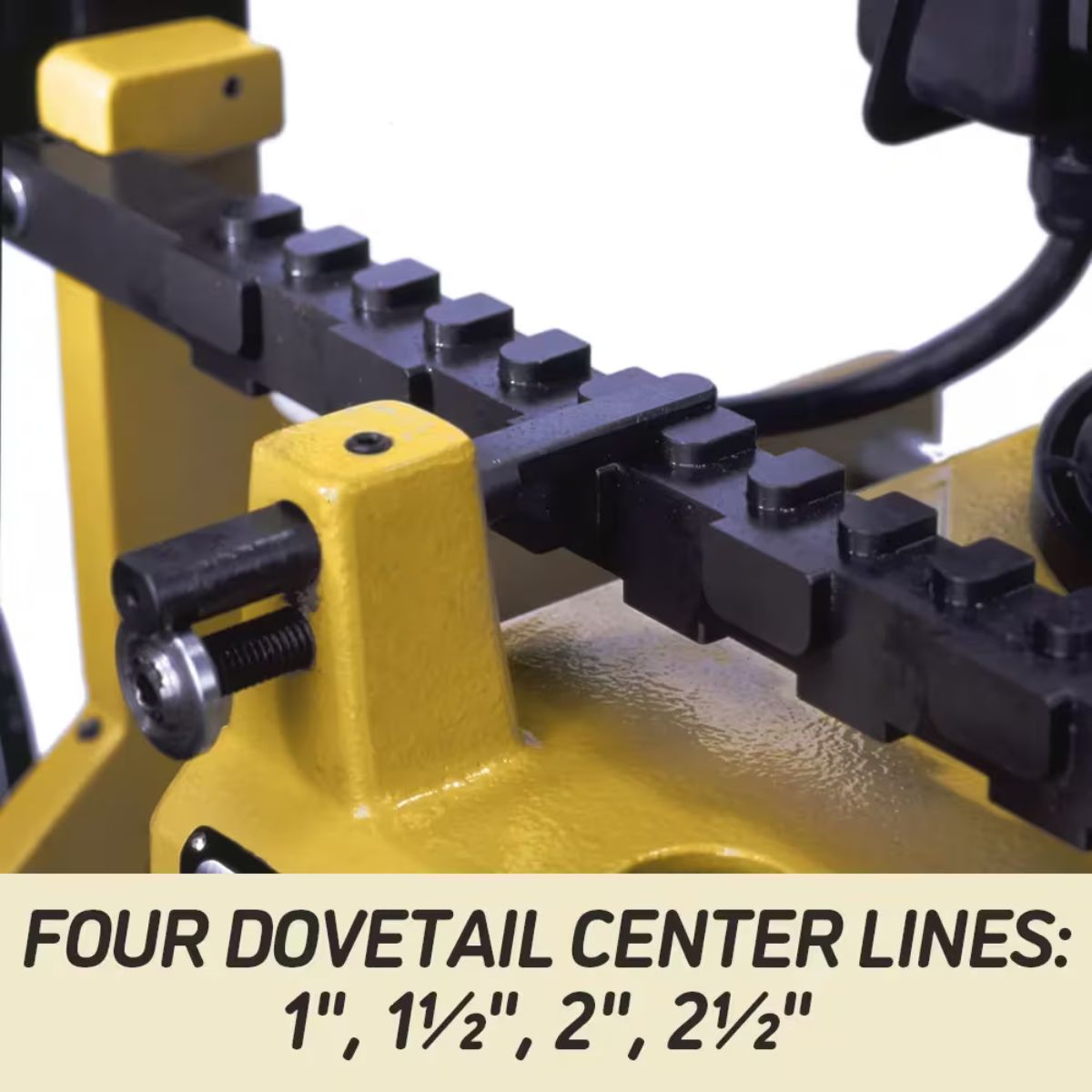

Fixed Centerline Layouts Ensure Repeatable Spacing
Four preset dovetail centerlines at 1 inch, 1.5 inch, 2 inch, and 2.5 inch provide consistent joint spacing across production runs. This eliminates layout guesswork and improves repeatability between parts. The result is uniform joinery that fits cleanly during assembly.
Linear Carriage Bearing System Maintains Smooth Travel
Sealed precision linear carriage bearings support controlled, accurate movement during cutting operations. They resist dust contamination while maintaining long-term smoothness and alignment. This ensures consistent cut quality and reduces maintenance interruptions.
Manual Clamping System Secures Workpieces Reliably
The manual eccentric clamping system holds stock firmly in place during cutting without complex adjustments. It provides straightforward operation while maintaining consistent pressure across different materials. This improves safety and ensures clean, accurate dovetail joints.
What’s Included
What’s Included? Powermatic DT45 Dovetail Machine
-
Dovetail Machine Unit – Main assembly that houses the cutter and carriage system for producing accurate dovetail joints.
-

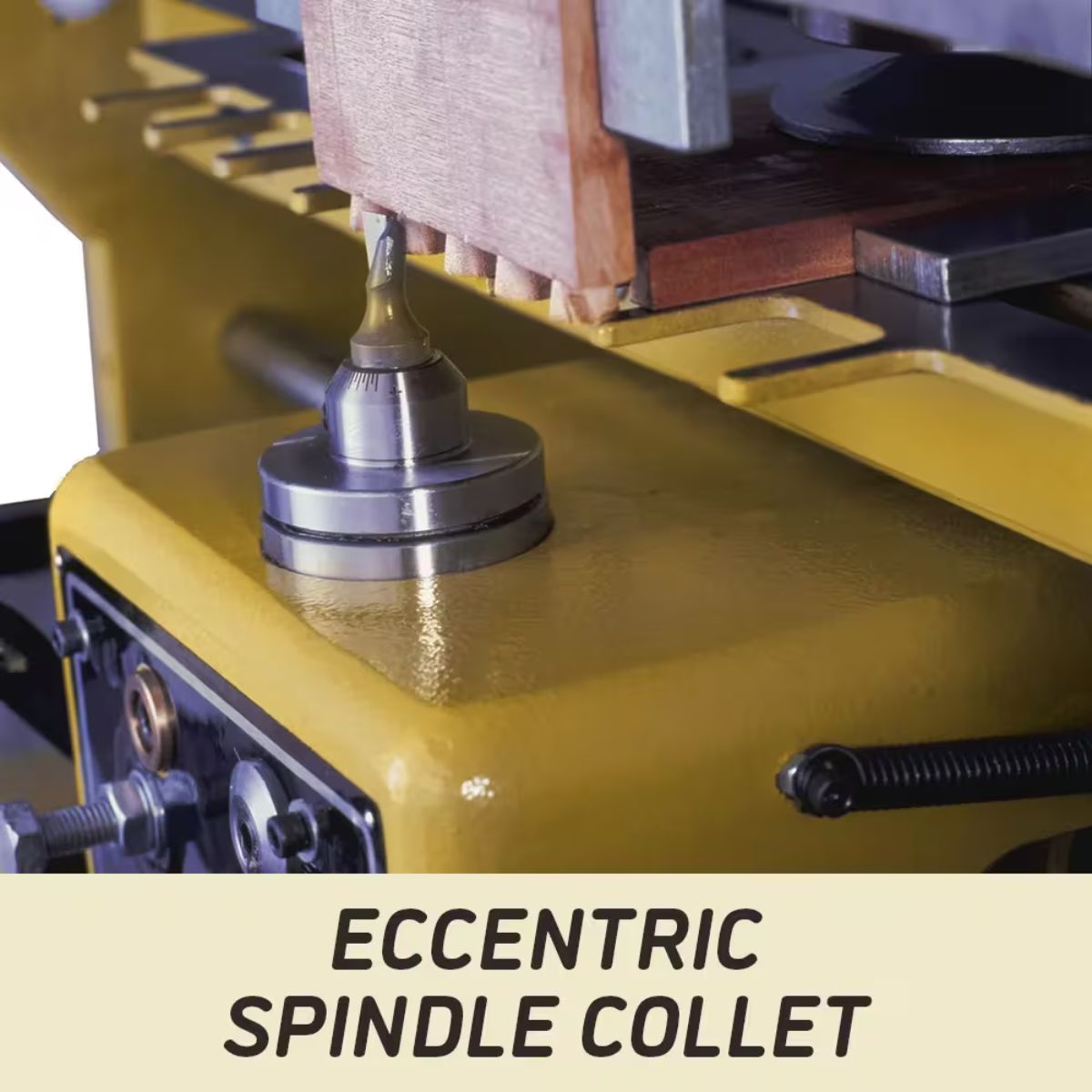

Router Spindle Assembly – Powers the cutter for precise dovetail shaping and supports resharpened bits for extended tool life.
-
Manual Eccentric Clamping System – Secures workpieces firmly during cutting for consistent, repeatable results without complex adjustments.
-
Material Stops – Allow fast, repeatable positioning of stock, reducing setup time between cuts.
-
Operating Handle – Provides leverage and precise control over carriage movement during cutting cycles.
-
Visual Stylus & Template Guides – Helps accurately align the carriage to templates and ensure proper dovetail layout.
-
Instruction Manual – Provides step-by-step guidance for setup, operation, and maintenance.
Specs
Powermatic DT45 Dovetail Machine Specifications
- Model Number: DT45
- Stock Number: PM9-1791304
- Motor: 1 HP
- Input Power: 115/230V Single Phase
- Prewired Voltage: 115V
- Cutter Height Capacity: 3/16 inch to 3/4 inch
- Dovetail Centerlines: 1 inch, 1.5 inch, 2 inch, 2.5 inch
- Carriage System: Sealed precision linear bearings
- Net Weight: 320 lbs
- Gross Weight: 380 lbs

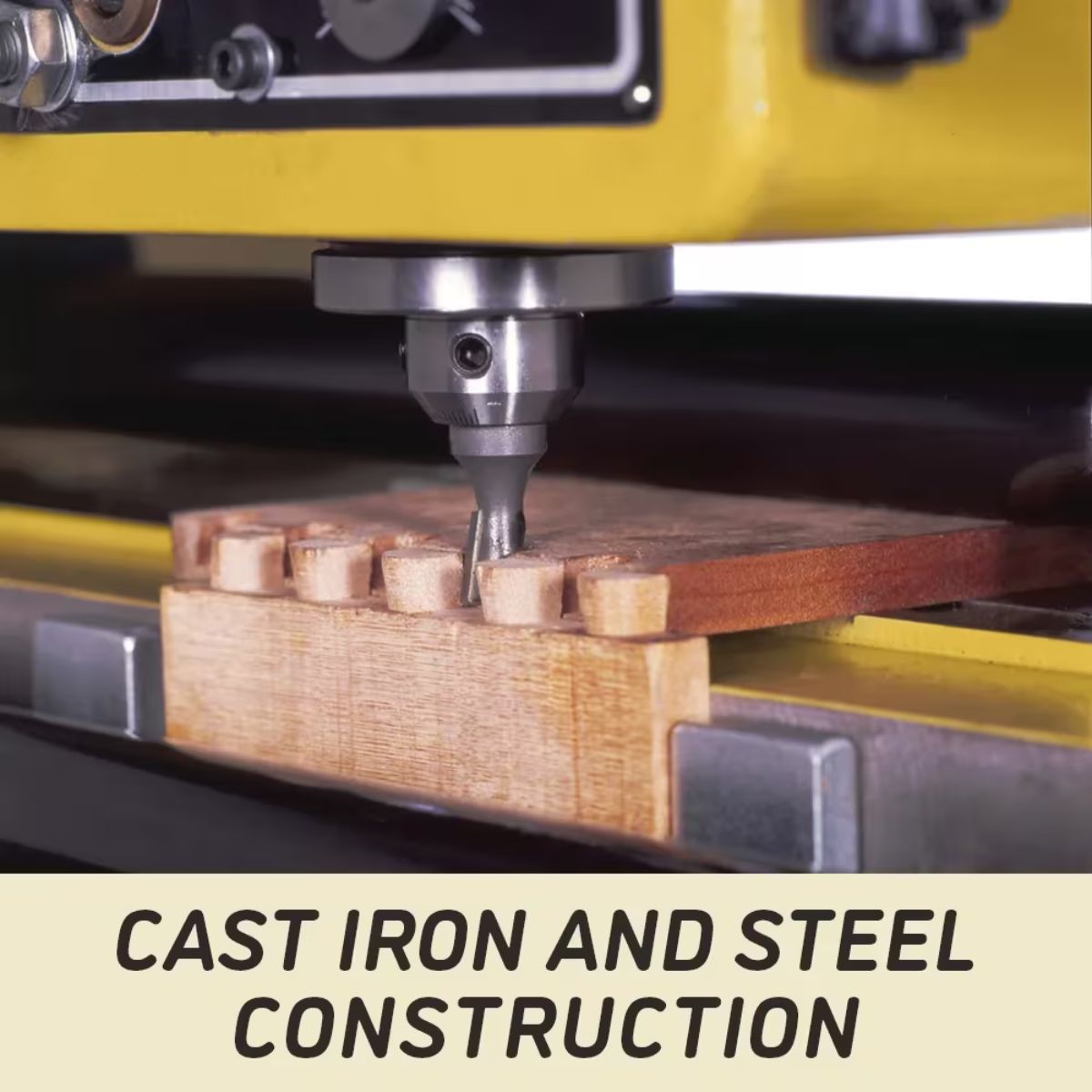

- Construction: Cast iron and steel
- Product Type: Machine
- Warranty: 5 Year
