Powermatic 1632 Open-End Belt Sander, 16 inch Wide, 5 HP 230V 1Ph
Are you limited by sanding capacity when working with wider panels and glued-up assemblies?
What if you could process oversized workpieces with consistent results across every pass?

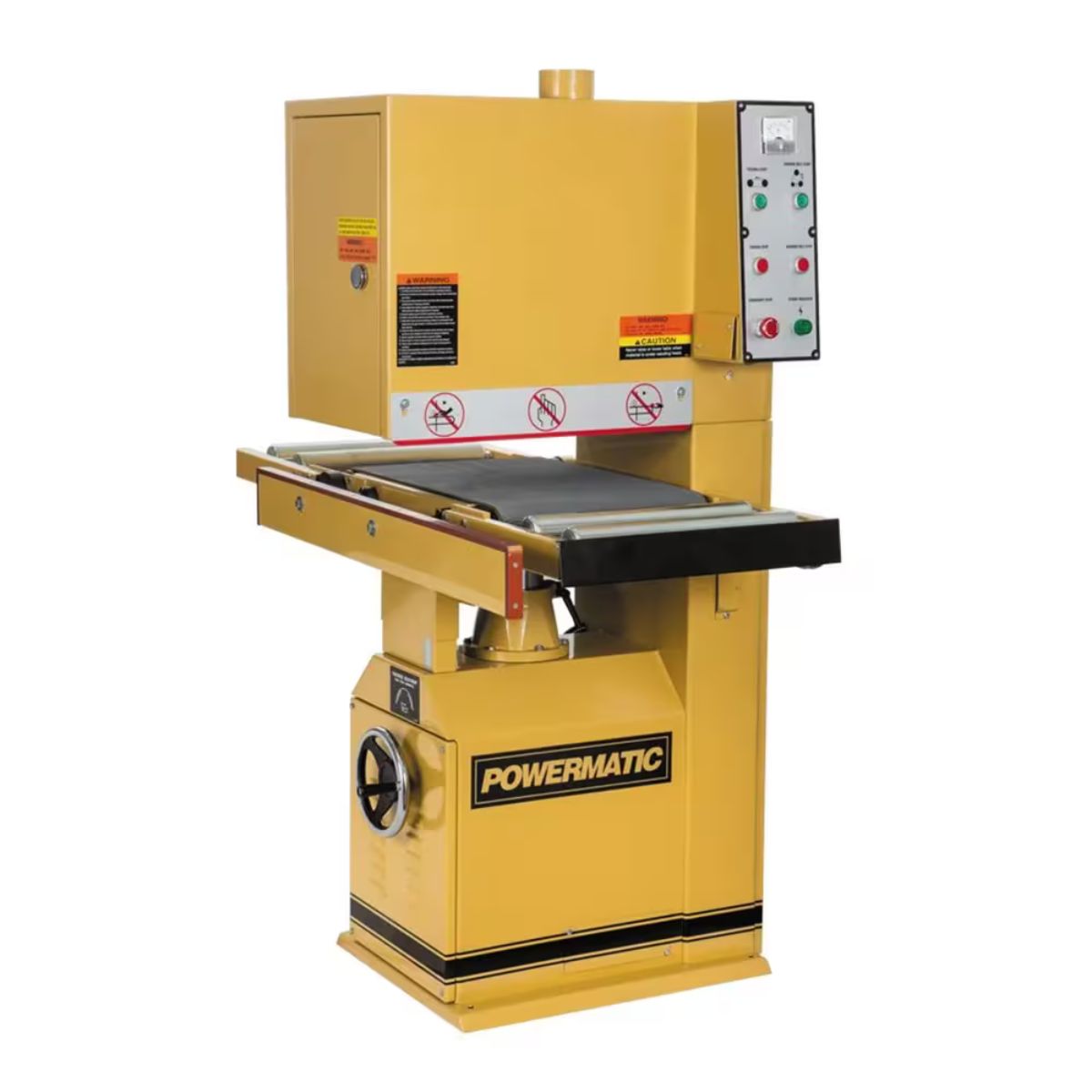

Meet the Powermatic 1632 Open-End Belt Sander, designed to deliver controlled, repeatable sanding for professional and production shops.
With an open-end design, pneumatic tracking, and a 5 HP motor, it provides stable performance while handling wider material in multiple passes.
When your sanding process stays consistent, your panels come off the machine ready for finishing with less rework.
Powermatic 1632 for Wide Panel Sanding Capacity
Open-End Design Expands Panel Width Capacity
The open-end configuration allows stock wider than the 16 inch belt capacity to be sanded in multiple passes. This makes it well suited for cabinetry panels, tabletops, and glued assemblies. It extends the usable capacity of the machine without increasing footprint. Shops can handle larger work without moving to a full wide belt system.
Pneumatic Tracking System Maintains Belt Alignment
The pneumatic conveyor tracking system automatically keeps the sanding belt centered during operation. This reduces the need for manual adjustments and minimizes downtime. Consistent tracking improves abrasive wear and sanding accuracy. It helps maintain predictable results across longer runs.

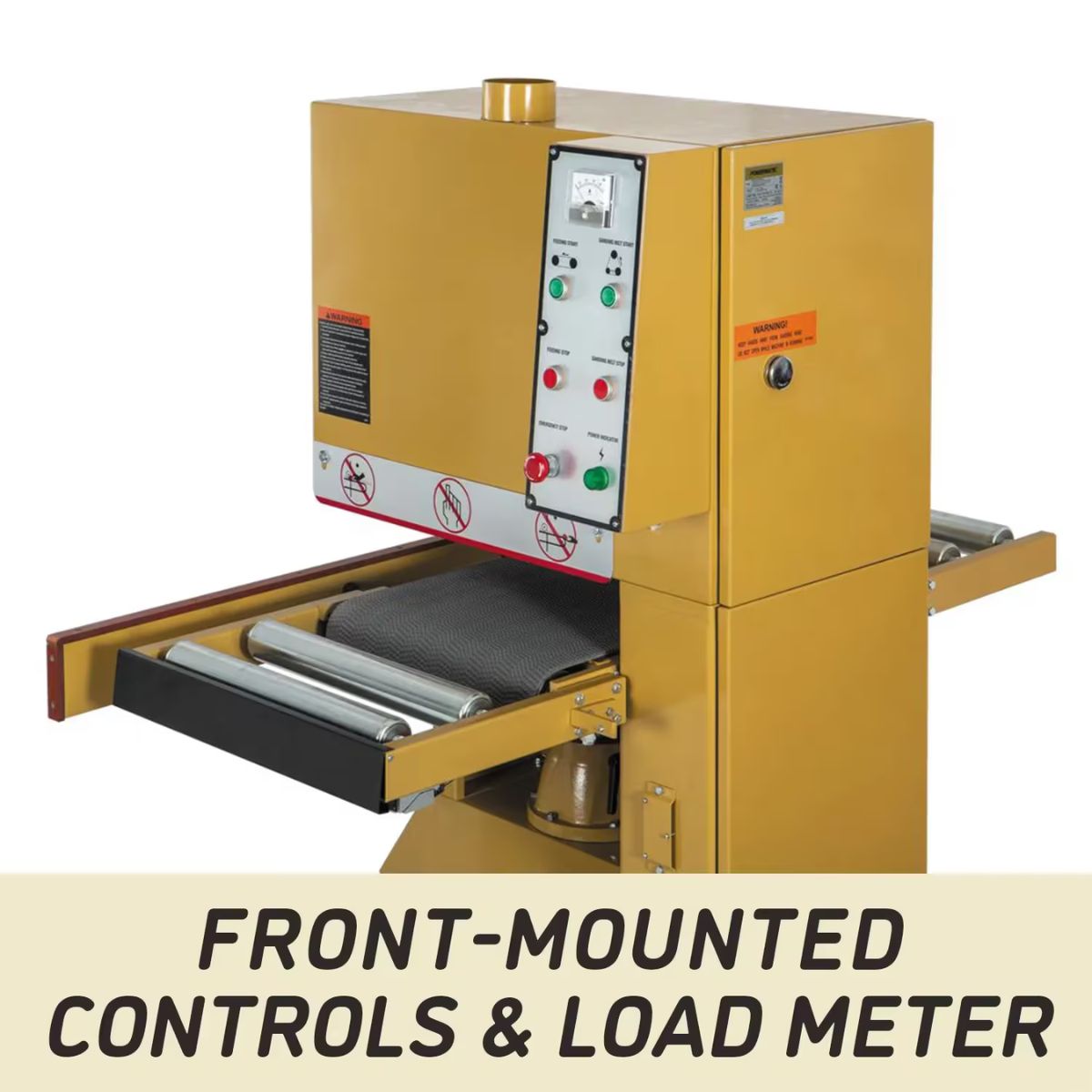

Load Meter and Dual Feed Speeds Control Sanding Pressure
The front-mounted load meter provides real-time feedback on sanding pressure during operation. Operators can adjust feed rate using dual speed settings to match material and finish requirements. This helps prevent overloading the motor while maintaining consistent stock removal. It improves control over both finish quality and efficiency.
Safety Limiters and Oscillation Improve Reliability

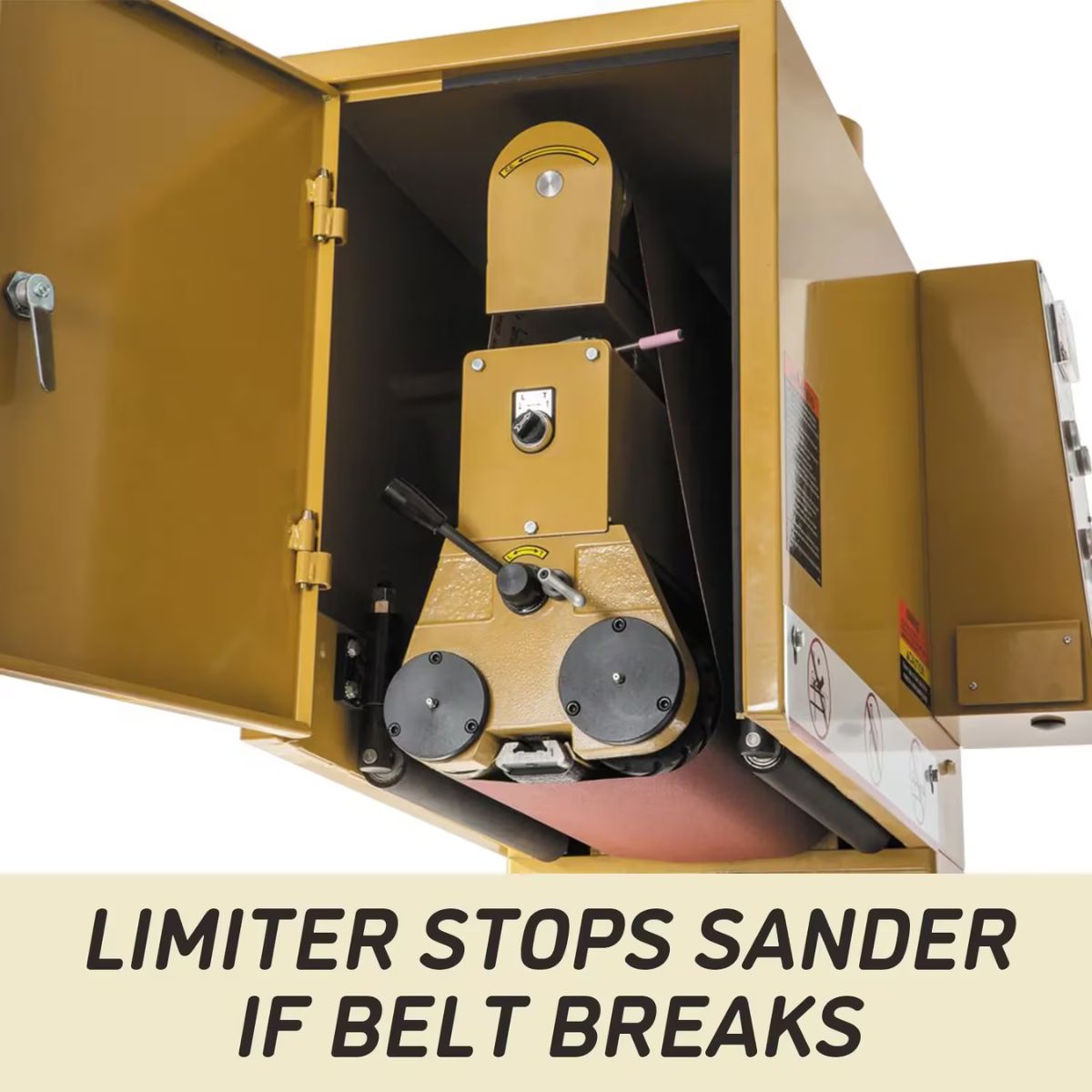

Metal-tipped safety limiters stop the machine immediately in the event of belt breakage. The air-pressured oscillating system promotes even belt wear and smoother surface results. Together, these systems support safer operation and more consistent finishes. They also help extend abrasive life during regular use.
What’s Included
What’s Included? Powermatic 1632 Open-End Belt Sander
-
1632 Open-End Belt Sander – Provides controlled sanding for panels and wide stock.
-

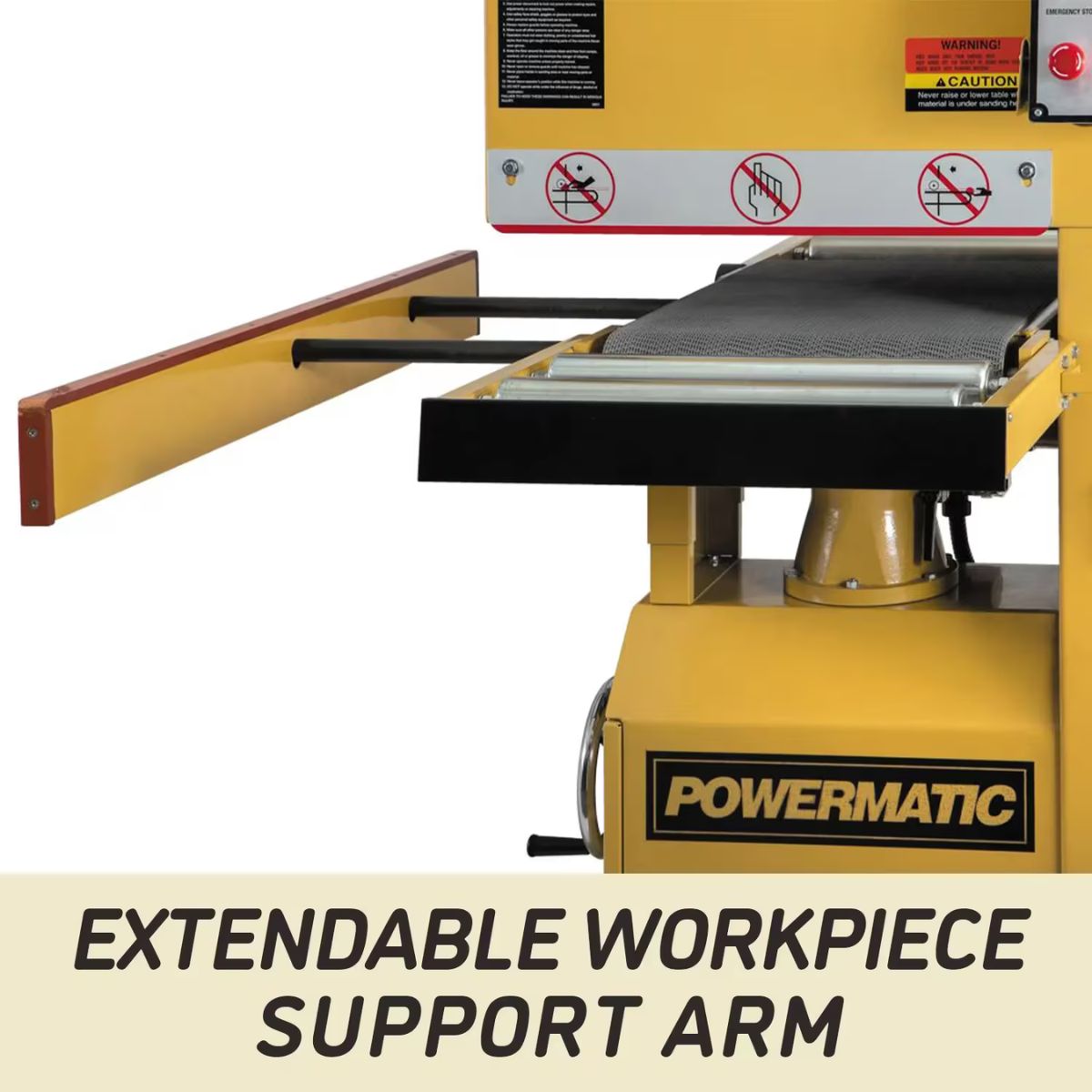

Extendable Workpiece Support Arm – Supports longer material during infeed and outfeed.
-
Integrated Load Meter Controls – Allows monitoring of sanding pressure in real time.
Specs
Powermatic 1632 Open-End Belt Sander Specifications
- Maximum Board Width: 16 inch
- Maximum Board Thickness: 5 inch
- Motor: 5 HP
- Voltage: 230V, Single Phase
- Dust Port Diameter: 4 inch
- Net Weight: 996 lbs
- Gross Weight: 1106 lbs
- Model Number: 1632
- Stock Number: PM9-1791250
- Warranty: 5 Year
- Prop 65: Cancer and Reproductive Harm
