Oliver 6320 9" × 138" Oscillating Edge Sander
Are you fighting to get a smooth, uniform finish on long edges with a machine that stays stable and accurate through heavy sanding?
What if you could make clean passes on flat and contoured work with steady tracking and a finish that stays consistent from end to end?
Meet the Oliver 6320, a full-size oscillating edge sander built for craftsmen who need controlled sanding across wide runs and detailed shapes.
With its cast iron tables, balanced drums, and your choice of a 3HP 1Ph or 3Ph motor, you can match the machine to your shop’s wiring without extra electrical work.
When your setup fits your workflow and your power source, you work faster and with more confidence on every project.

Oliver 6320 Delivers Full-Size Control Edge Sanding
The 6320 supports professional craftsmen who need stable, accurate sanding across long runs, tight details, and heavy workloads.
Oscillation for a Clean, Even Finish
The adjustable oscillation helps reduce loading and keeps the belt moving across fresh abrasive. This supports a smoother finish on long edges and reduces the risk of heat marks or uneven sanding during production work.
Stable Cast Iron Tables for Accurate Work
Both cast iron tables are precision-ground and stay solid under heavy pressure. Height adjustments give you full use of the belt, helping you keep passes flat and consistent whether you are sanding large panels or smaller stock.
Balanced Drums and a Strong 3HP Motor
The precision-balanced drums run smooth, and the 3HP TEFC motor keeps the belt moving steadily under load. Choose 1Ph (SKU 6320.001) for simple installation in most small shops, or 3Ph (SKU 6320.003) for shops already running three-phase service and wanting the smoother performance it provides during long sanding sessions.
Versatile Setup for Flat and Contour Sanding
The spring-assisted main table simplifies height changes, while the dedicated end table supports contour and radius sanding. This gives you control over a wide range of tasks without repeated setup challenges or complicated adjustments.




What’s Included
What’s Included — Oliver 6320 Oscillating Edge Sander
- Oliver 6320 Oscillating Edge Sander — Full-size 9" × 138.5" edge sander for controlled flat and contour sanding.
- Cast Iron Main and End Tables — Provide stable surfaces for accurate passes.
- Precision-Balanced Drums — Support smooth belt operation during demanding work.

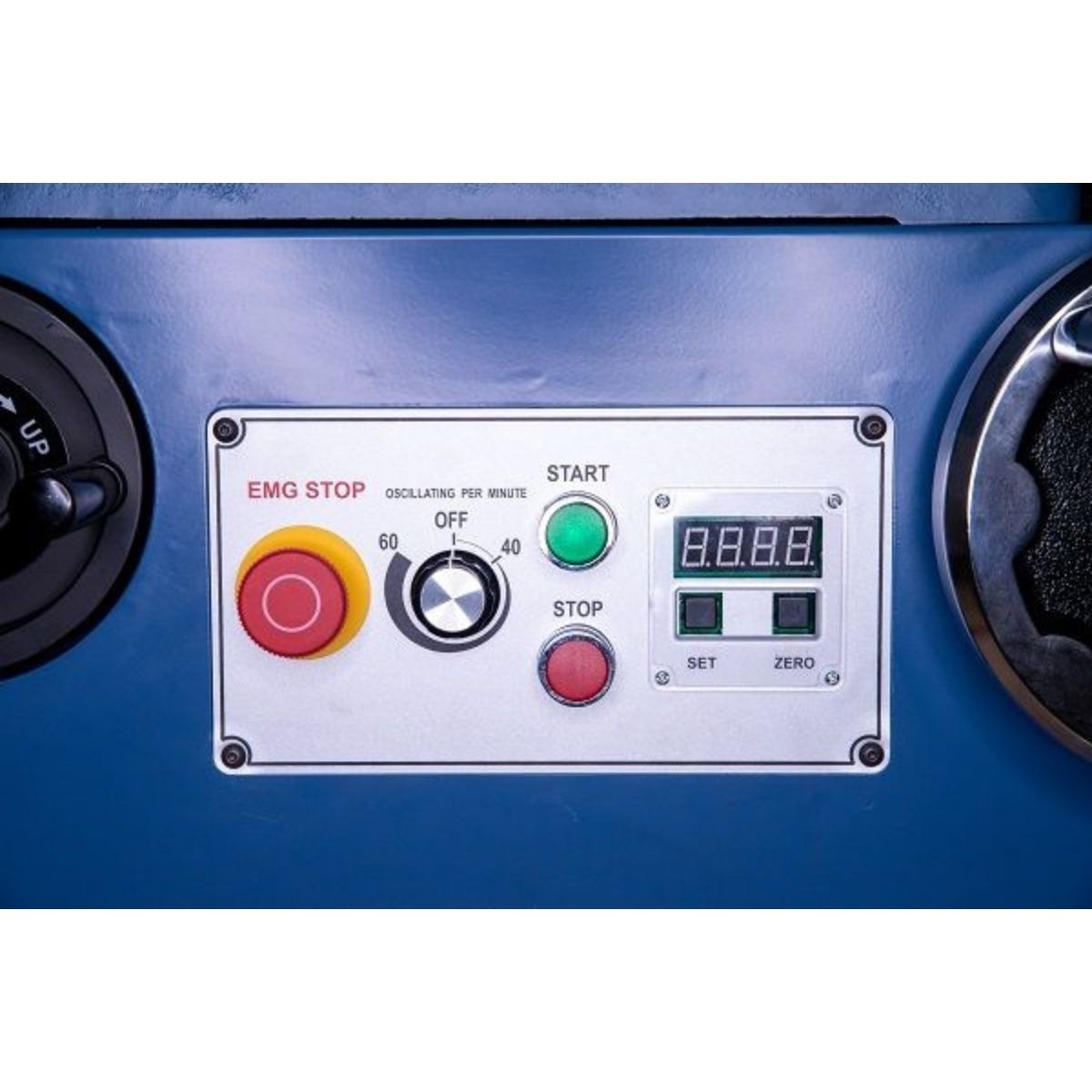

- Magnetic Controls — Add safety and protect the motor during start and stop cycles.
- Power Options: 1Ph (SKU 6320.001) for standard shop wiring, or 3Ph (SKU 6320.003) for shops equipped with three-phase service.

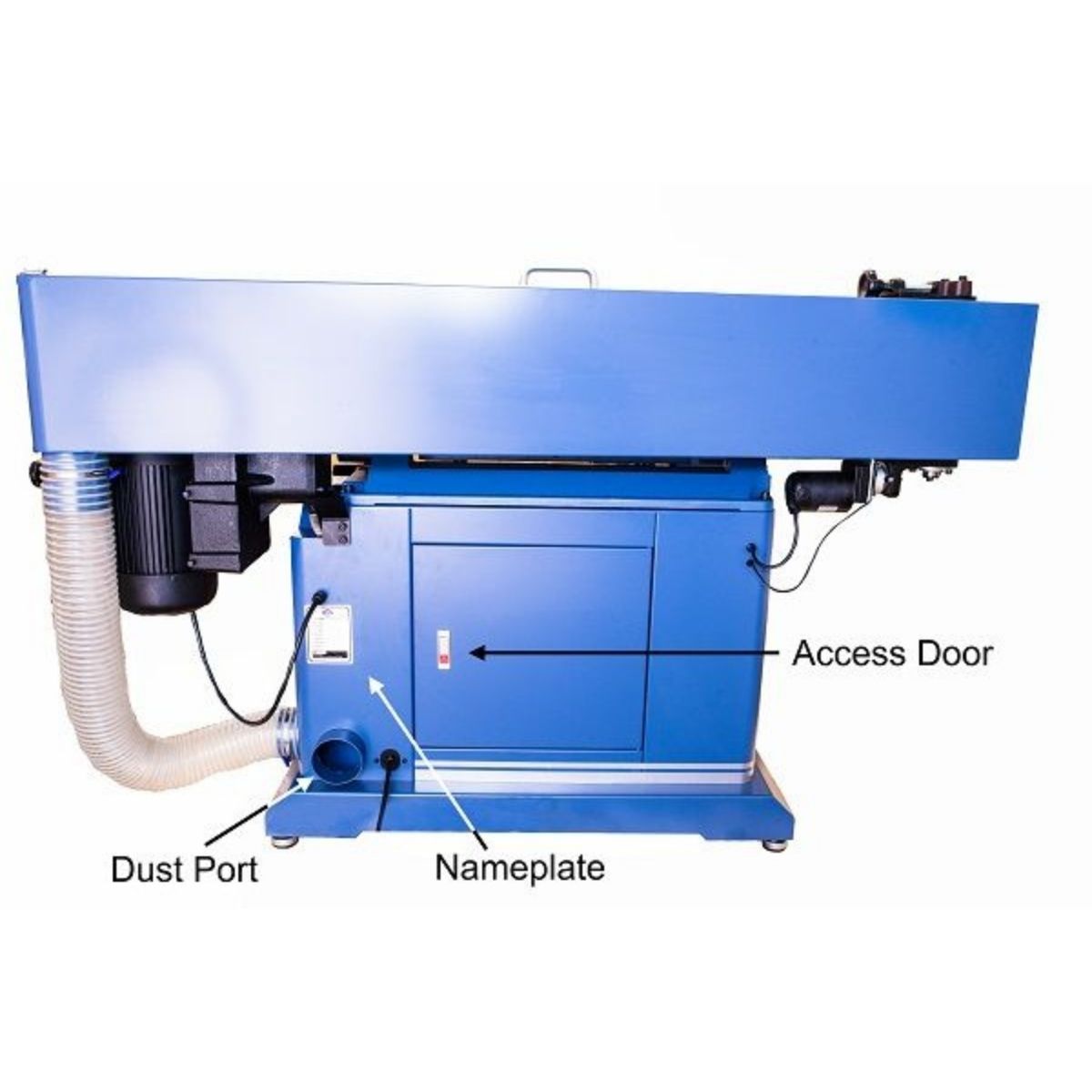

- Built-in 4" Dust Port — Supports efficient dust management for cleaner shop use.
Specs
Oliver 6320 Specifications
- Model Number: 6320
- Stock Numbers: 6320.001 (1Ph) / 6320.003 (3Ph)
- Table Material: Cast Iron
- Main Table Size: 13" × 46"
- End Table Size: 13" × 18" radius
- Working Table Height: 34.5"–42.5"
- Main Table Tilt: -5° in / 45° out
- End Table Tilt: Fixed
- Belt Size: 9" × 138.5"
- Belt Speed: Approx. 4,100 FPM
- Oscillation: 0, 40–60 per minute
- Oscillation Stroke: 13/64"–25/64"
- Dust Port Diameter: 4"
- Minimum CFM Required: 650 CFM
- Motor Options: TEFC 3HP — choose 1Ph (fits most small shops) or 3Ph (for shops already running three-phase service).

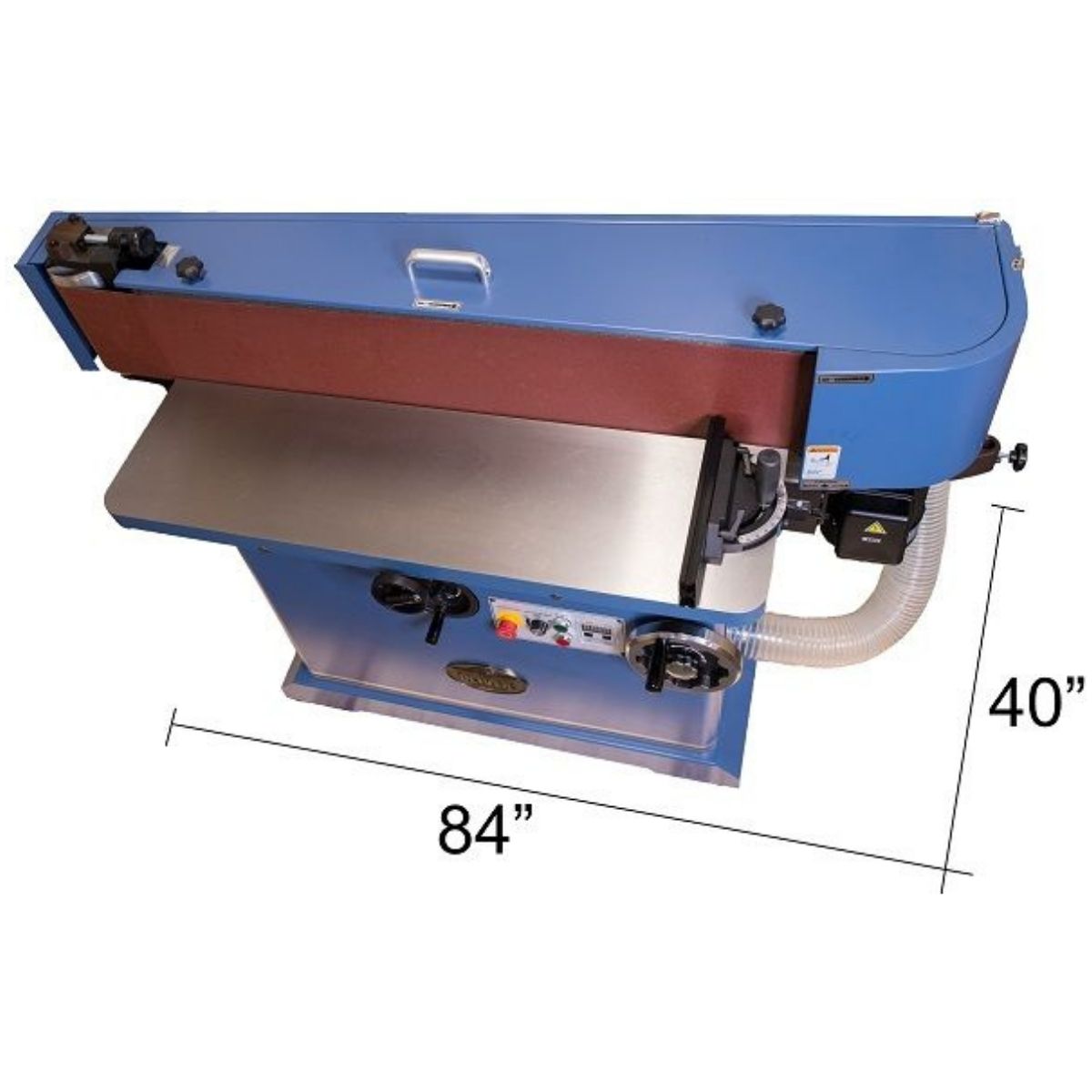

- Overall Dimensions: 84"(L) × 40"(W) × 44"(H)
- Net Weight: 623 lbs
