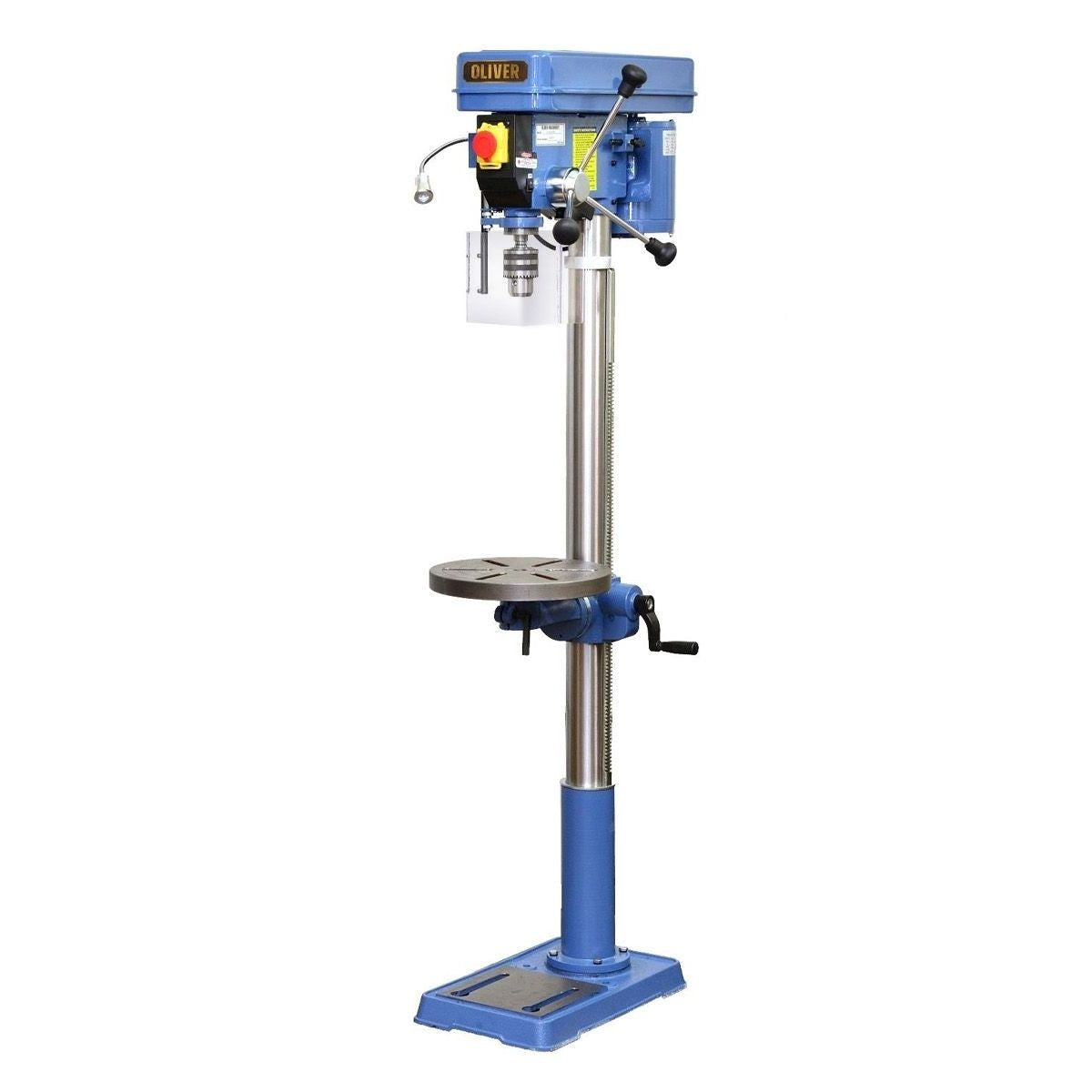

Oliver 14" Drill Press - Floor Model 10061
Struggling with inconsistent hole placement, hard-to-see layouts, or a drill press table that never seems to sit where you need it?
The Oliver 10061 14” Floor Drill Press gives small and midsize shops the accuracy and control they want with smooth table adjustments, clear sightlines, and dependable stability. A built-in laser, LED work light, and 12 selectable speeds help you drill straighter, cleaner holes with less trial and error.
When your drill press is easy to position and stays accurate through the cut, your layouts tighten up, your results improve, and your workflow stays efficient from one project to the next.

Reliable Drilling Performance for Everyday Woodworking
Designed for woodworkers who want clear visibility, easy table movement, and consistent accuracy without the bulk of a larger drill press.
Better visibility for tighter hole placement

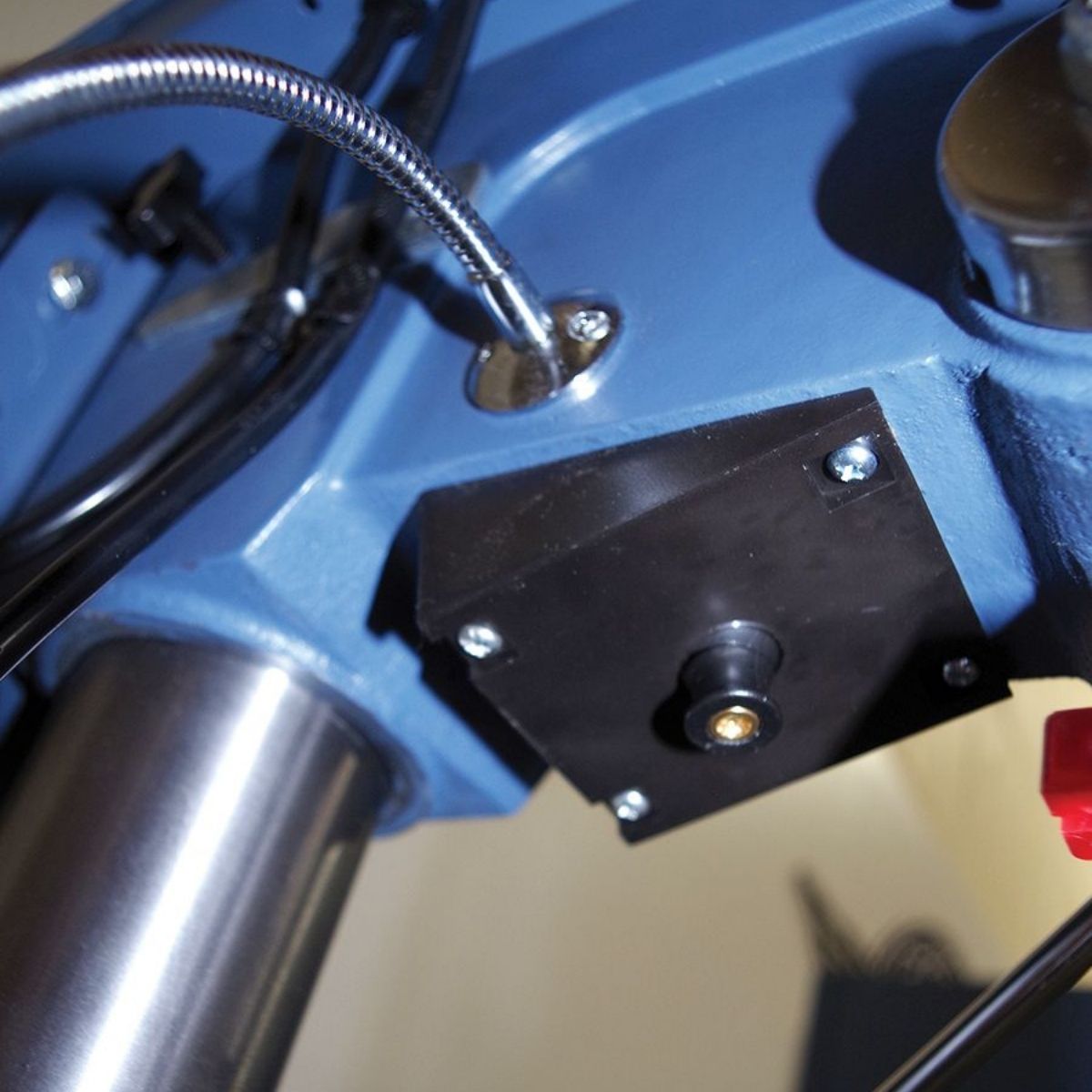

The integrated laser pointer shows exactly where the bit will land, helping you hit center marks with confidence. A bright LED light eliminates shadows around the workpiece, making layouts easier to follow. Sealed ball bearings keep the spindle running smooth and true, reducing drift and improving the quality of every hole.

Effortless table movement for quick adjustments
A crank-operated rack-and-pinion system raises or lowers the table smoothly, letting you adjust height without lifting. The round table rotates 360° and tilts 45° in either direction for angled drilling or edge work. Once set, the locking clamp keeps the table solid so your workpiece doesn’t shift mid-cut.

Smooth power and reduced vibration

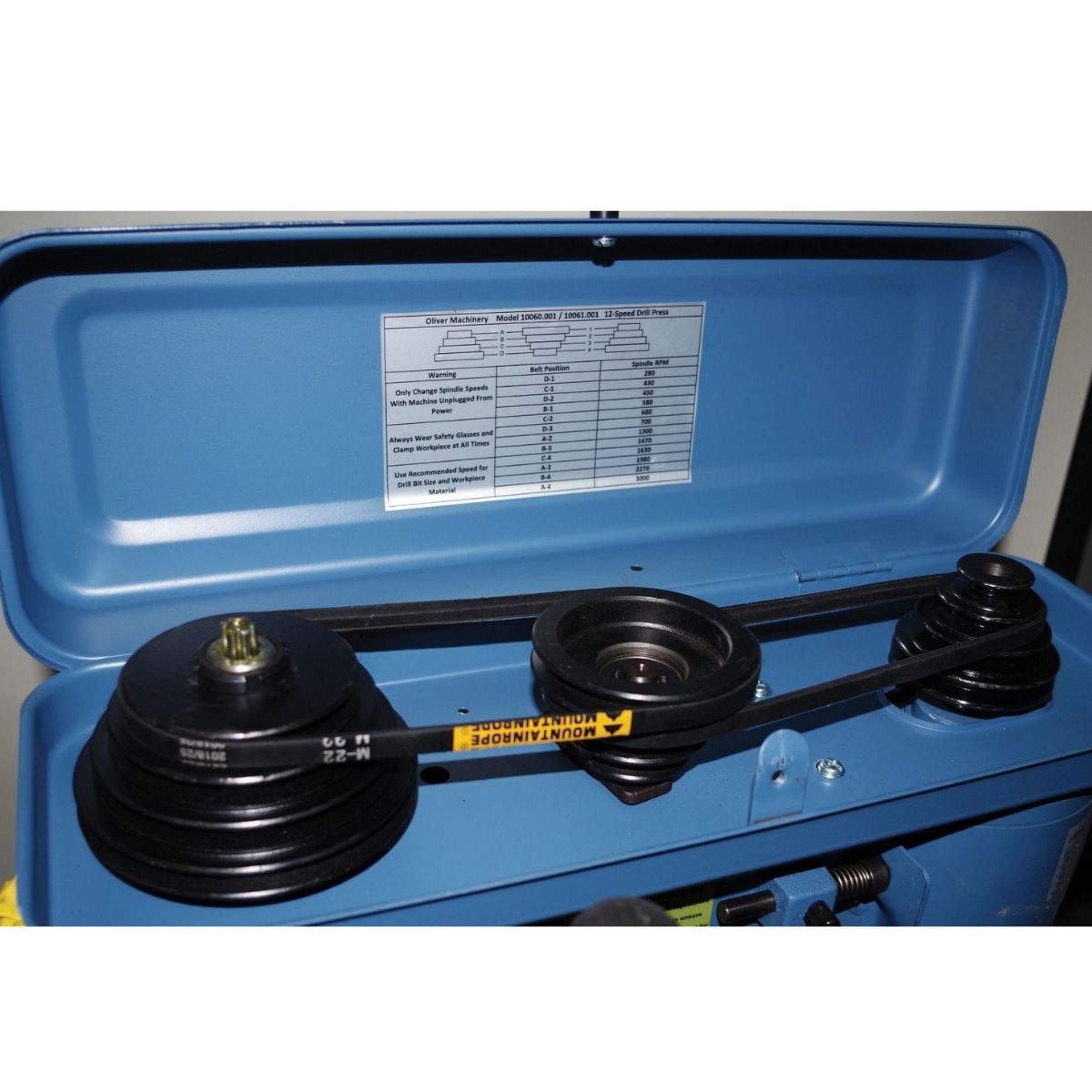

The 1/2HP TEFC motor delivers steady power for common woodworking bits, while cast-iron pulleys help dampen vibration for cleaner results. With 12 speeds ranging from 280 to 3,000 RPM, you can match the drill speed to your bit size and material. At 126 lbs, the machine stays planted for more comfortable, more accurate drilling sessions.

What’s Included
What’s Included — Oliver 10061 14" Floor Drill Press
- Oliver 10061 Drill Press — stable and accurate with a compact, easy-to-position design.
- 5/8" Chuck with Key — compatible with common woodworking bits.
- Chuck Guard — adds protection for safer drilling.
- Laser Guide — helps align your bit quickly and consistently.
- LED Work Light — brightens the work area for clear visibility.
- Depth Stop — supports repeatable drilling with controlled depth.
- Owner’s Manual & Safety Guide — assists with proper setup and operation.
Specs
Oliver 10061 Drill Press Specifications
- Type: 14" Floor Drill Press
- Swing: 13-1/4"
- Drilling Capacity: 3/4"
- Chuck Capacity: 5/8"
- Chuck Taper: JT-3
- Spindle Taper: MT-2
- Spindle Travel: 3-1/8"
- Spindle Speeds: 12 speeds, 280–3,000 RPM
- Table Size: 11-1/2" round
- Table Tilt: ±45°
- Spindle to Table: 31-1/2"
- Spindle to Base: 48-1/2"
- Column Diameter: 2-7/8"
- Base Size: 10-1/2" × 16-3/4"
- Overall Height: 62"
- Motor: 1/2 HP, 115V (8 amps)
- Net Weight: 126 lbs
- Gross Weight: 135 lbs
