Laguna U15 Metal Dust Collector
Are you struggling to keep metal dust and shavings under control in a smaller shop?
What if one compact dust collector could clear the air without taking up valuable floor space?

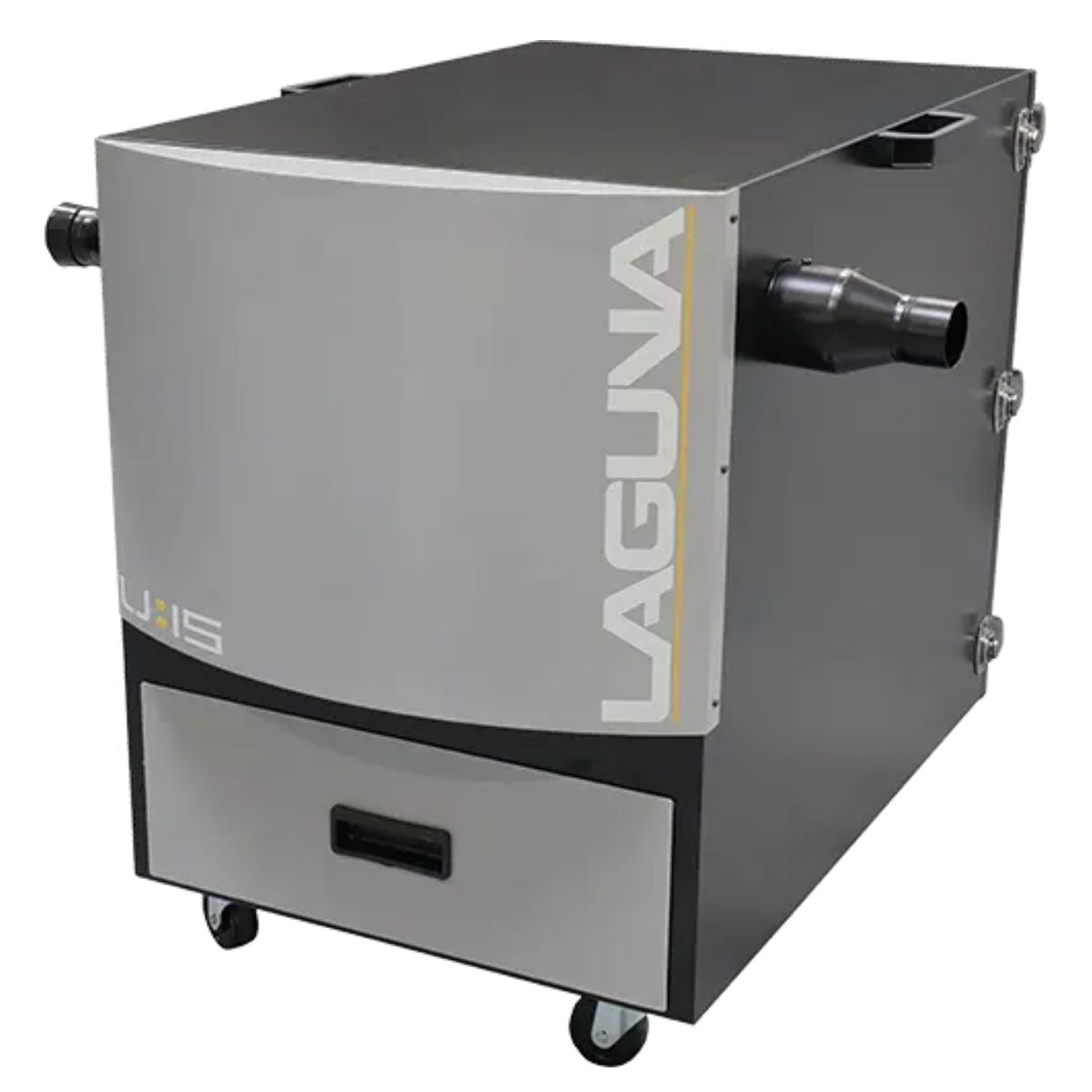

Meet the Laguna U15 Metal Dust Collector, a steel cabinet unit built to capture metal dust and shavings.
With a 1.5 HP motor, 490 CFM airflow, and two 3 inch inlets, it pulls debris from multiple machines at once.
When your shop air stays clear, you can focus on the work instead of the mess.
Laguna U15 for Metal Shop Dust Control
1.5 HP Motor Powers Strong Suction
The 1.5 HP motor spins at 3450 RPM to move up to 490 CFM of air. This gives the U15 enough pull to clear metal dust and shavings from more than one machine at a time.
Aluminum Impeller Maintains Steady Airflow
The 11 inch aluminum impeller is built to handle metal shavings without losing airflow over time. A steel cabinet surrounds it for a stable, long lasting base.
Fire-Resistant Filter Keeps Air Cleaner
The galvanized micro mesh filter traps fine metal dust before it reaches your shop air. Its fire-resistant design adds a layer of safety when collecting metal debris.
Swiveling Casters Simplify Repositioning
Smooth-rolling 2.5 inch swiveling casters let you move the U15 to wherever it is needed. This makes it easy to serve different machines around the shop without a fixed setup.
What's Included
What's Included? Laguna U15 Metal Dust Collector
-
Laguna U15 Metal Dust Collector — A complete dust collection unit with filter and collection drawer installed, ready to connect to your shop machines.
Specs
Laguna U15 Metal Dust Collector Specifications
- Model: MDC502L11015
- Motor: 1.5 HP
- Motor Speed: 3450 RPM
- Electrical: 110V / 60Hz / 1 Phase
- Amps: 10 FLA
- Switch: Magnetic
- Power Cord: 6 ft
- Plug: 5-15P
- Inlet Size: 3 in x 2 (plus 2 in adapter)
- Noise Volume: 71.5 dB
- Maximum Air Flow: 490 CFM
- Static Pressure: 9.4 in H2O
- Impeller Size: 11 in diameter
- Collection Volume: 4.4 gallons
- Filter Material: Galvanized micro mesh
- Filter Size: 19.25 in x 9.5 in x 1.8 in
- Construction: Steel cabinet, aluminum impeller
- Start Capacitor: 200uF / 125V
- Run Capacitor: 300uF / 250V
- Wheels: 2.5 in swiveling
- Assembled Size: 35.5 in x 32 in x 29.3 in
- Shipping Size: 35 in x 26 in x 30.7 in
- Net Weight: 165 lb
- Shipping Weight: 185 lb
