Laguna SuperMax 19-38 Drum Sander
Are you tired of uneven surfaces, burn marks, and sanding setups that slow down your workflow?
What if you could run everything from thin stock to wide panels with predictable feeding and a uniform finish every time?
The SuperMax 19-38 Drum Sander is built to give small shops clean, consistent results without fuss or constant readjustments.
With INTELLISAND™ load control, simple alignment, and a rigid cast iron frame, it keeps your sanding process steady and repeatable.
When your equipment stays accurate, your attention can stay on the work instead of the machine.
Consistent Surface Quality Without Constant Adjustment
The Laguna SuperMax 19-38 is made for woodworkers who need reliable flatness, smooth passes, and a setup that holds true over time.
Automatic Feed Control for Cleaner Results
INTELLISAND™ technology adjusts conveyor speed based on load, helping prevent burning, gouging, and stalling on mixed grain or uneven stock. This keeps your finish uniform even as material density changes from board to board.
Simple, Indexed Alignment for Narrow and Wide Stock
A single adjustment nut brings the conveyor into parallel with the sanding head, making alignment fast and uncomplicated. The indexed lever ensures proper setting when switching to wider material, giving you predictable sanding width up to 38 inches in two passes.
Smooth, Repeatable Height Adjustments
A thrust bearing under the handle combined with an upper-positioned nut prevents drift during sanding. With no backlash or slop in the mechanism, setting thickness is easier and stays where you put it—even on longer runs.
Rigid Construction for Long-Term Accuracy
The precision-flattened steel conveyor bed is reinforced with four steel cross sections, meeting a flatness guarantee of less than .010″ across its width. The drum carriage is bolted to the base to eliminate alignment movement, and a self-cooling drum reduces heat distortion and extends abrasive life.
Videos
What’s Included
What’s Included? Laguna SuperMax 19-38 Drum Sander
-

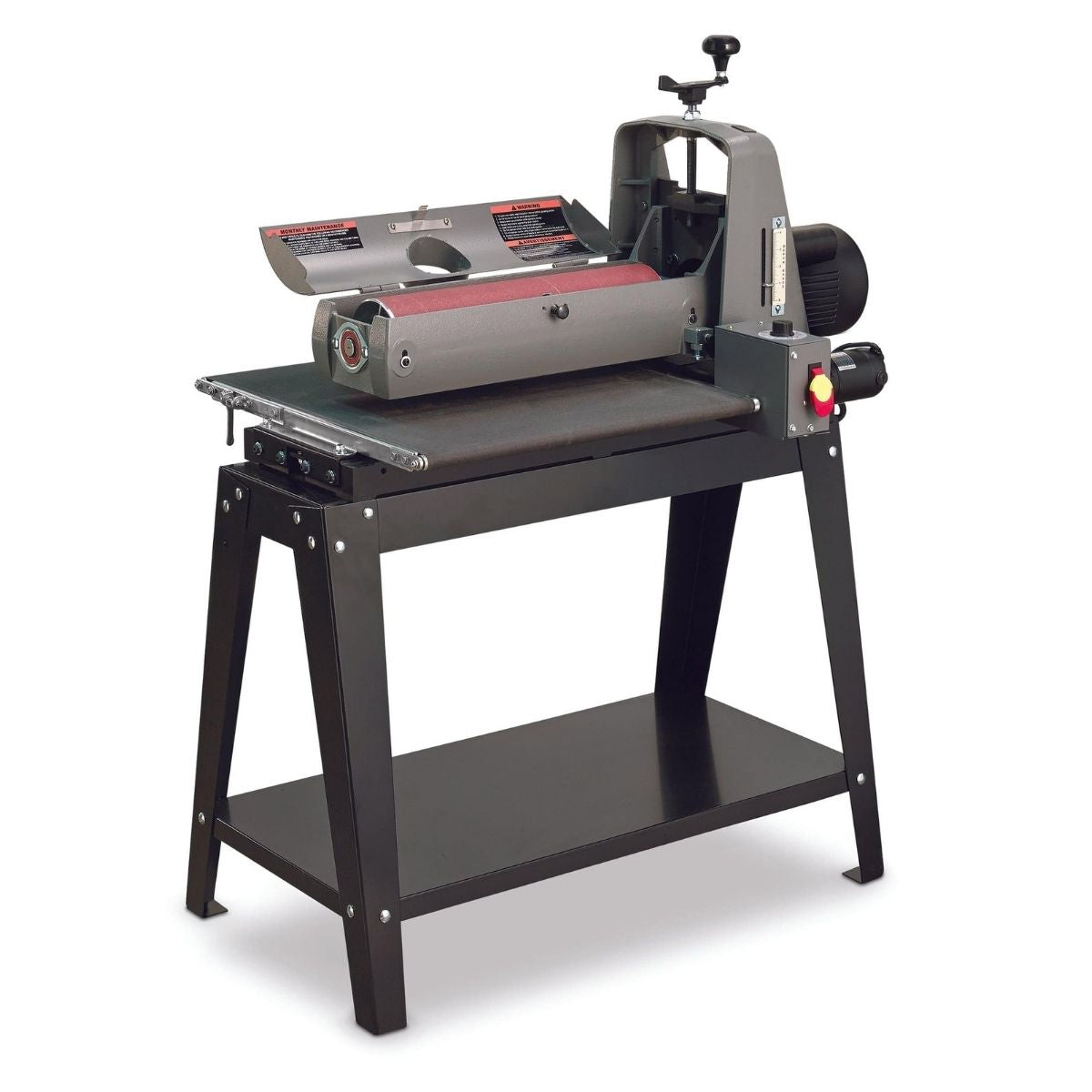

SuperMax 19-38 Drum Sander — Main sanding unit built for wide-capacity, load-controlled sanding.
-
Open Stand — Provides stable support with a clear workflow footprint.
-
Pre-Wrapped 80 Grit Abrasive — Allows you to begin sanding immediately.
-
Dust Hood with 4″ Port — Formed metal design maximizes airflow for efficient collection.
-
Abrasive Conveyor Belt — Offers strong grip for short, thin, or raw wood stock.
-
Instruction Manual — Covers setup, alignment, abrasive changes, and maintenance.
Specs
Laguna SuperMax 19-38 Drum Sander Specifications
Laguna SuperMax 19-38 Drum Sander Manual
- Sanding Capacity: Maximum Width 38″ (two passes)
- Minimum Sanding Length: 2-1/4″
- Maximum Sanding Thickness: 4″
- Minimum Sanding Thickness: 1/32″
- Machine Dimensions: 27″ D x 46″ W x 52″ H (on stand)
- Drum: 5″ x 19″ extruded aluminum
- Drum Speed: 1740 RPM
- Dust Hood: One 4″ port (minimum 600 CFM recommended)
- Conveyor Motor: 43 lb torque, direct-drive DC motor, variable 0–10 FPM
- Drive Motor (TEFC): 1-3/4 HP
- Power Requirements: 110V, 15 Amp (20 Amp service recommended)
- Shipping Weight: 286 lbs (three boxes including stand)
- Flatness Guarantee: Less than .010″ across conveyor width
- CSA Certified: Yes
