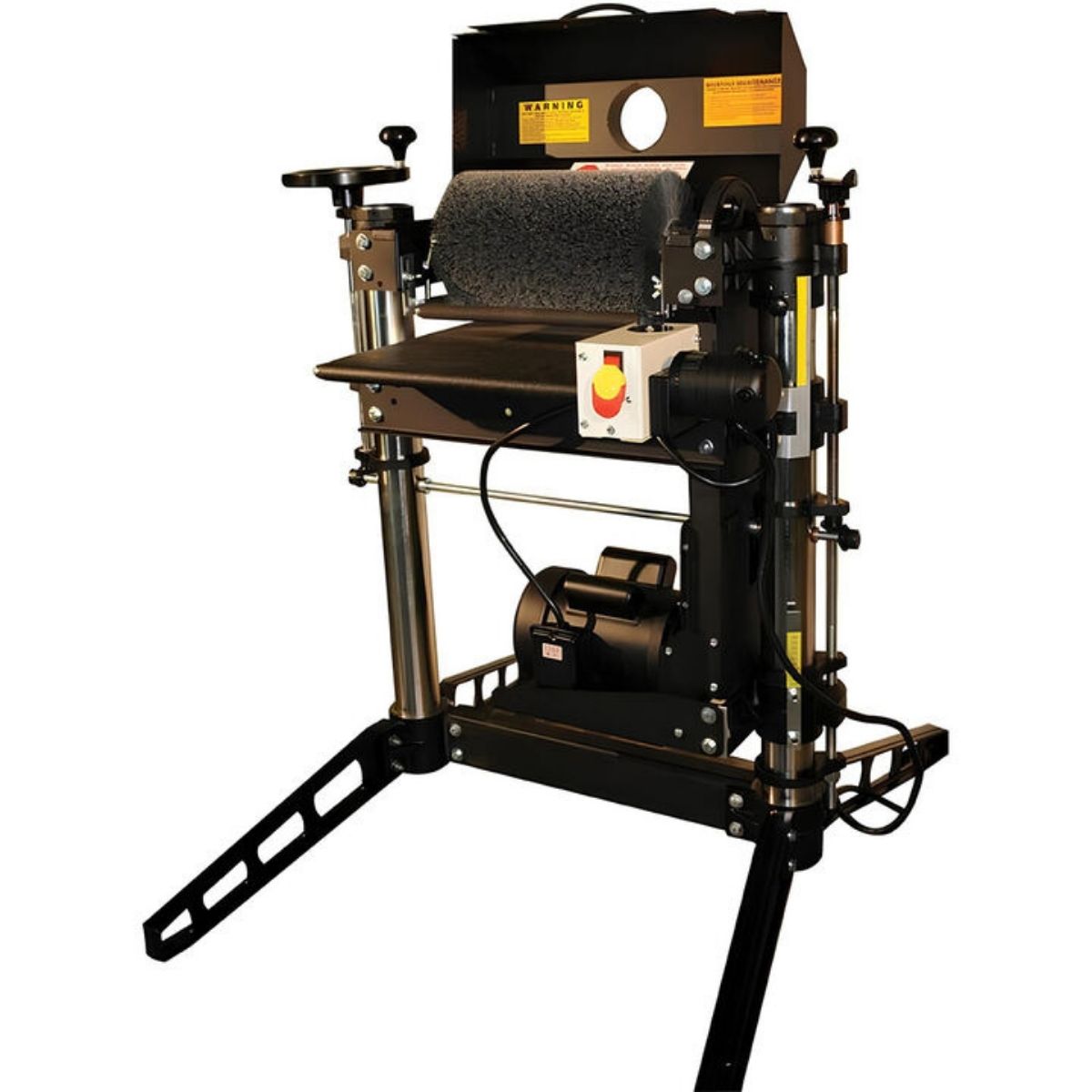

Laguna SMT 13 Inch Combination Brush Drum Sander
Are you tired of production bottlenecks slowing down your finishing work?
What if one machine could handle raw wood sanding through final coat prep without swapping tools?
Meet the Laguna SMT 13 Inch Combination Brush Drum Sander, a shop machine built with moldings in mind.
With a 1-3/4 HP motor and quick change brush heads, it moves through stock from 1/32 inch up to 4 inches thick.
When one machine covers every sanding step, your finishing line keeps moving instead of waiting on changeovers.
Laguna SMT 13" Combo Sander for Production Finishing Work
Variable Brush Speed Controls Finishing Passes
Brush speed and conveyor feed rate are both infinitely variable, so you can dial in the pass for the material and finish stage. This lets you move from raw wood sanding to fine finish work on the same machine.
Adjustable Tension Rollers Prevent Stock Slippage
Fully adjustable tension rollers hold stock steady as it feeds through the machine. Consistent contact means fewer skips and a more even result across the full length of the piece.
Reinforced Steel Conveyor Bed Steadies Feed
The reinforced steel conveyor bed and poly conveyor belt keep stock moving flat and true through the sanding head. A steady feed helps produce consistent results from the first piece to the last.
Optional Sanding Drum Adds Surface Sanding
An optional sanding drum can be added for surface sanding work beyond what the brush head covers. Quick change brush heads and abrasive loadings make switching between setups straightforward.
What's Included
What's Included? Laguna SMT 13 Inch Combination Brush Drum Sander
-
Laguna SMT 13 Inch Combination Brush Drum Sander — Provides the full combination brush/drum sanding platform for production finishing work.
-
Bristle Contact Gauge — Helps you set and check brush contact for consistent sanding results.
Specs
Laguna SMT 13 Inch Combination Brush Drum Sander Specifications
- SKU: SUPMX-91067
- Maximum Sanding Width: 13 in
- Minimum Length: 9 in
- Maximum Thickness: 4 in (varies with drum/brush style)
- Minimum Thickness: 1/32 in
- Machine Dimensions (W x L x H): 42" x 35" x 44"
- Drum: 5" x 13" Extruded Aluminum
- Brush: 6-8" Typical Diameter
- Speed: Ranged Variable RPM, 400-1200
- Dust Hood: 4" Port, Hinged at Back, 600 CFM Minimum Recommended
- Conveyor Motor: 43 in.-lb. Torque, Ranged Variable, 0-10 FPM
- Drive Motor: 1-3/4 HP, TEFC
- Power Requirements: 110 Volt, 20 Amp Service
- NEMA Plug: 5-15P
- Shipping Weight: 300 lb (approx, varies based on how equipped)
- Shipping Dimensions (L x W x H): 34-1/2" x 45-1/2" x 46-1/2"
