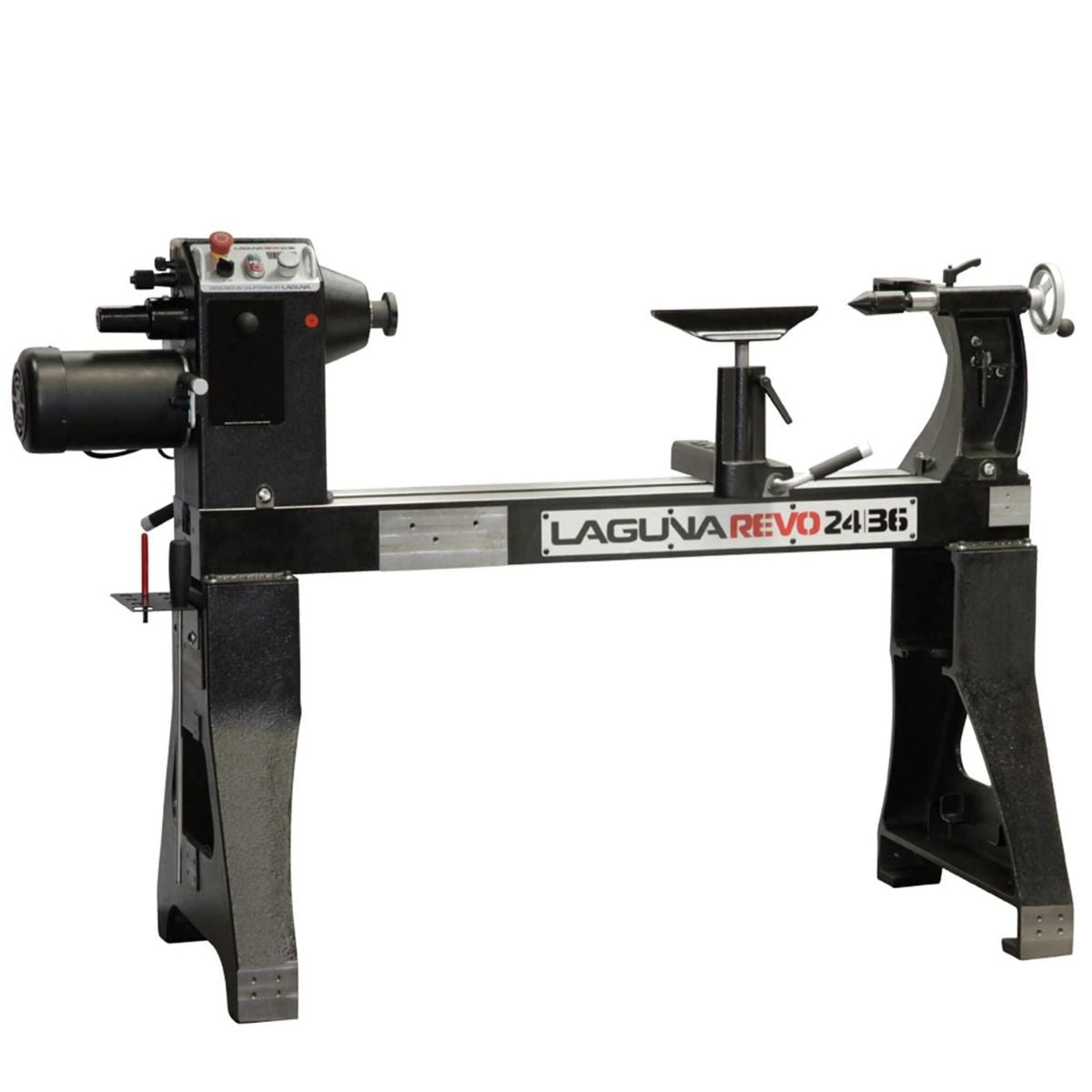

Laguna 2436 Lathe
The Revo 24|36 is built for woodworkers who value stability, control, and consistent results. Its heavier leg construction offers a solid foundation, reducing movement and enhancing precision during turning.
![]()
The redesigned banjo provides a wider base and 45° cutout, allowing for smoother adjustments and improved tool support. A standout feature is its dual-position control panel, letting users manage speed and stop functions from either a high or low mounting point, improving both comfort and accessibility. With a 3HP motor and Delta variable frequency drive, the lathe delivers reliable power across a wide range of speeds, supporting everything from detailed spindle work to larger bowl turning. Additional thoughtful features include a spring-loaded spindle lock, tailstock storage, and a self-ejecting quill—all aimed at streamlining workflow and improving safety. T
he Revo 24|36 is a solid, dependable choice for those who need lasting performance and well-considered design in their woodworking tools.
Features & Benefits Laguna Revo 24|36 Lathe
The Revo 24|36 isn’t just another lathe—it’s a tool built to give serious woodworkers greater control, consistency, and confidence at every step. Whether you're shaping intricate spindles or turning large, challenging forms, this lathe is designed to support your craft with steady, reliable performance. What sets it apart isn’t just how it’s made, but how it lets you work—more efficiently, more comfortably, and with fewer interruptions. The thoughtful design helps reduce fatigue and keeps adjustments within reach, so you can focus on the piece in front of you, not the machine behind it. For hobbyists and professionals alike, this lathe removes many of the small frustrations that can come with long sessions at the bench. It’s a machine that understands your rhythm and keeps pace with your process. From the first roughing pass to final finishing touches, the Revo 24|36 gives you the support you need to do your best work—day in and day out—without distraction.
Dual-Position Control Panel with Speed Adjustment
This lathe includes a second control panel that can be mounted high or low, allowing you to adjust speeds or stop the machine from different working positions—improving accessibility and overall workflow.
Sturdy Leg Construction for Increased Stability
The legs on the Revo 24|36 have 80% more wall thickness than the 18|36 model, helping minimize vibration and creating a solid foundation for more accurate and comfortable turning.
Redesigned Banjo with Wider Base and Cutout
The banjo’s updated design includes a 45° cutout and a broader base, making tool rest positioning easier and more secure—ideal for smooth transitions and improved support while cutting.
3HP Induction Motor with Variable Frequency Drive
A powerful 3-horsepower motor, paired with a Delta S1 VFD, provides steady torque across low and high speeds, allowing confident turning even with dense hardwoods or large-diameter workpieces.
Spring-Loaded Spindle Lock for Efficient Setup
The spindle lock is spring-loaded, simplifying chuck changes and accessory installation. It’s a small detail that speeds up your workflow without sacrificing safety.
Engraved, Self-Ejecting Quill for Tailstock Efficiency
The tailstock quill features engraved measurements for precision depth control and a self-ejecting mechanism that eliminates the need to manually remove tooling—saving time during repeated setups.
Precision-Machined Steel Bed for Long-Term Durability
Made from ASTM A36 steel, the lathe bed provides long-lasting support and reduced wear over time, ensuring dependable alignment and smooth tool travel during every project.
14/36/48 Spindle Indexing with Lock
With multiple indexing positions and a locking feature, this spindle system supports accurate layout work, fluting, or ornamental turning—making complex designs more manageable.
Tailstock Tool Storage for Convenient Access
Keep your centers and accessories close at hand with integrated storage in the tailstock. This feature reduces downtime and helps maintain an organized workspace.
Accepts Vacuum Chucking for Advanced Projects
The headstock is compatible with vacuum chucking setups, giving experienced users the option to turn pieces without tailstock pressure—useful for delicate or finished surface work.
What's Included
What's included? Laguna Revo 24|36 Lathe
- Revo 24|36 Lathe (220V)
- Remote control panel with mounting hardware
- 12" tool rest
- 3" faceplate
- Live center
- Drive center
- Tailstock with integrated storage
- Spindle lock mechanism
- Instruction manual
- Assembly tools
Specs
Specifications Laguna Revo 24|36 Lathe
-
Motor: 3HP, 220V, 1725 RPM
-
Phase: 1-Phase Input, 3-Phase Output
-
Variable Frequency Drive: Delta S1
-
Swing Over Bed: 24"
-
Swing Over Banjo: 19.75"
-
Distance Between Centers: 36"
-
Maximum Outboard Turning Diameter: 38" (with 20" extension)
-
Floor to Spindle Center: 44.5"
-
Floor to Bed Height: 32.5"
-
Spindle Size: 1.25" x 8 TPI RH
-
Toolrest Post Size: 1"
-
Tailstock Quill Travel: 4.5"
-
Tailstock Taper: #2 MT
-
Headstock Through-Bore: 0.375"
-
Headstock Taper: MT2, hardened to 40° HRC
-
Live Center Threads: 0.75" – 10 UNC
-
Indexing Positions: 14/36/48 with Lock
-
Drive Belt: Poly-Groove
-
Bearings: Front - 6307LLU, Rear - 6205LLU
-
Plug Type: 6-15P
-
RPM Range Low: 50–1300
-
RPM Range High: 135–3500
-
Breaker Size: 15 Amp
-
Face Plate Diameter: 3"
-
Weight: 610 lbs
-
Dimensions (W x D x H): 60" x 26" x 52.25"
-
Shipping Dimensions: 36" x 40" x 50"
Product Manual & Assembly Laguna Revo 24|36 Lathe
From setup and maintenance to speed control and proper adjustments, the manual walks you through every detail to ensure accurate, efficient, and safe operation.
Laguna Revo 24|36 Lathe Manual
