by Laguna Tools
SKU MRL300
$ 499.00
✓
No Sales Tax (Except ID and WI)
IN-STOCK: Ships out in 1 to 2 weeks
Questions? Call or Email Us

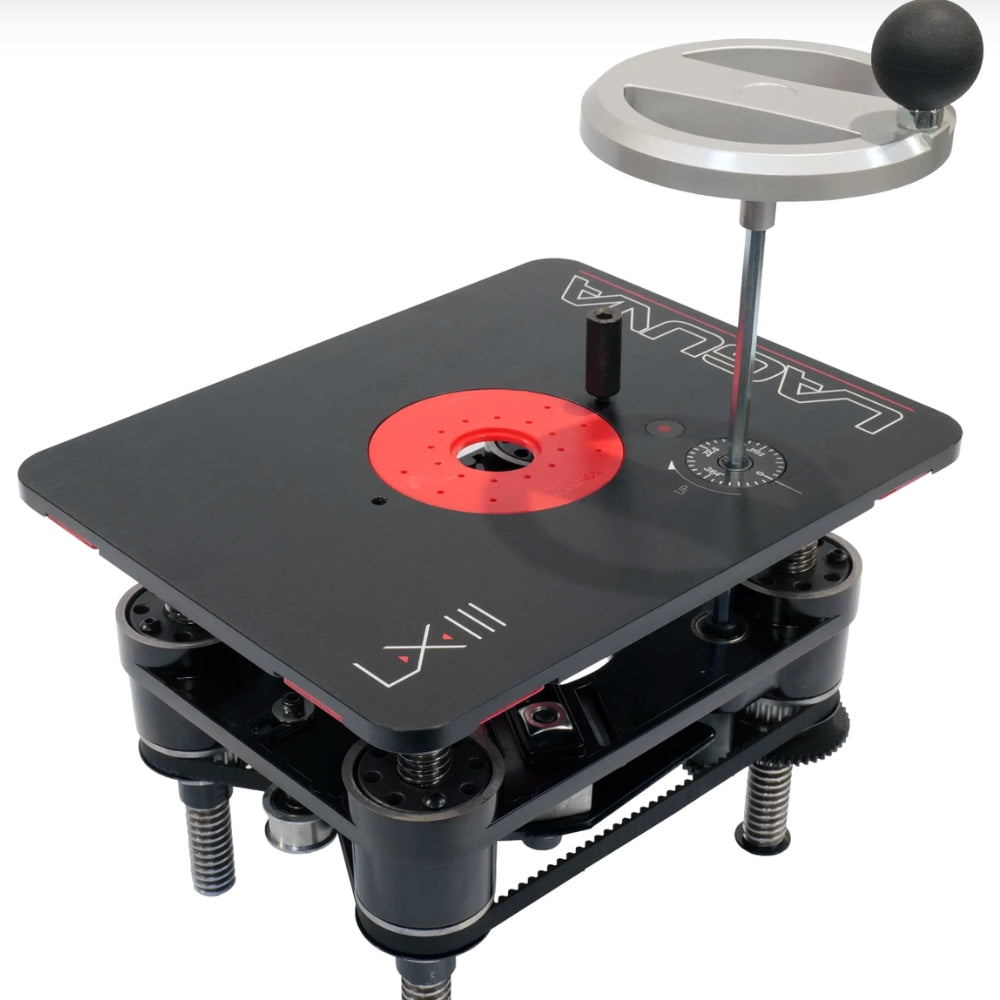

Laguna Router Lift LX3
Frustrated with lifts that feel rough, stiff, or hard to control?
What if your router lift stayed stable for cleaner, more professional results?
The LX3 Router Lift is designed to deliver smooth and correct height control, delivering the results you want. Its universal clamping system eliminates the hassle of compatibility issues, while the clean, durable top plate ensures effortless material feeding. Built for stability and ease of use, it helps you work faster, reduce errors, and achieve professional-quality results with confidence.

Rock-Solid Stability for Cleaner, More Professional Cuts
Delivers exceptional rigidity and durability while maintaining a smooth, flat work surface.
-
¾” Acme-Threaded Posts (4-Post System): Provides smooth, precise, and synchronized height adjustments for repeatable routing.
-
Maintenance-Free Timing Belt System: Keeps all posts perfectly aligned without the need for constant adjustments or upkeep.
- Universal Clamping Jaws: Securely fit most 3”– 4.3” round-body routers without requiring inserts or additional modifications.
-
Bottom-Drilled & Tapped Plate Design: Eliminates surface holes to prevent dust buildup and allows materials to glide effortlessly.
-
Adjustable Edge Tension Guides: Enhances stability by minimizing movement and vibration during operation.
- Built-in 4-Corner Leveling Plates: Ensures a perfectly flush fit with your table for consistently smooth results.
What's Included
What’s Included: Laguna Router Lift LX3
- Router Lift Assembly (Top Plate + Lift Mechanism)
- Four ¾” Acme-Threaded Lift Posts
- Maintenance-Free Timing Belt System
- Adjustable Clamping Jaws (Set)
- Magnetic Insert Ring
- 5” Handwheel with Rubber Grip Knob
- Scale Plate with Micro-Adjustment Markings
- Adjustable Edge Tension Guides
- 4-Corner Leveling Plates (Built-In)
- Starter Pin
Specs
Laguna Router Lift LX3 Specifications
-
Model Number: LX3
-
SKU: MRL300
-
Router Plate Size (L x W x H): 11.75” x 9.25” x 3/8”
-
Top Plate Thickness: 3/8”
-
Insert Ring Diameter: 3.86” (98mm)
-
Router Compatibility: 3” – 4.3” Diameter (Round-Body Routers)
-
Lift Mechanism: 4-Post System with ¾” Acme Threaded Posts
-
Synchronization System: Maintenance-Free Timing Belt
-
Leveling System: Built-in 4-Corner Adjustable Leveling Plates
-
Stability Features: Adjustable Edge Tension Guides
- Material Construction: Heavy-Duty Machined Plate and Steel Components
