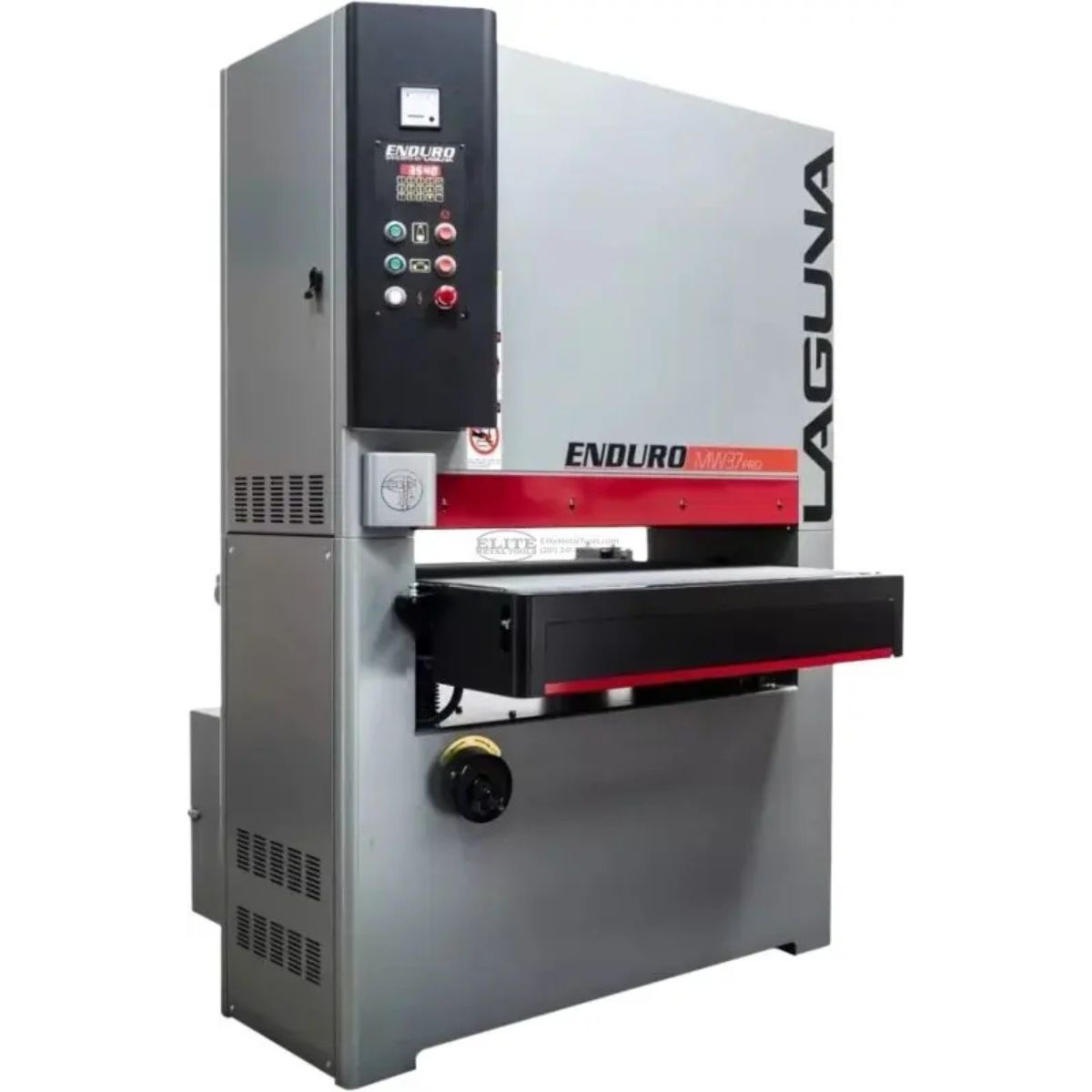

Laguna 51" MWP Metal Widebelt Sander

Laguna 51" MWP Metal Widebelt Sander

by Laguna Tools

SKU MSANWB51X75-1K-30-0197-1

The Laguna 51" MWP Metal Widebelt Sander is an industrial metal widebelt sander that delivers precise deburring, sanding, and texturing for heavy production work.

30HP motor handles heavy dross removal
Auto height adjustment speeds setup
Variable speed conveyor controls finish quality

$ 42,999.00

Lowest Price Guarantee

If you (somehow) find a lower price, call us & we'll beat it: 1-800-727-6553

Quantity

IN-STOCK: Ships out in 1 to 2 weeks

Questions? Call or Email Us

1-800-727-6553

support@advmachinery.com

Laguna 51" MWP Metal Widebelt Sander

Heavy dross removal and inconsistent finishing slow down metal fabrication work. The Laguna 51" MWP Metal Widebelt Sander pairs a 30HP main motor with automatic height control to deliver consistent metal finishing from deburring to polishing.

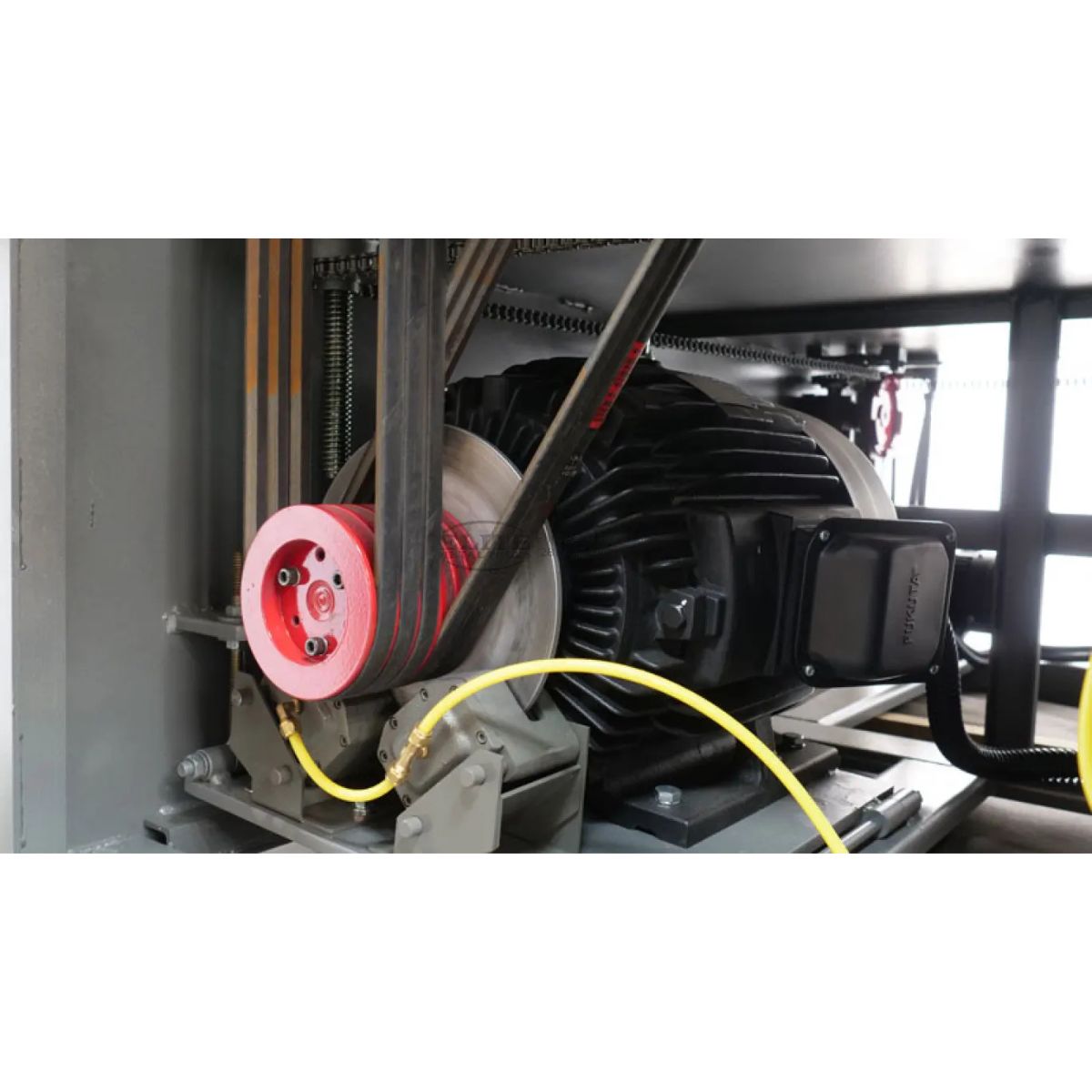

30HP Main Motor Powers Heavy Dross Removal - The 30HP main motor works with a 2HP conveyor motor to handle heavy dross removal without slowing production.
Digital Control Panel Simplifies Height Adjustments - The digital control panel with auto-height detection lets you dial in precise .005" adjustments in seconds.
Variable Speed Conveyor Adjusts Sanding Results - The conveyor runs from 14 to 60 feet per minute so you can match speed to the finish you need.
Belt Oscillation and Motor Brake Support Safe Control - Belt oscillation combined with a sanding belt motor brake helps maintain even wear and control across long runs.

With a 51 inch table and four dust ports, this sander keeps large metal panels moving cleanly through deburring, sanding, and texturing work.

Laguna 51" MWP Metal Widebelt Sander

Laguna 51" MWP Metal Widebelt Sander

What's Included

What's Included? Laguna 51" MWP Metal Widebelt Sander

Laguna 51" MWP Metal Widebelt Sander — Provides a complete 51 inch industrial widebelt sanding platform for metal fabrication work.

Specs

Laguna 51" MWP Metal Widebelt Sander Specifications

Model: MW51 Pro
Stock Number: MSANWB51X75-1K-30-0197-1
Main Motor: 30 HP (3 Phase)
Feed Speed Motor: 2 HP (3 Phase)
Table Lifting Motor: 1/4 HP
Programmable Logic Control: Yes (Digital Readout)
Automatic Thickness Control: Yes (Thicknessor)
Max Sanding Height: 6 in
Min Sanding Height: 26 Gauge
Max Sanding Width: 51 in
Sanding Belt Size: 51" x 75"
Sanding Drum Diameter: 8 in
Sanding Drum Length: 52.1 in
Sanding Drum Speed: 1720 RPM
Conveyor Speed Range: 14–60 FPM
Dust Port Size: 5 in
Number of Dust Ports: 4
Footprint: 68 in x 20-1/2 in
Conveyor Height at Lowest Setting: 31.9 in (37.4 in Table Height)
Cabinet: Steel
Operating Air Pressure: 60 PSI
Sanding Belt Oscillation: Yes
Sanding Belt Motor Brake: Yes
CSA Certified: Yes
Net Weight: 2976 lb
Shipping Weight: 3527 lb

Laguna 51" MWP Metal Widebelt Sander Manual
