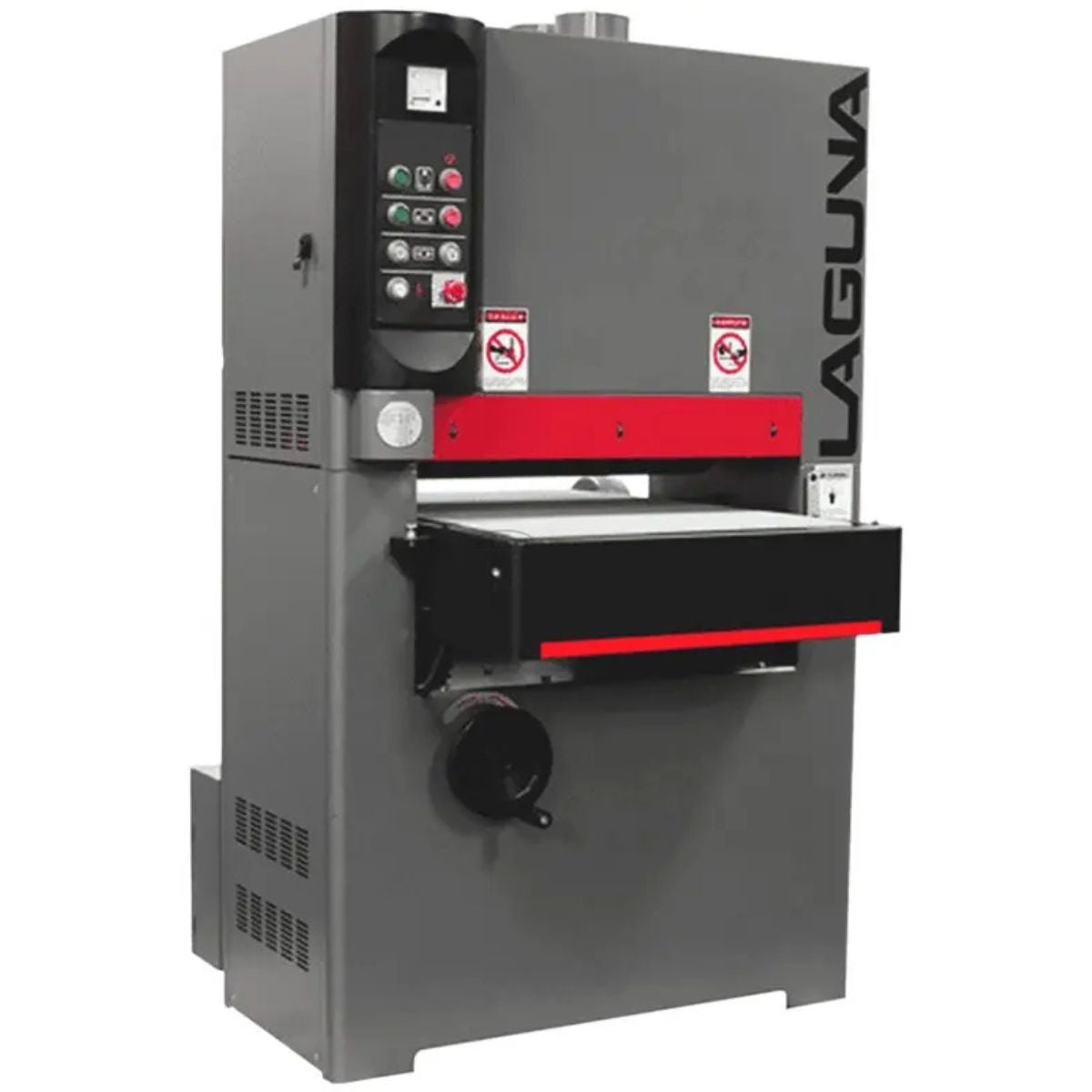

Laguna 25" MWC Metal Widebelt Sander

Laguna 25" MWC Metal Widebelt Sander

by Laguna Tools

SKU MSANWB25X60-1K-7.5-0197-1

The Laguna 25" MWC Metal Widebelt Sander is a single belt metal widebelt sander that delivers consistent deburring and finishing on wide stock.

7.5HP motor powers heavy stock removal
Electronic table control simplifies height setup
8" drum maintains even sanding contact

$ 16,999.00

Lowest Price Guarantee

If you (somehow) find a lower price, call us & we'll beat it: 1-800-727-6553

Quantity

IN-STOCK: Ships out in 1 to 2 weeks

Questions? Call or Email Us

1-800-727-6553

support@advmachinery.com

Laguna 25" MWC Metal Widebelt Sander

Deburring, sanding, and texturing metal by hand slows down production and leaves inconsistent results. The Laguna 25" MWC Metal Widebelt Sander handles wide metal stock with electronic table control for a repeatable finish every pass.

7.5HP Motor Powers Consistent Metal Removal - The single phase motor drives the sanding belt through wide stock without bogging down.
Electronic Table Elevation Controls Precise Height Adjustment - The powered table lift lets you dial in sanding height without manual cranking.
8" Sanding Drum Supports Even Belt Contact - The drum diameter keeps the belt pressed evenly across the material for a consistent surface finish.
Belt Oscillation Extends Belt Life - The sanding belt shifts side to side during operation to spread wear and reduce hot spots.

Whether you're deburring stainless panels or texturing sheet stock, the sander holds a steady finish from the first piece to the last.

Laguna 25" MWC Metal Widebelt Sander

What's Included

What's Included? Laguna 25" MWC Metal Widebelt Sander

Laguna 25" MWC Metal Widebelt Sander — Provides a complete metal widebelt sanding platform ready for shop use.

Specs

Laguna 25" MWC Metal Widebelt Sander Specifications

Model: MW25C
Stock Number: MSANWB25X60-1K-7.5-0197-1
Main Motor: 7.5 HP, Single Phase
Feed Motor: 1 HP, Single Phase
Table Lifting Motor: 0.33 HP, Single Phase
Sanding Belt Size: 25" x 60"
Max Sanding Width: 25 in
Max Sanding Height: 6 in
Min Sanding Height: 26 Gauge
Sanding Drum Diameter: 8 in
Sanding Drum Length: 24-2/5 in
Sanding Drum RPM: 1720
Feed Speed Settings: 15 and 30 FPM (2 speed)
Automatic Thickness Control: Yes (Thicknessor)
Sanding Belt Oscillation: Yes
Sanding Belt Motor Brake: Yes
Dust Collection: Manual
Dust Port Size: 5 in
Number of Dust Ports: 2
Footprint: 39-3/5 in x 19-5/16 in
Conveyor Height at Lowest Setting: 31.9 in (37.4 in Table Height)
Steel Cabinet: Yes
Operating Air Pressure: 60 PSI
CSA Certified: Yes
Net Weight: 1344 lb
Shipping Weight: 1565 lb

Laguna 25" MWC Metal Widebelt Sander Manual
