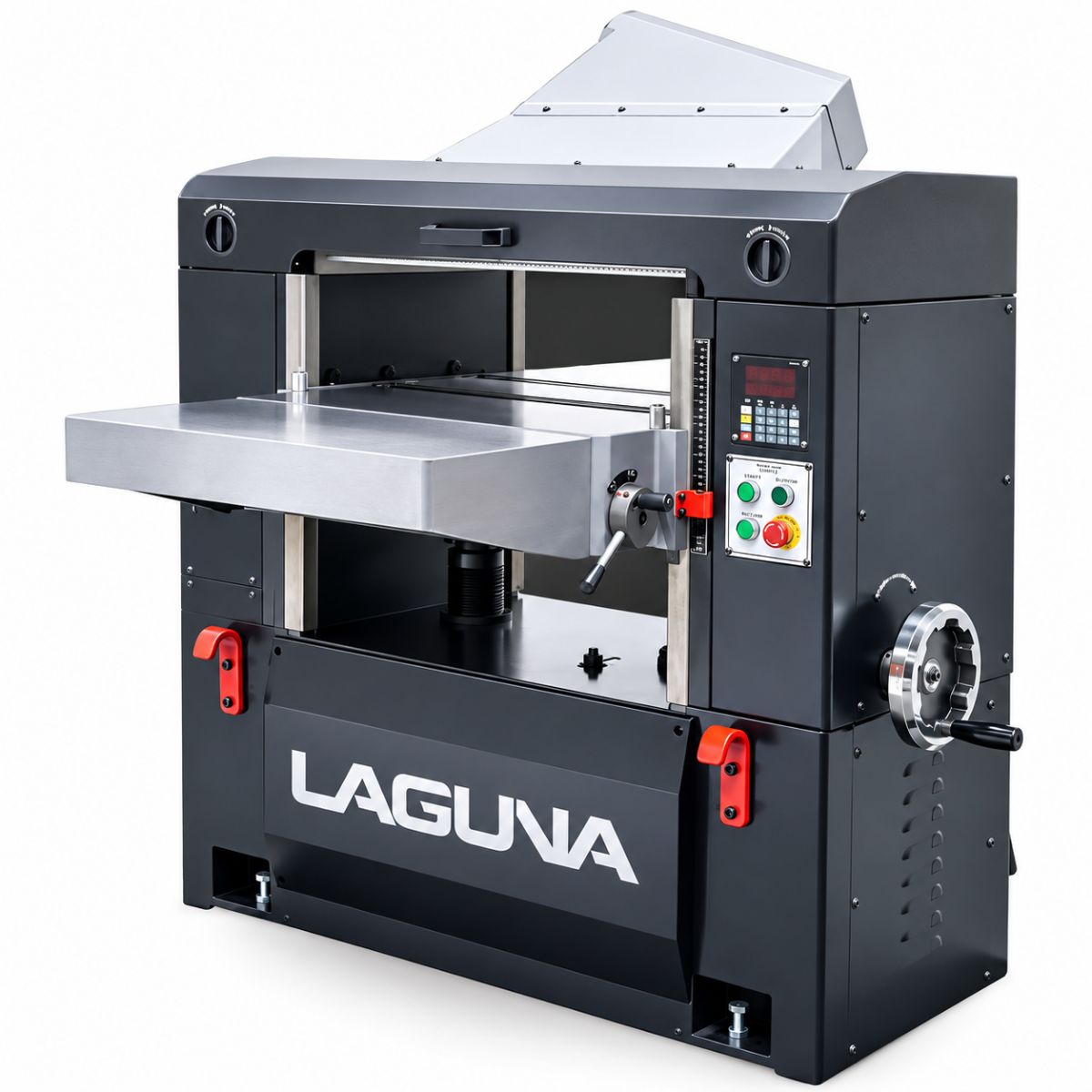

Laguna 25" Industrial Planer

Laguna 25" Industrial Planer

by Laguna Tools

SKU MPLAN25-15-3-0130

The Laguna 25" Industrial Planer is a heavy duty industrial planer that delivers precise, consistent thickness on wide stock.

ShearTec II cutterhead delivers clean carbide cuts
PLC height control simplifies precise setup
Choose single or three phase power

$ 17,999.00

Lowest Price Guarantee

If you (somehow) find a lower price, call us & we'll beat it: 1-800-727-6553

Choose your Motor

15HP 3PH

10HP 1PH

Quantity

IN-STOCK: Ships out in 1 to 2 weeks

Questions? Call or Email Us

1-800-727-6553

support@advmachinery.com

Laguna 25" Industrial Planer

Wide stock needs steady power and consistent thickness from pass to pass. The Laguna 25" Industrial Planer meets that demand with a heavy duty frame, PLC controlled height settings, and a choice of 15HP three phase or 10HP single phase power.

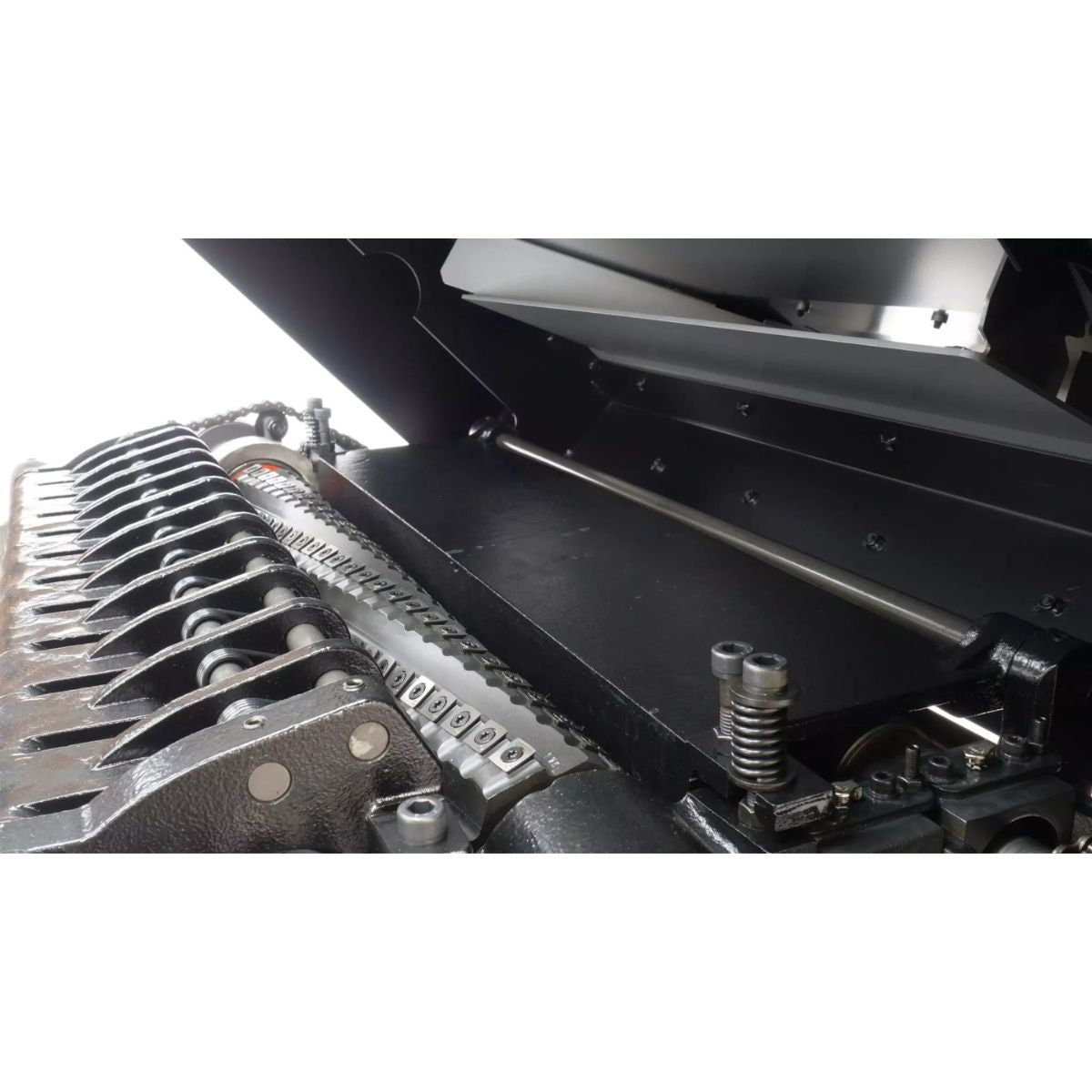

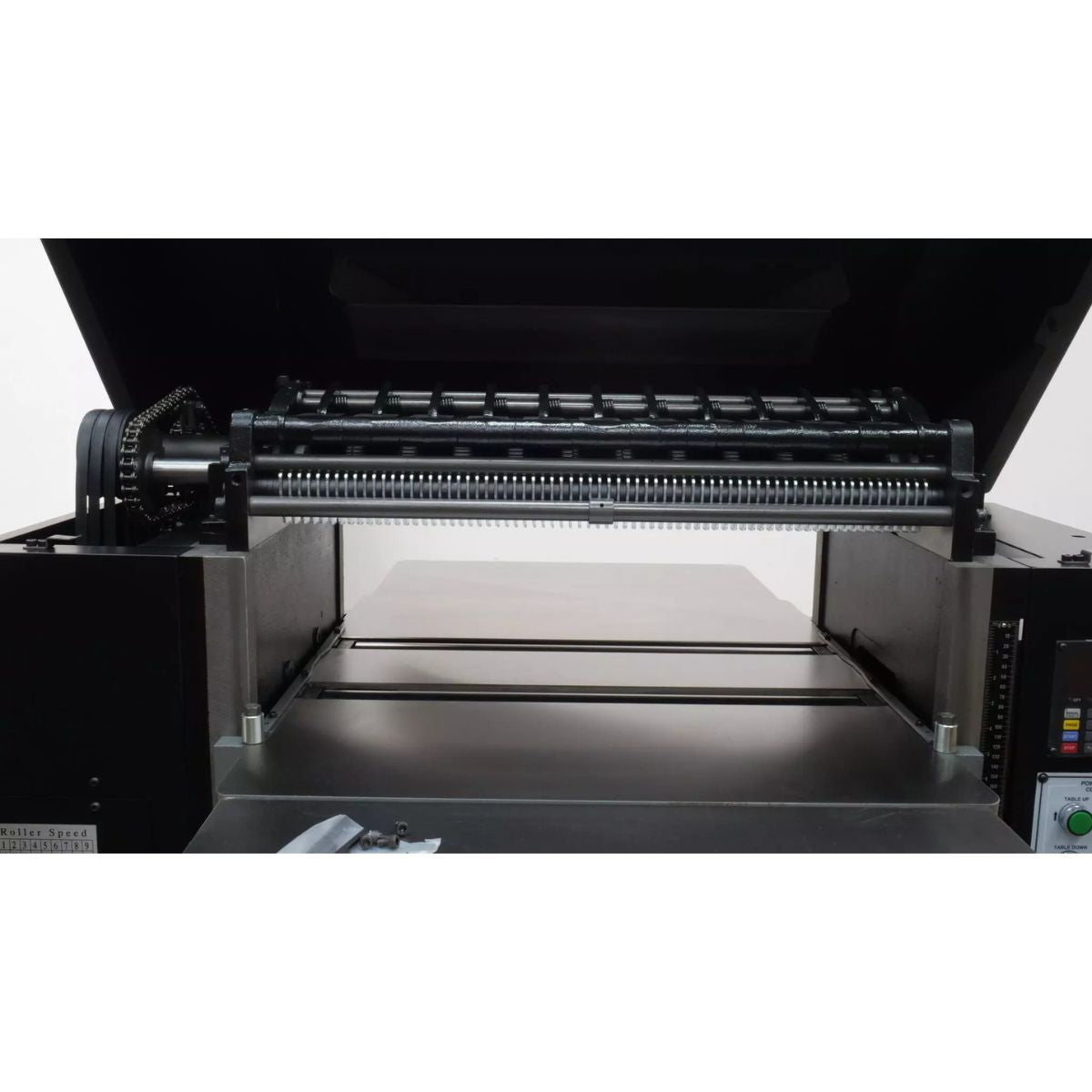

ShearTec II Cutterhead Delivers Clean Surfacing - Six rows of 174 four sided carbide inserts cut cleanly across wide boards and resist wear over years of shop use.
PLC Height Control Simplifies Thickness Setting - Enter the exact height you need and the bed moves there automatically, with backlash compensation keeping every pass accurate.
Electronic Variable Speed Matches Feed Rate to the Cut - A 10 to 30 FPM range lets you dial in the right speed for hardwoods, softwoods, and rough stock without changing gears.

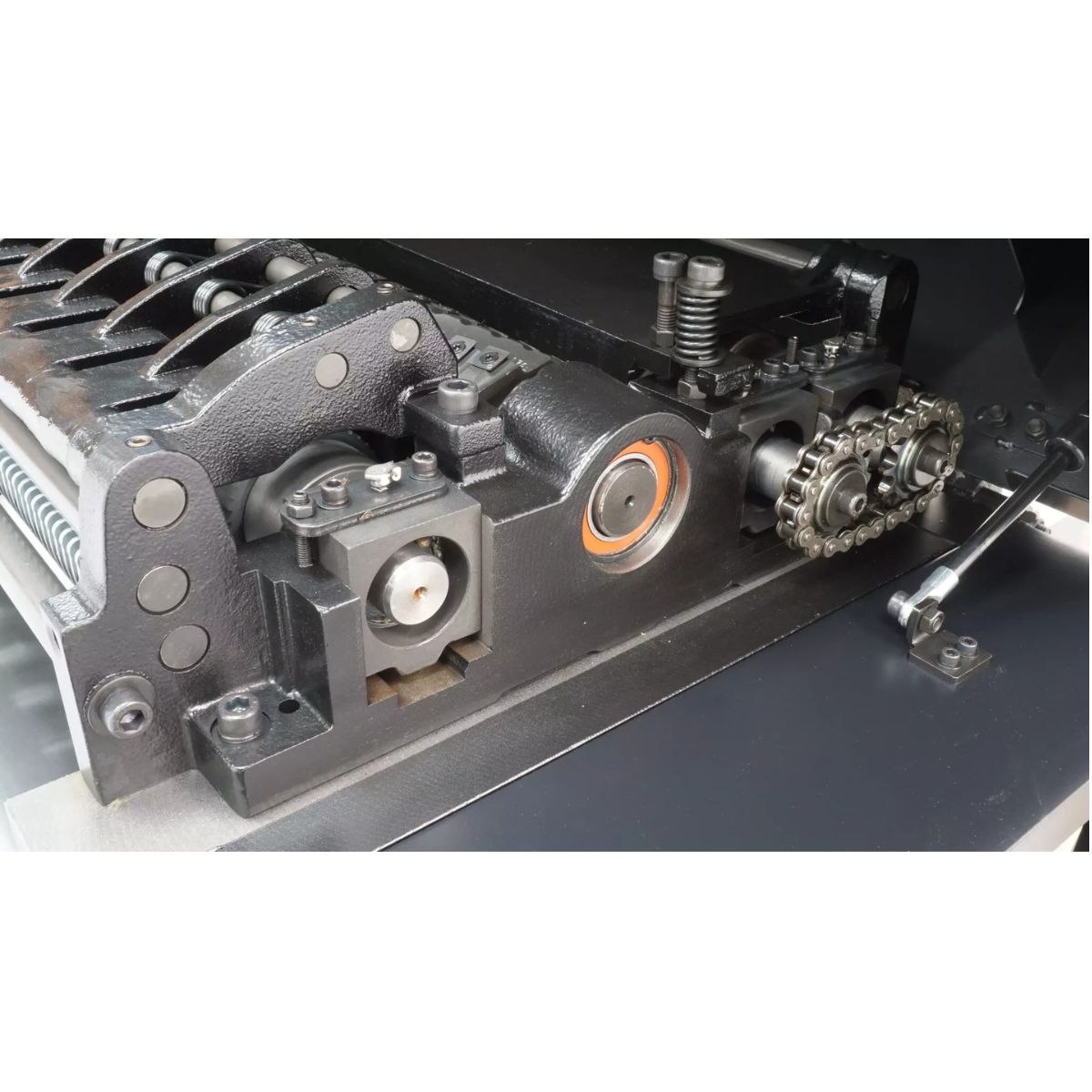

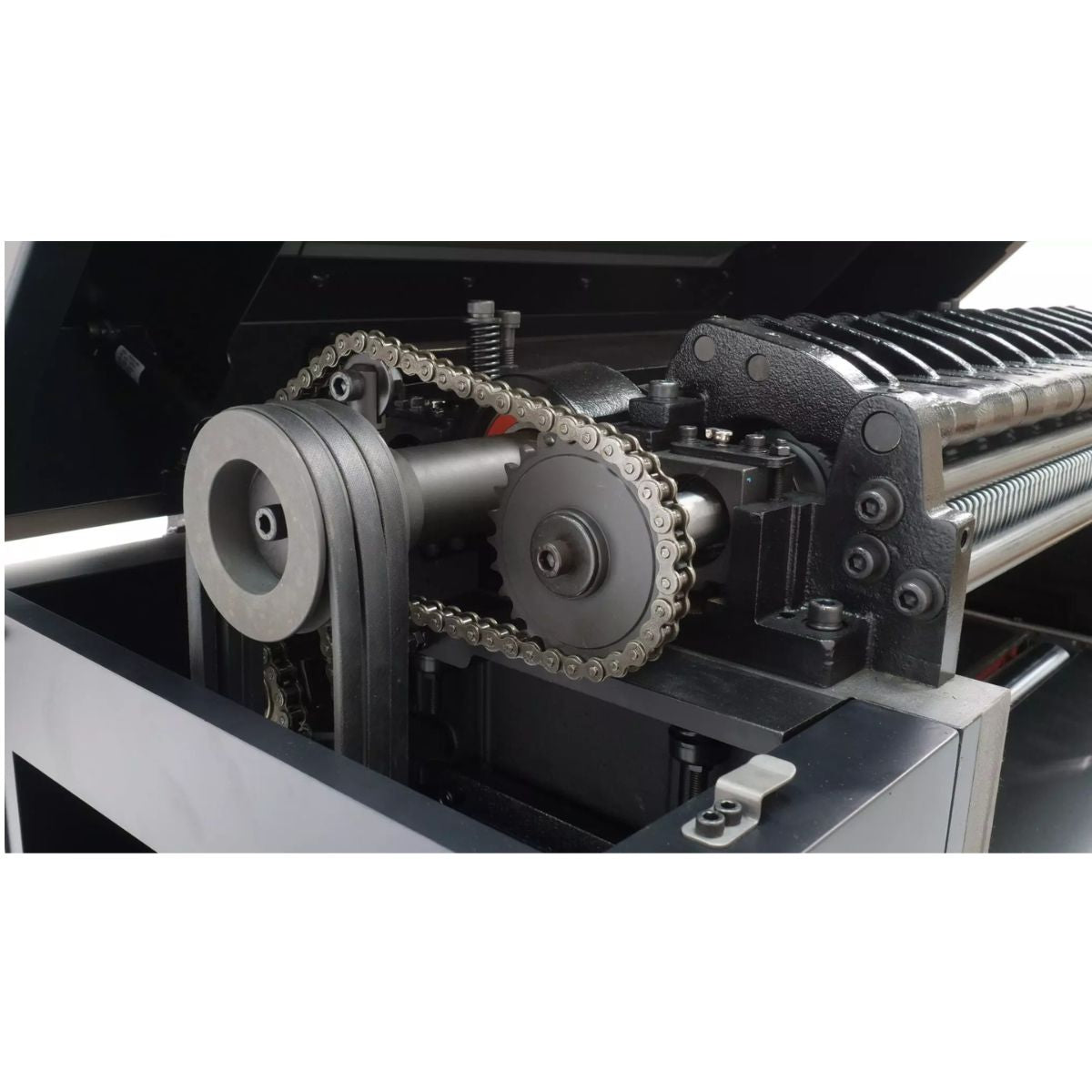

Oversized Bearing Housings Support Smooth Running - Heavier bearing housings reduce vibration and keep the cutterhead running true through long production runs.

With steady thickness control and consistent power, you can plane full width hardwood boards without stopping to second guess the setting.

Laguna 25" Industrial Planer

Laguna 25" Industrial Planer

Laguna 25" Industrial Planer

Laguna 25" Industrial Planer

What's Included

What's Included? Laguna 25" Industrial Planer

Laguna 25" Industrial Planer — Provides a complete heavy duty planer platform ready for shop setup.
In/Out Feed Cast Extensions — Supports long boards as they enter and exit the cutterhead.

Specs

Laguna 25" Industrial Planer Specifications

ShearTec II Cutterhead: 6 Row, 174 Insert Knives, 4 Sided Solid Carbide
Cutter Head Diameter: 3-1/2"
Cutter Head Speed: 4800 RPM
Table Size: 52" x 26" (Including Extensions)
Maximum Stock Width: 25"
Maximum Stock Thickness: 9"
Minimum Stock Thickness: 1/8"
Minimum Stock Length: 10"
Maximum Stock Removal (1"-12" Wide): 1/4"
Maximum Stock Removal (12"-25" Wide): 1/8"
Electronic Variable Speed: 10-30 FPM
Motor, Feed: 3/4 HP, DC Electronically Variable Speed
Motor, Vertical: 3/4 HP, AC
Voltage: 220V
Dust Port: 5"
In/Out Feed Cast Extensions: 10" x 26"
Weight: 1500 lb
CSA Certified Components

Specs by Configuration

15HP 3PH — Motor: 15 HP, 3 Phase, 37A Recommended Breaker
10HP 1PH — Motor: 10 HP, 1 Phase, 49A Recommended Breaker

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Laguna 25" Industrial Planer Manual
