Laguna 24BX Bandsaw
Are you cutting large boards or thick slabs that push smaller bandsaws past their limits?
What if your saw had the throat depth, resaw height, and stability to handle those cuts with control?

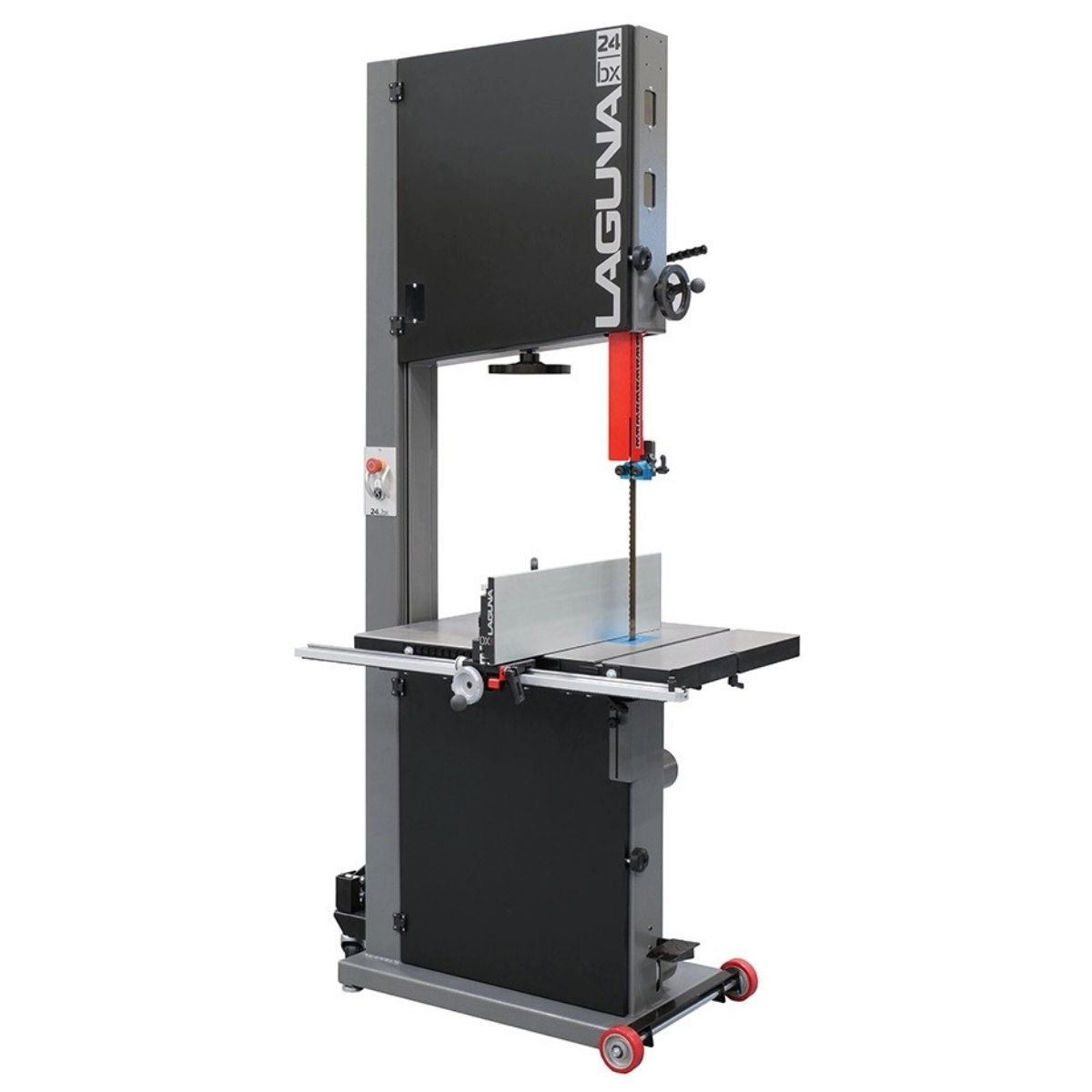

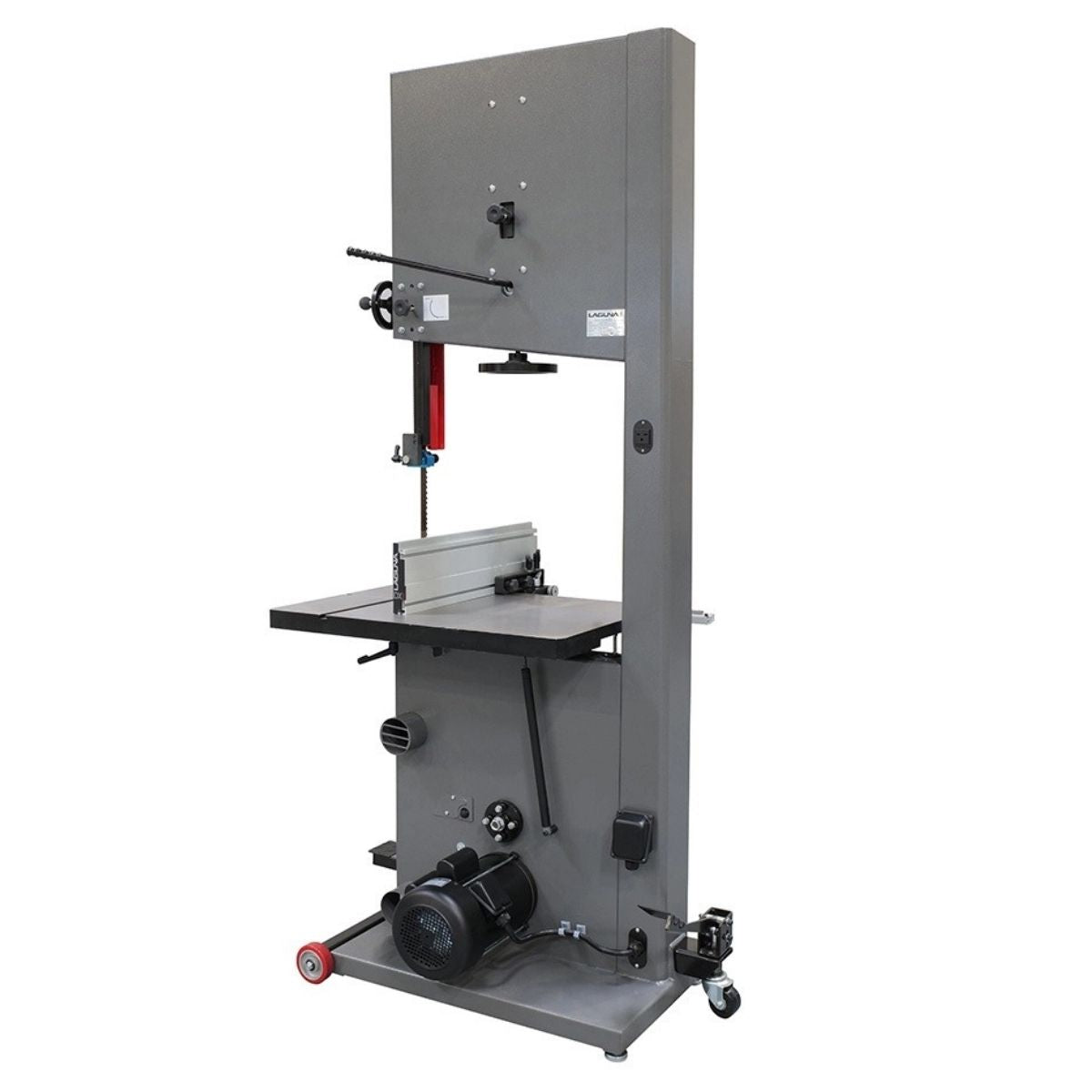

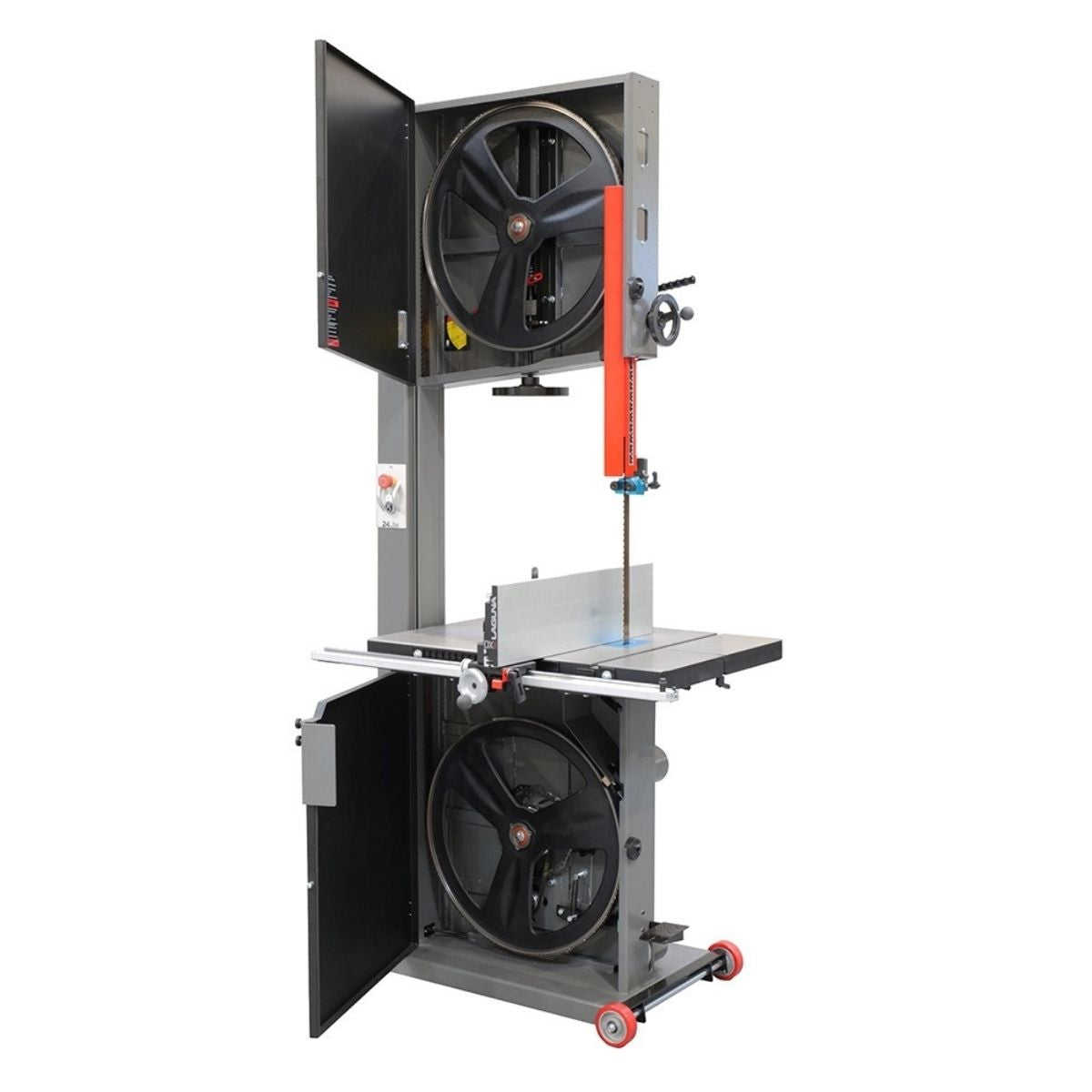

Meet the Laguna 24BX Bandsaw, a heavy duty shop machine designed for demanding resaw and ripping work.
With a 5HP motor, massive cast iron flywheels, and Laguna’s DriftMaster DX3 fence, it is built for steady cutting through tall material.
When the saw tracks true and holds its power through the cut, your work moves forward with confidence.
Laguna 24BX for Large Scale Resawing and Heavy Cuts

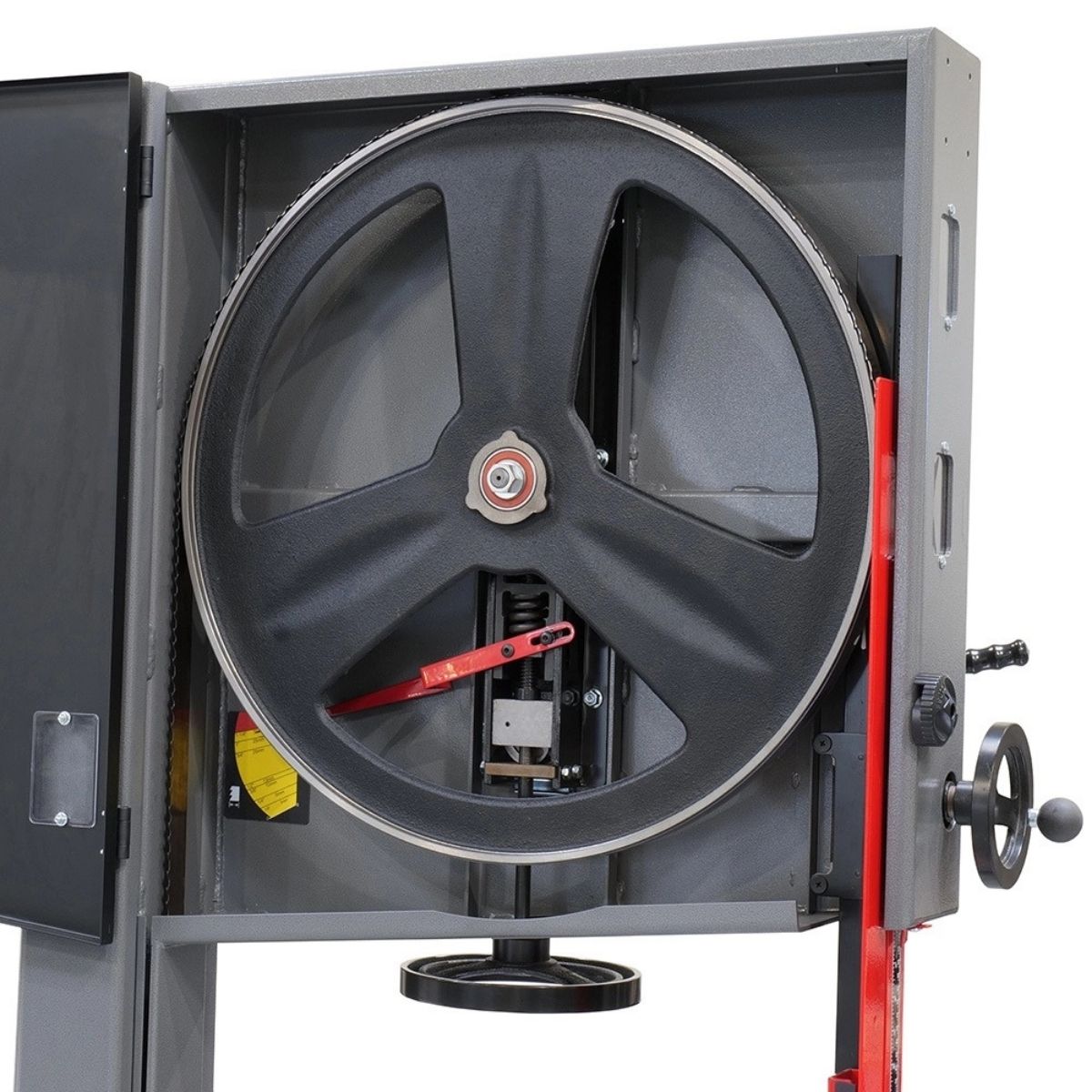

Cast Iron Flywheels Maintain Blade Momentum
The 24 inch precision balanced cast iron flywheels provide the mass needed to keep the blade moving through dense hardwood and tall stock. Their inertia helps the blade stay consistent through demanding cuts. This stability supports smoother feed rates and reduces hesitation during heavy resaw work.

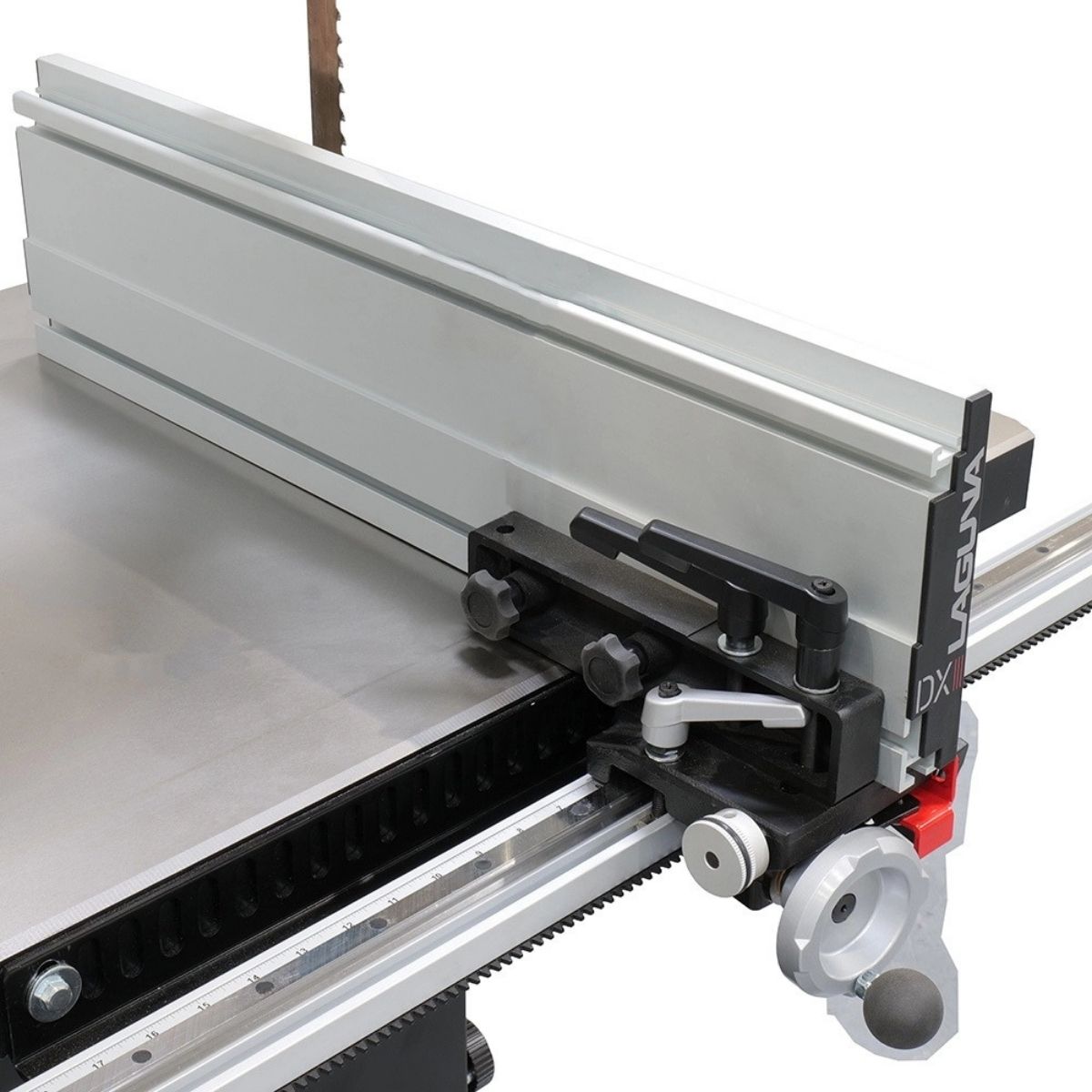

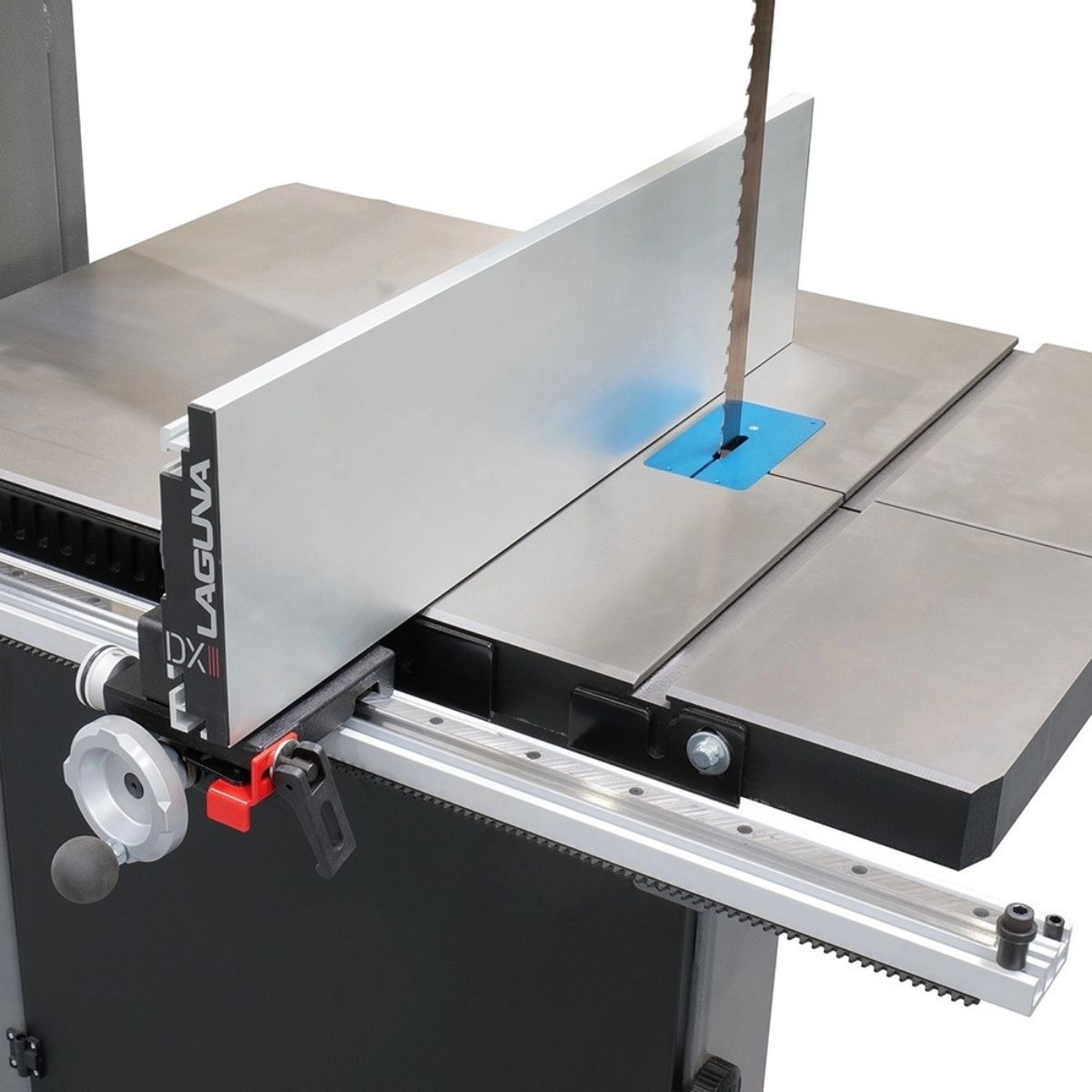

DriftMaster DX3 Fence Controls Resaw Alignment
The included DriftMaster DX3 fence system helps keep long cuts straight and predictable. A rack and pinion handwheel allows precise adjustments, while the system can quickly switch to manual movement for coarse positioning. EZ drift adjustment allows the fence to compensate for blade drift when resawing tall material.

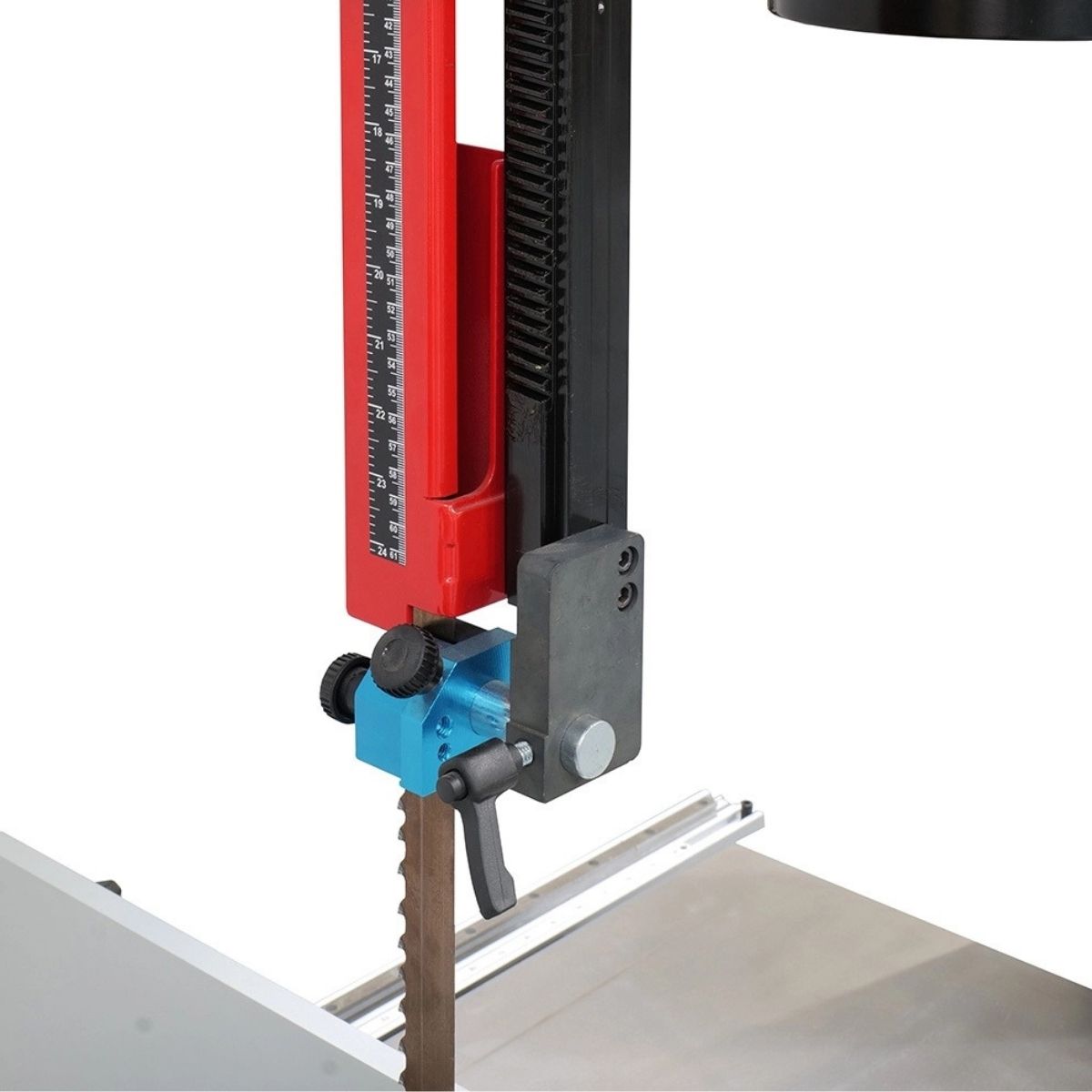

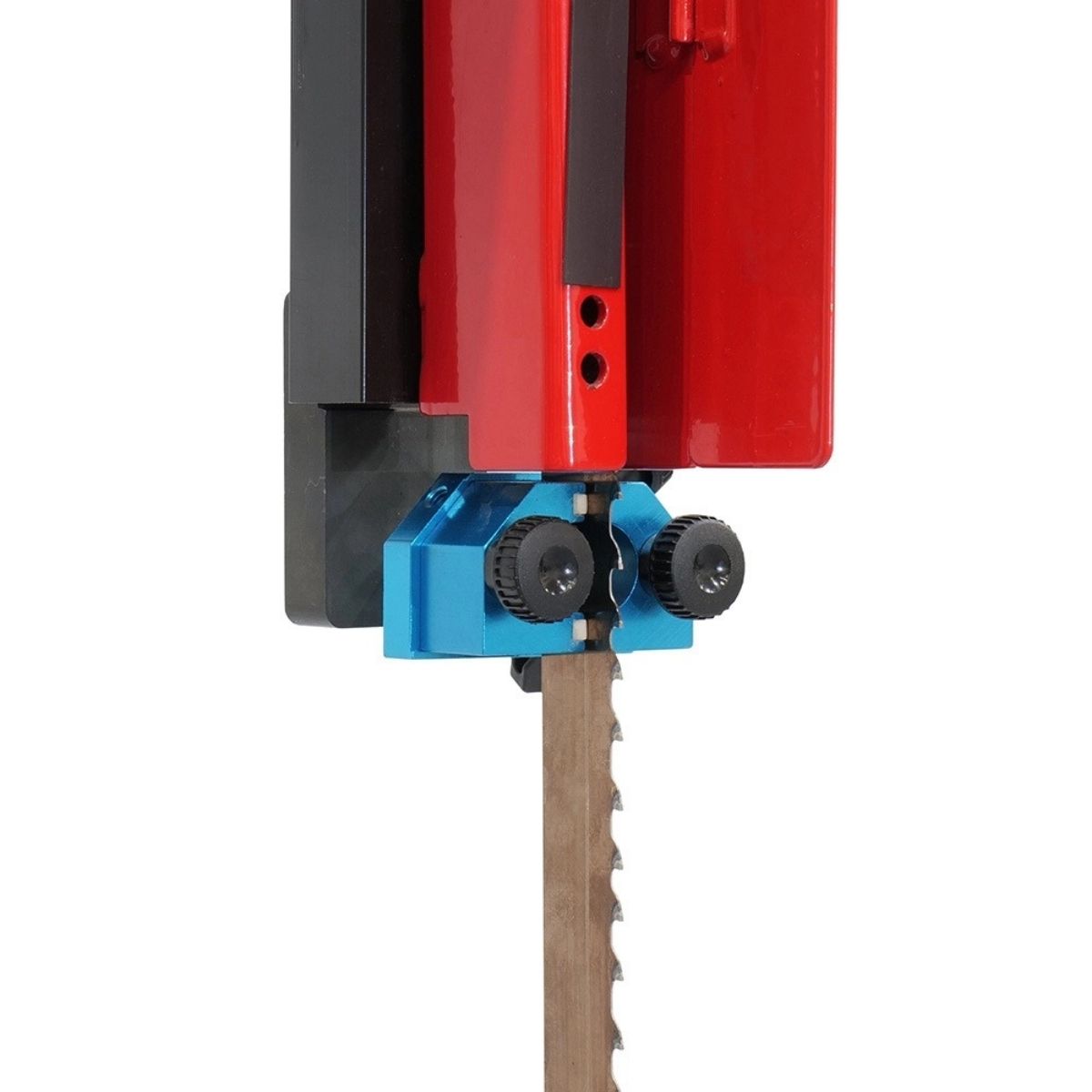

Ceramic Guide System Stabilizes Blade Tracking
Laguna’s ceramic blade guides support the blade with ten points of contact. This design keeps the blade stable as it moves through the cut. The guides run cool and last longer while helping maintain accurate blade tracking.

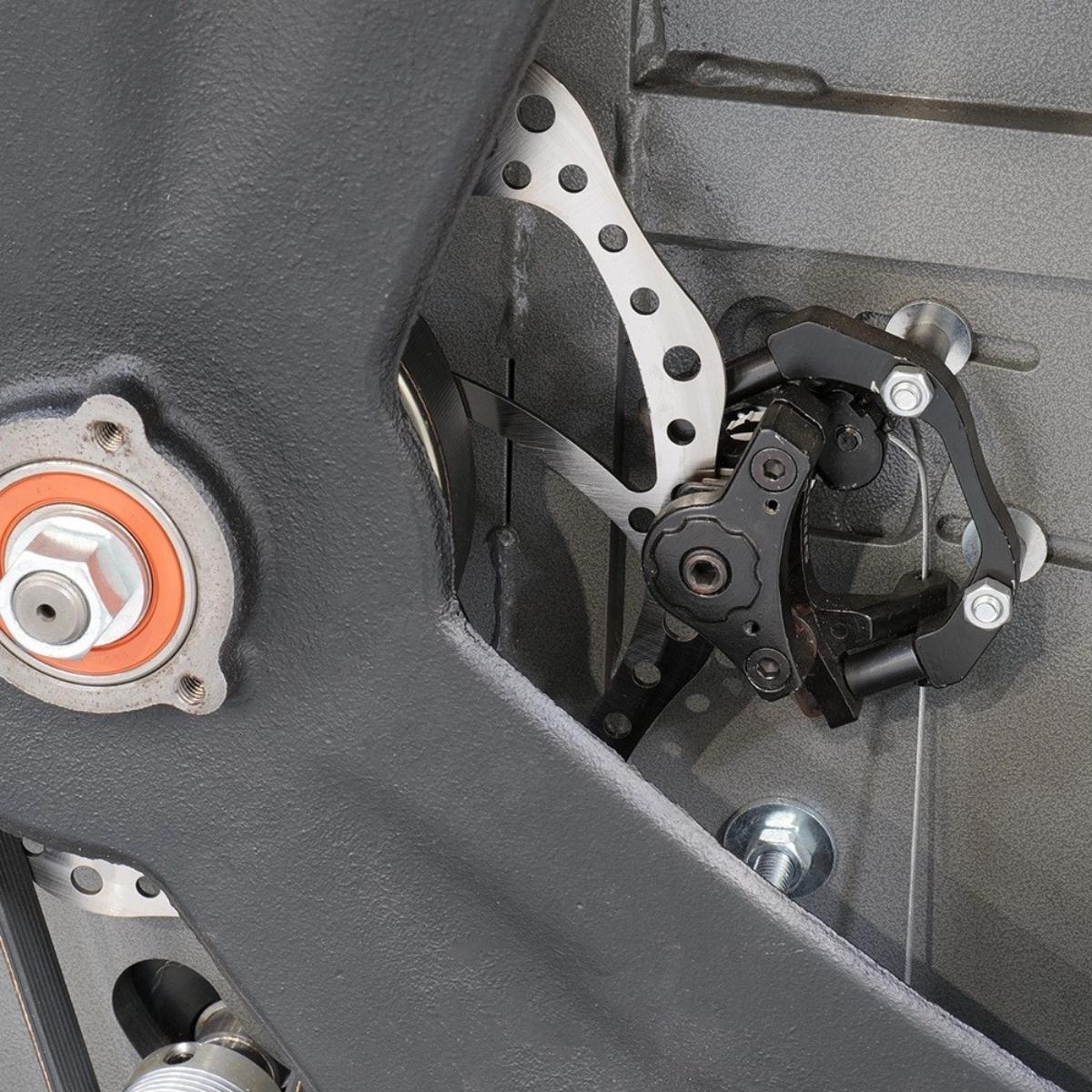

Foot Pedal Disc Brake Improves Shop Safety
The integrated disc brake stops the flywheels quickly when the foot pedal is pressed. This system shuts off the motor and brings the blade to a stop in seconds. Faster stopping helps improve both workflow efficiency and overall shop safety.
What’s Included
What’s Included? Laguna 24BX Bandsaw
-
Laguna 24BX Bandsaw one heavy duty 5HP bandsaw designed for large resaw and ripping operations.
-
DX3 DriftMaster Fence System adjustable fence system designed to control drift and support accurate resaw cuts.
Specs
Laguna 24BX Bandsaw Specifications
- Motor: 5HP, 230V, 1 Phase, 21 Amp
- Blade Length: 201 inch (200 inch minimum, 202-1/2 inch maximum)
- Blade Width Range: 1/8 inch to 1-1/4 inch
- Resaw Capacity: 24 inch
- Throat Capacity: 24 inch
- Table Size: 24 inch x 34-1/2 inch
- Table Tilt: -5° to 45°
- Table Height: 38 inch
- Miter Slot Size: 3/4 inch x 3/8 inch

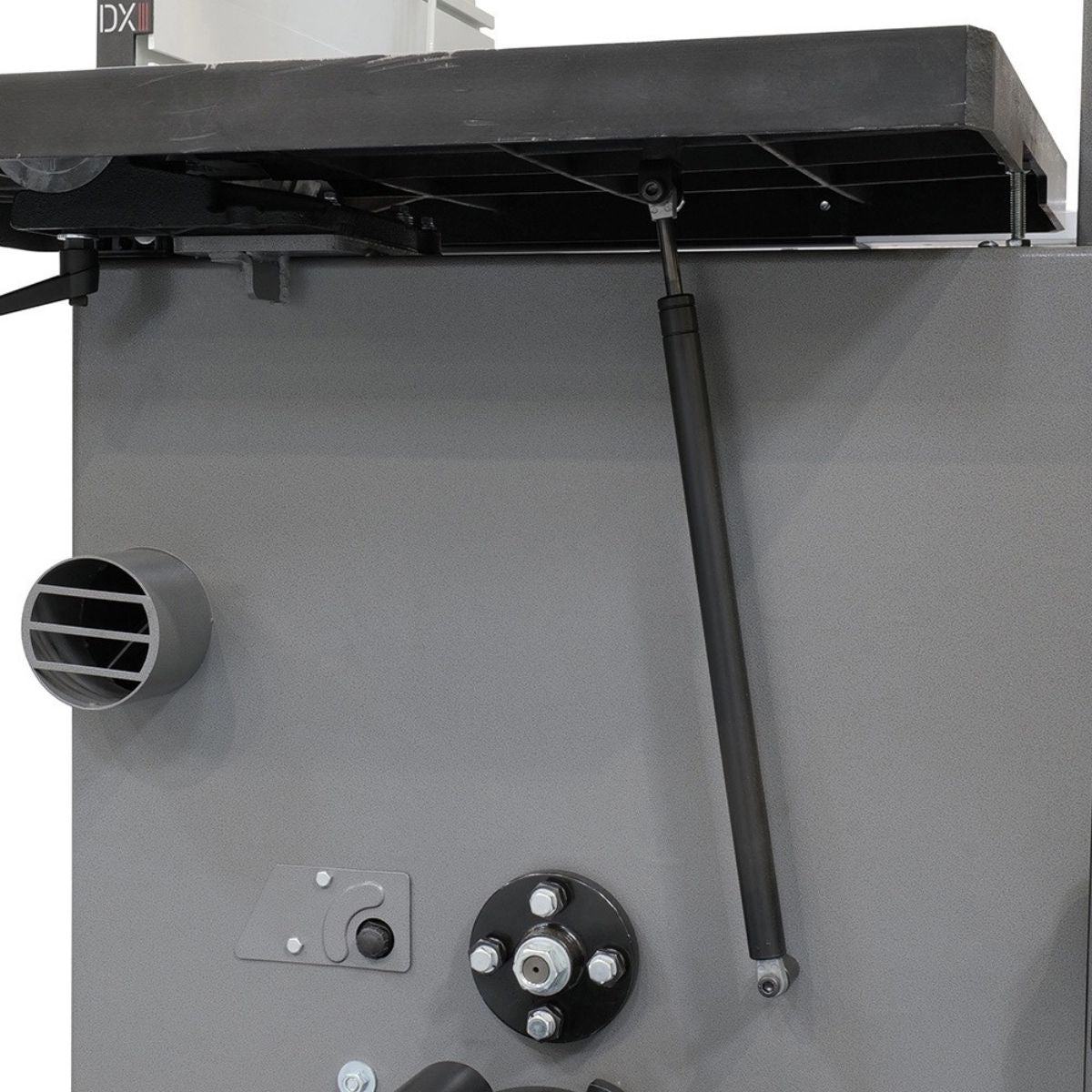

- Dust Ports: Two 4 inch ports
- Overall Height: 91-3/8 inch
- Base Size: 19-3/4 inch x 33 inch
- Accessory Outlet: 230V
- Net Weight: 580 lbs
