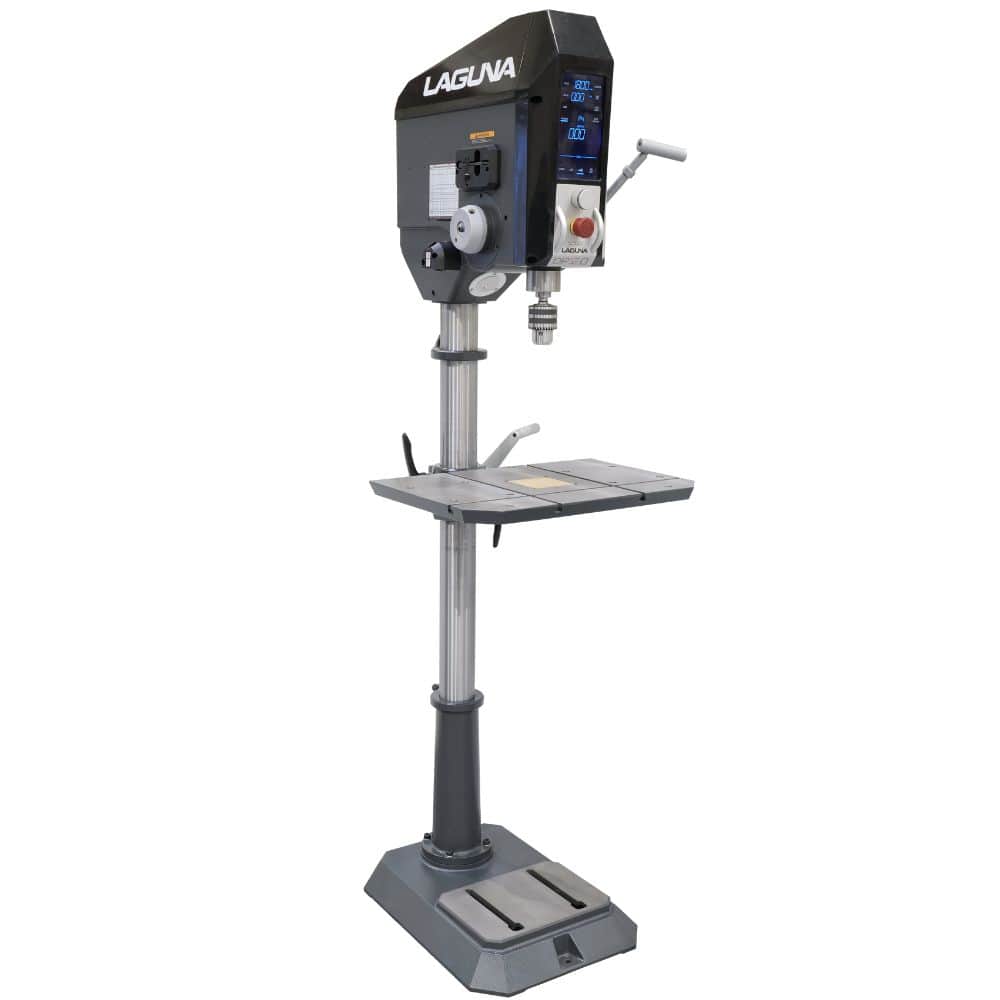

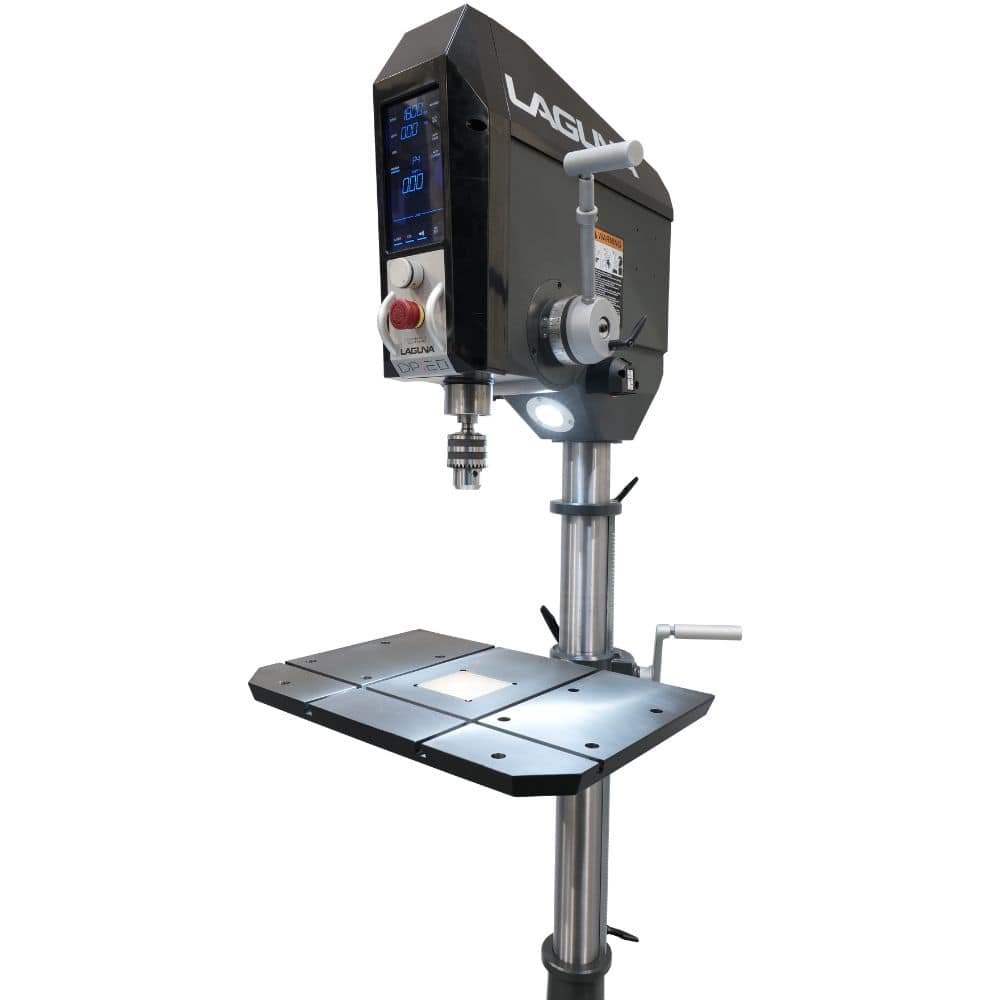

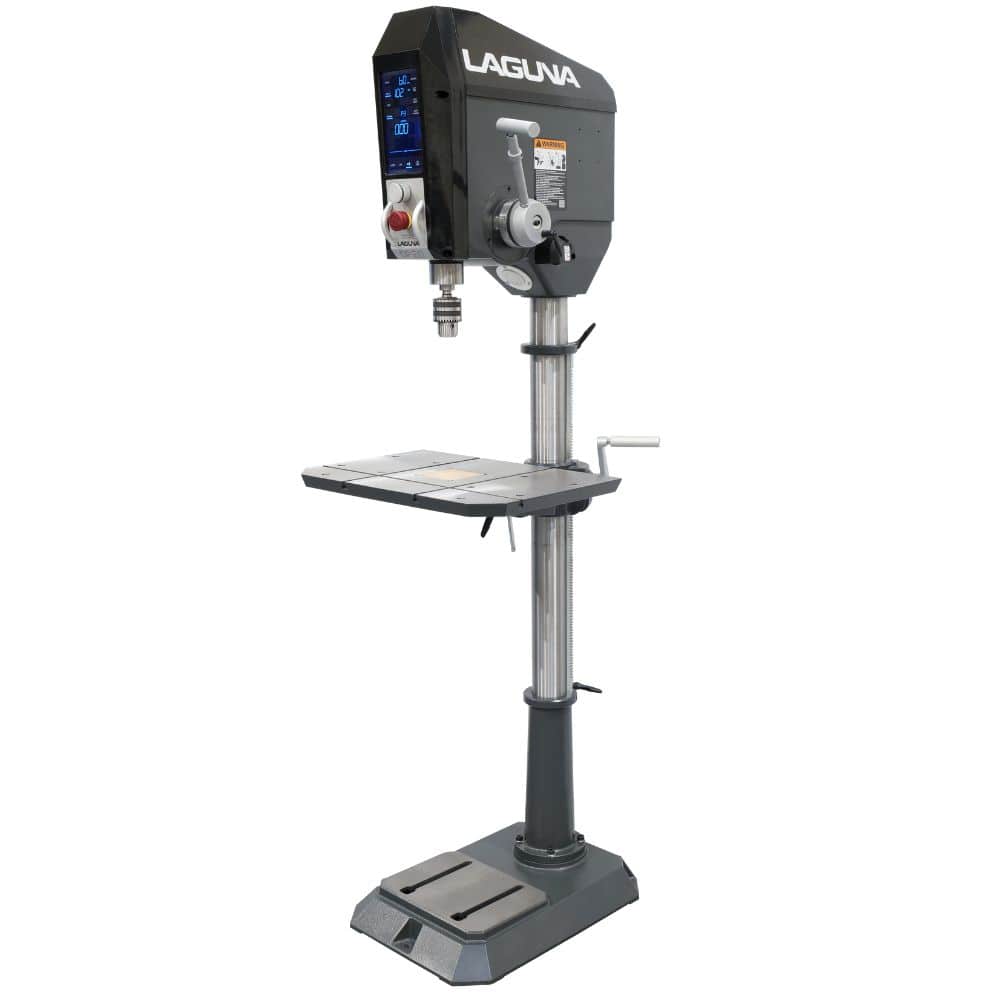

Laguna Tools DP|20 Drill Press 20" Floor Model
Engineered for precision, this drill press features a robust 1.5-hp Pulse Width Modulation (PWM) motor, delivering smooth and consistent torque across a full speed range of 60 to 3600 RPM. Elevate your craftsmanship with the Laguna DP:20, where industrial power meets modern innovation. Whether you're working with wood, metal, or plastics, the DP:20 ensures remarkable results every time.
Its cutting-edge touchscreen smart panel offers an intuitive interface, making adjustments seamless and providing real-time feedback on RPM, load, and quill depth. With features like the Auto-Start function, precise depth control, and a durable, swiveling cast iron table, the DP:20 is built for repeatable accuracy and effortless operation.
Designed to meet the demands of both hobbyists and professionals, this drill press promises to elevate your workshop, reduce downtime, and provide the precision you need to bring your vision to life.
Features & Benefits Laguna DP|20 Drill Press 20" Floor Model
Upgrade your craftsmanship with the Laguna DP:20, where industrial power meets modern innovation. Engineered for precision, this drill press features a robust 1.5 hp Pulse Width Modulation (PWM) motor, delivering smooth and consistent torque across a full speed range of 60 to 3600 RPM. Its cutting-edge touchscreen smart panel offers an intuitive interface, making adjustments seamless and providing real-time feedback on RPM, load, and quill depth. With features like the Auto-Start function, precise depth control, and a durable, swiveling cast iron table, the DP:20 is built for repeatable accuracy and effortless operation. Designed to meet the demands of both hobbyists and professionals, this drill press promises to elevate your workshop, reduce downtime, and provide the precision you need to bring your vision to life.

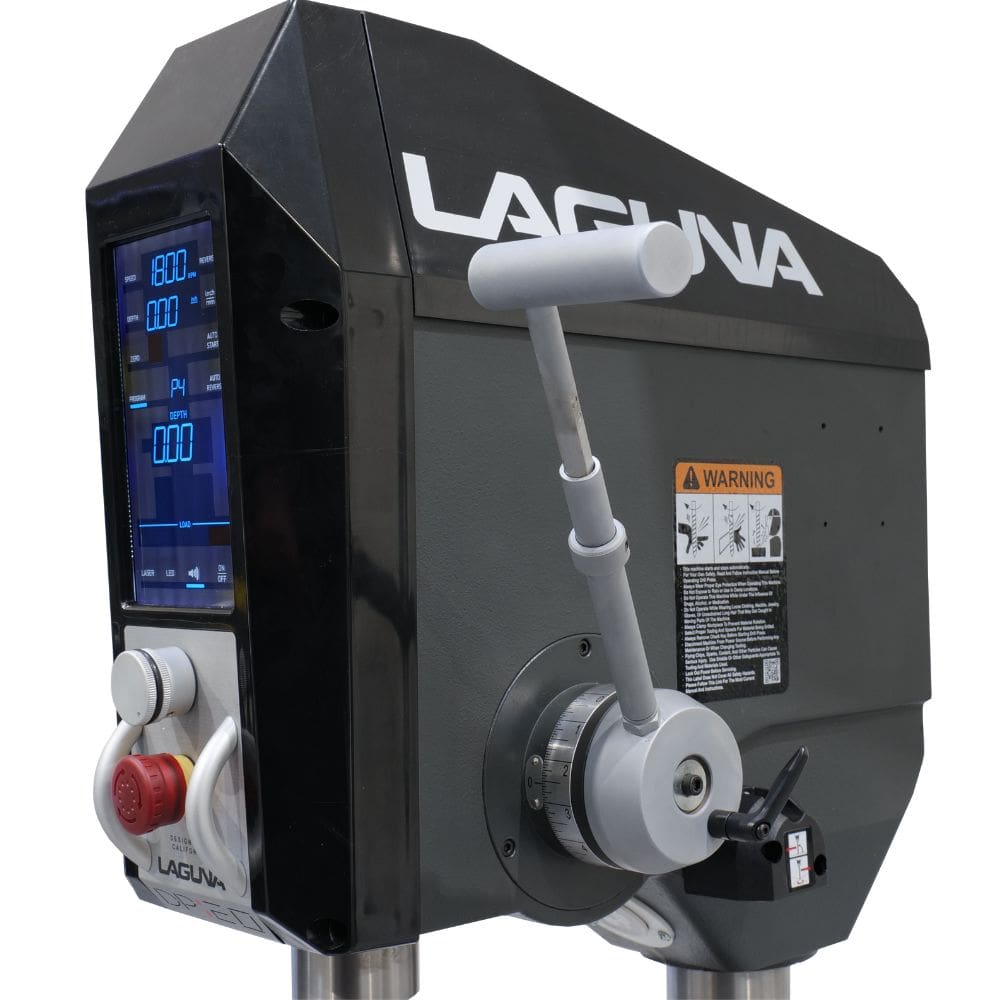

Touchscreen Smart Panel for Intuitive Control
The large 3.75″ x 6.87″ touchscreen makes it easy to adjust settings at a glance, providing you with a real-time digital readout of RPM, load, and quill depth, so you can make precise adjustments with ease. No more fumbling with knobs or complicated dials—just a smooth, intuitive interface for effortless control.
1.5 hp PWM Motor with Smooth Torque
The DP:20 boasts a robust 1.5 hp Pulse Width Modulation (PWM) motor that maintains consistent torque throughout the full speed range, delivering unwavering power for even the most demanding applications. Whether you're drilling through wood, metal, or plastics, you’ll enjoy smooth, reliable performance every time.

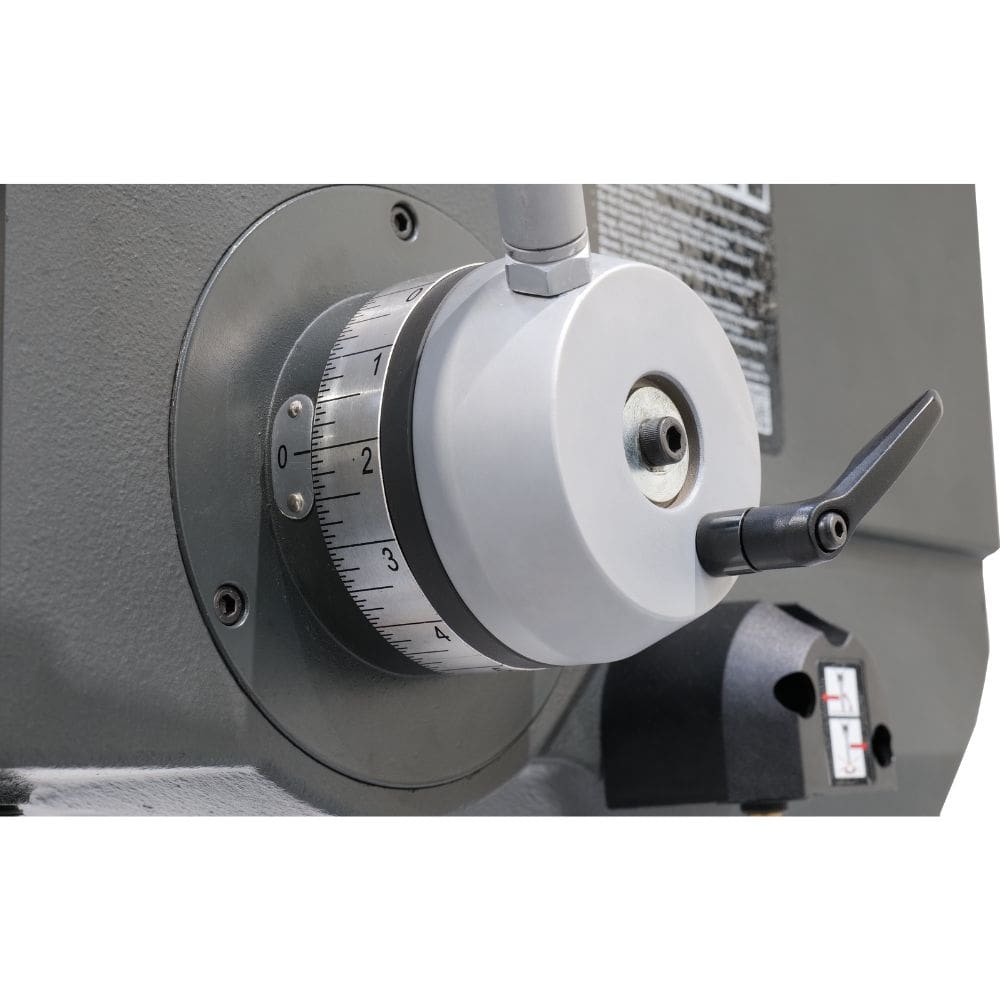

Electronic Depth Control for Unmatched Precision
Achieve accurate, repeatable drilling depths thanks to the electronic depth control, which allows for fine-tuning and ensures every hole is drilled to the exact specifications required for your project. No more guesswork or inconsistent results.
Auto-Start Function for Seamless Operation
With the auto-start function, the drill press automatically powers on when the quill is lowered and powers off when raised, making operation smoother and safer. This hands-free feature reduces downtime and minimizes the chance of forgetting to turn the machine on or off.
Variable Speed Range (60–3600 RPM) for Versatility
The DP:20 provides a wide speed range from 60 to 3600 RPM, allowing you to tackle any project with the precision it deserves. From delicate wood drilling to fast, heavy-duty metal work, this drill press adjusts to your needs, giving you flexibility in every task.
Forward and Reverse Functions for Tapping
Exclusively designed for tapping, the reverse function automatically reverses the tap once the preset depth is reached, ensuring incredible threading every time. This feature saves you time and effort, removing the manual work from the tapping process and increasing your efficiency.

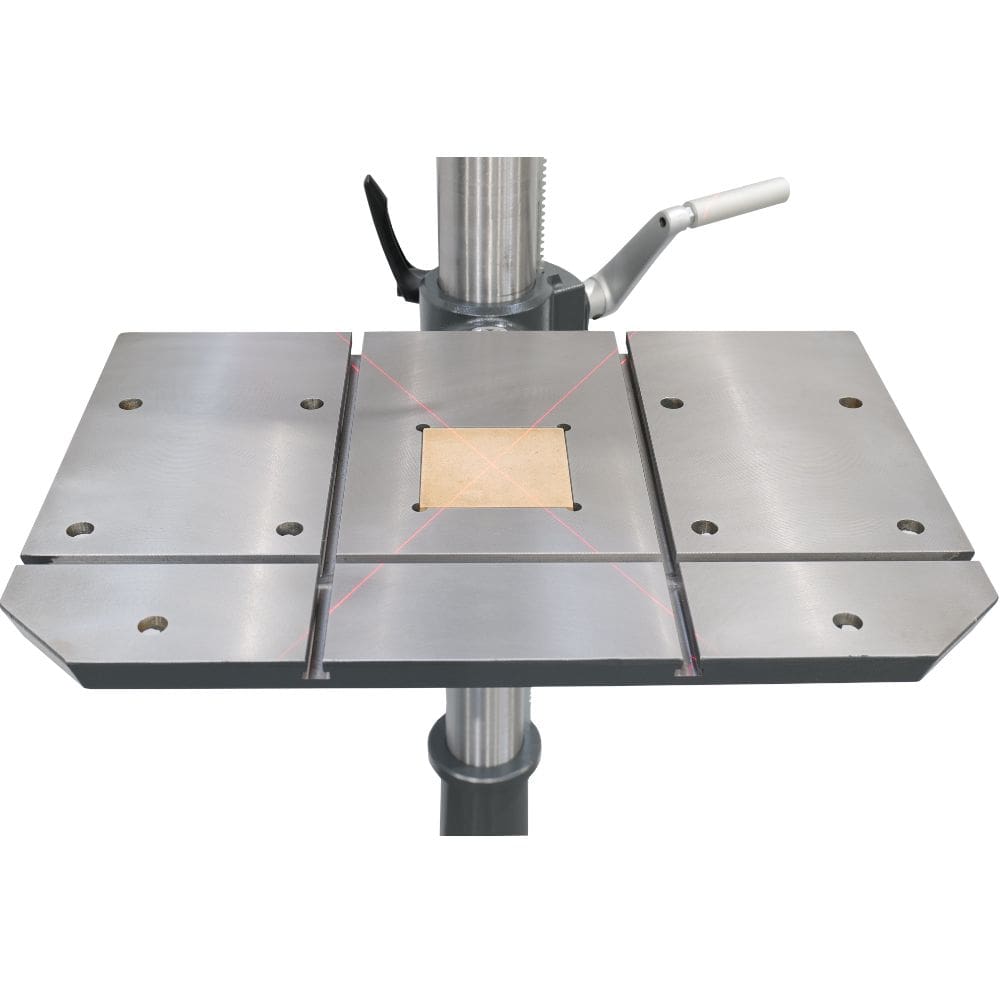

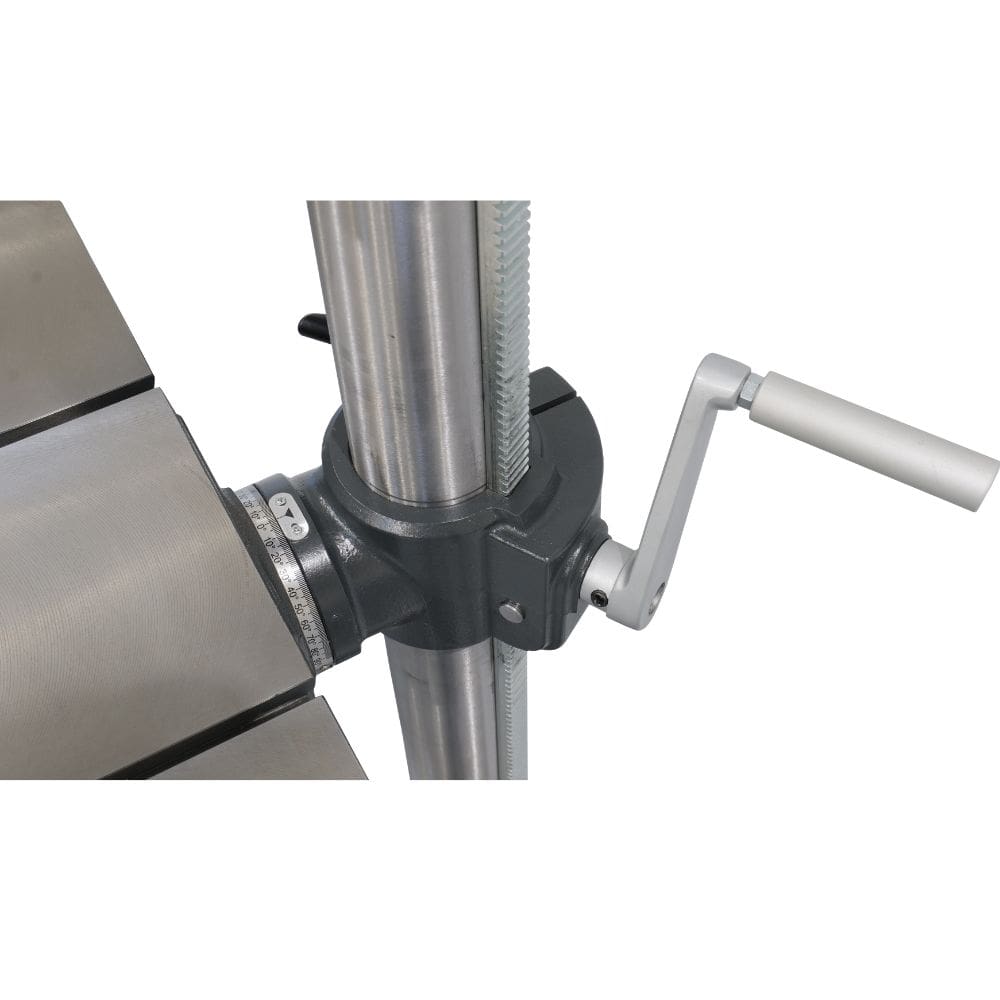

Heavy-Duty Cast Iron Table for Stability
The DP:20’s 15″ x 22″ cast iron table tilts 90° in either direction and rotates 360° around the column, offering excellent versatility for drilling at different angles. The sturdy construction and smooth movement provide a stable and precise work surface, ensuring accuracy during every project.
Built-in LED Work Light for Better Visibility
The integrated LED work light enhances your workspace, illuminating the project area with a bright, focused light. This allows for better visibility, reducing eye strain and helping you work longer hours with ease. Plus, it ensures that every detail of your work is illuminated, preventing mistakes.

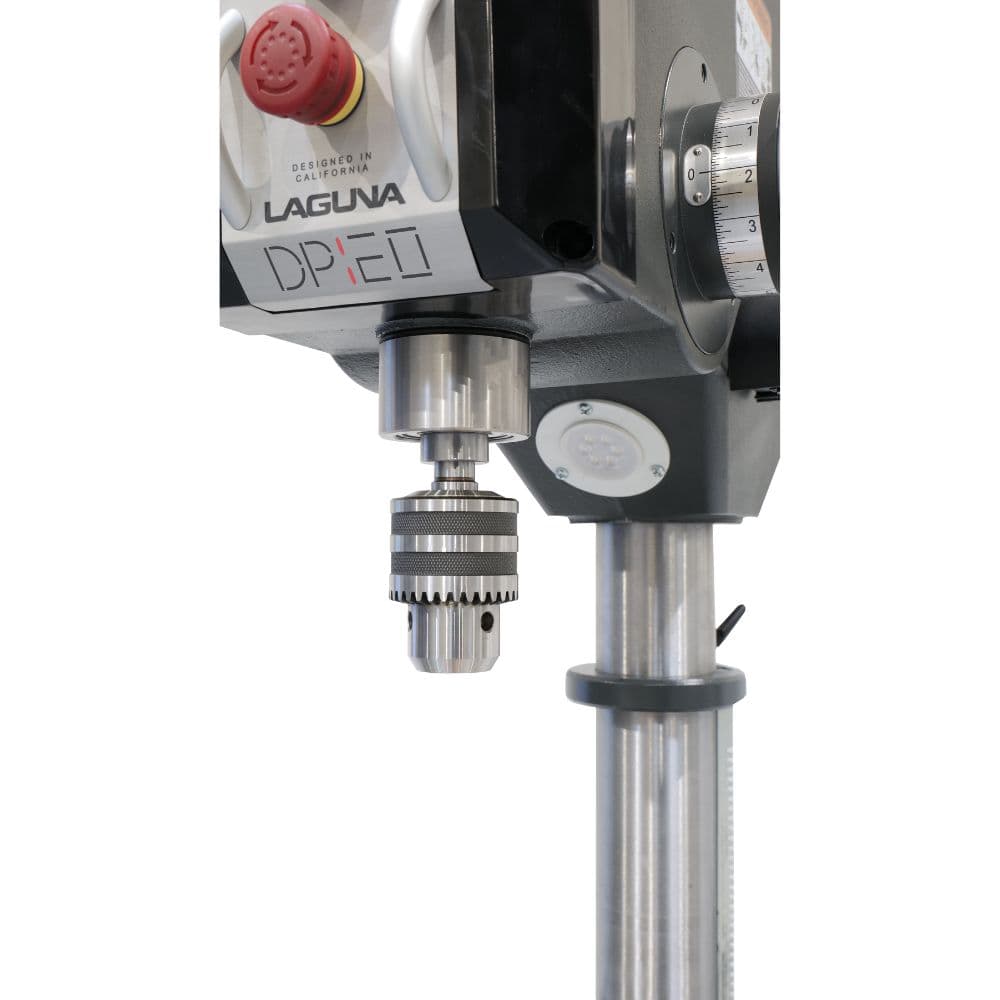

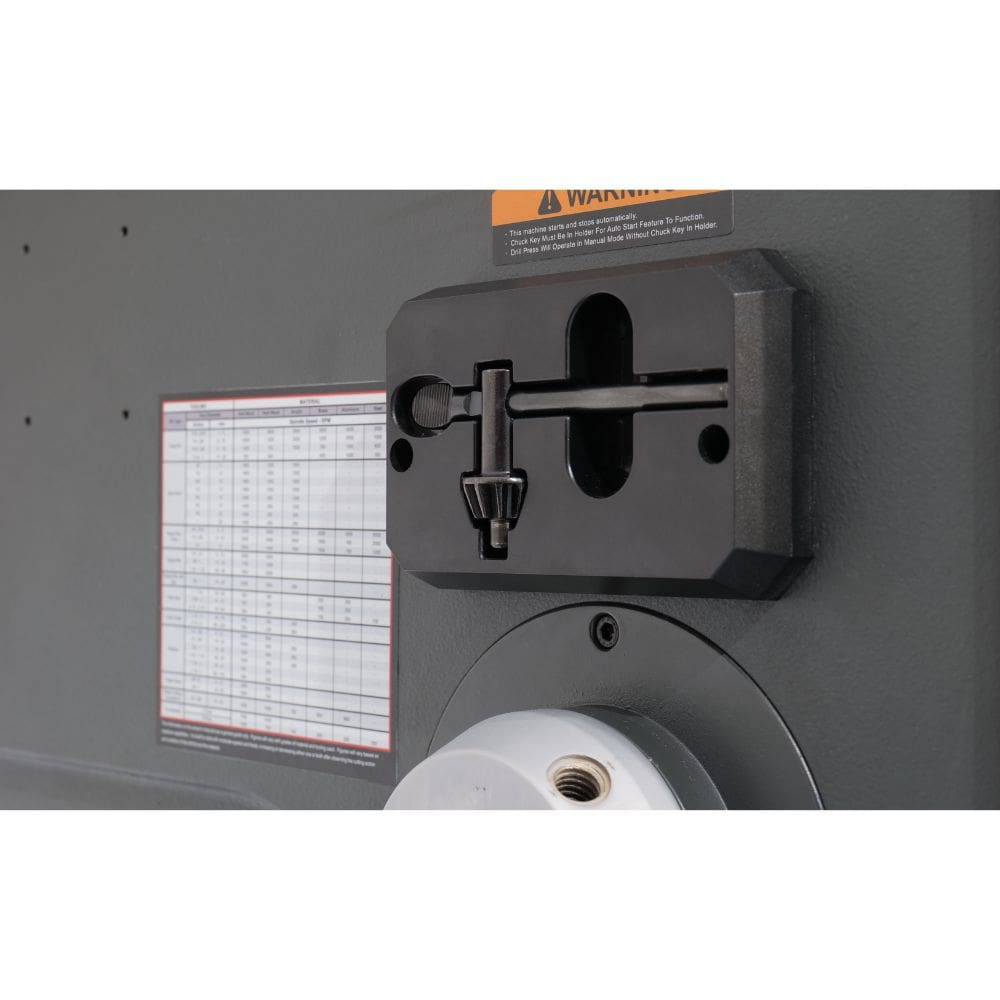

Chuck Key Holder for Added Safety
The built-in chuck key holder ensures that your chuck key is always accessible while keeping it safe and out of the way. With this feature, you’ll never have to search for your key again, and the chuck key safety lockout prevents the machine from starting while changing the chuck, adding an extra layer of protection.
Memory Settings for Customization
With five customizable memory settings, the DP:20 allows you to save and recall your most frequently used settings for different materials or projects. This saves you time when switching between tasks and ensures consistency in your results, no matter the material you're working with.
What's included? Laguna DP|20 Drill Press 20" Floor Model
- Laguna DP:20 Drill Press
- Touchscreen Smart Panel
- Built-in LED Work Light
- Quill Movement Handle
- Chuck Key Holder
- Heavy Duty Cast Iron Table
- Table Laser for Precision Alignment
- Power Cord
- User Manual
Specifications Laguna DP|20 Drill Press 20" Floor Model
-
Motor: 1.5 HP, DC Brushed, PWM
-
Voltage: 110-120V AC
-
Frequency: 60 Hz
-
Speed Range: 60 - 3600 RPM Forward/Reverse
-
Power Transfer: Poly-groove drive belt
-
Machine Control: LCD Touch Screen Smart Panel
-
Swing: 20”
-
Spindle Taper: MT2
-
Quill Travel: 6”
-
Chuck Capacity: 5/64” - 5/8”
-
Table Size: 15” x 22”
-
Table Movement: +90°/-90° Tilt, 360° Swivel
-
Spindle to Table: 30” Max
-
Spindle to Base: 49.5” Max
-
Base Size: 22.83” x 16.92”
-
Column Diameter: 3.15”
-
Overall Height: 72.25”
-
Weight: Net 304 lbs, Gross 326 lbs
-
Packing Dimensions: 72.5” x 28.5” x 20”
-
Memory Settings: 5 Customizable Presets
Product Manual & Assembly Laguna DP|20 Drill Press 20" Floor Model
To truly unlock the full potential of your Laguna DP:20 Drill Press, we highly recommend taking a moment to review the user manual. Inside, you’ll find essential tips and detailed instructions that will help you set up, operate, and maintain your drill press with ease.
Laguna DP|20 Drill Press 20" Floor Model Manual
