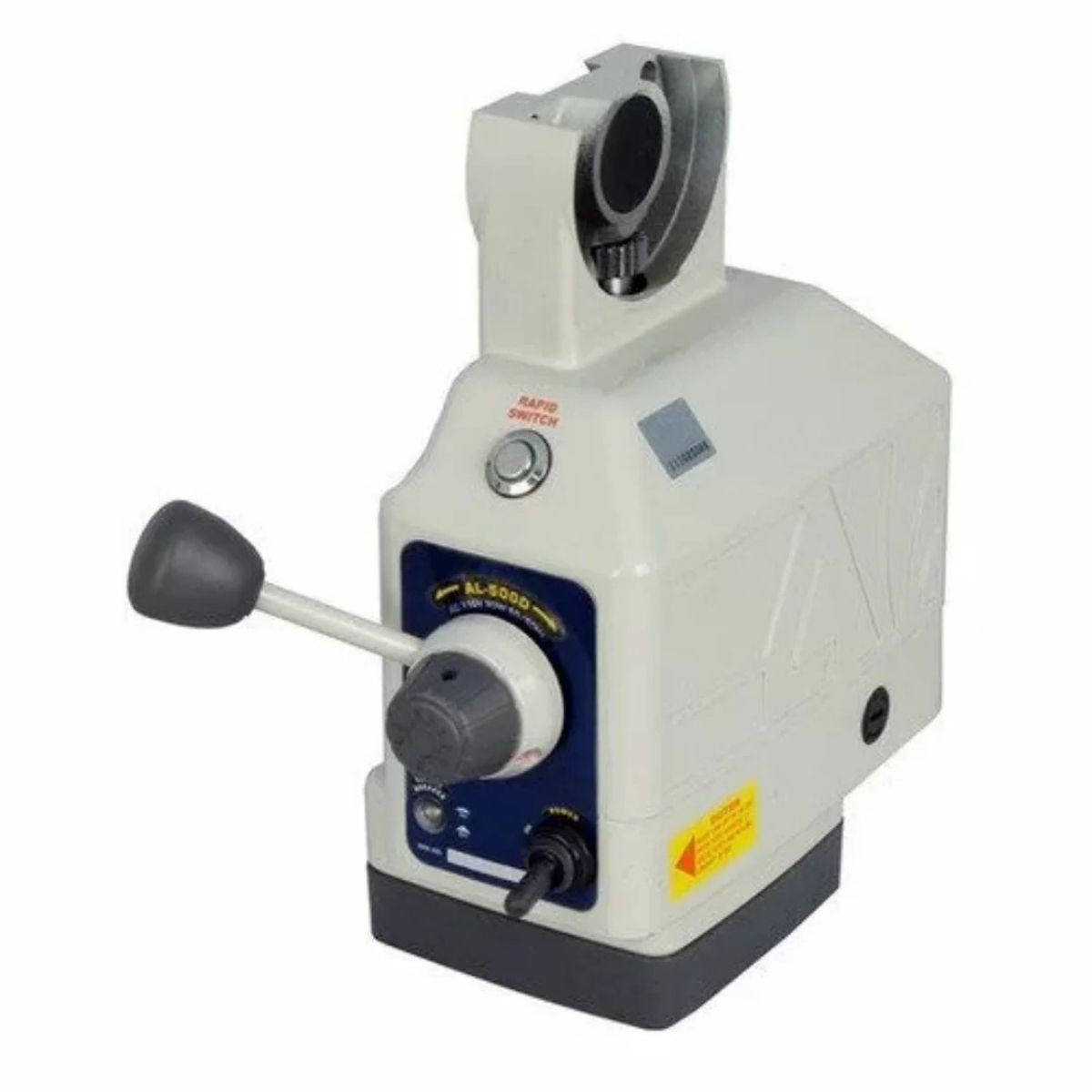

JET X-Axis Table Powerfeed for JMD Series Benchtop Milling Machines

JET X-Axis Table Powerfeed for JMD Series Benchtop Milling Machines

The JET X-Axis Table Powerfeed mounts to the JMD-18 mill drill and moves the table at a steady, adjustable rate so you can keep your attention on the cut.

The speed control knob lets you dial in the feed rate to match your material, and the direction handle gives you left and right table travel without leaving the machine.

The table comes predrilled and tapped for feeder mounting, and a built-in circuit breaker protects the unit from current overload.

• Speed control knob adjusts feed rate to match your cut
• Direction handle controls left and right table travel
• Built-in circuit breaker protects against current overload
• Table predrilled and tapped for feeder mounting in two locations
• Designed for the JET JMD-18 mill drill

Specs

JET X-Axis Table Powerfeed for JMD Series Benchtop Milling Machines Specifications

• Stock Number: JT9-350083
• Model Number: 350083
• Powerfeed Model: AL-500D
• Motor RPM: 0–270 RPM
• Max RPM: 270
• Drive Gear Rate: 2.8:1
• Max Torque: 560 in-lb
• Rated Voltage: 110V, 50/60Hz
• Rated Current: 1 Amp
• Table Dimensions: 13"L x 13"W x 14"H
• Net Weight: 13.0 lbs
• Gross Weight: 13.0 lbs
• Compatible Machine: JET JMD-18 Mill Drill
• Warranty: 90 Days
• Manual: AL/CE-500D Power Table Feed Operation Manual (S/N 350083)
