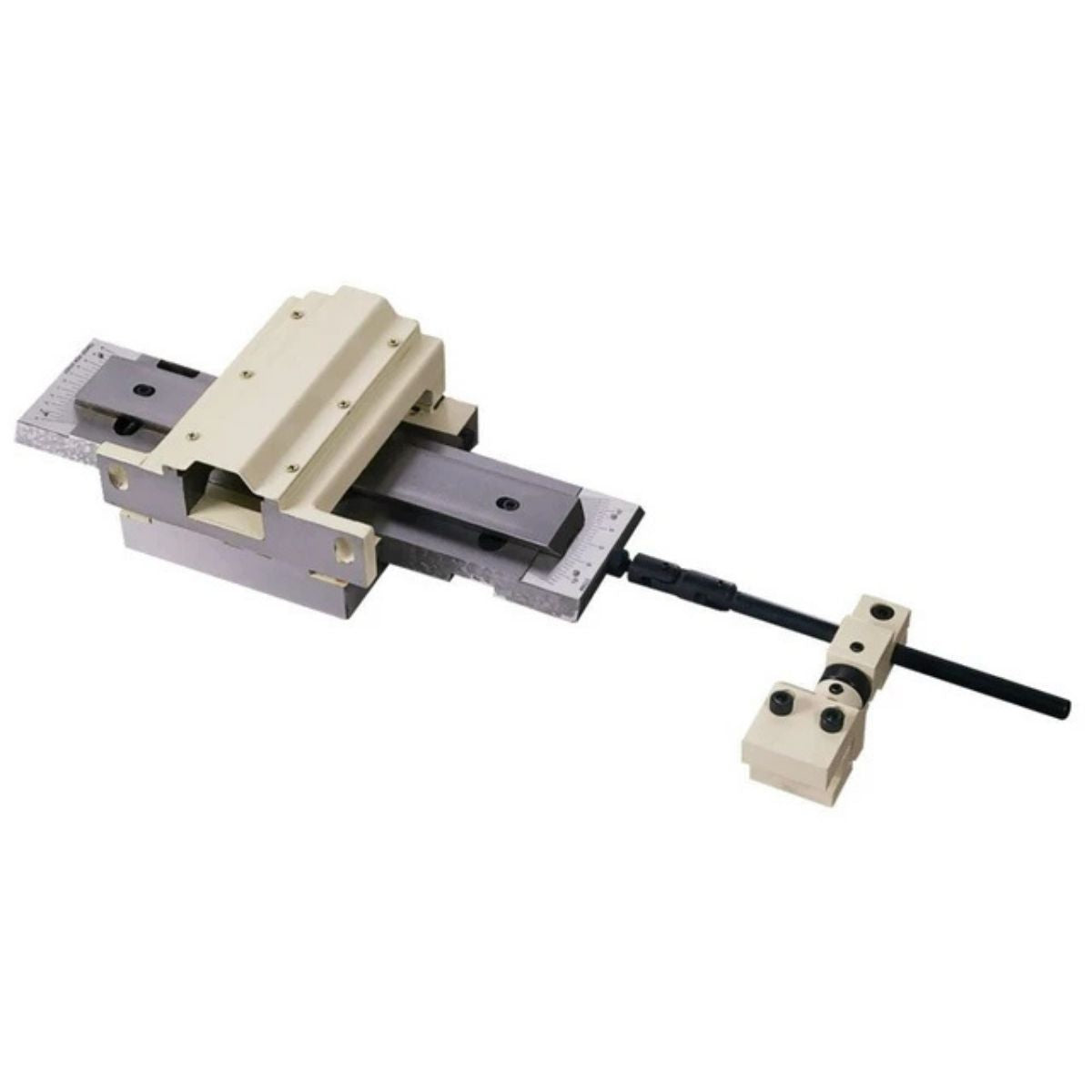

JET Taper Attachment for BDB and GHB Bench Lathes

JET Taper Attachment for BDB and GHB Bench Lathes

The JET taper attachment is built specifically for JET 13 x 40 BDB and GHB bench lathes. It mounts to predrilled and tapped holes on the lathe bed, so no drilling or modification is required. The attachment supports taper cuts up to 10 degrees inclusive, giving you a reliable way to machine consistent tapers without moving the tailstock.

• Cuts tapers up to 10 degrees inclusive
• Mounts to existing predrilled and tapped holes on compatible lathes
• Maximum taper length of 10 inches
• Built to OEM specifications for JET BDB and GHB bench lathes

Specs

JET Taper Attachment for BDB and GHB Bench Lathes Specifications

• Stock Number: JT9-321442
• Model Number: TAK-13GH/BD
• Maximum Taper Angle: 10° inclusive
• Maximum Taper Length: 10 inches
• Compatible Lathes: JET 13 x 40 BDB and GHB bench lathes
• Mounting: Predrilled and tapped holes
• Gross Weight: 38.3 lbs
• Net Weight: 38.3 lbs
• Warranty: 90 days
