JET SWG-272VS 2" × 72" Variable Speed Square Wheel Belt Grinder
Are you losing time chasing flat, consistent results on a grinder that was never built for that kind of work?
What if your grinder held a true flat surface across the full belt length so every pass came out level and square?
Meet the JET SWG-272VS 2" × 72" Variable Speed Square Wheel Belt Grinder, a bench grinder built around a flat platen and square front wheel designed to give you a long, controlled grinding surface.
With the SWG-272VS, a steel frame and cast iron head hold the machine rigid under load, while the variable speed inverter motor lets you dial in the right belt speed for the material in front of you.
When your grinder runs true and holds its setup, you spend less time correcting and more time finishing work you can stand behind.
JET SWG-272VS for Flat Grinding, Deburring, and Chamfering
Square Front Wheel Delivers a True, Flat Contact Point
Most belt grinders use a crowned contact wheel that produces a curved surface. The SWG-272VS uses a square front wheel that sits perpendicular to the work. This gives you a flat, defined contact point at the front of the machine and a long flat platen along the back, so you can grind flat stock, internal surfaces, and external profiles without fighting the geometry of the wheel.
Steel Frame and Cast Iron Head Hold Setup Under Load
The steel frame and cast iron head casting resist flex when the belt is pressed against the work. That rigidity keeps the platen angle consistent from the first pass to the last. You set your angle once and the machine holds it, whether you are deburring a single part or working through a batch.

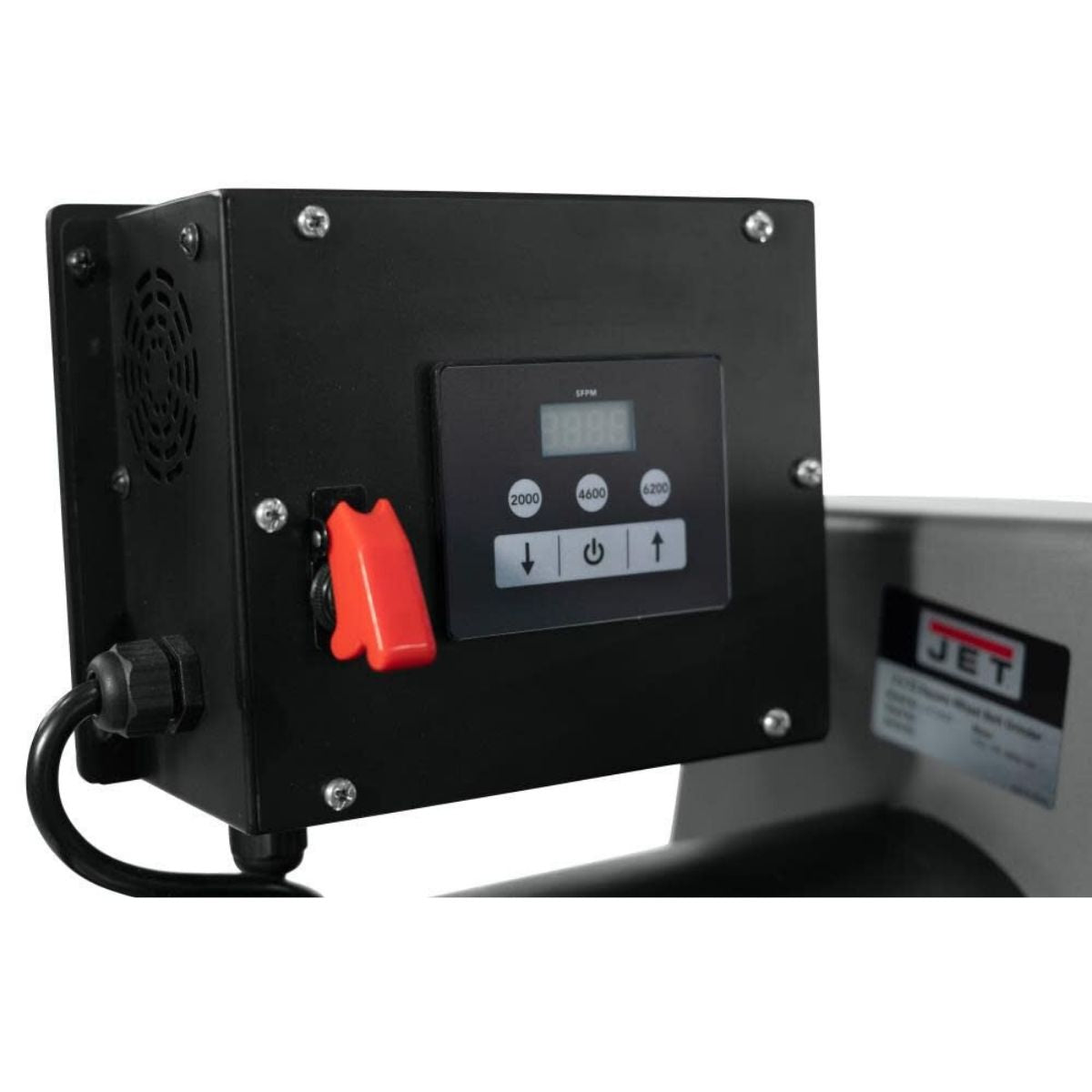

Variable Speed Inverter Motor Matches Belt Speed to the Job
The totally enclosed fan cooled inverter motor runs on 115 or 230 volts and gives you variable speed control across the belt. Slower speeds work well for heat-sensitive materials or fine finishing work. Higher speeds move through stock removal quickly. You adjust speed at the machine without changing belts or pulleys.

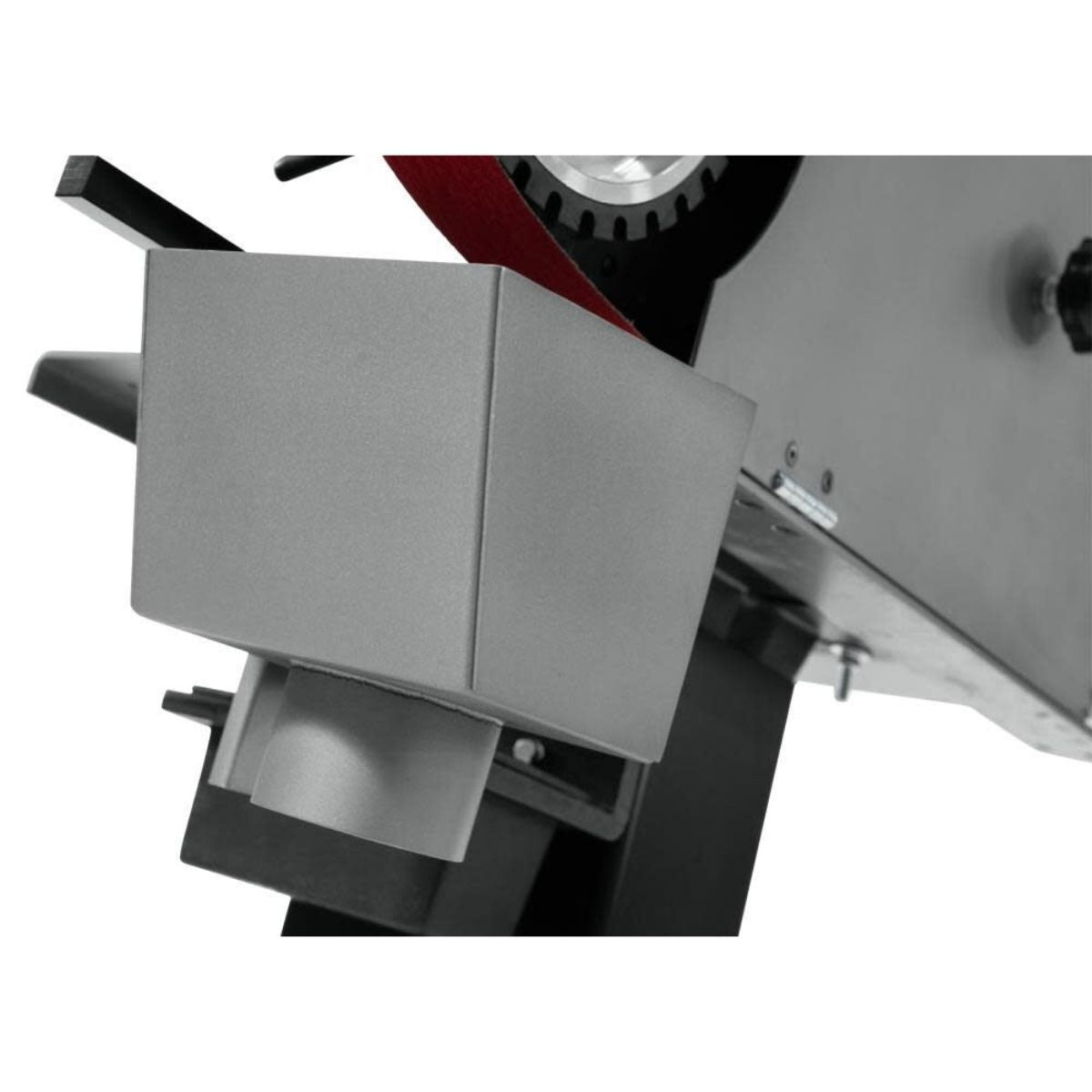

Adjustable Dust Port Clears Debris Away from the Work Area
The dust port is adjustable and connects to a standard dust collection system. It pulls grinding dust and sparks away from the operator and keeps the work area clear. A cleaner grinder is easier to see and safer to run, especially during longer deburring or chamfering sessions.
What's Included
What's Included? JET SWG-272VS 2" × 72" Variable Speed Square Wheel Belt Grinder
-
Grinder — the main machine unit with steel frame, cast iron head, and variable speed inverter motor.
-
Serrated contact wheel 8" × 2" (installed) — mounted at the drive end to provide aggressive stock removal and belt tracking control.
-
Abrasive belt (installed) — ready to run out of the box so you can begin work immediately.
-
1-1/2" × 2" smooth contact wheel — for fine finishing work and tighter radius profiles.
-
3" × 2" smooth contact wheel — a mid-size smooth wheel for versatile surface work and blending.
-
3" dust port — connects to standard shop dust collection to pull sparks and debris away from the operator.
-

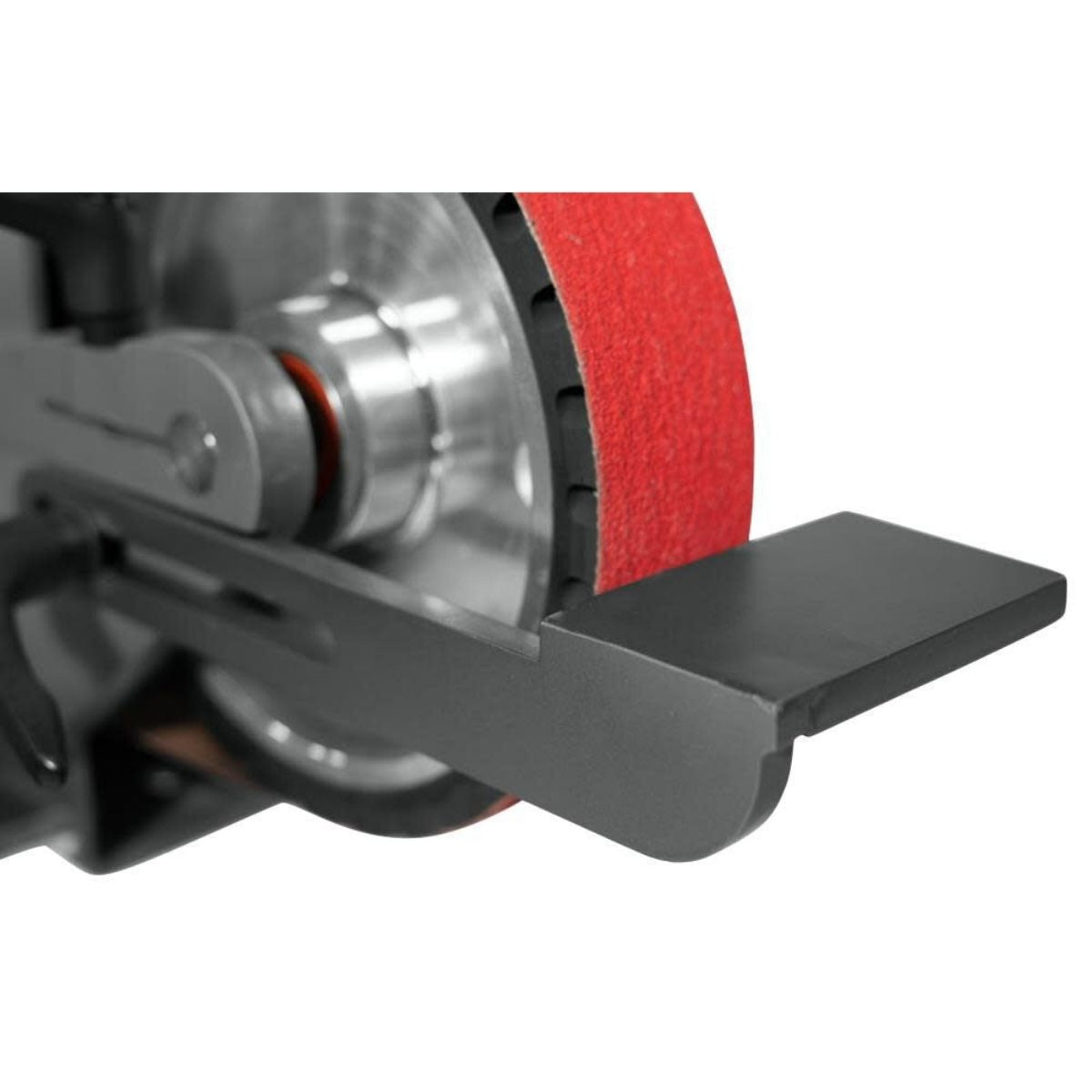

Cast work rest — provides a stable support surface for controlled, repeatable grinding passes.
Specs
JET SWG-272VS 2" × 72" Variable Speed Square Wheel Belt Grinder Specifications
-
Belt Size: 2" × 72"
-
Motor: 1 HP, totally enclosed fan cooled inverter motor
-
Amperage: 13A
-
Voltage: 115/230V
-
Variable Speed: Yes
-
Grinder Type: Bench
-
Switch Type: Toggle switch with safety cover; membrane switch inverter panel
-
Dust Collection: Yes — 3" adjustable dust port
-
Height: 21.84"
-
Weight: 131 lbs
-
MFG Part #: JT9-577405
-
Warranty: 2 Years Limited
-
Country of Origin: Taiwan
