JET SWG-272 2" × 72" Square Wheel Belt Grinder
Are your grinding results suffering from crowned wheels that make flat work impossible to control?
What if your bench grinder gave you a true flat platen surface so every pass came out level, consistent, and square?

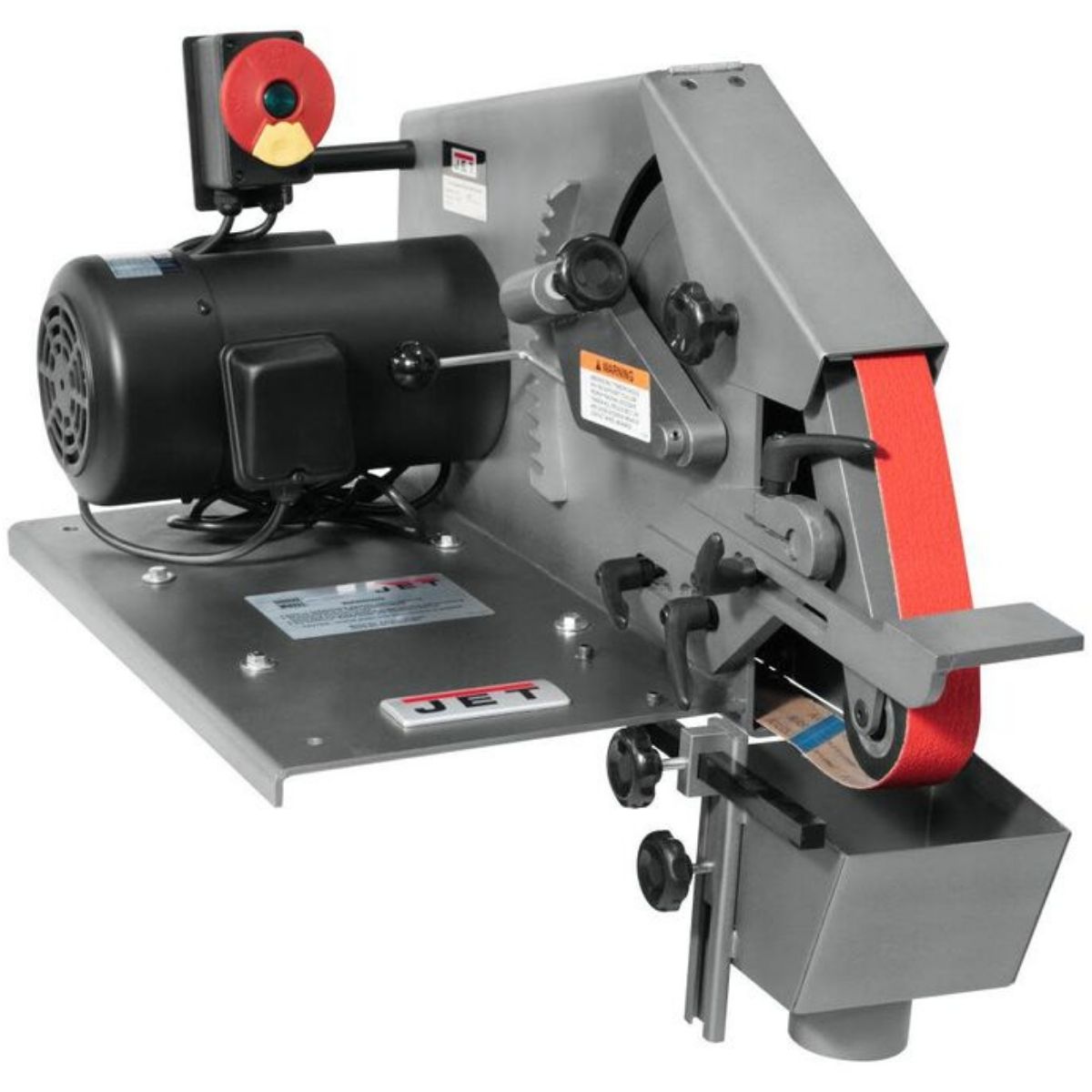

Meet the JET SWG-272 2" × 72" Square Wheel Belt Grinder, a bench-mounted belt grinder built around a flat platen design that delivers a long, true grinding surface for flat and angular stock work.
With the SWG-272, you get a machine built from a strong cast iron head casting and steel frame that holds its geometry under daily shop use.
When your grinder runs square to the work and holds that position, you can deburr, chamfer, and surface grind internal and external parts with results that stay consistent from piece to piece.
JET SWG-272 for Flat, Square, and Angular Grinding Work
Square Platen Design Keeps Grinding Surface True
The flat platen on the SWG-272 runs square to the workpiece rather than crowned. This gives you a long, flat grinding surface that supports consistent contact across the full length of the belt. Flat stock, angular work, and internal or external parts all register correctly against the platen without the distortion a crowned wheel introduces.
Cast Iron Head and Steel Frame Hold Machine Geometry

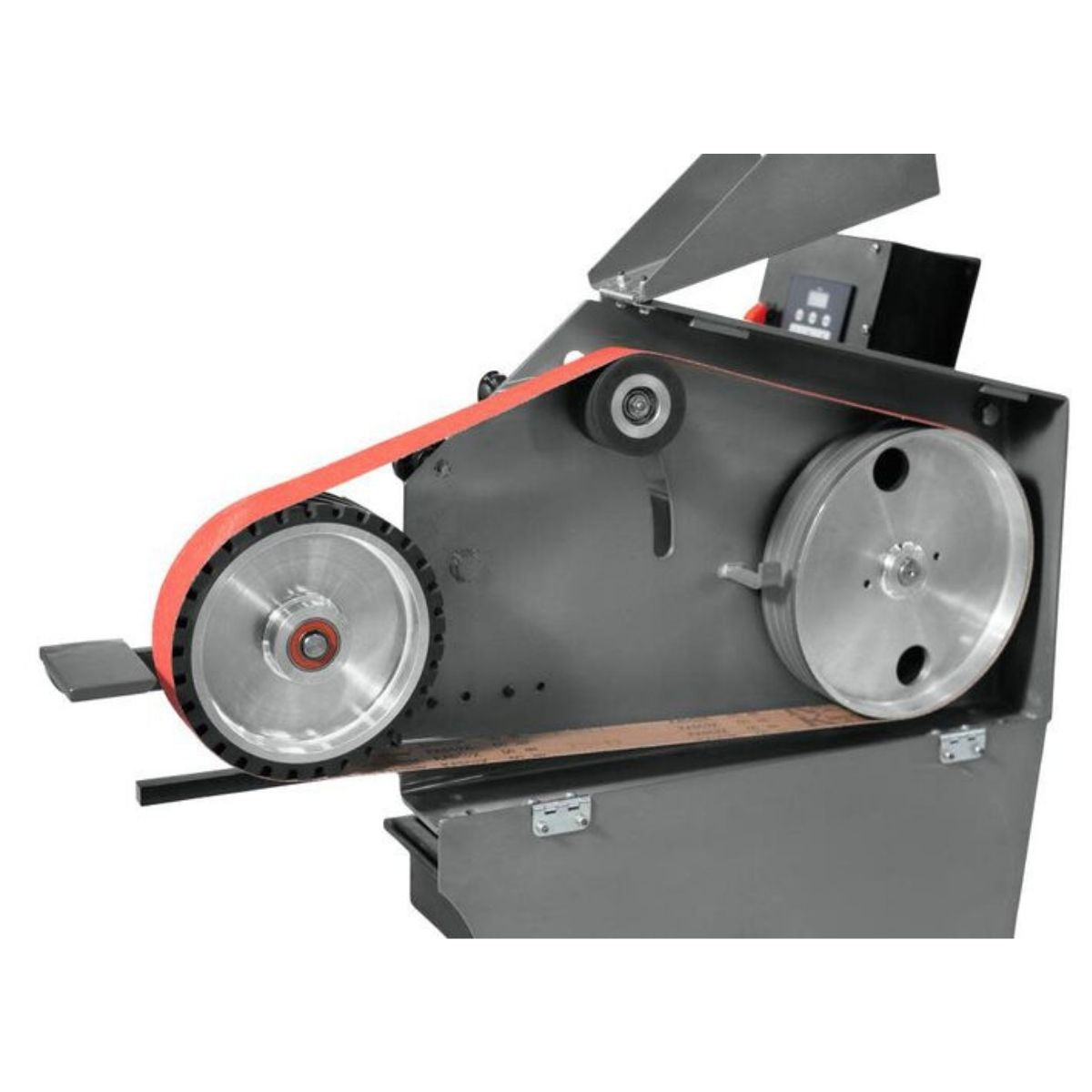

The head casting is strong cast iron and the frame is welded steel. This combination resists flex and keeps the platen and contact wheels in alignment under load. The aluminum drive wheel is cast for long service life and maintains consistent belt tracking session after session.
Multiple Contact Wheels Match the Work at Hand
The SWG-272 ships with three contact wheels: an 8" × 2" serrated wheel installed at the machine, a 1-1/2" × 2" smooth wheel, and a 3" × 2" smooth wheel. Each wheel serves a different surface and edge geometry. Swapping wheels lets you move between aggressive material removal and finer finishing work without changing machines.
Adjustable Dust Port Directs Sparks and Debris Away
An adjustable dust port connects to shop dust collection and routes sparks and grinding debris away from the operator. All grinding surfaces are fully guarded. The toggle switch includes a safety cover and a push-button power indicator with a safety key so the machine does not restart unexpectedly.
What's Included
What's Included? JET SWG-272 2" × 72" Square Wheel Belt Grinder
-
Belt Grinder Unit — The main machine with steel frame, cast iron head casting, and flat platen assembly ready for bench mounting.
-

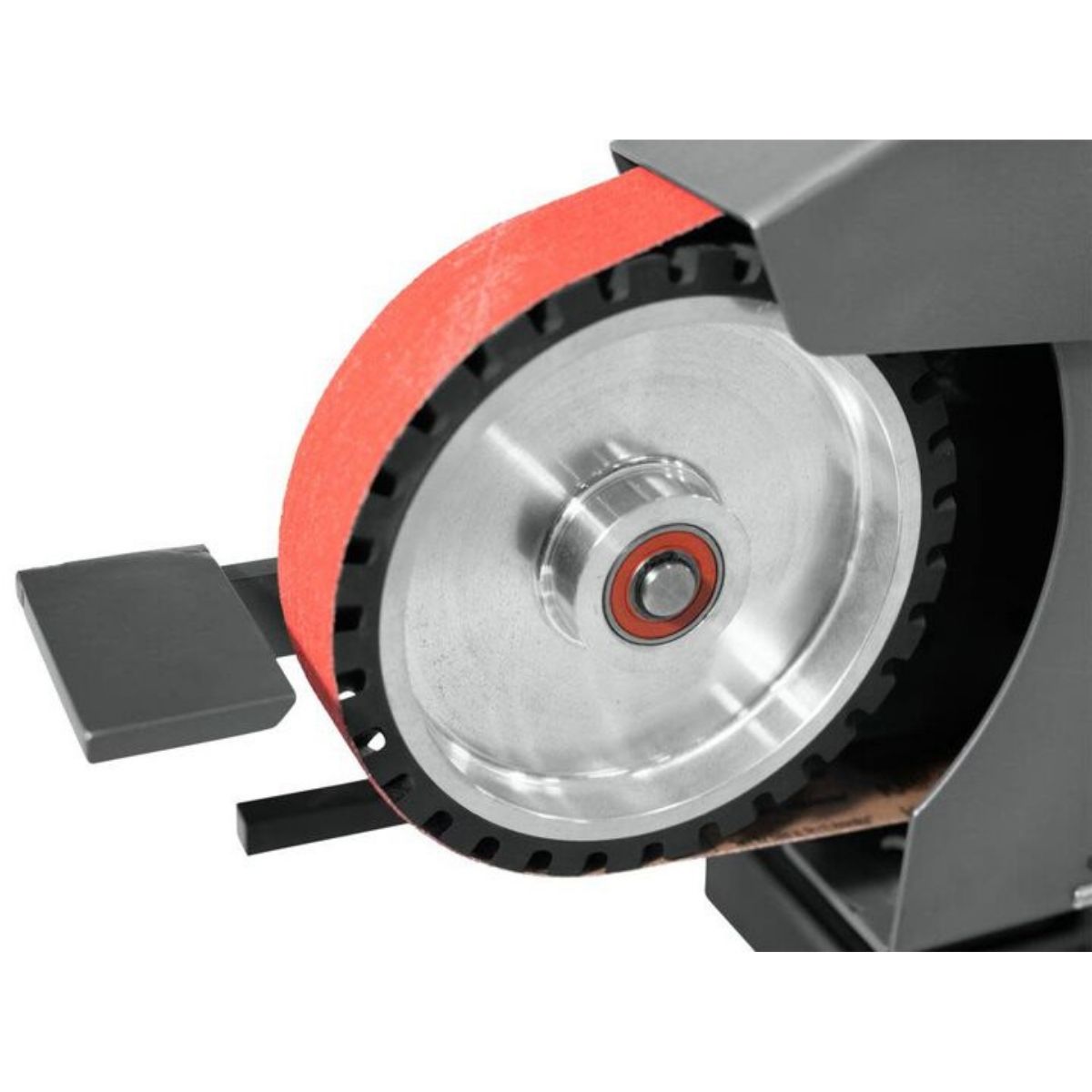

8" × 2" Serrated Contact Wheel (installed) — The primary contact wheel mounted at the machine for aggressive stock removal on flat and angular surfaces.
-
Abrasive Belt (installed) — A grinding belt installed and ready for immediate use out of the box.
-
1-1/2" × 2" Smooth Contact Wheel — A smaller smooth wheel for finer finishing work and tighter-radius edge work.
-
3" × 2" Smooth Contact Wheel — A mid-size smooth wheel suited to curved surfaces and contour grinding.
-
3" Dust Port — Connects to shop dust collection to route sparks and debris away from the operator during grinding.
-

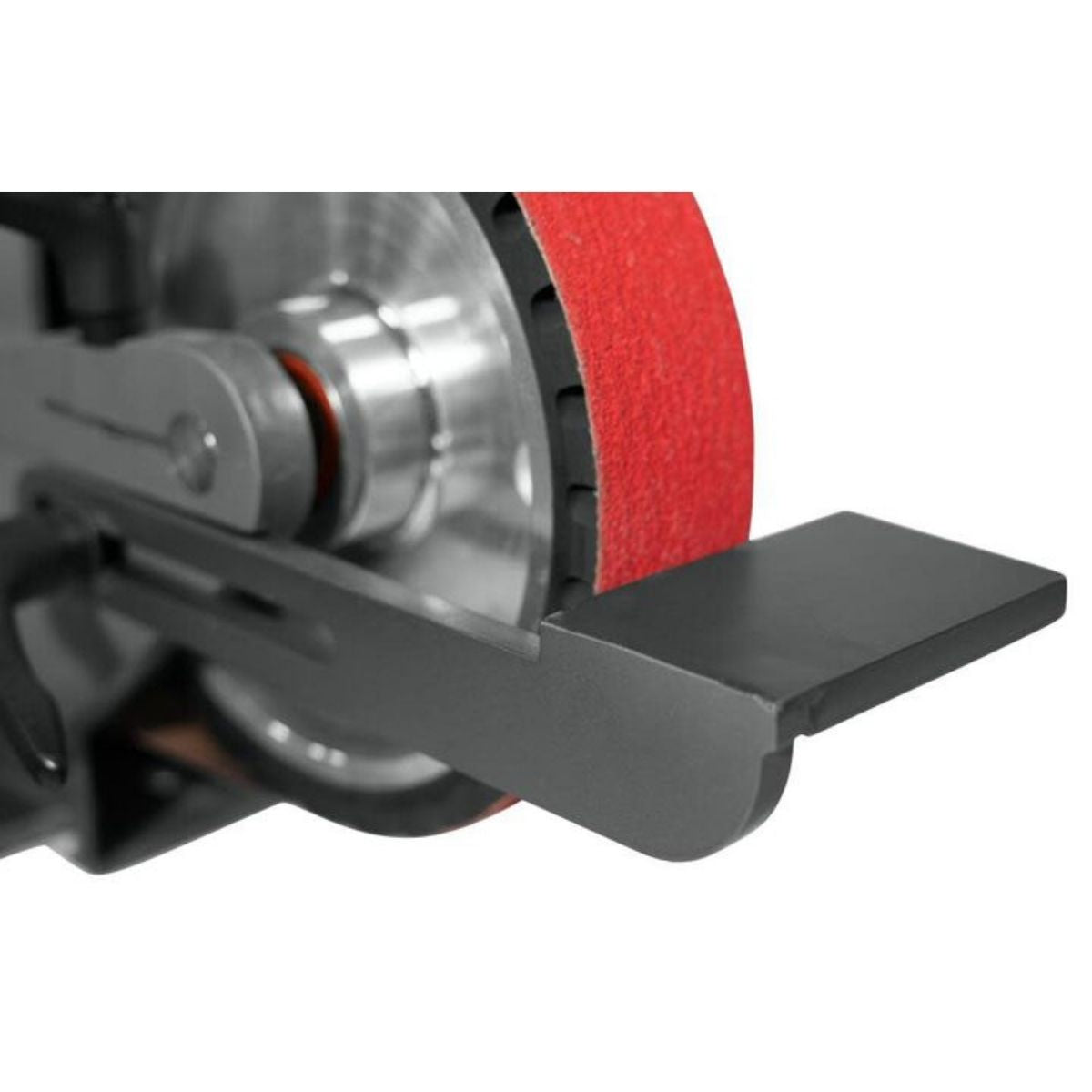

Cast Work Rest — A solid rest that supports the workpiece and maintains consistent contact angle against the belt.
Specs
JET SWG-272 2" × 72" Square Wheel Belt Grinder Specifications
-
Belt Size: 2" × 72"
-
Horsepower: 1 HP
-
Amperage: 11 A
-
Voltage: 115/230V
-
Grinder Type: Bench
-
Variable Speed: No
-
Spindle Lock: Yes
-
Dust Collection: Yes — adjustable 3" dust port
-

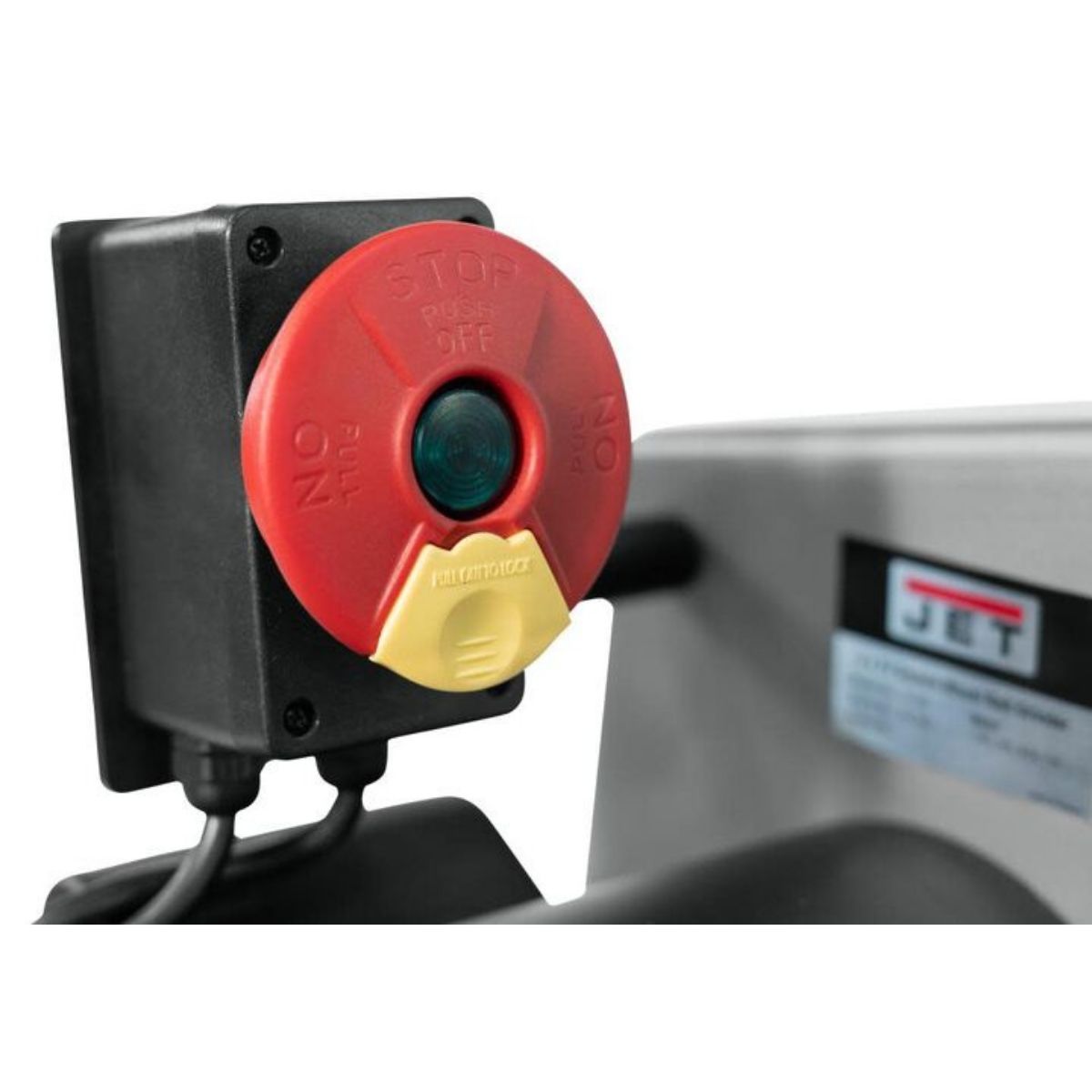

Switch Type: Push button with power indicator and safety key
-
Height: 21.25"
-
Belt Length: 72"
-
Weight: 126 lbs
-
Color: Gray
-
Country of Origin: Taiwan
-
MFG Part #: JT9-577400
-
Warranty: 2 Years Limited
