JET Milling Y-Axis Table Powerfeed

JET Milling Y-Axis Table Powerfeed

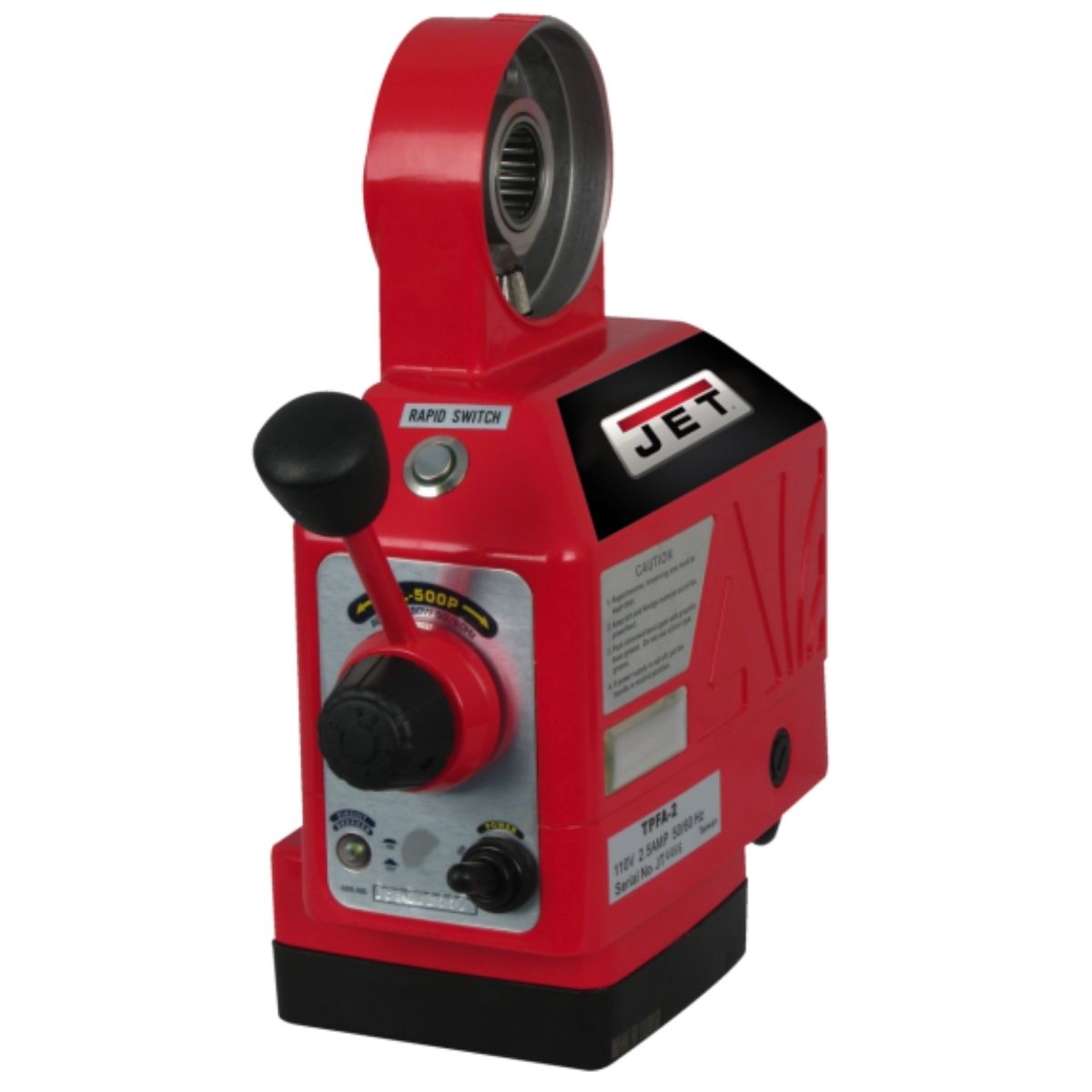

The JET Milling Y-Axis Table Powerfeed attaches to the Y-axis of your JET milling machine and drives table movement at a controlled, consistent rate. It takes over the manual feed so you can focus on the cut rather than the handle. The built-in clutch protects the machine if the table reaches an overload condition. Adjustable stops let you set automatic shutoff points for repeatable travel limits.

• Continuously variable feed rate up to 32 in./min
• Adjustable stops for automatic shutoff at set travel limits
• Built-in clutch protects against overload damage
• Rapid traverse button for quick table repositioning
• Factory installation available

Specs

JET Milling Y-Axis Table Powerfeed Specifications

• Stock Number: JT9-350195
• Model Number: TPFA-Y
• Feed Rate: Up to 32 in./min, continuously variable
• Unit Dimensions: 10.5"L x 6.9"W x 14.56"H
• Net Weight: 12.76 lbs
• Gross Weight: 14.3 lbs
• Warranty: 2 Year
