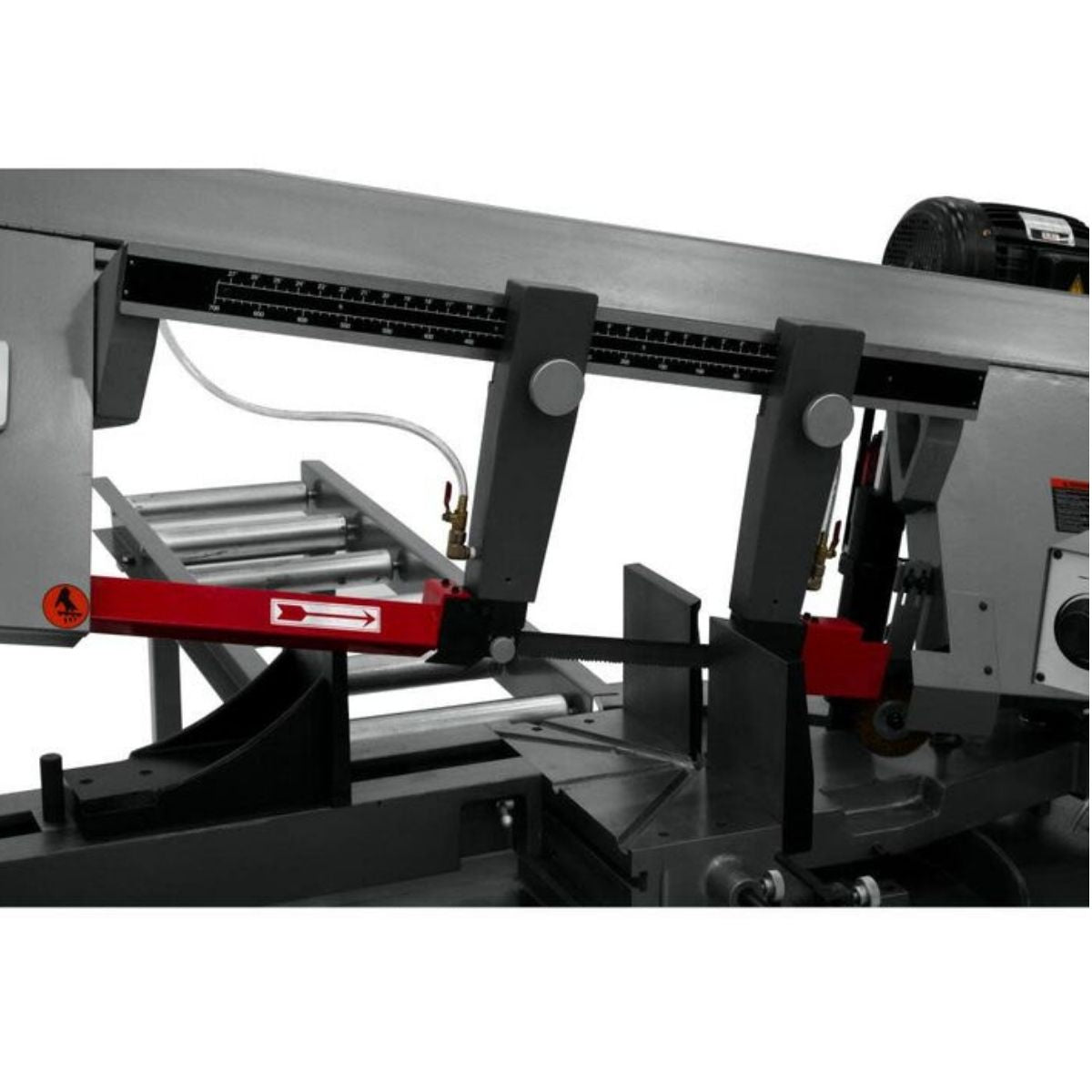

JET MBS-1323EVS-H 13" × 32" Dual Miter Metal Bandsaw
Are you losing time resetting your saw every time a job calls for a different miter angle?
What if your saw could swing both left and right without the extra setup steps that eat into your production day?

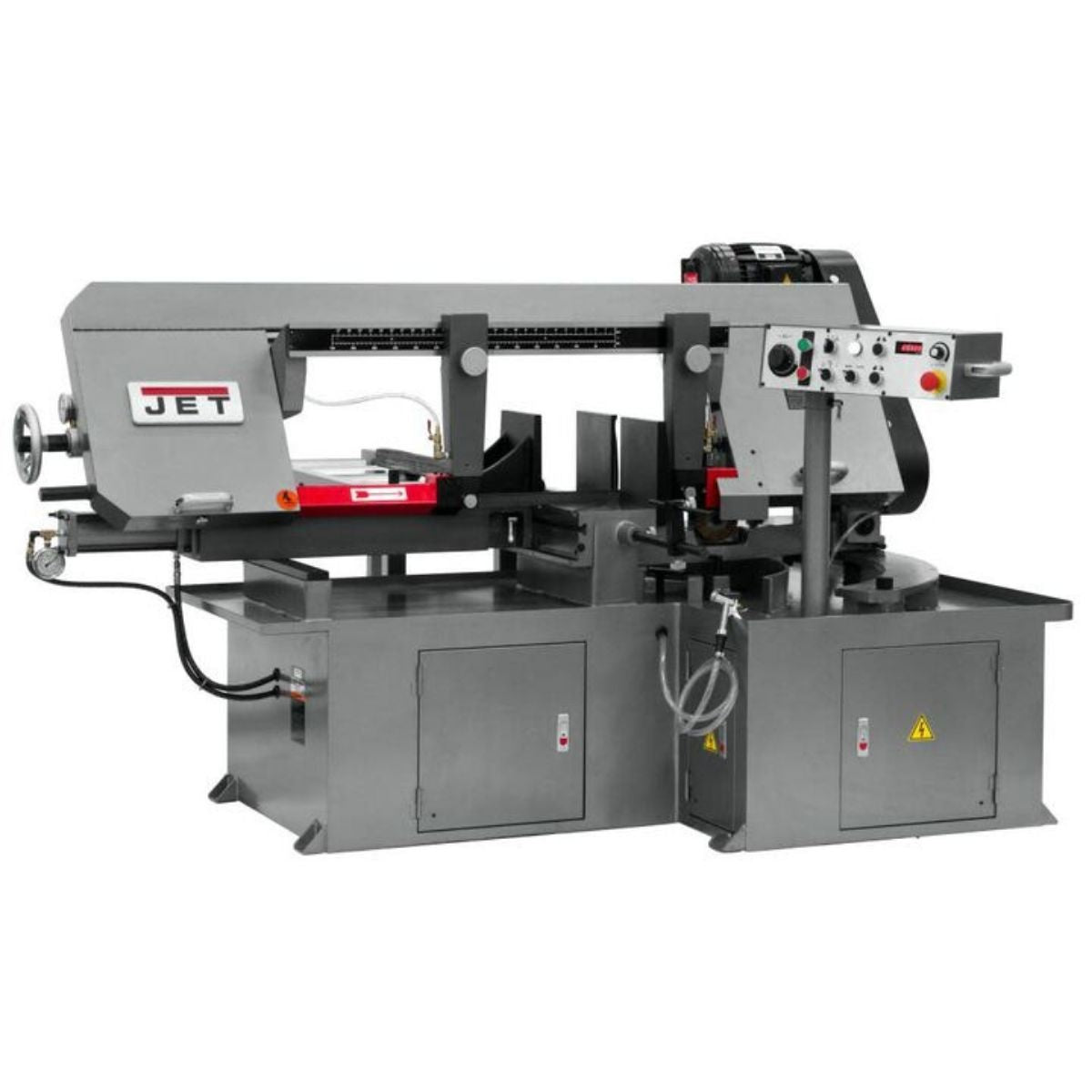

Meet the JET MBS-1323EVS-H 13" × 32" Dual Miter Metal Bandsaw, a semi-automatic horizontal metal cutting saw built for shops that cut angle work regularly and need consistent results across materials.
With the MBS-1323EVS-H, you get a frequency inverter drive that delivers full variable blade speed control, a hydraulic downfeed system, and automatic safety features that keep the machine working safely without constant operator attention.
When your cutting schedule demands reliable angle cuts, repeatable capacity, and a machine that handles the process end to end, the MBS-1323EVS-H is built to meet that standard.
JET MBS-1323EVS-H for Semi-Automatic Dual Miter Metal Cutting
Dual Mitering Head Cuts Left and Right Without Repositioning
The head on the MBS-1323EVS-H miters both left and right, so you can move between angle cuts without breaking down your setup. This is a direct production advantage when a job calls for multiple miter angles across a run of parts. You dial in the angle, clamp the material, and cut without rebuilding your workflow each time.

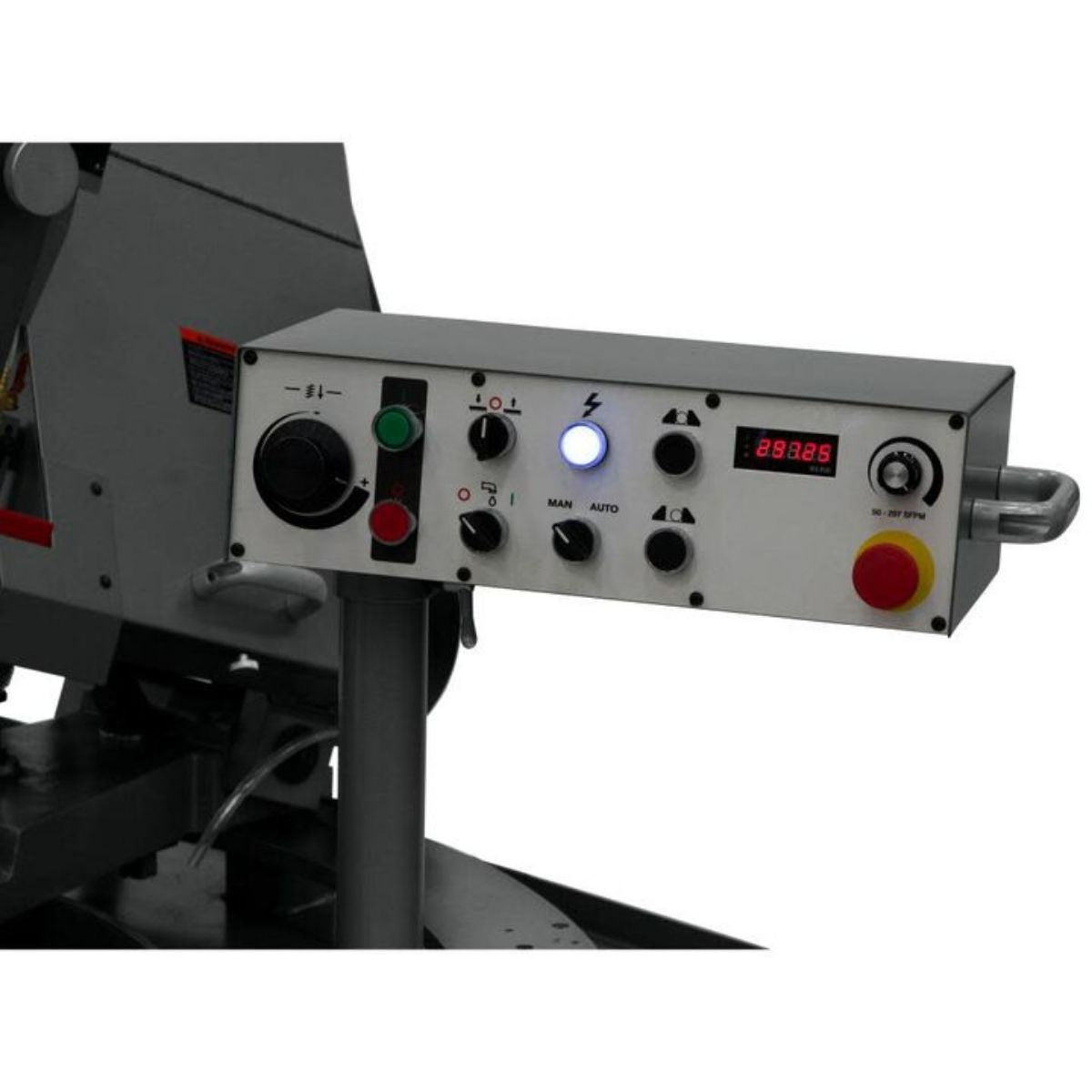

Frequency Inverter Drive Delivers Full Variable Blade Speed
The EVS frequency inverter gives you a full range of blade speeds across the machine's cutting envelope. You match the blade speed to the material rather than accepting a fixed speed that works for one stock type and compromises on others. This matters when your shop moves between different metals in a single shift.

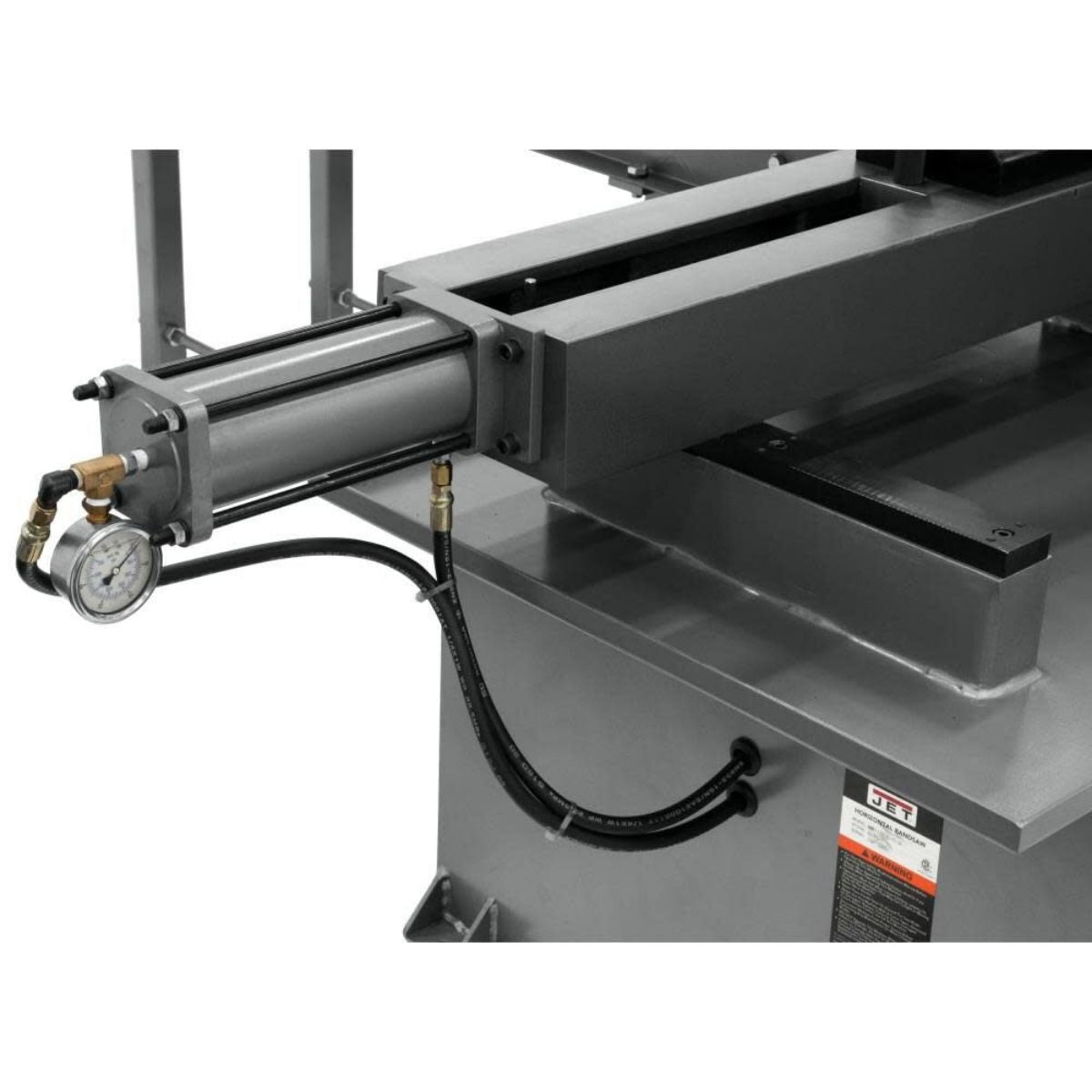

Hydraulic Downfeed and Vise Control the Cut from Start to Finish
The hydraulic downfeed lets you adjust feed rate to match the material you are cutting. The hydraulic vise clamps stock quickly and holds it securely through the cut. Together, these systems reduce operator intervention and keep each cut consistent. The semi-automatic bow raises to a preset height after the cut completes, so the machine is ready for the next piece without manual resetting.
Automatic Safety Systems Protect the Blade and the Operator

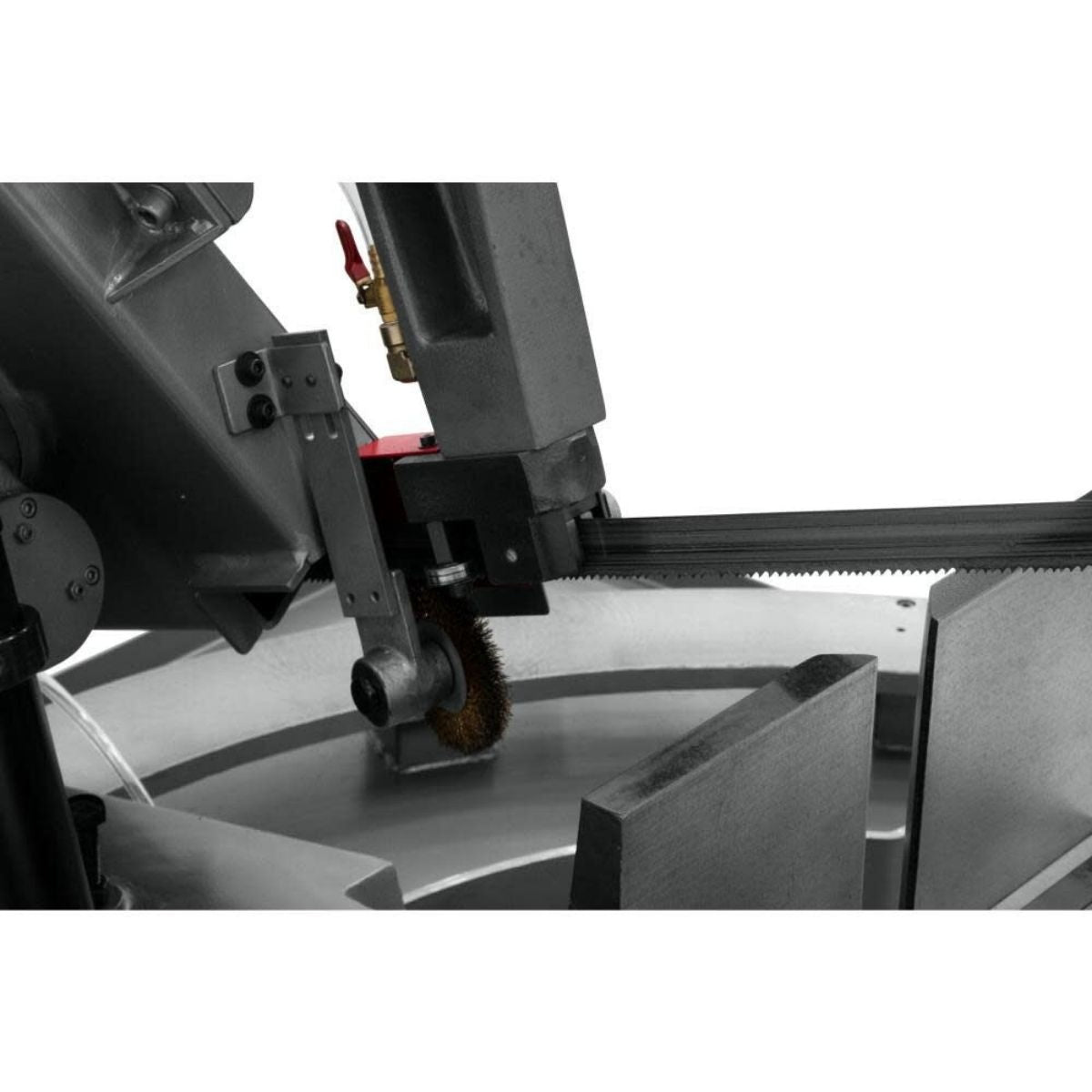

The saw includes an automatic blade breakage sensor that detects a break and cuts power immediately. A magnetic starter provides low voltage and lost phase protection. The blade is fully guarded throughout the cut. A built-in self-propelled blade brush clears chips from the blade guides continuously, keeping the guides clear without stopping the machine.
What's Included
What's Included? JET MBS-1323EVS-H 13" × 32" Dual Miter Metal Bandsaw
-
JET MBS-1323EVS-H Semi-Automatic Dual Miter Metal Bandsaw — the main machine unit configured for semi-automatic horizontal metal cutting with dual miter capability.
-
Adjustable Material Stop — positions stock for repeatable cut lengths without re-measuring each piece.
-

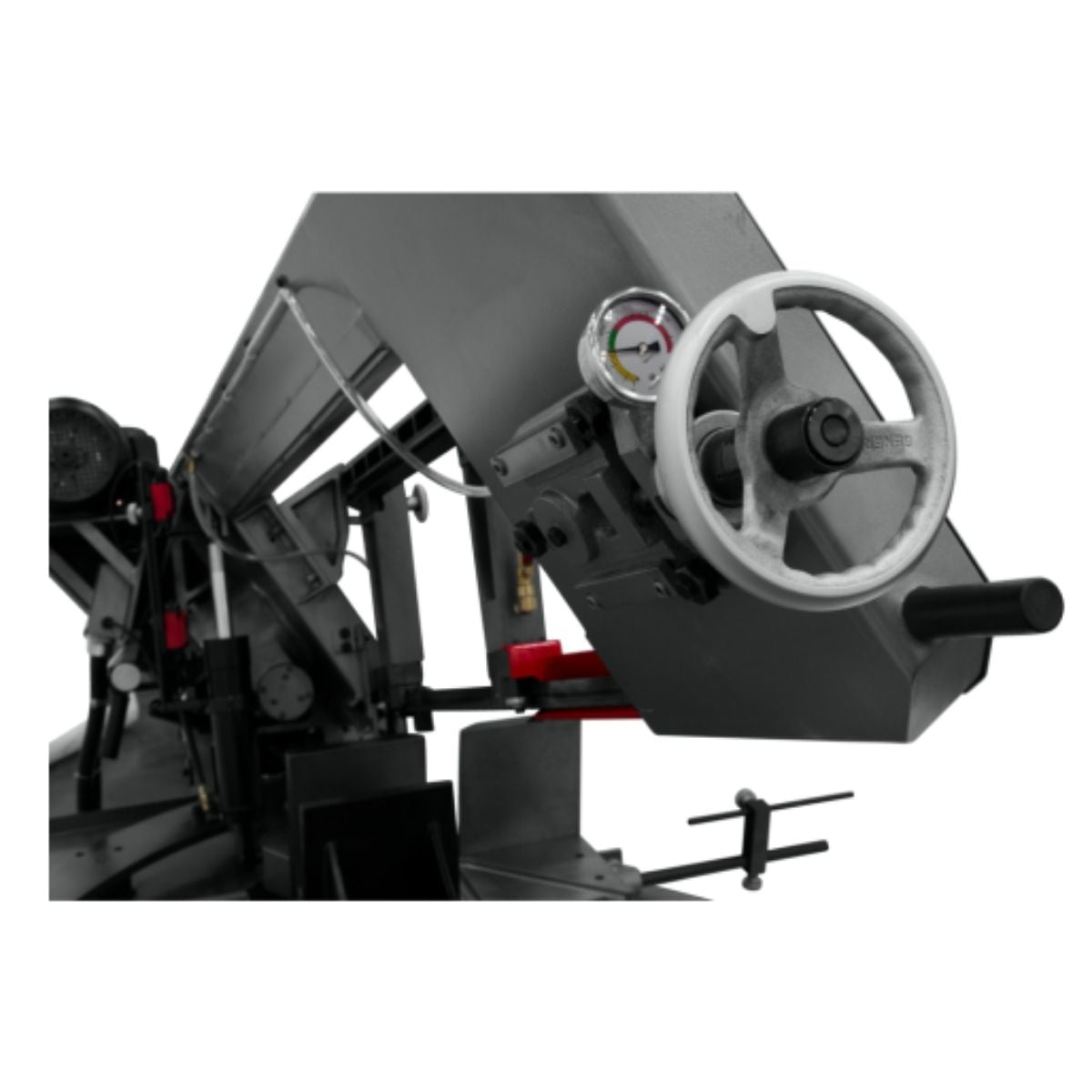

Blade Tension Gauge — confirms correct blade tension before cutting to maintain consistent cut quality.
-
Integrated Pressurized Wash Hose — cleans the machine down after use to maintain cutting accuracy and extend component life.
Specs
JET MBS-1323EVS-H 13" × 32" Dual Miter Metal Bandsaw Specifications
-
Model Number (230V): MBS-1323EVS-H — Stock Number JT9-413412
-
Model Number (460V): MBS-1323EVS-H-4 — Stock Number JT9-413415
-

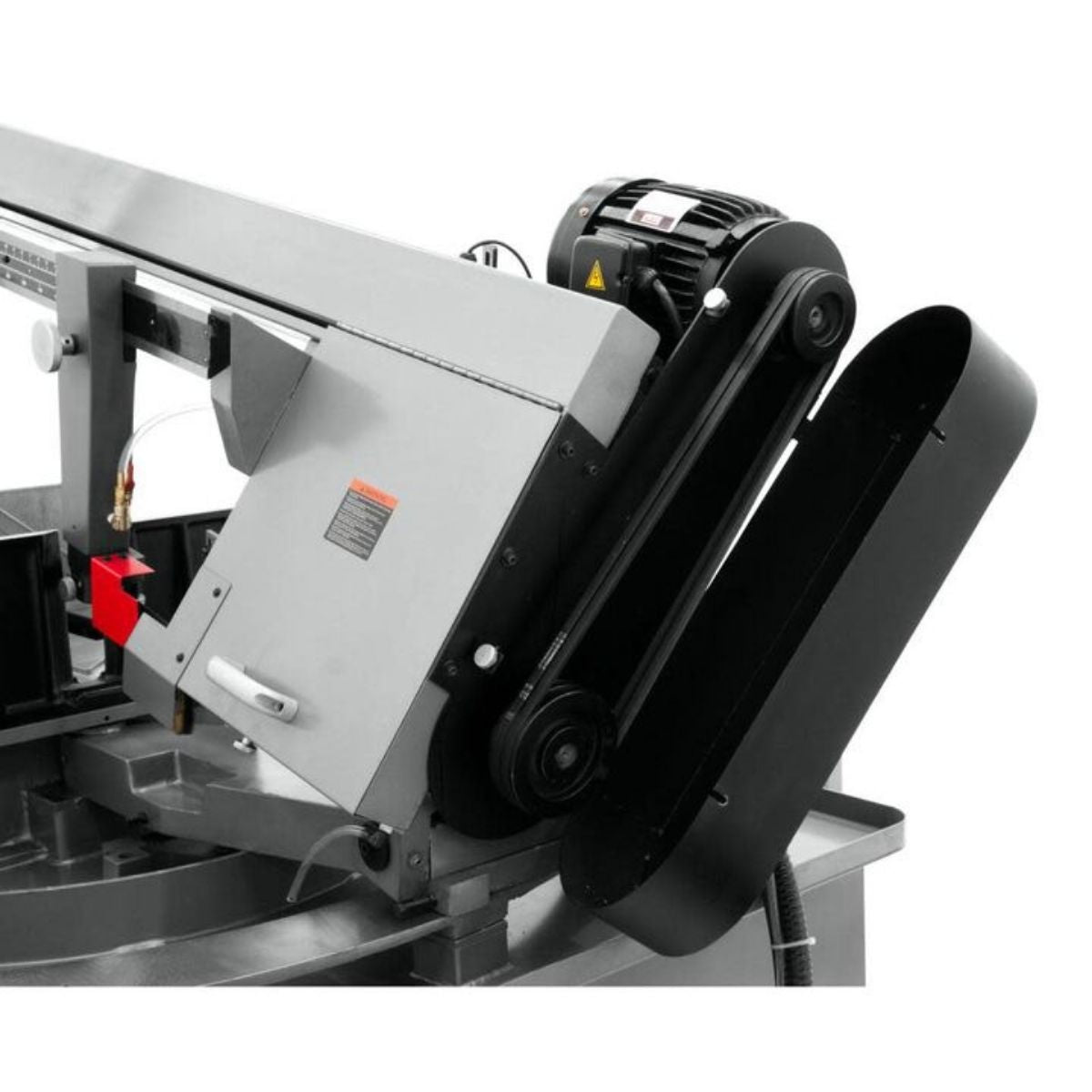

Motor: 3 HP, 3-Phase (230V or 460V)
-
Drive: EVS (Frequency Inverter)
-
Blade Wheel Diameter: 16 in.
-
Round Capacity at 90 Degrees: 13 in.
-
Round Capacity at 45 Degrees: 13 in.
-
Round Capacity at 60 Degrees: 11 in.
-
Rectangle Capacity at 90 Degrees: 12 × 23-1/2 in.
-
Bed Height: 27.75 in.
-
Overall Dimensions (L × W × H): 88 × 55 × 51 in.
-
Net Weight: 1,826 lb.
-
Gross Weight: 2,090 lb.
-
Warranty: 2 Year
-
Manual: Available via JET — refer to documentation included with machine.
